IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

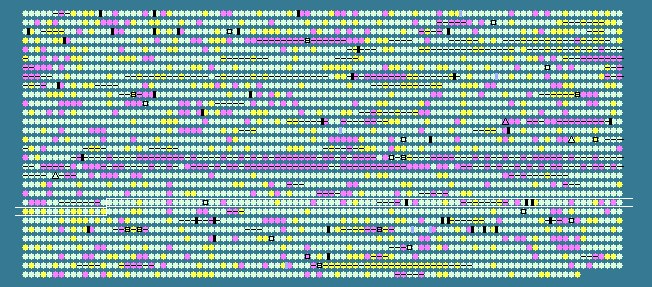

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2115	 53.70	0	2326919..2327998	-	359	19553397	-	NCgl2115	-	cytochrome C oxidase subunit II
2116	 55.23	0	2328517..2330439	+	640	19553398	-	NCgl2116	-	asparagine synthase
2117	 57.10	0	2330584..2330928	-	114	19553399	-	NCgl2117	-	hypothetical protein
2118	 52.93	0	2331171..2331971	+	266	19553400	-	NCgl2118	-	hypothetical protein
2119	 55.81	0	2331975..2332499	+	174	19553401	-	NCgl2119	-	adenosyl cobinamide kinase
2120	 58.12	0	2332528..2333604	+	358	19553402	cobT	NCgl2120	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2121	 55.84	0	2333616..2334539	+	307	19553403	cobS	NCgl2121	-	cobalamin synthase
2122	 53.15	0	2335026..2335787	-	253	19553404	-	NCgl2122	-	putative short-chain dehydrogenase
2123	 53.35	0	2335913..2337016	-	367	19553405	-	NCgl2123	-	branched-chain amino acid aminotransferase
2124	 55.89	0	2337236..2338738	+	500	23308909	-	NCgl2124	-	leucyl aminopeptidase
2125	 50.00	-1	2338746..2339141	-	131	19553407	-	NCgl2125	-	hypothetical protein
2126	 56.85	0	2339270..2341297	+	675	19553408	aceF	NCgl2126	-	dihydrolipoamide acetyltransferase
2127	 53.31	0	2341413..2342168	+	251	19553409	lipB	NCgl2127	-	lipoyltransferase
2128	 55.30	0	2342305..2343351	+	348	19553410	-	NCgl2128	-	lipoyl synthase
2129	 57.73	0	2343480..2344262	+	260	19553411	-	NCgl2129	-	hypothetical protein
2130	 56.23	0	2344432..2346051	+	539	19553412	-	NCgl2130	-	permease
2131	 52.70	0	2346287..2347897	-	536	19553413	-	NCgl2131	-	transposase
2132	 57.11	0	2348076..2348567	-	163	19553414	-	NCgl2132	-	hypothetical protein
2133	 57.46	0	2348830..2350263	+	477	19553415	-	NCgl2133	-	glutamine synthase
2134	 46.76	-1	2350406..2350621	-	71	19553416	-	NCgl2134	-	hypothetical protein
2135	 57.21	0	2350910..2351311	-	133	19553417	-	NCgl2135	-	hypothetical protein
2136	 54.19	0	2351308..2351844	-	178	19553418	-	NCgl2136	-	NTP pyrophosphohydrolase
2137	 54.79	0	2351924..2352832	+	302	19553419	-	NCgl2137	-	coenzyme F420-dependent N5,N10-methylene tetrahydromethanopterin reductase
2138	 53.03	0	2352834..2353229	+	131	19553420	-	NCgl2138	-	putative translation initiation inhibitor
2139	 56.15	0	2353598..2355043	-	481	19553421	-	NCgl2139	-	threonine synthase
2140	 54.34	0	2355184..2355402	+	72	19553422	-	NCgl2140	-	hypothetical protein
2141	 53.70	0	2355522..2356847	+	441	23308910	-	NCgl2141	-	major facilitator superfamily permease
2142	 53.54	0	2356864..2357358	+	164	19553424	-	NCgl2142	-	hypothetical protein
2143	 58.39	+1	2357265..2357711	+	148	23308911	-	NCgl2143	-	hypothetical protein
2144	 56.13	0	2357727..2358134	+	135	19553426	-	NCgl2144	-	hypothetical protein
2145	 53.62	0	2358151..2358633	-	160	19553427	-	NCgl2145	-	hypothetical protein
2146	 52.31	0	2358770..2359417	-	215	19553428	-	NCgl2146	-	hypothetical protein
2147	 52.01	0	2359612..2362749	-	1045	19553429	-	NCgl2147	-	glutamine synthetase adenylyltransferase
2148	 53.02	0	2362816..2364156	-	446	19553430	-	NCgl2148	-	glutamine synthase
2149	 50.59	0	2364353..2365459	+	368	19553431	-	NCgl2149	-	hypothetical protein
2150	 54.43	0	2365588..2367417	+	609	23308912	-	NCgl2150	-	hypothetical protein
2151	 51.37	0	2367471..2367653	-	60	19553433	-	NCgl2151	-	hypothetical protein
2152	 56.87	0	2367792..2369087	+	431	19553434	-	NCgl2152	-	galactokinase
2153	 54.62	0	2369114..2370541	-	475	19553435	-	NCgl2153	-	exoribonuclease
2154	 49.49	-1	2370424..2370912	+	162	23308913	-	NCgl2154	-	hypothetical protein
2155	 54.40	0	2371410..2372558	-	382	19553436	-	NCgl2155	-	bifunctional RNase H/acid phosphatase
2156	 58.89	+1	2372571..2373290	-	239	19553437	-	NCgl2156	-	Zn-ribbon protein
2157	 56.87	0	2373321..2374463	-	380	19553438	-	NCgl2157	-	hypothetical protein
2158	 52.36	0	2374545..2375201	+	218	19553439	-	NCgl2158	-	phosphatase
2159	 56.54	0	2375215..2375688	+	157	19553440	-	NCgl2159	-	protein-tyrosine-phosphatase
2160	 55.80	0	2375768..2376724	+	318	23308914	-	NCgl2160	-	hypothetical protein
2161	 55.56	0	2376996..2377391	-	131	23308915	-	NCgl2161	-	hypothetical protein
2162	 55.28	0	2377482..2377727	-	81	23308916	-	NCgl2162	-	hypothetical protein
2163	 50.68	0	2377768..2378280	+	170	19553442	-	NCgl2163	-	transcriptional regulator
2164	 51.57	0	2378335..2378493	+	52	19553443	-	NCgl2164	-	hypothetical protein
2165	 54.40	0	2378882..2379313	-	143	19553444	-	NCgl2165	-	hypothetical protein
2166	 40.52	-2	2379427..2379774	+	115	23308917	-	NCgl2166	-	hypothetical protein
2167	 56.09	0	2379980..2382748	+	922	19553445	aceE	NCgl2167	-	pyruvate dehydrogenase subunit E1
2168	 54.29	0	2382825..2383616	-	263	19553446	-	NCgl2168	-	ABC-type transporter, ATPase component
2169	 56.34	0	2383620..2384510	-	296	19553447	-	NCgl2169	-	ABC-type transporter, permease component
2170	 54.08	0	2384507..2385499	-	330	19553448	-	NCgl2170	-	hypothetical protein
2171	 61.35	+1	2385911..2386192	-	93	19553449	-	NCgl2171	-	hypothetical protein
2172	 51.20	0	2386210..2386584	+	124	19553450	-	NCgl2172	-	hypothetical protein
2173	 56.15	0	2386612..2387628	-	338	23308918	-	NCgl2173	-	hydrolase/acyltransferase
2174	 48.30	-1	2387668..2387961	+	97	19553452	-	NCgl2174	-	acyl carrier protein
2175	 53.50	0	2387998..2388825	+	275	19553453	-	NCgl2175	-	HAD family sugar phosphatase
2176	 58.55	+1	2388839..2389873	+	344	19553454	-	NCgl2176	-	hypothetical protein
2177	 54.08	0	2390432..2390860	-	142	19553455	-	NCgl2177	-	hypothetical protein
2178	 53.86	0	2391182..2392009	-	275	23308919	-	NCgl2178	-	beta-lactamase class C
2179	 55.12	0	2392073..2392531	-	152	19553457	-	NCgl2179	-	hypothetical protein
2180	 58.51	+1	2392577..2393140	-	187	19553458	-	NCgl2180	-	hypothetical protein
2181	 43.62	-2	2393165..2393407	+	80	19553459	-	NCgl2181	-	hypothetical protein
2182	 51.28	0	2393429..2393974	+	181	19553460	-	NCgl2182	-	hypothetical protein
2183	 50.58	0	2393971..2394399	-	142	19553461	-	NCgl2183	-	hypothetical protein
2184	 53.33	0	2394595..2394939	+	114	19553462	-	NCgl2184	-	hypothetical protein
2185	 57.58	0	2395217..2396767	+	516	19553463	-	NCgl2185	-	phosphodiesterase/alkaline phosphatase D
2186	 58.13	0	2397265..2399103	+	612	19553464	-	NCgl2186	-	hypothetical protein
2187	 55.56	0	2399159..2399401	+	80	19553465	-	NCgl2187	-	hypothetical protein
2188	 54.78	0	2399403..2401304	-	633	19553466	dnaG	NCgl2188	-	DNA primase
2189	 52.26	0	2401374..2401838	+	154	19553467	-	NCgl2189	-	hypothetical protein
2190	 53.66	0	2401839..2402084	+	81	19553468	-	NCgl2190	-	hypothetical protein
2191	 53.58	0	2402142..2404013	-	623	23308920	-	NCgl2191	-	D-fructose-6-phosphate amidotransferase
2192	 44.04	-2	2404524..2404850	+	108	19553470	-	NCgl2192	-	hypothetical protein
2193	 54.35	0	2404985..2406259	-	424	19553471	-	NCgl2193	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
2194	 52.95	0	2406260..2406937	-	225	23308921	-	NCgl2194	-	hypothetical protein
2195	 57.03	0	2406979..2409033	+	684	19553473	-	NCgl2195	-	chromosome segregation ATPase
2196	 58.49	+1	2409777..2410265	-	162	19553474	-	NCgl2196	-	hypothetical protein
2197	 47.01	-1	2410278..2410862	-	194	19553475	-	NCgl2197	-	hypothetical protein
2198	 54.11	0	2410954..2412339	-	461	19553476	-	NCgl2198	-	glycyl-tRNA synthetase
2199	 49.46	-1	2412581..2412952	+	123	19553477	-	NCgl2199	-	transcriptional regulator
2200	 53.33	0	2412993..2413427	+	144	19553478	-	NCgl2200	-	Fe2+/Zn2+ uptake regulation protein
2201	 58.30	+1	2413569..2415122	+	517	19553479	-	NCgl2201	-	hypothetical protein
2202	 62.85	+2	2415296..2416369	-	357	19553480	-	NCgl2202	-	hypothetical protein
2203	 55.46	0	2416369..2417100	-	243	19553481	-	NCgl2203	-	undecaprenyl pyrophosphate synthase
2204	 58.71	+1	2417220..2417948	-	242	19553482	recO	NCgl2204	-	DNA repair protein RecO
2205	 57.73	0	2417967..2418884	-	305	19553483	era	NCgl2205	-	GTP-binding protein Era
2206	 55.63	0	2418988..2420310	-	440	19553484	-	NCgl2206	-	CBS domain-containing protein
2207	 58.88	+1	2420311..2420901	-	196	19553485	-	NCgl2207	-	putative metalloprotease
2208	 56.03	0	2420898..2421950	-	350	23308922	-	NCgl2208	-	phosphate starvation-inducible protein PhoH
2209	 60.33	+1	2421973..2422698	-	241	19553487	-	NCgl2209	-	hypothetical protein
2210	 58.31	+1	2422698..2423846	-	382	19553488	-	NCgl2210	-	molecular chaperone
2211	 57.21	0	2423913..2424938	-	341	23308923	hrcA	NCgl2211	-	heat-inducible transcription repressor
2212	 58.97	+1	2424963..2426105	-	380	161486712	-	NCgl2212	-	coproporphyrinogen III oxidase
2213	 52.83	0	2426191..2426703	+	170	19553491	-	NCgl2213	-	hypothetical protein
2214	 59.77	+1	2426774..2427454	-	226	19553492	-	NCgl2214	-	hypothetical protein
54.31	MEAN

3.83	STD DEV
