IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

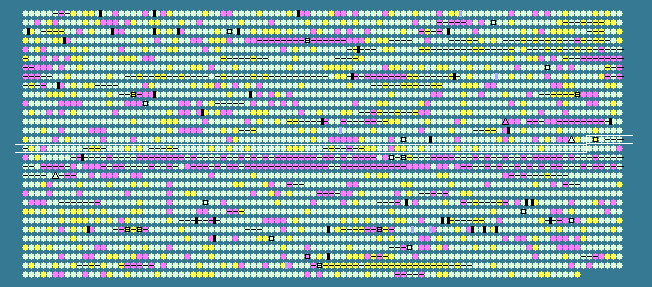

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1495	 55.17	0	1644315..1645514	-	399	19552769	-	NCgl1495	-	hypothetical protein
1496	 59.35	+1	1645661..1646371	+	236	19552770	-	NCgl1496	-	transposase
1497	 51.70	0	1646549..1647136	+	195	19552771	-	NCgl1497	-	hypothetical protein
1498	 54.59	0	1647209..1647622	-	137	19552772	-	NCgl1498	-	putative aromatic ring hydroxylating enzyme
1499	 57.11	0	1647648..1648097	-	149	19552773	-	NCgl1499	-	NifU-like protein
1500	 54.82	0	1648097..1649362	-	421	19552774	-	NCgl1500	-	selenocysteine lyase
1501	 56.39	0	1649364..1650122	-	252	19552775	-	NCgl1501	-	ABC-type transporter, ATPase component
1502	 58.35	+1	1650246..1651424	-	392	19552776	-	NCgl1502	-	iron-regulated ABC-type transporter SufB
1503	 54.98	0	1651430..1652875	-	481	19552777	-	NCgl1503	-	iron-regulated ABC-type transporter SufB
1504	 50.51	0	1652891..1653577	-	228	19552778	-	NCgl1504	-	transcriptional regulator
1505	 56.83	0	1653998..1655674	+	558	19552779	-	NCgl1505	-	hypothetical protein
1506	 54.35	0	1655681..1656703	+	340	19552780	-	NCgl1506	-	ABC-type transporter, ATPase component
1507	 55.14	0	1656712..1657518	+	268	19552781	-	NCgl1507	-	ABC-type transporter, permease component
1508	 53.89	0	1657638..1658678	+	346	19552782	-	NCgl1508	-	cytochrome oxidase assembly protein
1509	 56.51	0	1658788..1661139	+	783	19552783	-	NCgl1509	-	putative helicase
1510	 56.84	0	1661569..1662555	+	328	19552784	-	NCgl1510	-	NADPH:quinone reductase
1511	 55.66	0	1662627..1663598	-	323	19552785	-	NCgl1511	-	protoheme IX farnesyltransferase
1512	 58.49	+1	1664403..1666505	+	700	19552786	-	NCgl1512	-	transketolase
1513	 58.17	+1	1666673..1667755	+	360	19552787	-	NCgl1513	-	transaldolase
1514	 55.28	0	1667860..1669404	+	514	19552788	-	NCgl1514	-	glucose-6-phosphate 1-dehydrogenase
1515	 56.04	0	1669419..1670378	+	319	19552789	-	NCgl1515	-	hypothetical protein
1516	 54.80	0	1670395..1671102	+	235	19552790	-	NCgl1516	-	6-phosphogluconolactonase
1517	 53.43	0	1671270..1671677	-	135	19552791	-	NCgl1517	-	hypothetical protein
1518	 60.20	+1	1671750..1673126	+	458	19552792	-	NCgl1518	-	hypothetical protein
1519	 55.16	0	1673263..1674105	-	280	19552793	-	NCgl1519	-	glycine/D-amino acid oxidase
1520	 58.83	+1	1674120..1675268	-	382	19552794	-	NCgl1520	-	ornithine cyclodeaminase
1521	 55.41	0	1675265..1676623	-	452	19552795	-	NCgl1521	-	ammonia permease
1522	 52.14	0	1677046..1677279	-	77	19552796	secG	NCgl1522	-	preprotein translocase subunit SecG
1523	 56.96	0	1677384..1680143	-	919	19552797	-	NCgl1523	-	phosphoenolpyruvate carboxylase
1524	 57.56	0	1680329..1681108	-	259	19552798	tpiA	NCgl1524	-	triosephosphate isomerase
1525	 57.80	0	1681187..1682404	-	405	19552799	pgk	NCgl1525	-	phosphoglycerate kinase
1526	 56.82	0	1682621..1683625	-	334	19552800	-	NCgl1526	-	glyceraldehyde-3-phosphate dehydrogenase
1527	 52.03	0	1684114..1685097	-	327	19552801	-	NCgl1527	-	hypothetical protein
1528	 55.26	0	1685107..1686132	-	341	19552802	-	NCgl1528	-	hypothetical protein
1529	 52.58	0	1686149..1687078	-	309	19552803	-	NCgl1529	-	hypothetical protein
1530	 56.58	0	1687100..1689190	-	696	19552804	uvrC	NCgl1530	-	excinuclease ABC subunit C
1531	 55.84	0	1689198..1689779	-	193	19552805	-	NCgl1531	-	hypothetical protein
1532	 57.92	0	1689866..1690345	-	159	19552806	ribH	NCgl1532	-	riboflavin synthase subunit beta
1533	 56.82	0	1690357..1691625	-	422	19552807	-	NCgl1533	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1534	 54.09	0	1691636..1692271	-	211	19552808	-	NCgl1534	-	riboflavin synthase subunit alpha
1535	 58.66	+1	1692272..1693258	-	328	19552809	-	NCgl1535	-	pyrimidine reductase
1536	 55.61	0	1693259..1693918	-	219	19552810	-	NCgl1536	-	ribulose-phosphate 3-epimerase
1537	 57.75	0	1693964..1695298	-	444	23308856	-	NCgl1537	-	tRNA and rRNA cytosine-C5-methylase
1538	 58.97	+1	1695496..1696443	-	315	19552812	fmt	NCgl1538	-	methionyl-tRNA formyltransferase
1539	 53.92	0	1696463..1696972	-	169	19552813	def	NCgl1539	-	peptide deformylase
1540	 57.18	0	1697081..1699147	-	688	19552814	-	NCgl1540	-	primosome assembly protein PriA
1541	 56.05	0	1699174..1700397	-	407	19552815	-	NCgl1541	-	S-adenosylmethionine synthetase
1542	 57.01	0	1700505..1701767	-	420	19552816	-	NCgl1542	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1543	 54.86	0	1702029..1702316	-	95	19552817	-	NCgl1543	-	DNA-directed RNA polymerase subunit omega
1544	 52.54	0	1702408..1703037	-	209	23308857	gmk	NCgl1544	-	guanylate kinase
1545	 57.94	0	1702988..1703308	-	106	19552819	-	NCgl1545	-	hypothetical protein
1546	 58.54	+1	1703514..1704350	-	278	19552820	pyrF	NCgl1546	-	orotidine 5'-phosphate decarboxylase
1547	 58.20	+1	1704356..1707697	-	1113	19552821	carB	NCgl1547	-	carbamoyl phosphate synthase large subunit
1548	 57.45	0	1707703..1708884	-	393	19552822	-	NCgl1548	-	carbamoyl phosphate synthase small subunit
1549	 57.66	0	1709014..1710357	-	447	19552823	pyrC	NCgl1549	-	dihydroorotase
1550	 57.61	0	1710410..1711348	-	312	19552824	pyrB	NCgl1550	-	aspartate carbamoyltransferase catalytic subunit
1551	 53.89	0	1711349..1711927	-	192	19552825	-	NCgl1551	-	pyrimidine regulatory protein PyrR
1552	 57.84	0	1712596..1713762	+	388	23308858	-	NCgl1552	-	SulA family nucleoside-diphosphate sugar epimerase
1553	 55.00	0	1713830..1714309	+	159	19552827	-	NCgl1553	-	hypothetical protein
1554	 54.84	0	1714299..1714763	+	154	19552828	-	NCgl1554	-	hypothetical protein
1555	 49.77	-1	1714741..1714953	+	70	23308859	-	NCgl1555	-	hypothetical protein
1556	 55.41	0	1715379..1716062	-	227	19552830	nusB	NCgl1556	-	transcription antitermination protein NusB
1557	 57.98	0	1716129..1716692	-	187	19552831	-	NCgl1557	-	elongation factor P
1558	 58.52	+1	1716777..1717868	-	363	19552832	-	NCgl1558	-	Xaa-Pro aminopeptidase
1559	 58.47	+1	1717935..1719032	-	365	19552833	aroB	NCgl1559	-	3-dehydroquinate synthase
1560	 57.77	0	1719104..1719676	-	190	19552834	aroK	NCgl1560	-	shikimate kinase
1561	 56.61	0	1719666..1720898	-	410	19552835	-	NCgl1561	-	chorismate synthase
1562	 49.52	-1	1720968..1721381	-	137	19552836	-	NCgl1562	-	signal peptidase
1563	 61.44	+1	1721420..1721725	-	101	19552837	-	NCgl1563	-	transcriptional regulator
1564	 58.31	+1	1721780..1722856	+	358	19552838	-	NCgl1564	-	ABC-type transporter, permease component
1565	 53.75	0	1722870..1723829	+	319	23308860	-	NCgl1565	-	ABC-type transporter, periplasmic component
1566	 56.08	0	1723826..1724581	+	251	19552840	-	NCgl1566	-	ABC-type transporter, ATPase component
1567	 61.25	+1	1724609..1725439	-	276	19552841	aroE	NCgl1567	-	shikimate 5-dehydrogenase
1568	 55.98	0	1725456..1726625	-	389	19552842	-	NCgl1568	-	periplasmic solute-binding protein
1569	 56.83	0	1726622..1727170	-	182	19552843	-	NCgl1569	-	Holliday junction resolvase-like protein
1570	 57.74	0	1727382..1730048	-	888	19552844	alaS	NCgl1570	-	alanyl-tRNA synthetase
1571	 54.42	0	1730163..1731542	-	459	19552845	-	NCgl1571	-	recombination factor protein RarA
1572	 55.92	0	1731596..1732795	-	399	19552846	-	NCgl1572	-	hypothetical protein
1573	 58.46	+1	1732985..1734811	-	608	19552847	aspS	NCgl1573	-	aspartyl-tRNA synthetase
1574	 56.40	0	1735044..1735949	+	301	19552848	-	NCgl1574	-	metalloprotease
1575	 57.56	0	1736001..1738679	-	892	19552849	-	NCgl1575	-	helicase
1576	 58.06	0	1738710..1740569	-	619	19552850	-	NCgl1576	-	hypothetical protein
1577	 56.07	0	1740569..1741219	-	216	19552851	-	NCgl1577	-	hypothetical protein
1578	 54.44	0	1741313..1741909	+	198	19552852	-	NCgl1578	-	transcriptional regulator
1579	 51.46	0	1741893..1742609	+	238	19552853	-	NCgl1579	-	hypothetical protein
1580	 57.71	0	1742701..1743816	+	371	19552854	-	NCgl1580	-	coenzyme F420-dependent N5,N10-methylene tetrahydromethanopterin reductase
1581	 53.49	0	1743843..1743971	+	42	19552855	-	NCgl1581	-	hypothetical protein
1582	 57.03	0	1744025..1744522	+	165	19552856	-	NCgl1582	-	flavoprotein
1583	 55.11	0	1744884..1746233	+	449	19552857	-	NCgl1583	-	L-serine deaminase
1584	 56.52	0	1746230..1747954	-	574	19552858	-	NCgl1584	-	glycerol-3-phosphate dehydrogenase
1585	 54.50	0	1747987..1749276	-	429	19552859	hisS	NCgl1585	-	histidyl-tRNA synthetase
1586	 51.25	0	1749322..1749963	-	213	19552860	-	NCgl1586	-	putative Zn-dependent hydrolase
1587	 58.72	+1	1750094..1750936	+	280	19552861	-	NCgl1587	-	peptidyl-prolyl cis-trans isomerase (rotamase)
1588	 51.97	0	1751497..1752054	+	185	19552862	-	NCgl1588	-	hypothetical protein
1589	 52.17	0	1752255..1752530	+	91	19552863	-	NCgl1589	-	hypothetical protein
1590	 55.23	0	1752612..1754894	-	760	19552864	-	NCgl1590	-	guanosine polyphosphate pyrophosphohydrolase/synthetase
1591	 53.76	0	1754922..1755479	-	185	19552865	-	NCgl1591	-	adenine phosphoribosyltransferase
1592	 53.50	0	1755483..1757084	-	533	19552866	-	NCgl1592	-	dipeptide-binding protein DciAE
1593	 56.02	0	1757586..1758797	-	403	19552867	secF	NCgl1593	-	preprotein translocase subunit SecF
1594	 55.97	0	1758800..1760734	-	644	23308861	secD	NCgl1594	-	preprotein translocase subunit SecD
54.31	MEAN

3.83	STD DEV
