IslandPathversion 1.0

IslandPath Analysis: Corynebacterium glutamicum ATCC 13032

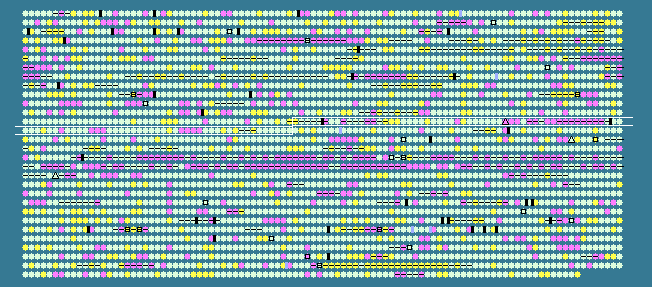

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.31 STD DEV: 3.83
Corynebacterium glutamicum ATCC 13032, complete genome - 1..3309401
2993 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1246	 58.86	+1	1363139..1363612	-	157	19552515	-	NCgl1246	-	hypothetical protein
1247	 54.29	0	1363729..1364253	-	174	19552516	-	NCgl1247	-	hypothetical protein
1248	 56.67	0	1364337..1364786	-	149	19552517	-	NCgl1248	-	transcriptional regulator
1249	 56.21	0	1364875..1365180	-	101	19552518	-	NCgl1249	-	hypothetical protein
1250	 51.37	0	1365214..1365396	-	60	19552519	-	NCgl1250	-	hypothetical protein
1251	 43.12	-2	1368400..1369554	+	384	19552523	-	NCgl1251	-	hypothetical protein
1252	 51.68	0	1369551..1369877	+	108	19552524	-	NCgl1252	-	hypothetical protein
1253	 56.46	0	1369874..1371637	-	587	19552525	-	NCgl1253	-	thiamine biosynthesis protein ThiC
1254	 47.58	-1	1372805..1373134	+	109	19552526	-	NCgl1254	-	hypothetical protein
1255	 56.20	0	1373347..1375734	-	795	19552527	-	NCgl1255	-	glucan phosphorylase
1256	 54.72	0	1375930..1376088	-	52	19552528	-	NCgl1256	-	hypothetical protein
1257	 53.83	0	1376146..1377555	-	469	19552529	-	NCgl1257	-	Zn-dependent hydrolase
1258	 49.40	-1	1377663..1378415	-	250	23308838	-	NCgl1258	-	hypothetical protein
1259	 50.00	-1	1378463..1378942	-	159	19552531	-	NCgl1259	-	hypothetical protein
1260	 51.15	0	1379003..1379569	+	188	23308839	-	NCgl1260	-	guanosine polyphosphate pyrophosphohydrolase/synthetase
1261	 61.44	+1	1379552..1380259	-	235	19552533	-	NCgl1261	-	transcriptional regulator
1262	 59.41	+1	1380440..1381885	+	481	19552534	-	NCgl1262	-	isopropylmalate isomerase large subunit
1263	 57.91	0	1381902..1382495	+	197	19552535	leuD	NCgl1263	-	isopropylmalate isomerase small subunit
1264	 56.57	0	1382842..1383921	-	359	19552536	-	NCgl1264	-	NTP pyrophosphohydrolase
1265	 52.20	0	1383930..1384088	+	52	19552537	-	NCgl1265	-	hypothetical protein
1266	 56.86	0	1384130..1385128	+	332	19552538	gpsA	NCgl1266	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1267	 54.11	0	1385153..1386235	+	360	19552539	ddl	NCgl1267	-	D-alanyl-alanine synthetase A
1268	 61.77	+1	1386290..1387270	-	326	19552540	-	NCgl1268	-	hypothetical protein
1269	 56.87	0	1387338..1388327	+	329	19552541	-	NCgl1269	-	thiamine monophosphate kinase
1270	 54.67	0	1388327..1389076	+	249	19552542	-	NCgl1270	-	uracil-DNA glycosylase
1271	 57.26	0	1389208..1390791	+	527	23308840	-	NCgl1271	-	kinase
1272	 57.44	0	1390796..1392919	+	707	19552544	-	NCgl1272	-	RecG-like helicase
1273	 50.46	-1	1392939..1393154	+	71	19552545	-	NCgl1273	-	pyruvate carboxylase C-terminal domain-containing protein
1274	 59.32	+1	1393154..1393738	+	194	19552546	-	NCgl1274	-	N6-adenine-specific methylase
1275	 56.73	0	1393742..1394224	+	160	19552547	coaD	NCgl1275	-	phosphopantetheine adenylyltransferase
1276	 57.52	0	1394797..1395561	-	254	19552548	-	NCgl1276	-	ABC-type transporter, ATPase component
1277	 55.94	0	1395565..1396515	-	316	19552549	-	NCgl1277	-	ABC-type transporter, permease component
1278	 55.92	0	1396558..1397562	-	334	19552550	-	NCgl1278	-	ABC-type transporter, periplasmic component
1279	 51.60	0	1397662..1398471	+	269	19552551	-	NCgl1279	-	hypothetical protein
1280	 51.99	0	1398554..1399534	-	326	19552552	-	NCgl1280	-	hypothetical protein
1281	 47.43	-1	1400182..1400940	-	252	23308841	-	NCgl1281	-	integrase
1282	 42.58	-2	1400926..1401336	+	136	23308842	-	NCgl1282	-	hypothetical protein
1283	 44.98	-2	1401333..1402079	+	248	19552554	-	NCgl1283	-	hypothetical protein
1284	 56.09	0	1402272..1402706	+	144	19552555	-	NCgl1284	-	hypothetical protein
1285	 44.87	-2	1403128..1403994	+	288	19552556	-	NCgl1285	-	hypothetical protein
1286	 39.19	-2	1403997..1404218	+	73	19552557	-	NCgl1286	-	hypothetical protein
1287	 53.33	0	1404691..1404885	-	64	23308843	-	NCgl1287	-	hypothetical protein
1288	 44.60	-2	1404867..1405301	-	144	19552558	-	NCgl1288	-	hypothetical protein
1289	 46.50	-2	1405317..1406174	-	285	19552559	-	NCgl1289	-	hypothetical protein
1290	 41.13	-2	1407164..1407535	-	123	19552560	-	NCgl1290	-	hypothetical protein
1291	 44.03	-2	1407556..1407873	-	105	23308844	-	NCgl1291	-	hypothetical protein
1292	 46.08	-2	1408250..1408453	+	67	19552561	-	NCgl1292	-	hypothetical protein
1293	 49.47	-1	1409425..1409802	-	125	19552562	-	NCgl1293	-	hypothetical protein
1294	 44.58	-2	1410061..1411011	-	316	19552563	-	NCgl1294	-	hypothetical protein
1295	 45.63	-2	1411116..1411424	-	102	19552564	-	NCgl1295	-	hypothetical protein
1296	 49.74	-1	1411434..1412000	-	188	19552565	-	NCgl1296	-	hypothetical protein
1297	 47.56	-1	1412351..1412575	+	74	23308845	-	NCgl1297	-	hypothetical protein
1298	 54.42	0	1412623..1412916	-	97	19552566	-	NCgl1298	-	hypothetical protein
1299	 55.43	0	1413820..1416462	+	880	19552567	-	NCgl1299	-	DNA polymerase I
1300	 55.53	0	1416459..1417859	-	466	19552568	-	NCgl1300	-	major facilitator superfamily permease
1301	 52.35	0	1417896..1418873	+	325	19552569	-	NCgl1301	-	transcriptional regulator
1302	 53.31	0	1418876..1419751	+	291	19552570	-	NCgl1302	-	aldo/keto reductase
1303	 56.28	0	1420068..1420847	-	259	19552571	-	NCgl1303	-	SAM-dependent methyltransferase
1304	 58.93	+1	1421099..1422559	+	486	19552573	rpsA	NCgl1304	-	30S ribosomal protein S1
1305	 52.19	0	1423217..1425268	+	683	19552574	-	NCgl1305	-	phosphotransferase system IIC component, glucose/maltose/N-acetylglucosamine-specific
1306	 52.40	0	1425279..1425881	+	200	19552575	-	NCgl1306	-	dephospho-CoA kinase
1307	 48.14	-1	1426257..1427357	+	366	23308846	-	NCgl1307	-	hypothetical protein
1308	 50.91	0	1427373..1427810	-	145	19552577	-	NCgl1308	-	hypothetical protein
1309	 56.44	0	1428221..1429159	-	312	19552579	-	NCgl1309	-	inosine-uridine nucleoside N-ribohydrolase
1310	 56.20	0	1429191..1430642	-	483	19552580	-	NCgl1310	-	major facilitator superfamily permease
1311	 57.03	0	1430656..1431579	-	307	19552581	-	NCgl1311	-	sugar kinase
1312	 49.86	-1	1431572..1432612	-	346	19552582	-	NCgl1312	-	transcriptional regulator
1313	 47.32	-1	1432750..1433550	+	266	19552583	-	NCgl1313	-	hypothetical protein
1314	 47.15	-1	1433600..1433932	+	110	19552584	-	NCgl1314	-	hypothetical protein
1315	 53.81	0	1434042..1436204	+	720	19552585	-	NCgl1315	-	excinuclease ABC subunit B
1316	 51.35	0	1436335..1436778	+	147	19552586	-	NCgl1316	-	universal stress protein UspA
1317	 51.56	0	1436866..1437249	-	127	19552587	-	NCgl1317	-	transcriptional regulator
1318	 55.05	0	1437344..1438204	+	286	19552588	-	NCgl1318	-	nucleoside-diphosphate-sugar epimerase
1319	 55.25	0	1438209..1440476	-	755	19552589	-	NCgl1319	-	hypothetical protein
1320	 53.33	0	1440672..1441586	-	304	19552590	-	NCgl1320	-	hypothetical protein
1321	 54.23	0	1441790..1442392	-	200	19552591	-	NCgl1321	-	hypothetical protein
1322	 54.56	0	1442487..1445336	+	949	19552593	uvrA	NCgl1322	-	excinuclease ABC subunit A
1323	 56.93	0	1445320..1447446	-	708	19552594	-	NCgl1323	-	hypothetical protein
1324	 53.16	0	1447792..1448361	+	189	19552595	infC	NCgl1324	-	translation initiation factor IF-3
1325	 60.00	+1	1448390..1448584	+	64	19552596	rpmI	NCgl1325	-	50S ribosomal protein L35
1326	 56.51	0	1448645..1449028	+	127	19552597	rplT	NCgl1326	-	50S ribosomal protein L20
1327	 48.59	-1	1449116..1449928	-	270	19552598	-	NCgl1327	-	hypothetical protein
1328	 45.06	-2	1450210..1450695	+	161	19552599	-	NCgl1328	-	hypothetical protein
1329	 49.56	-1	1450918..1451823	+	301	23308847	-	NCgl1329	-	ABC-type transporter, permease component
1330	 48.75	-1	1451820..1452656	+	278	19552601	-	NCgl1330	-	ABC-type transporter, permease component
1331	 56.26	0	1452758..1454074	+	438	19552602	-	NCgl1331	-	ABC-type transporter, periplasmic component
1332	 55.50	0	1454115..1455341	+	408	19552603	-	NCgl1332	-	ABC-type transporter, ATPase component
1333	 56.07	0	1455347..1456054	-	235	19552604	-	NCgl1333	-	glycerophosphoryl diester phosphodiesterase
1334	 58.12	0	1456355..1456951	+	198	23308848	-	NCgl1334	-	rRNA methylase
1335	 57.32	0	1457032..1458069	+	345	19552606	pheS	NCgl1335	-	phenylalanyl-tRNA synthetase subunit alpha
1336	 58.93	+1	1458112..1460619	+	835	19552607	pheT	NCgl1336	-	phenylalanyl-tRNA synthetase subunit beta
1337	 53.85	0	1461157..1462131	+	324	19552608	-	NCgl1337	-	hypothetical protein
1338	 51.30	0	1462134..1463519	+	461	19552609	-	NCgl1338	-	acyltransferase
1339	 60.74	+1	1463533..1463937	+	134	19552610	-	NCgl1339	-	hypothetical protein
1340	 52.89	0	1464053..1465126	+	357	19552611	argC	NCgl1340	-	N-acetyl-gamma-glutamyl-phosphate reductase
1341	 53.30	0	1465210..1466376	+	388	19552612	argJ	NCgl1341	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1342	 53.67	0	1466422..1467375	+	317	19552613	-	NCgl1342	-	acetylglutamate kinase
1343	 57.65	0	1467376..1468551	+	391	19552614	argD	NCgl1343	-	acetylornithine aminotransferase
1344	 56.56	0	1468565..1469524	+	319	19552615	-	NCgl1344	-	ornithine carbamoyltransferase
1345	 56.69	0	1469573..1470043	+	156	19552616	-	NCgl1345	-	arginine repressor
54.31	MEAN

3.83	STD DEV
