IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

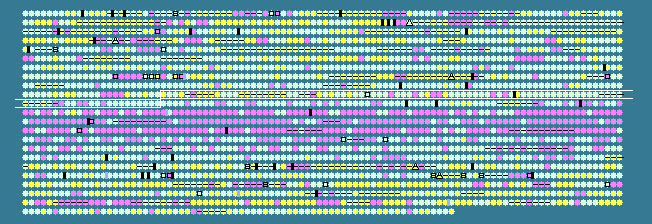

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
924	 60.20	+1	943349..944230	+	293	38233566	-	DIP0971	-	hypothetical protein
925	 52.23	0	944257..944637	+	126	38233567	-	DIP0972	-	hypothetical protein
926	 54.40	0	944687..945004	+	105	38233568	fdxA	DIP0973	-	ferredoxin
927	 59.22	+1	945034..946134	+	366	38233569	-	DIP0974	-	N-succinyldiaminopimelate aminotransferase
928	 56.97	0	946181..946912	+	243	38233570	-	DIP0975	-	putative RNA pseudouridylate synthase family protein
929	 48.75	-1	946947..947504	+	185	38233571	-	DIP0976	-	hypothetical protein
930	 59.07	+1	947511..948695	-	394	38233572	-	DIP0977	-	hypothetical protein
931	 59.73	+1	948776..950188	-	470	38233573	aroP1	DIP0978	-	aromatic amino acid transporter
932	 62.05	+1	950252..951226	-	324	38233574	-	DIP0979	-	putative succinyltransferase
933	 57.95	0	951237..952601	-	454	38233575	aroP2	DIP0980	-	aromatic amino acid transporter
934	 53.18	0	952671..953582	-	303	38233576	-	DIP0981	-	putative succinyltransferase
935	 55.56	0	953662..954759	+	365	38233577	dapE	DIP0982	-	dipeptidase
936	 53.73	0	954767..955531	+	254	38233578	-	DIP0983	-	hypothetical protein
937	 58.39	0	955524..956381	+	285	38233579	folP	DIP0984	-	dihydropteroate synthase
938	 60.00	+1	956378..957127	+	249	38233580	-	DIP0985	-	hypothetical protein
939	 54.84	0	957132..957410	+	92	38233581	-	DIP0986	-	hypothetical protein
940	 52.54	0	957488..957664	+	58	38233582	-	DIP0987	-	hypothetical protein
941	 55.06	0	957691..958560	+	289	38233583	-	DIP0988	-	putative macrolide resistance protein
942	 57.96	0	958618..960030	-	470	38233584	-	DIP0989	-	putative hydrolase
943	 55.74	0	960040..960780	-	246	38233585	-	DIP0990	-	putative decarboxylase (internal pH control related)
944	 57.54	0	960833..962005	-	390	38233586	-	DIP0991	-	putative glycosyltransferase
945	 52.81	0	962100..963326	+	408	161598676	glgC	DIP0992	-	glucose-1-phosphate adenylyltransferase
946	 57.08	0	963385..964062	-	225	38233588	-	DIP0993	-	putative methyltransferase
947	 55.28	0	964148..964867	+	239	38233589	-	DIP0994	-	RNA polymerase sigma factor SigE
948	 53.86	0	964908..965321	+	137	38233590	-	DIP0995	-	hypothetical protein
949	 49.55	0	965352..965795	+	147	38233591	tatB	DIP0996	-	sec-independent translocase
950	 59.61	+1	965798..966931	-	377	38233592	-	DIP0997	-	putative ATP-binding protein
951	 55.61	0	966944..967540	-	198	38233593	-	DIP0998	-	hypothetical protein
952	 60.54	+1	967544..968833	-	429	38233594	-	DIP0999	-	hypothetical protein
953	 56.67	0	968959..969468	+	169	38233595	-	DIP1000	-	hypothetical protein
954	 51.39	0	969480..970199	+	239	38233596	-	DIP1001	-	hypothetical protein
955	 57.40	0	970254..973967	-	1237	161598675	kgd	DIP1002	-	alpha-ketoglutarate decarboxylase
956	 56.80	0	974130..977870	-	1246	38233598	-	DIP1003	-	ABC transporter ATP-binding protein
957	 53.43	0	977878..978708	-	276	38233599	-	DIP1004	-	hypothetical protein
958	 56.73	0	978917..979228	-	103	38233600	-	DIP1005	-	transposase remnant
959	 52.15	0	979492..980304	-	270	38233601	aroE	DIP1006	-	shikimate 5-dehydrogenase
960	 56.04	0	980324..981904	+	526	38233602	-	DIP1007	-	putative type B carboxylesterase
961	 53.09	0	981926..982735	+	269	38233603	-	DIP1008	-	hypothetical protein
962	 49.08	-1	982785..983597	+	270	38233604	-	DIP1009	-	hypothetical protein
963	 52.30	0	983606..984148	-	180	38233605	-	DIP1010	-	hypothetical protein
964	 53.38	0	984453..985370	+	305	38233606	-	DIP1011	-	putative aldose 1-epimerase
965	 52.56	0	985407..987065	+	552	38233607	-	DIP1012	-	putative sodium:solute symporter
966	 47.87	-1	987078..987359	+	93	38233608	-	DIP1013	-	hypothetical protein
967	 53.67	0	987359..988489	+	376	38233609	galT	DIP1014	-	galactose-1-phosphate uridylyltransferase
968	 57.40	0	988473..989702	+	409	38233610	galK	DIP1015	-	galactokinase
969	 44.57	-1	989756..992887	-	1043	38233611	-	DIP1016	-	putative helicase
970	 47.73	-1	992898..993293	-	131	38233612	-	DIP1017	-	NUDIX family hydrolase
971	 57.32	0	993506..995548	+	680	38233613	deaD	DIP1018	-	DEAD-box helicase
972	 53.53	0	995636..996046	+	136	38233614	-	DIP1019	-	hypothetical protein
973	 52.90	0	996175..996639	-	154	38233615	-	DIP1020	-	hypothetical protein
974	 53.13	0	996688..997278	-	196	38233616	-	DIP1021	-	hypothetical protein
975	 50.64	0	997318..998883	-	521	38233617	putP	DIP1022	-	sodium/proline symporter
976	 51.84	0	999109..1002198	+	1029	38233618	-	DIP1023	-	SNF2/RAD54 family protein
977	 52.92	0	1002199..1003020	+	273	38233619	-	DIP1024	-	hypothetical protein
978	 51.34	0	1003052..1004173	+	373	38233620	-	DIP1025	-	exonuclease SbcD family protein
979	 48.46	-1	1004173..1006737	+	854	38233621	-	DIP1026	-	ATP-binding protein
980	 51.04	0	1006815..1007345	-	176	38233622	-	DIP1027	-	hypothetical protein
981	 49.90	0	1007587..1008069	+	160	38233623	-	DIP1028	-	MarR family transcriptional regulator
982	 52.74	0	1008175..1008375	+	66	38233624	-	DIP1029	-	hypothetical protein
983	 57.46	0	1008712..1009341	-	209	38233625	-	DIP1030	-	hypothetical protein
984	 56.13	0	1009343..1010860	-	505	38233626	-	DIP1031	-	putative iron-sulfur protein
985	 55.98	0	1010884..1011669	-	261	38233627	-	DIP1032	-	putative oxididoreductase subunit
986	 52.56	0	1012107..1013765	+	552	38233628	-	DIP1033	-	putative L-lactate permease
987	 52.33	0	1013777..1015429	+	550	38233629	argS	DIP1034	-	arginyl-tRNA synthetase
988	 52.52	0	1015432..1016760	+	442	38233630	lysA	DIP1035	-	diaminopimelate decarboxylase
989	 52.64	0	1016931..1018277	+	448	38233631	thrA	DIP1036	-	homoserine dehydrogenase
990	 53.61	0	1018282..1019208	+	308	38233632	thrB	DIP1037	-	homoserine kinase
991	 52.80	0	1019270..1021021	-	583	38233633	-	DIP1038	-	acyl-CoA synthetase
992	 53.59	0	1021371..1023434	+	687	38233634	rho	DIP1040	-	transcription termination factor Rho
993	 53.97	0	1023434..1024504	+	356	38233635	prfA	DIP1041	-	peptide chain release factor 1
994	 51.28	0	1024509..1025327	+	272	38233636	-	DIP1042	-	HemK family methytransferase
995	 54.22	0	1025435..1026085	+	216	38233637	-	DIP1043	-	hypothetical protein
996	 52.56	0	1026086..1027255	+	389	38233638	-	DIP1044	-	glycosyl trasferase
997	 51.80	0	1027273..1027716	+	147	38233639	-	DIP1045	-	integral membrane protein
998	 51.91	0	1028202..1028987	+	261	38233640	atpB	DIP1046	-	F0F1 ATP synthase subunit A
999	 55.42	0	1029073..1029312	+	79	38233641	atpE	DIP1047	-	F0F1 ATP synthase subunit C
1000	 55.91	0	1029340..1029906	+	188	38233642	atpF	DIP1048	-	F0F1 ATP synthase subunit B
1001	 57.54	0	1029912..1030733	+	273	38233643	atpH	DIP1049	-	F0F1 ATP synthase subunit delta
1002	 56.84	0	1030794..1032422	+	542	38233644	atpA	DIP1050	-	F0F1 ATP synthase subunit alpha
1003	 54.29	0	1032476..1033453	+	325	38233645	atpG	DIP1051	-	F0F1 ATP synthase subunit gamma
1004	 58.02	0	1033457..1034902	+	481	38233646	atpD	DIP1052	-	F0F1 ATP synthase subunit beta
1005	 56.18	0	1034916..1035287	+	123	38233647	atpC	DIP1053	-	F0F1 ATP synthase subunit epsilon
1006	 48.29	-1	1035514..1035981	+	155	38233648	-	DIP1054	-	hypothetical protein
1007	 49.86	0	1036006..1036695	+	229	38233649	-	DIP1055	-	hypothetical protein
1008	 52.28	0	1036724..1037008	+	94	38233650	-	DIP1056	-	hypothetical protein
1009	 52.94	0	1037086..1037544	-	152	38233651	-	DIP1057	-	putative methylmalonyl-CoA epimerase
1010	 49.54	0	1037621..1037947	+	108	38233652	-	DIP1058	-	hypothetical protein
1011	 50.24	0	1037950..1038771	-	273	38233653	-	DIP1059	-	putative iron-siderophore uptake system ATP-binding component
1012	 56.77	0	1038768..1039727	-	319	38233654	-	DIP1060	-	putative iron-siderophore uptake system transmembrane component
1013	 54.27	0	1039729..1040736	-	335	38233655	-	DIP1061	-	putative iron-siderophore uptake system transmembrane component
1014	 49.14	0	1040784..1041827	+	347	38233656	-	DIP1062	-	putative iron-siderophore uptake system exported solute-binding component
1015	 50.78	0	1041924..1042307	-	127	38233657	-	DIP1063	-	putative integral membrane protein
1016	 52.06	0	1042460..1043356	+	298	38233658	-	DIP1064	-	putative thioredoxin-like protein
1017	 54.34	0	1043761..1045959	-	732	38233659	glgB	DIP1065	-	glycogen branching enzyme
1018	 54.10	0	1046014..1048050	-	678	38233660	-	DIP1066	-	putative alpha-amylase (glucanase)
1019	 53.68	0	1048145..1049014	+	289	38233661	-	DIP1067	-	ABC transporter ATP-binding protein
1020	 53.70	0	1049093..1049902	+	269	38233662	-	DIP1068	-	NUDIX/MutT family hydrolase
1021	 53.16	0	1049947..1051131	+	394	38233663	-	DIP1069	-	hypothetical protein
1022	 51.07	0	1051307..1052101	+	264	38233664	etfB	DIP1070	-	electron transfer flavoprotein subunit beta
1023	 53.98	0	1052119..1053072	+	317	38233665	etfA	DIP1071	-	electron transfer flavoprotein subunit alpha
53.75	MEAN

4.64	STD DEV
