IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

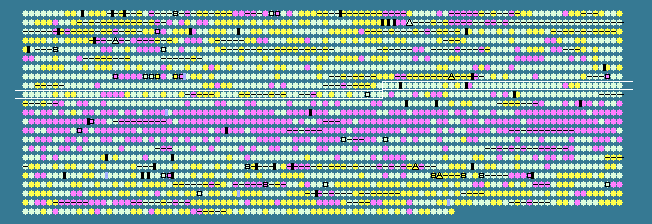

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
861	 54.73	0	878149..879078	+	309	38233503	-	DIP0907	-	putative reductase
862	 56.73	0	879104..880714	+	536	38233504	-	DIP0908	-	ABC transporter
863	 55.31	0	880715..882502	+	595	38233505	-	DIP0909	-	ABC transporter ATP-binding protein
864	 53.09	0	882775..883422	+	215	38233506	-	DIP0910	-	TetR family transcriptional regulator
865	 55.28	0	883472..887266	+	1264	38233507	mfd	DIP0911	-	transcription-repair coupling factor
866	 53.05	0	887323..887748	+	141	38233508	-	DIP0912	-	hypothetical protein
867	 53.00	0	887751..888233	+	160	38233509	-	DIP0913	-	hypothetical protein
868	 55.38	0	888244..889740	-	498	38233510	lysI	DIP0914	-	L-lysine transport protein
869	 52.50	0	889839..890537	+	232	38233511	-	DIP0915	-	hypothetical protein
870	 55.98	0	890549..891325	+	258	38233512	-	DIP0916	-	hypothetical protein
871	 57.28	0	891487..892764	+	425	38233513	eno	DIP0917	-	phosphopyruvate hydratase
872	 52.43	0	892885..893418	+	177	38233514	-	DIP0918	-	hypothetical protein
873	 57.67	0	893459..894025	+	188	38233515	-	DIP0919	-	hypothetical protein
874	 53.84	0	894022..894972	+	316	38233516	-	DIP0920	-	hypothetical protein
875	 49.69	0	895352..895675	+	107	38233517	-	DIP0921	-	hypothetical protein
876	 53.08	0	895787..896794	+	335	38233518	-	DIP0922	-	AraC family transcriptional regulator
877	 54.27	0	896926..897756	+	276	38233519	-	DIP0923	-	hypothetical protein
878	 51.19	0	897826..898245	-	139	38233520	-	DIP0924	-	hypothetical protein
879	 56.90	0	898245..898766	-	173	38233521	greA	DIP0925	-	transcription elongation factor GreA
880	 54.06	0	898944..899411	-	155	38233522	-	DIP0926	-	hypothetical protein
881	 51.91	0	899713..900600	+	295	38233523	-	DIP0927	-	hypothetical protein
882	 52.63	0	900655..900996	+	113	38233524	-	DIP0928	-	hypothetical protein
883	 52.88	0	901021..901818	+	265	38233525	-	DIP0929	-	putative undecaprenyl pyrophosphate synthetase
884	 53.69	0	901865..902365	+	166	38233526	-	DIP0930	-	hypothetical protein
885	 53.61	0	902362..903288	-	308	38233527	coaA	DIP0931	-	pantothenate kinase
886	 55.43	0	903498..904787	+	429	38233528	glyA	DIP0932	-	serine hydroxymethyltransferase
887	 55.07	0	904858..905202	-	114	38233529	-	DIP0933	-	hypothetical protein
888	 55.51	0	905267..905947	+	226	38233530	-	DIP0934	-	hypothetical protein
889	 52.20	0	906029..906595	+	188	38233531	-	DIP0935	-	putative phosphinothricin N-acetyltransferase
890	 53.13	0	906600..908165	-	521	38233532	-	DIP0936	-	putative drug transport membrane protein
891	 50.15	0	908167..908814	-	215	38233533	-	DIP0937	-	TetR family transcriptional regulator
892	 59.26	+1	908959..910362	-	467	38233534	fumC	DIP0938	-	fumarate hydratase
893	 57.42	0	910620..911636	-	338	38233535	glpX	DIP0939	-	fructose 1,6-bisphosphatase II
894	 54.70	0	911934..912518	+	194	38233536	-	DIP0940	-	hypothetical protein
895	 51.55	0	912528..912785	-	85	38233537	xseB	DIP0941	-	exodeoxyribonuclease VII small subunit
896	 55.96	0	912814..914055	-	413	38233538	xseA	DIP0942	-	exodeoxyribonuclease VII large subunit
897	 55.79	0	914162..915163	+	333	38233539	ispH	DIP0943	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
898	 53.79	0	915227..916018	-	263	38233540	-	DIP0944	-	hypothetical protein
899	 55.46	0	916085..917503	-	472	38233541	-	DIP0945	-	hypothetical protein
900	 51.46	0	917593..917763	-	56	38233542	-	DIP0946	-	hypothetical protein
901	 53.52	0	917763..919412	-	549	38233543	-	DIP0947	-	putative sodium-dependent ABC transport system membrane protein
902	 53.50	0	919766..920851	+	361	38233544	-	DIP0948	-	translation-associated GTPase
903	 53.77	0	920928..921842	-	304	38233545	-	DIP0949	-	ABC transporter
904	 55.48	0	921923..922816	+	297	38233546	-	DIP0950	-	2-dehydropantoate 2-reductase
905	 54.04	0	922958..923551	+	197	38233547	-	DIP0951	-	hypothetical protein
906	 58.26	0	923566..924588	-	340	38233548	-	DIP0952	-	putative chloride channel related membrane protein
907	 53.70	0	924885..926264	+	459	38233549	-	DIP0953	-	ABC transporter ATP-binding protein
908	 57.80	0	926261..927016	+	251	38233550	-	DIP0954	-	ABC transporter
909	 57.30	0	927013..927471	+	152	38233551	-	DIP0955	-	hypothetical protein
910	 52.52	0	927733..929322	+	529	38233552	-	DIP0956	-	putative peptide transport system secreted protein
911	 51.56	0	929413..930339	+	308	38233553	-	DIP0957	-	putative peptide transport system membrane protein
912	 55.14	0	930332..931285	+	317	38233554	-	DIP0958	-	putative peptide transport system membrane protein
913	 54.55	0	931288..932970	+	560	38233555	-	DIP0959	-	putative peptide ABC transport system ATP-binding protein
914	 45.21	-1	933397..933699	+	100	38233556	-	DIP0960	-	hypothetical protein
915	 45.26	-1	933702..934397	+	231	38233557	-	DIP0961	-	ABC transporter ATP-binding protein
916	 46.39	-1	934399..935547	+	382	38233558	-	DIP0962	-	hypothetical protein
917	 39.80	-2	935552..936139	+	195	38233559	-	DIP0963	-	hypothetical protein
918	 63.37	+2	937248..937976	-	242	38233560	-	DIP0964	-	putative protease
919	 56.23	0	937977..938321	-	114	38233561	arsC	DIP0965	-	arsenate reductase
920	 55.81	0	938318..938851	-	177	38233562	-	DIP0966	-	hypothetical protein
921	 59.68	+1	938855..939541	-	228	38233563	-	DIP0967	-	hypothetical protein
922	 57.09	0	939899..941809	+	636	38233564	-	DIP0969	-	putative GTP-binding elongation factor
923	 54.64	0	941820..943349	+	509	38233565	-	DIP0970	-	hypothetical protein
924	 60.20	+1	943349..944230	+	293	38233566	-	DIP0971	-	hypothetical protein
925	 52.23	0	944257..944637	+	126	38233567	-	DIP0972	-	hypothetical protein
926	 54.40	0	944687..945004	+	105	38233568	fdxA	DIP0973	-	ferredoxin
927	 59.22	+1	945034..946134	+	366	38233569	-	DIP0974	-	N-succinyldiaminopimelate aminotransferase
928	 56.97	0	946181..946912	+	243	38233570	-	DIP0975	-	putative RNA pseudouridylate synthase family protein
929	 48.75	-1	946947..947504	+	185	38233571	-	DIP0976	-	hypothetical protein
930	 59.07	+1	947511..948695	-	394	38233572	-	DIP0977	-	hypothetical protein
931	 59.73	+1	948776..950188	-	470	38233573	aroP1	DIP0978	-	aromatic amino acid transporter
932	 62.05	+1	950252..951226	-	324	38233574	-	DIP0979	-	putative succinyltransferase
933	 57.95	0	951237..952601	-	454	38233575	aroP2	DIP0980	-	aromatic amino acid transporter
934	 53.18	0	952671..953582	-	303	38233576	-	DIP0981	-	putative succinyltransferase
935	 55.56	0	953662..954759	+	365	38233577	dapE	DIP0982	-	dipeptidase
936	 53.73	0	954767..955531	+	254	38233578	-	DIP0983	-	hypothetical protein
937	 58.39	0	955524..956381	+	285	38233579	folP	DIP0984	-	dihydropteroate synthase
938	 60.00	+1	956378..957127	+	249	38233580	-	DIP0985	-	hypothetical protein
939	 54.84	0	957132..957410	+	92	38233581	-	DIP0986	-	hypothetical protein
940	 52.54	0	957488..957664	+	58	38233582	-	DIP0987	-	hypothetical protein
941	 55.06	0	957691..958560	+	289	38233583	-	DIP0988	-	putative macrolide resistance protein
942	 57.96	0	958618..960030	-	470	38233584	-	DIP0989	-	putative hydrolase
943	 55.74	0	960040..960780	-	246	38233585	-	DIP0990	-	putative decarboxylase (internal pH control related)
944	 57.54	0	960833..962005	-	390	38233586	-	DIP0991	-	putative glycosyltransferase
945	 52.81	0	962100..963326	+	408	161598676	glgC	DIP0992	-	glucose-1-phosphate adenylyltransferase
946	 57.08	0	963385..964062	-	225	38233588	-	DIP0993	-	putative methyltransferase
947	 55.28	0	964148..964867	+	239	38233589	-	DIP0994	-	RNA polymerase sigma factor SigE
948	 53.86	0	964908..965321	+	137	38233590	-	DIP0995	-	hypothetical protein
949	 49.55	0	965352..965795	+	147	38233591	tatB	DIP0996	-	sec-independent translocase
950	 59.61	+1	965798..966931	-	377	38233592	-	DIP0997	-	putative ATP-binding protein
951	 55.61	0	966944..967540	-	198	38233593	-	DIP0998	-	hypothetical protein
952	 60.54	+1	967544..968833	-	429	38233594	-	DIP0999	-	hypothetical protein
953	 56.67	0	968959..969468	+	169	38233595	-	DIP1000	-	hypothetical protein
954	 51.39	0	969480..970199	+	239	38233596	-	DIP1001	-	hypothetical protein
955	 57.40	0	970254..973967	-	1237	161598675	kgd	DIP1002	-	alpha-ketoglutarate decarboxylase
956	 56.80	0	974130..977870	-	1246	38233598	-	DIP1003	-	ABC transporter ATP-binding protein
957	 53.43	0	977878..978708	-	276	38233599	-	DIP1004	-	hypothetical protein
958	 56.73	0	978917..979228	-	103	38233600	-	DIP1005	-	transposase remnant
959	 52.15	0	979492..980304	-	270	38233601	aroE	DIP1006	-	shikimate 5-dehydrogenase
960	 56.04	0	980324..981904	+	526	38233602	-	DIP1007	-	putative type B carboxylesterase
53.75	MEAN

4.64	STD DEV
