IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

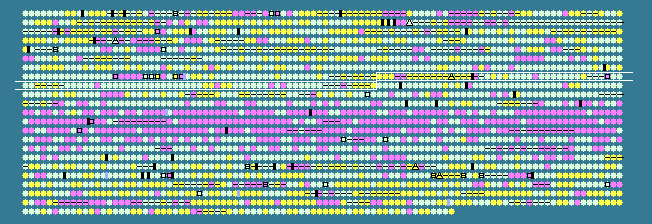

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 53.75   STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
760	 62.65	+1	780837..781160	-	107	38233402	-	DIP0803	-	hypothetical protein
761	 62.67	+1	781172..783724	-	850	38233403	-	DIP0804	-	hypothetical protein
762	 58.58	+1	783728..785731	-	667	38233404	-	DIP0805	-	putative DNA methylase
763	 42.25	-2	786230..786958	+	242	38233405	-	DIP0806	-	hypothetical protein
764	 45.43	-1	786955..787392	+	145	38233406	-	DIP0807	-	hypothetical protein
765	 64.78	+2	787574..787945	-	123	38233407	-	DIP0808	-	hypothetical protein
766	 62.96	+1	787932..788174	-	80	38233408	-	DIP0809	-	hypothetical protein
767	 66.13	+2	788227..788601	-	124	38233409	-	DIP0810	-	hypothetical protein
768	 63.69	+2	788588..788956	-	122	38233410	-	DIP0811	-	hypothetical protein
769	 65.43	+2	788946..789917	-	323	38233411	-	DIP0812	-	hypothetical protein
770	 59.52	+1	789916..790419	+	167	38233412	-	DIP0813	-	hypothetical protein
771	 67.44	+2	790442..790960	+	172	38233413	-	DIP0816	-	hypothetical protein
772	 64.41	+2	790953..792017	+	354	38233414	-	DIP0817	-	putative phage integrase
773	 61.95	+1	792350..792688	-	112	38233415	-	DIP0818	-	hypothetical protein
774	 60.57	+1	792701..793471	+	256	38233416	-	DIP0819	-	hypothetical protein
775	 62.90	+1	793522..795300	+	592	38233417	-	DIP0820	-	hypothetical protein
776	 47.45	-1	795749..796081	+	110	38233418	-	DIP0821	-	hypothetical protein
777	 56.44	0	796088..796840	+	250	38233419	-	DIP0822	-	precorrin 6A synthase
778	 54.65	0	796859..797116	-	85	38233420	-	DIP0823	-	hypothetical protein
779	 60.32	+1	797137..797640	-	167	38233421	-	DIP0824	-	putative folate reductase
780	 53.26	0	797640..798452	-	270	38233422	thyA	DIP0825	-	thymidylate synthase
781	 60.21	+1	798546..799304	-	252	38233423	-	DIP0826	-	putative sulfite synthesis related protein
782	 56.99	0	799343..804157	+	1604	38233424	-	DIP0827	-	putative ATP-dependent helicase
783	 57.07	0	804154..804705	-	183	38233425	-	DIP0828	-	putative DNA repair protein
784	 53.66	0	804836..805642	+	268	38233426	-	DIP0829	-	putative endonuclease
785	 51.78	0	805625..807250	-	541	38233427	-	DIP0830	-	hypothetical protein
786	 49.03	-1	807364..807777	+	137	38233428	-	DIP0831	-	hypothetical protein
787	 54.44	0	807862..809505	-	547	38233429	pgi	DIP0832	-	glucose-6-phosphate isomerase
788	 56.30	0	809708..811192	+	494	38233430	-	DIP0833	-	putative succinate-semialdehyde dehydrogenase
789	 56.16	0	811189..811521	-	110	38233431	-	DIP0834	-	hypothetical protein
790	 50.50	0	811671..814088	+	805	38233432	pcrA	DIP0835	-	ATP-dependent DNA helicase
791	 54.53	0	814166..814882	-	238	38233433	-	DIP0836	-	hypothetical protein
792	 52.10	0	815288..816742	+	484	38233434	-	DIP0837	-	hypothetical protein
793	 53.85	0	816768..817391	+	207	38233435	purN	DIP0838	-	phosphoribosylglycinamide formyltransferase
794	 57.54	0	817381..818958	+	525	38233436	purH	DIP0839	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
795	 54.17	0	819223..819702	+	159	38233437	-	DIP0840	-	hypothetical protein
796	 51.70	0	819871..820371	+	166	38233438	-	DIP0841	-	hypothetical protein
797	 55.38	0	820408..820974	+	188	38233439	-	DIP0842	-	hypothetical protein
798	 48.95	-1	820987..822363	-	458	38233440	-	DIP0843	-	putative transposase
799	 53.77	0	822365..822775	+	136	38233441	-	DIP0844	-	hypothetical protein
800	 54.68	0	822822..823655	+	277	38233442	-	DIP0845	-	putative citrate lyase
801	 54.56	0	823652..824320	-	222	38233443	amtR	DIP0846	-	TetR family regulatory protein
802	 55.46	0	824445..825479	-	344	38233444	-	DIP0847	-	hypothetical protein
803	 57.83	0	825552..825800	-	82	38233445	rpsR	DIP0848	-	30S ribosomal protein S18
804	 59.15	+1	825815..826120	-	101	38233446	rpsN	DIP0849	-	30S ribosomal protein S14
805	 52.12	0	826124..826288	-	54	38233447	rpmG	DIP0850	-	50S ribosomal protein L33
806	 59.07	+1	826292..826528	-	78	38233448	rpmB	DIP0851	-	50S ribosomal protein L28
807	 54.31	0	826998..827264	+	88	38233449	rpmE2	DIP0852	-	50S ribosomal protein L31 type B
808	 54.60	0	827283..827456	+	57	38233450	rpmF	DIP0853	-	50S ribosomal protein L32
809	 55.12	0	827685..828377	+	230	38233451	-	DIP0854	-	putative two component system response regulator
810	 52.85	0	828428..829918	+	496	38233452	-	DIP0855	-	putative two component system sensor kinase
811	 55.87	0	830008..831294	+	428	38233453	-	DIP0856	-	putative serine protease
812	 54.93	0	831333..831920	+	195	38233454	-	DIP0857	-	putative molybdopterin biosynthesis protein
813	 50.00	0	831950..832135	+	61	38233455	-	DIP0858	-	hypothetical protein
814	 52.35	0	832222..832626	-	134	38233456	mscL	DIP0859	-	large-conductance mechanosensitive channel
815	 56.43	0	832733..833416	-	227	38233457	-	DIP0860	-	hypothetical protein
816	 56.41	0	833432..834016	-	194	38233458	-	DIP0861	-	hypothetical protein
817	 53.53	0	834145..835065	+	306	38233459	-	DIP0862	-	putative urydyltransferase
818	 56.79	0	835162..836427	+	421	38233460	-	DIP0863	-	putative molybdopterin biosynthesis protein
819	 53.70	0	836463..837125	+	220	38233461	-	DIP0864	-	putative acetyltransferase
820	 57.08	0	837252..838388	+	378	38233462	-	DIP0865	-	hypothetical protein
821	 53.62	0	838431..838844	+	137	38233463	-	DIP0866	-	hypothetical protein
822	 53.09	0	838831..839493	+	220	38233464	-	DIP0867	-	hypothetical protein
823	 56.73	0	839502..841211	-	569	38233465	-	DIP0868	-	hypothetical protein
824	 52.29	0	841745..843490	+	581	38233466	betP	DIP0869	-	glycine betaine transporter
825	 53.07	0	843569..845032	+	487	38233467	-	DIP0870	-	hypothetical protein
826	 55.82	0	845142..846017	+	291	38233468	-	DIP0871	-	hypothetical protein
827	 53.90	0	846041..847873	+	610	38233469	metG	DIP0872	-	methionyl-tRNA synthetase
828	 52.87	0	847895..848749	+	284	38233470	-	DIP0873	-	hypothetical protein
829	 53.37	0	848894..850051	+	385	38233471	-	DIP0874	-	hypothetical protein
830	 55.86	0	850103..850990	+	295	38233472	ksgA	DIP0875	-	dimethyladenosine transferase
831	 58.87	+1	850987..851922	+	311	38233473	-	DIP0876	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
832	 58.04	0	851922..853730	+	602	38233474	-	DIP0877	-	ABC transporter ATP-binding protein
833	 47.53	-1	853749..854072	+	107	38233475	-	DIP0878	-	hypothetical protein
834	 58.21	0	854176..854565	+	129	38233476	-	DIP0879	-	hypothetical protein
835	 58.70	+1	854590..855129	+	179	38233477	-	DIP0880	-	RNA polymerase ECF-subfamily sigma factor
836	 55.95	0	855138..856313	+	391	38233478	-	DIP0881	-	hypothetical protein
837	 53.64	0	856347..857252	+	301	38233479	-	DIP0882	-	putative RNA polymerase sigma factor
838	 56.44	0	857329..858042	-	237	38233480	-	DIP0883	-	hypothetical protein
839	 56.30	0	858062..858862	-	266	38233481	-	DIP0884	-	hypothetical protein
840	 55.65	0	858962..860014	+	350	38233482	-	DIP0885	-	enoyl-CoA hydratase
841	 56.75	0	860011..861270	-	419	38233483	-	DIP0886	-	hypothetical protein
842	 48.89	-1	861306..861530	-	74	38233484	-	DIP0887	-	hypothetical protein
843	 53.87	0	861538..861912	-	124	38233485	-	DIP0888	-	TetR family transcriptional regulatory protein (partial)
844	 37.50	-2	862009..862128	-	39	38233486	-	DIP0889	-	hypothetical protein
845	 51.85	0	862236..862532	-	98	38233487	-	DIP0890	-	hypothetical protein
846	 54.72	0	862908..864338	-	476	38233488	-	DIP0892	-	glyceraldehyde-3-phosphate dehydrogenase
847	 55.05	0	864602..865255	+	217	38233489	-	DIP0893	-	hypothetical protein
848	 53.43	0	865283..865486	+	67	38233490	-	DIP0894	-	hypothetical protein
849	 54.92	0	865500..867134	-	544	38233491	-	DIP0895	-	putative peptide chain release factor 3
850	 56.17	0	867146..867955	-	269	38233492	-	DIP0896	-	putative oxydoreductase
851	 55.80	0	867987..868529	-	180	38233493	-	DIP0897	-	peptidyl-tRNA hydrolase
852	 51.52	0	868809..869369	+	186	38233494	-	DIP0898	-	hypothetical protein
853	 51.74	0	869457..869972	+	171	38233495	-	DIP0899	-	hypothetical protein
854	 49.55	0	870146..870700	-	184	38233496	-	DIP0900	-	peptidyl-tRNA hydrolase
855	 56.15	0	870759..871376	-	205	38233497	-	DIP0901	-	50S ribosomal protein L25/general stress protein Ctc
856	 59.12	+1	871597..873411	-	604	38233498	-	DIP0902	-	putative hydrolase
857	 60.75	+1	873535..874515	-	326	38233499	prsA	DIP0903	-	ribose-phosphate pyrophosphokinase
858	 57.25	0	874524..875978	-	484	38233500	-	DIP0904	-	putative UDP-N-acetylglucosamine pyrophosphorylase
859	 57.86	0	876064..876960	-	298	38233501	-	DIP0905	-	LysR family transcriptional regulator
53.75	MEAN

4.64	STD DEV
