IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

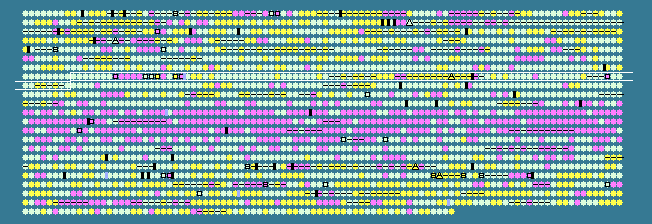

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
709	 55.33	0	720943..721815	-	290	38233351	-	DIP0745	-	hypothetical protein
710	 53.87	0	721938..723047	+	369	38233352	prfB	DIP0746	-	peptide chain release factor 2
711	 52.22	0	723044..724642	-	532	38233353	-	DIP0747	-	hypothetical protein
712	 52.61	0	724821..725510	+	229	38233354	ftsE	DIP0748	-	cell division ATP-binding protein
713	 51.38	0	725527..726429	+	300	38233355	-	DIP0749	-	putative cell division protein
714	 50.61	0	726536..727027	+	163	38233356	smpB	DIP0750	-	SsrA-binding protein
715	 52.08	0	727065..727256	+	63	38233357	-	DIP0751	-	hypothetical protein
716	 48.99	-1	727618..728997	+	459	38233358	-	DIP0752	-	IS element transposase
717	 47.07	-1	729107..732040	+	977	38233359	-	DIP0753	-	putative lantibiotic modifying enzyme
718	 46.65	-1	732028..734160	+	710	38233360	-	DIP0754	-	lantibiotic ABC transporter membrane protein
719	 47.21	-1	734160..735038	+	292	38233361	-	DIP0755	-	lantibiotic ABC transporter ATP-binding protein
720	 43.23	-2	735038..735835	+	265	38233362	-	DIP0756	-	lantibiotic ABC transporter membrane protein
721	 54.68	0	736001..736267	-	88	38233363	-	DIP0757	-	IS element transposase (partial)
722	 52.81	0	736323..736553	-	76	38233364	-	DIP0757A	-	IS element transposase (partial)
723	 63.42	+2	736810..737148	+	112	38233365	-	DIP0758	-	putative transposase (partial)
724	 50.00	0	738682..739023	-	113	38233366	-	DIP0761	-	hypothetical protein
725	 52.99	0	739057..739860	-	267	38233367	-	DIP0762	-	hypothetical protein
726	 59.28	+1	740277..741590	-	437	38233368	-	DIP0764	-	putative transposase
727	 48.51	-1	742372..742674	-	100	38233369	tnpA1	DIP0766	-	transposase A
728	 52.93	0	749836..750483	-	215	38233370	-	DIP0771	-	hypothetical protein
729	 59.10	+1	750488..752152	-	554	38233371	-	DIP0772	-	putative ATP-dependent DNA helicase
730	 57.27	0	752198..754516	-	772	38233372	-	DIP0773	-	putative DNA-binding protein
731	 52.32	0	754535..754771	+	78	38233373	-	DIP0774	-	hypothetical protein
732	 59.78	+1	754956..755579	-	207	38233374	-	DIP0775	-	hypothetical protein
733	 54.36	0	756260..756649	+	129	38233375	cspB	DIP0776	-	cold shock protein B
734	 52.76	0	756756..757280	-	174	38233376	-	DIP0777	-	hypothetical protein
735	 54.33	0	757267..758133	-	288	38233377	-	DIP0778	-	hypothetical protein
736	 55.16	0	758173..758937	+	254	38233378	-	DIP0779	-	hypothetical protein
737	 56.05	0	759111..760598	+	495	38233379	-	DIP0780	-	hypothetical protein
738	 55.30	0	760677..761573	+	298	38233380	-	DIP0781	-	putative methyltransferase
739	 54.07	0	761570..762466	-	298	38233381	-	DIP0782	-	hypothetical protein
740	 55.81	0	762487..763536	-	349	38233382	-	DIP0783	-	hypothetical protein
741	 54.20	0	763738..764868	-	376	38233383	-	DIP0784	-	phosphoserine aminotransferase
742	 54.81	0	765550..766848	+	432	161598677	gltA	DIP0785	-	type II citrate synthase
743	 59.72	+1	767015..767374	+	119	38233385	-	DIP0786	-	putative FK506-binding protein
744	 56.18	0	767461..768966	-	501	38233386	accDA	DIP0787	-	putative carboxyltransferase subunit of acetyl-CoA carboxylase
745	 54.41	0	769059..769931	+	290	38233387	-	DIP0788	-	putative oxidoreductase
746	 53.93	0	769931..770707	+	258	38233388	-	DIP0789	-	enoyl-CoA hydratase
747	 51.75	0	771056..771397	+	113	38233389	-	DIP0790	-	hypothetical protein
748	 53.36	0	771401..773053	+	550	38233390	-	DIP0791	-	putative transport membrane protein
749	 53.68	0	773178..774032	+	284	38233391	-	DIP0792	-	hypothetical protein
750	 59.41	+1	774025..774933	-	302	38233392	-	DIP0793	-	hypothetical protein
751	 52.33	0	775062..776261	-	399	38233393	-	DIP0794	-	Na(+)/H(+) antiporter-like protein
752	 53.64	0	776521..776973	-	150	38233394	-	DIP0795	-	hypothetical protein
753	 56.26	0	776985..777551	-	188	38233395	-	DIP0796	-	hypothetical protein
754	 57.74	0	777583..777750	-	55	38233396	-	DIP0797	-	hypothetical protein
755	 56.78	0	777872..778144	-	90	38233397	-	DIP0798	-	hypothetical protein
756	 57.32	0	778157..778477	+	106	38233398	-	DIP0799	-	hypothetical protein
757	 63.89	+2	778799..779374	+	191	38233399	-	DIP0800	-	hypothetical protein
758	 56.86	0	779748..780104	+	118	38233400	-	DIP0801	-	hypothetical protein
759	 57.43	0	780077..780574	-	165	38233401	-	DIP0802	-	hypothetical protein
760	 62.65	+1	780837..781160	-	107	38233402	-	DIP0803	-	hypothetical protein
761	 62.67	+1	781172..783724	-	850	38233403	-	DIP0804	-	hypothetical protein
762	 58.58	+1	783728..785731	-	667	38233404	-	DIP0805	-	putative DNA methylase
763	 42.25	-2	786230..786958	+	242	38233405	-	DIP0806	-	hypothetical protein
764	 45.43	-1	786955..787392	+	145	38233406	-	DIP0807	-	hypothetical protein
765	 64.78	+2	787574..787945	-	123	38233407	-	DIP0808	-	hypothetical protein
766	 62.96	+1	787932..788174	-	80	38233408	-	DIP0809	-	hypothetical protein
767	 66.13	+2	788227..788601	-	124	38233409	-	DIP0810	-	hypothetical protein
768	 63.69	+2	788588..788956	-	122	38233410	-	DIP0811	-	hypothetical protein
769	 65.43	+2	788946..789917	-	323	38233411	-	DIP0812	-	hypothetical protein
770	 59.52	+1	789916..790419	+	167	38233412	-	DIP0813	-	hypothetical protein
771	 67.44	+2	790442..790960	+	172	38233413	-	DIP0816	-	hypothetical protein
772	 64.41	+2	790953..792017	+	354	38233414	-	DIP0817	-	putative phage integrase
773	 61.95	+1	792350..792688	-	112	38233415	-	DIP0818	-	hypothetical protein
774	 60.57	+1	792701..793471	+	256	38233416	-	DIP0819	-	hypothetical protein
775	 62.90	+1	793522..795300	+	592	38233417	-	DIP0820	-	hypothetical protein
776	 47.45	-1	795749..796081	+	110	38233418	-	DIP0821	-	hypothetical protein
777	 56.44	0	796088..796840	+	250	38233419	-	DIP0822	-	precorrin 6A synthase
778	 54.65	0	796859..797116	-	85	38233420	-	DIP0823	-	hypothetical protein
779	 60.32	+1	797137..797640	-	167	38233421	-	DIP0824	-	putative folate reductase
780	 53.26	0	797640..798452	-	270	38233422	thyA	DIP0825	-	thymidylate synthase
781	 60.21	+1	798546..799304	-	252	38233423	-	DIP0826	-	putative sulfite synthesis related protein
782	 56.99	0	799343..804157	+	1604	38233424	-	DIP0827	-	putative ATP-dependent helicase
783	 57.07	0	804154..804705	-	183	38233425	-	DIP0828	-	putative DNA repair protein
784	 53.66	0	804836..805642	+	268	38233426	-	DIP0829	-	putative endonuclease
785	 51.78	0	805625..807250	-	541	38233427	-	DIP0830	-	hypothetical protein
786	 49.03	-1	807364..807777	+	137	38233428	-	DIP0831	-	hypothetical protein
787	 54.44	0	807862..809505	-	547	38233429	pgi	DIP0832	-	glucose-6-phosphate isomerase
788	 56.30	0	809708..811192	+	494	38233430	-	DIP0833	-	putative succinate-semialdehyde dehydrogenase
789	 56.16	0	811189..811521	-	110	38233431	-	DIP0834	-	hypothetical protein
790	 50.50	0	811671..814088	+	805	38233432	pcrA	DIP0835	-	ATP-dependent DNA helicase
791	 54.53	0	814166..814882	-	238	38233433	-	DIP0836	-	hypothetical protein
792	 52.10	0	815288..816742	+	484	38233434	-	DIP0837	-	hypothetical protein
793	 53.85	0	816768..817391	+	207	38233435	purN	DIP0838	-	phosphoribosylglycinamide formyltransferase
794	 57.54	0	817381..818958	+	525	38233436	purH	DIP0839	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
795	 54.17	0	819223..819702	+	159	38233437	-	DIP0840	-	hypothetical protein
796	 51.70	0	819871..820371	+	166	38233438	-	DIP0841	-	hypothetical protein
797	 55.38	0	820408..820974	+	188	38233439	-	DIP0842	-	hypothetical protein
798	 48.95	-1	820987..822363	-	458	38233440	-	DIP0843	-	putative transposase
799	 53.77	0	822365..822775	+	136	38233441	-	DIP0844	-	hypothetical protein
800	 54.68	0	822822..823655	+	277	38233442	-	DIP0845	-	putative citrate lyase
801	 54.56	0	823652..824320	-	222	38233443	amtR	DIP0846	-	TetR family regulatory protein
802	 55.46	0	824445..825479	-	344	38233444	-	DIP0847	-	hypothetical protein
803	 57.83	0	825552..825800	-	82	38233445	rpsR	DIP0848	-	30S ribosomal protein S18
804	 59.15	+1	825815..826120	-	101	38233446	rpsN	DIP0849	-	30S ribosomal protein S14
805	 52.12	0	826124..826288	-	54	38233447	rpmG	DIP0850	-	50S ribosomal protein L33
806	 59.07	+1	826292..826528	-	78	38233448	rpmB	DIP0851	-	50S ribosomal protein L28
807	 54.31	0	826998..827264	+	88	38233449	rpmE2	DIP0852	-	50S ribosomal protein L31 type B
808	 54.60	0	827283..827456	+	57	38233450	rpmF	DIP0853	-	50S ribosomal protein L32
53.75	MEAN

4.64	STD DEV
