IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

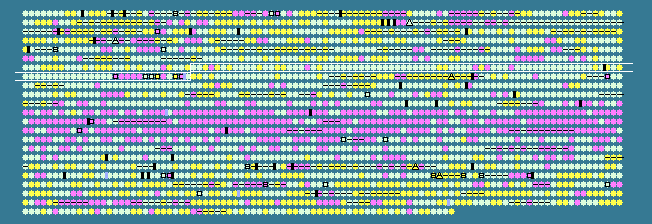

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
629	 56.09	0	641251..641751	+	166	38233271	purE	DIP0664	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
630	 56.28	0	641756..642217	+	153	38233272	-	DIP0665	-	hypothetical protein
631	 58.24	0	642209..643324	-	371	38233273	hypD	DIP0666	-	hydrogenase isoenzyme formation protein
632	 49.61	0	643324..643581	-	85	38233274	hypC	DIP0667	-	hydrogenase expression/formation protein HypC
633	 58.73	+1	643639..644709	+	356	38233275	hypE	DIP0668	-	hydrogenase expression/formation protein HypE
634	 56.73	0	644718..646952	-	744	38233276	-	DIP0669	-	putative hydrogenase maturation protein
635	 58.11	0	646965..647303	+	112	38233277	-	DIP0670	-	putative hydrogenase nickel incorporation protein
636	 53.02	0	647316..648077	+	253	38233278	-	DIP0671	-	putative hydrogenase nickel incorporation protein
637	 55.85	0	648378..649634	+	418	38233279	-	DIP0672	-	putative uptake hydrogenase small subunit
638	 55.33	0	649640..651385	+	581	38233280	-	DIP0673	-	putative uptake hydrogenase large subunit
639	 56.45	0	651382..652536	+	384	38233281	-	DIP0674	-	putative Ni/Fe-hydrogenase B-type cytochrome subunit
640	 59.84	+1	652547..653059	+	170	38233282	-	DIP0675	-	putative hydrogenase maturation protease
641	 55.46	0	653056..653421	-	121	38233283	-	DIP0676	-	putative hydrogenase nickel incorporation protein
642	 55.27	0	653448..654491	+	347	38233284	-	DIP0677	-	putative reducing hydrogenase alpha subunit
643	 58.14	0	654497..654754	+	85	38233285	-	DIP0678	-	putative hydrogenase operon protein
644	 60.94	+1	654751..655413	-	220	38233286	-	DIP0679	-	hypothetical protein
645	 54.09	0	655425..656903	-	492	38233287	-	DIP0680	-	hypothetical protein
646	 52.86	0	657162..658052	+	296	38233288	-	DIP0681	-	putative glycosyl transferase
647	 54.36	0	658206..659294	+	362	38233289	-	DIP0682	-	putative mannose-1-phosphate guanyltransferase
648	 47.10	-1	659420..659557	+	45	38233290	-	DIP0683	-	hypothetical protein
649	 54.67	0	659753..660052	+	99	38233291	-	DIP0684	-	putative regulatory protein
650	 59.21	+1	660126..660581	-	151	38233292	-	DIP0685	-	hypothetical protein
651	 55.80	0	660680..661093	+	137	38233293	-	DIP0686	-	hypothetical protein
652	 55.92	0	661191..662567	+	458	38233294	manB	DIP0687	-	phosphomannomutase/phosphoglucomutase
653	 53.97	0	662616..663623	+	335	38233295	-	DIP0688	-	hypothetical protein
654	 53.08	0	663663..664832	+	389	38233296	-	DIP0689	-	putative mannose-phosphate isomerase
655	 56.92	0	664858..665709	-	283	38233297	-	DIP0690	-	hypothetical protein
656	 54.24	0	666050..666403	+	117	38233298	-	DIP0691	-	hypothetical protein
657	 53.79	0	666509..667945	+	478	38233299	ahcY	DIP0692	-	S-adenosyl-L-homocysteine hydrolase
658	 53.88	0	667945..668562	+	205	38233300	-	DIP0693	-	thymidylate kinase
659	 51.79	0	668619..669317	+	232	38233301	mtrA2	DIP0694	-	putative two component system response regulator
660	 52.95	0	669450..670892	+	480	38233302	mtrB	DIP0695	-	putative two component system sensor kinase
661	 52.75	0	670885..672630	+	581	38233303	-	DIP0696	-	lipoprotein LpqB
662	 56.55	0	672652..673254	+	200	38233304	-	DIP0697	-	hypothetical protein
663	 54.11	0	673384..674052	+	222	38233305	-	DIP0698	-	hypothetical protein
664	 53.51	0	674230..676791	+	853	38233306	secA	DIP0699	-	preprotein translocase subunit SecA
665	 50.98	0	676843..677046	+	67	38233307	-	DIP0700	-	hypothetical protein
666	 56.20	0	677455..677865	+	136	38233308	-	DIP0701	-	hypothetical protein
667	 54.64	0	677877..678383	+	168	38233309	-	DIP0702	-	hypothetical protein
668	 56.58	0	678605..679675	+	356	38233310	-	DIP0703	-	putative oxidoreductase
669	 50.43	0	679690..680970	+	426	38233311	-	DIP0704	-	hypothetical protein
670	 59.72	+1	680972..681979	-	335	38233312	-	DIP0705	-	hypothetical protein
671	 58.18	0	681984..683279	-	431	38233313	aroA	DIP0706	-	3-phosphoshikimate 1-carboxyvinyltransferase
672	 54.45	0	683297..683959	+	220	38233314	-	DIP0707	-	hypothetical protein
673	 51.39	0	683945..684448	-	167	38233315	-	DIP0708	-	hypothetical protein
674	 50.32	0	684494..685117	+	207	38233316	rpoE	DIP0709	-	RNA polymerase sigma factor RpoE
675	 50.79	0	685114..685365	+	83	38233317	-	DIP0710	-	putative anti sigma factor
676	 46.96	-1	685370..685714	-	114	38233318	-	DIP0711	-	hypothetical protein
677	 62.84	+1	686052..686312	-	86	38233319	-	DIP0712	-	putative transcriptional regulator
678	 49.87	0	686383..686781	+	132	38233320	-	DIP0713	-	hypothetical protein
679	 51.52	0	686945..687406	+	153	38233321	-	DIP0715	-	hypothetical protein
680	 55.11	0	687400..688662	-	420	38233322	-	DIP0716	-	hypothetical protein
681	 55.99	0	688659..689969	-	436	38233323	-	DIP0717	-	putative ATP-dependent RNA helicase
682	 49.21	0	690051..690176	-	41	38233324	-	DIP0718	-	hypothetical protein
683	 56.14	0	690227..690454	+	75	38233325	-	DIP0719	-	hypothetical protein
684	 54.84	0	690457..691335	+	292	38233326	-	DIP0720	-	hypothetical protein
685	 53.50	0	691359..692216	+	285	38233327	-	DIP0721	-	hypothetical protein
686	 52.62	0	692220..695402	+	1060	38233328	-	DIP0722	-	putative ATP-dependent DNA helicase
687	 51.84	0	695396..698626	+	1076	38233329	-	DIP0723	-	putative helicase
688	 52.98	0	698671..699759	+	362	38233330	-	DIP0724	-	membrane transporter
689	 53.51	0	699791..700474	+	227	38233331	-	DIP0725	-	putative hydrolase
690	 54.19	0	700467..702518	+	683	38233332	uvrD	DIP0726	-	putative DNA helicase II
691	 53.56	0	702463..703362	-	299	38233333	-	DIP0727	-	hypothetical protein
692	 53.45	0	703392..703913	+	173	38233334	-	DIP0728	-	hypothetical protein
693	 55.68	0	703910..705301	-	463	38233335	-	DIP0729	-	hypothetical protein
694	 55.65	0	705382..706434	+	350	38233336	-	DIP0730	-	hypothetical protein
695	 52.42	0	706446..707147	-	233	38233337	-	DIP0731	-	hypothetical protein
696	 57.54	0	707195..707698	-	167	38233338	-	DIP0732	-	hypothetical protein
697	 53.17	0	707871..710834	+	987	38233339	-	DIP0733	-	hypothetical protein
698	 58.42	+1	711318..711887	-	189	38233340	-	DIP0734	-	hypothetical protein
699	 52.06	0	711917..712231	-	104	38233341	-	DIP0735	-	hypothetical protein
700	 59.55	+1	712417..713427	-	336	38233342	-	DIP0736	-	putative protease
701	 52.66	0	713430..714386	-	318	38233343	-	DIP0737	-	hypothetical protein
702	 55.95	0	714642..714809	+	55	38233344	-	DIP0738	-	hypothetical protein
703	 53.98	0	715065..716546	+	493	38233345	pycB	DIP0739	-	oxaloacetate decarboxylase
704	 55.62	0	716559..718115	+	518	38233346	mmdA	DIP0740	-	methylmalonyl-CoA decarboxylase, alpha-subunit
705	 53.79	0	718129..718392	+	87	38233347	-	DIP0741	-	hypothetical protein
706	 57.18	0	718417..718785	+	122	38233348	-	DIP0742	-	putative decarboxylase
707	 53.35	0	718856..720079	+	407	38233349	-	DIP0743	-	hypothetical protein
708	 56.91	0	720098..720886	-	262	38233350	-	DIP0744	-	hypothetical protein
709	 55.33	0	720943..721815	-	290	38233351	-	DIP0745	-	hypothetical protein
710	 53.87	0	721938..723047	+	369	38233352	prfB	DIP0746	-	peptide chain release factor 2
711	 52.22	0	723044..724642	-	532	38233353	-	DIP0747	-	hypothetical protein
712	 52.61	0	724821..725510	+	229	38233354	ftsE	DIP0748	-	cell division ATP-binding protein
713	 51.38	0	725527..726429	+	300	38233355	-	DIP0749	-	putative cell division protein
714	 50.61	0	726536..727027	+	163	38233356	smpB	DIP0750	-	SsrA-binding protein
715	 52.08	0	727065..727256	+	63	38233357	-	DIP0751	-	hypothetical protein
716	 48.99	-1	727618..728997	+	459	38233358	-	DIP0752	-	IS element transposase
717	 47.07	-1	729107..732040	+	977	38233359	-	DIP0753	-	putative lantibiotic modifying enzyme
718	 46.65	-1	732028..734160	+	710	38233360	-	DIP0754	-	lantibiotic ABC transporter membrane protein
719	 47.21	-1	734160..735038	+	292	38233361	-	DIP0755	-	lantibiotic ABC transporter ATP-binding protein
720	 43.23	-2	735038..735835	+	265	38233362	-	DIP0756	-	lantibiotic ABC transporter membrane protein
721	 54.68	0	736001..736267	-	88	38233363	-	DIP0757	-	IS element transposase (partial)
722	 52.81	0	736323..736553	-	76	38233364	-	DIP0757A	-	IS element transposase (partial)
723	 63.42	+2	736810..737148	+	112	38233365	-	DIP0758	-	putative transposase (partial)
724	 50.00	0	738682..739023	-	113	38233366	-	DIP0761	-	hypothetical protein
725	 52.99	0	739057..739860	-	267	38233367	-	DIP0762	-	hypothetical protein
726	 59.28	+1	740277..741590	-	437	38233368	-	DIP0764	-	putative transposase
727	 48.51	-1	742372..742674	-	100	38233369	tnpA1	DIP0766	-	transposase A
728	 52.93	0	749836..750483	-	215	38233370	-	DIP0771	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
