IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

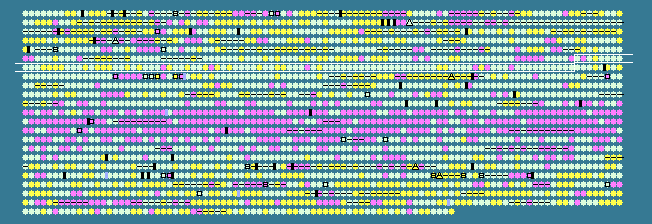

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
593	 52.04	0	596848..597681	+	277	38233235	hmuV	DIP0628	-	Iron-related transport system ATP-binding protein
594	 45.91	-1	597871..598848	+	325	38233236	-	DIP0629	-	hypothetical protein
595	 55.66	0	598958..600274	-	438	38233237	-	DIP0630	-	O-acetylhomoserine aminocarboxypropyltransferase
596	 59.08	+1	600526..602739	-	737	38233238	icd	DIP0631	-	isocitrate dehydrogenase [NADP]
597	 54.64	0	602928..604208	+	426	38233239	-	DIP0632	-	hypothetical protein
598	 53.53	0	604219..605124	+	301	38233240	-	DIP0633	-	putative exodeoxyribonuclease
599	 56.11	0	605270..605449	+	59	38233241	-	DIP0634	-	hypothetical protein
600	 54.20	0	605642..606676	+	344	38233242	trpS	DIP0635	-	tryptophanyl-tRNA synthetase
601	 55.90	0	606805..607965	+	386	38233243	-	DIP0636	-	hypothetical protein
602	 55.72	0	608070..609302	-	410	38233244	-	DIP0637	-	putative peptidoglycan synthesis related protein
603	 50.69	0	609337..610281	+	314	38233245	-	DIP0638	-	hypothetical protein
604	 59.04	+1	610555..611787	-	410	38233246	-	DIP0639	-	hypothetical protein
605	 59.76	+1	611808..612647	-	279	38233247	-	DIP0640	-	hypothetical protein
606	 59.57	+1	612644..612925	-	93	38233248	-	DIP0641	-	hypothetical protein
607	 57.55	0	612990..613625	+	211	38233249	upp	DIP0642	-	uracil phosphoribosyltransferase
608	 54.30	0	613790..614371	+	193	38233250	-	DIP0643	-	putative DNA-binding protein
609	 56.17	0	614468..615658	+	396	38233251	-	DIP0644	-	hypothetical protein
610	 54.72	0	615701..617173	+	490	38233252	lpdA	DIP0645	-	flavoprotein disulfide reductase
611	 57.53	0	617693..621118	+	1141	38233253	pyc	DIP0646	-	pyruvate carboxylase
612	 52.68	0	621208..621972	-	254	38233254	-	DIP0647	-	hypothetical protein
613	 58.02	0	621987..622391	-	134	38233255	-	DIP0648	-	hypothetical protein
614	 59.33	+1	622563..624347	-	594	38233256	accBC	DIP0649	-	acyl coenzyme A carboxylase
615	 57.48	0	624604..625485	-	293	38233257	sseA	DIP0650	-	putative thiosulfate sulfurtransferase
616	 55.62	0	626082..627140	+	352	38233258	-	DIP0651	-	hypothetical protein
617	 54.77	0	627335..629452	+	705	38233259	-	DIP0652	-	hypothetical protein
618	 59.67	+1	629449..629877	-	142	38233260	-	DIP0653	-	hypothetical protein
619	 55.44	0	629879..630475	-	198	38233261	maf	DIP0654	-	Maf-like protein
620	 58.17	0	630494..631399	-	301	38233262	-	DIP0655	-	putative ribokinase
621	 54.36	0	631544..632599	-	351	38233263	-	DIP0656	-	putative transcriptional regulatory protein
622	 52.11	0	632991..633251	-	86	38233264	-	DIP0657	-	hypothetical protein
623	 55.82	0	633347..634978	-	543	38233265	pccB1	DIP0658	-	propionyl CoA carboxylase beta chain 1
624	 45.75	-1	635607..636701	+	364	38233266	-	DIP0659	-	hypothetical protein
625	 60.60	+1	636944..638575	-	543	38233267	pccB2	DIP0660	-	propionyl-CoA carboxylase beta chain 2
626	 56.30	0	638727..639527	+	266	38233268	-	DIP0661	-	biotin--protein ligase
627	 52.26	0	639528..639992	+	154	38233269	-	DIP0662	-	hypothetical protein
628	 57.71	0	640046..641251	+	401	38233270	purK	DIP0663	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
629	 56.09	0	641251..641751	+	166	38233271	purE	DIP0664	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
630	 56.28	0	641756..642217	+	153	38233272	-	DIP0665	-	hypothetical protein
631	 58.24	0	642209..643324	-	371	38233273	hypD	DIP0666	-	hydrogenase isoenzyme formation protein
632	 49.61	0	643324..643581	-	85	38233274	hypC	DIP0667	-	hydrogenase expression/formation protein HypC
633	 58.73	+1	643639..644709	+	356	38233275	hypE	DIP0668	-	hydrogenase expression/formation protein HypE
634	 56.73	0	644718..646952	-	744	38233276	-	DIP0669	-	putative hydrogenase maturation protein
635	 58.11	0	646965..647303	+	112	38233277	-	DIP0670	-	putative hydrogenase nickel incorporation protein
636	 53.02	0	647316..648077	+	253	38233278	-	DIP0671	-	putative hydrogenase nickel incorporation protein
637	 55.85	0	648378..649634	+	418	38233279	-	DIP0672	-	putative uptake hydrogenase small subunit
638	 55.33	0	649640..651385	+	581	38233280	-	DIP0673	-	putative uptake hydrogenase large subunit
639	 56.45	0	651382..652536	+	384	38233281	-	DIP0674	-	putative Ni/Fe-hydrogenase B-type cytochrome subunit
640	 59.84	+1	652547..653059	+	170	38233282	-	DIP0675	-	putative hydrogenase maturation protease
641	 55.46	0	653056..653421	-	121	38233283	-	DIP0676	-	putative hydrogenase nickel incorporation protein
642	 55.27	0	653448..654491	+	347	38233284	-	DIP0677	-	putative reducing hydrogenase alpha subunit
643	 58.14	0	654497..654754	+	85	38233285	-	DIP0678	-	putative hydrogenase operon protein
644	 60.94	+1	654751..655413	-	220	38233286	-	DIP0679	-	hypothetical protein
645	 54.09	0	655425..656903	-	492	38233287	-	DIP0680	-	hypothetical protein
646	 52.86	0	657162..658052	+	296	38233288	-	DIP0681	-	putative glycosyl transferase
647	 54.36	0	658206..659294	+	362	38233289	-	DIP0682	-	putative mannose-1-phosphate guanyltransferase
648	 47.10	-1	659420..659557	+	45	38233290	-	DIP0683	-	hypothetical protein
649	 54.67	0	659753..660052	+	99	38233291	-	DIP0684	-	putative regulatory protein
650	 59.21	+1	660126..660581	-	151	38233292	-	DIP0685	-	hypothetical protein
651	 55.80	0	660680..661093	+	137	38233293	-	DIP0686	-	hypothetical protein
652	 55.92	0	661191..662567	+	458	38233294	manB	DIP0687	-	phosphomannomutase/phosphoglucomutase
653	 53.97	0	662616..663623	+	335	38233295	-	DIP0688	-	hypothetical protein
654	 53.08	0	663663..664832	+	389	38233296	-	DIP0689	-	putative mannose-phosphate isomerase
655	 56.92	0	664858..665709	-	283	38233297	-	DIP0690	-	hypothetical protein
656	 54.24	0	666050..666403	+	117	38233298	-	DIP0691	-	hypothetical protein
657	 53.79	0	666509..667945	+	478	38233299	ahcY	DIP0692	-	S-adenosyl-L-homocysteine hydrolase
658	 53.88	0	667945..668562	+	205	38233300	-	DIP0693	-	thymidylate kinase
659	 51.79	0	668619..669317	+	232	38233301	mtrA2	DIP0694	-	putative two component system response regulator
660	 52.95	0	669450..670892	+	480	38233302	mtrB	DIP0695	-	putative two component system sensor kinase
661	 52.75	0	670885..672630	+	581	38233303	-	DIP0696	-	lipoprotein LpqB
662	 56.55	0	672652..673254	+	200	38233304	-	DIP0697	-	hypothetical protein
663	 54.11	0	673384..674052	+	222	38233305	-	DIP0698	-	hypothetical protein
664	 53.51	0	674230..676791	+	853	38233306	secA	DIP0699	-	preprotein translocase subunit SecA
665	 50.98	0	676843..677046	+	67	38233307	-	DIP0700	-	hypothetical protein
666	 56.20	0	677455..677865	+	136	38233308	-	DIP0701	-	hypothetical protein
667	 54.64	0	677877..678383	+	168	38233309	-	DIP0702	-	hypothetical protein
668	 56.58	0	678605..679675	+	356	38233310	-	DIP0703	-	putative oxidoreductase
669	 50.43	0	679690..680970	+	426	38233311	-	DIP0704	-	hypothetical protein
670	 59.72	+1	680972..681979	-	335	38233312	-	DIP0705	-	hypothetical protein
671	 58.18	0	681984..683279	-	431	38233313	aroA	DIP0706	-	3-phosphoshikimate 1-carboxyvinyltransferase
672	 54.45	0	683297..683959	+	220	38233314	-	DIP0707	-	hypothetical protein
673	 51.39	0	683945..684448	-	167	38233315	-	DIP0708	-	hypothetical protein
674	 50.32	0	684494..685117	+	207	38233316	rpoE	DIP0709	-	RNA polymerase sigma factor RpoE
675	 50.79	0	685114..685365	+	83	38233317	-	DIP0710	-	putative anti sigma factor
676	 46.96	-1	685370..685714	-	114	38233318	-	DIP0711	-	hypothetical protein
677	 62.84	+1	686052..686312	-	86	38233319	-	DIP0712	-	putative transcriptional regulator
678	 49.87	0	686383..686781	+	132	38233320	-	DIP0713	-	hypothetical protein
679	 51.52	0	686945..687406	+	153	38233321	-	DIP0715	-	hypothetical protein
680	 55.11	0	687400..688662	-	420	38233322	-	DIP0716	-	hypothetical protein
681	 55.99	0	688659..689969	-	436	38233323	-	DIP0717	-	putative ATP-dependent RNA helicase
682	 49.21	0	690051..690176	-	41	38233324	-	DIP0718	-	hypothetical protein
683	 56.14	0	690227..690454	+	75	38233325	-	DIP0719	-	hypothetical protein
684	 54.84	0	690457..691335	+	292	38233326	-	DIP0720	-	hypothetical protein
685	 53.50	0	691359..692216	+	285	38233327	-	DIP0721	-	hypothetical protein
686	 52.62	0	692220..695402	+	1060	38233328	-	DIP0722	-	putative ATP-dependent DNA helicase
687	 51.84	0	695396..698626	+	1076	38233329	-	DIP0723	-	putative helicase
688	 52.98	0	698671..699759	+	362	38233330	-	DIP0724	-	membrane transporter
689	 53.51	0	699791..700474	+	227	38233331	-	DIP0725	-	putative hydrolase
690	 54.19	0	700467..702518	+	683	38233332	uvrD	DIP0726	-	putative DNA helicase II
691	 53.56	0	702463..703362	-	299	38233333	-	DIP0727	-	hypothetical protein
692	 53.45	0	703392..703913	+	173	38233334	-	DIP0728	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
