IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

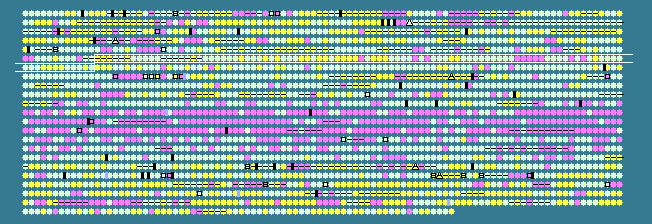

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
513	 58.81	+1	516618..516986	+	122	38233155	rpsM	DIP0546	-	30S ribosomal protein S13
514	 57.28	0	516990..517394	+	134	38233156	rpsK	DIP0547	-	30S ribosomal protein S11
515	 58.25	0	517418..518023	+	201	38233157	rpsD	DIP0548	-	30S ribosomal protein S4
516	 54.77	0	518105..519121	+	338	38233158	rpoA	DIP0549	-	DNA-directed RNA polymerase subunit alpha
517	 56.33	0	519202..519675	+	157	38233159	rplQ	DIP0550	-	50S ribosomal protein L17
518	 58.22	0	519770..520657	+	295	38233160	truA	DIP0551	-	tRNA pseudouridine synthase A
519	 55.43	0	520801..522099	+	432	38233161	-	DIP0552	-	hypothetical protein
520	 51.30	0	522208..522630	+	140	38233162	-	DIP0553	-	hypothetical protein
521	 53.44	0	522858..523757	-	299	38233163	-	DIP0554	-	putative subtilisin-like cell wall associated serine protease (mycosin)
522	 53.67	0	523770..525185	-	471	38233164	-	DIP0555	-	putative surface-anchored membrane protein
523	 52.80	0	525441..528980	+	1179	38233165	-	DIP0556	-	FtsK/SpoIIIE family ATP-binding protein
524	 51.11	0	529045..530034	+	329	38233166	-	DIP0557	-	hypothetical protein
525	 54.72	0	530237..530554	+	105	38233167	-	DIP0558	-	CFP-10-like protein
526	 52.78	0	530599..530886	+	95	38233168	-	DIP0559	-	ESAT-6-like protein
527	 54.00	0	530900..531049	+	49	38233169	-	DIP0560	-	hypothetical protein
528	 57.21	0	531311..531754	+	147	38233170	rplM	DIP0561	-	50S ribosomal protein L13
529	 59.74	+1	531751..532284	+	177	38233171	rpsI	DIP0562	-	30S ribosomal protein S9
530	 55.80	0	532453..533796	+	447	38233172	-	DIP0563	-	hypothetical protein
531	 54.67	0	533901..534200	+	99	38233173	-	DIP0564	-	hypothetical protein
532	 56.26	0	534197..535513	+	438	38233174	-	DIP0565	-	hypothetical protein
533	 54.02	0	535507..535767	+	86	38233175	-	DIP0566	-	hypothetical protein
534	 54.63	0	535786..536649	-	287	38233176	-	DIP0567	-	hypothetical protein
535	 55.87	0	536812..537960	+	382	38233177	alr	DIP0568	-	alanine racemase
536	 55.56	0	537967..538461	+	164	38233178	-	DIP0569	-	hypothetical protein
537	 58.78	+1	538648..540333	+	561	38233179	-	DIP0570	-	hypothetical protein
538	 55.06	0	540480..540953	+	157	38233180	-	DIP0571	-	hypothetical protein
539	 56.20	0	541021..541689	+	222	38233181	-	DIP0572	-	hypothetical protein
540	 55.28	0	541690..542181	+	163	38233182	-	DIP0573	-	putative ribosomal-protein-alanine acetyltransferase
541	 59.16	+1	542182..543234	+	350	38233183	-	DIP0574	-	O-sialoglycoprotein endopeptidase
542	 55.89	0	543376..543672	+	98	38233184	groES	DIP0575	-	co-chaperonin GroES
543	 57.41	0	543685..545304	+	539	38233185	groEL	DIP0576	-	chaperonin GroEL
544	 54.50	0	545504..546070	+	188	38233186	-	DIP0577	-	RNA polymerase sigma factor SigD
545	 55.81	0	546067..546969	+	300	38233187	-	DIP0578	-	hypothetical protein
546	 53.23	0	547039..547425	-	128	38233188	-	DIP0579	-	hypothetical protein
547	 57.26	0	547582..549102	+	506	38233189	guaB	DIP0580	-	inositol-5-monophosphate dehydrogenase
548	 57.42	0	549130..550275	+	381	38233190	-	DIP0581	-	inositol-5-monophosphate dehydrogenase
549	 53.85	0	550408..551304	+	298	38233191	-	DIP0582	-	putative iron transport system binding (secreted) protein
550	 58.59	+1	551335..552324	+	329	38233192	-	DIP0583	-	putative iron transport system membrane protein
551	 58.13	0	552324..553307	+	327	38233193	-	DIP0584	-	putative iron transport system membrane protein
552	 53.87	0	553311..554123	+	270	38233194	-	DIP0585	-	putative iron transport system ATP-binding protein
553	 58.30	0	554145..557468	+	1107	38233195	-	DIP0586	-	putative siderophore biosynthesis related protein
554	 59.35	+1	557508..558737	+	409	38233196	-	DIP0587	-	hypothetical protein
555	 58.39	0	558764..559198	+	144	38233197	-	DIP0588	-	hypothetical protein
556	 59.87	+1	559337..560233	-	298	38233198	-	DIP0589	-	hypothetical protein
557	 45.26	-1	560966..561250	+	94	38233199	-	DIP0592	-	hypothetical protein
558	 51.23	0	561256..561825	+	189	38233200	-	DIP0593	-	hypothetical protein
559	 58.11	0	562125..562346	+	73	38233201	-	DIP0594	-	hypothetical protein
560	 60.96	+1	562428..564005	+	525	38233202	guaA	DIP0595	-	bifunctional GMP synthase/glutamine amidotransferase protein
561	 58.94	+1	564081..564779	-	232	38233203	-	DIP0596	-	hypothetical protein
562	 53.67	0	564837..565313	+	158	38233204	-	DIP0597	-	hypothetical protein
563	 53.79	0	565332..566465	-	377	38233205	-	DIP0598	-	hypothetical protein
564	 52.31	0	566547..567758	+	403	38233206	-	DIP0599	-	putative two component system sensor kinase
565	 54.89	0	567764..568459	+	231	38233207	-	DIP0600	-	putative two component system response regulator
566	 47.58	-1	568608..568958	+	116	38233208	-	DIP0601	-	hypothetical protein
567	 52.67	0	569168..569617	-	149	38233209	-	DIP0602	-	hypothetical protein
568	 48.51	-1	569646..570416	+	256	38233210	-	DIP0603	-	hypothetical protein
569	 53.90	0	570425..571951	+	508	38233211	-	DIP0604	-	hypothetical protein
570	 53.85	0	571955..572656	-	233	38233212	-	DIP0605	-	hypothetical protein
571	 52.90	0	572761..573639	+	292	38233213	-	DIP0606	-	hypothetical protein
572	 57.34	0	573656..575113	-	485	38233214	-	DIP0607	-	hypothetical protein
573	 59.44	+1	575214..575891	-	225	38233215	-	DIP0608	-	ABC transporter
574	 56.21	0	575888..576910	-	340	38233216	-	DIP0609	-	ABC transporter ATP-binding protein
575	 52.92	0	576948..577820	-	290	38233217	-	DIP0610	-	ABC transporter
576	 54.64	0	577994..578866	-	290	38233218	-	DIP0611	-	ABC transporter
577	 53.88	0	579083..582202	+	1039	38233219	dnaE2	DIP0612	-	error-prone DNA polymerase
578	 55.63	0	582222..582692	+	156	38233220	-	DIP0613	-	hypothetical protein
579	 52.65	0	582689..584029	+	446	38233221	-	DIP0614	-	hypothetical protein
580	 54.14	0	584097..585062	+	321	38233222	-	DIP0615	-	ABC transporter
581	 54.83	0	585131..585916	+	261	38233223	-	DIP0616	-	ABC transporter ATP-binding protein
582	 51.44	0	585906..586739	+	277	38233224	-	DIP0617	-	ABC transporter
583	 49.19	0	586736..587542	+	268	38233225	-	DIP0618	-	ABC transporter
584	 49.92	0	587557..588171	+	204	38233226	-	DIP0619	-	putative diphtheria toxin repressor 2
585	 50.24	0	588393..589238	+	281	38233227	folD	DIP0620	-	methylenetetrahydrofolate dehydrogenase
586	 47.71	-1	589231..589557	+	108	38233228	-	DIP0621	-	hypothetical protein
587	 48.82	-1	589692..590957	-	421	38233229	-	DIP0622	-	hypothetical protein
588	 54.44	0	591014..592117	-	367	38233230	metX	DIP0623	-	homoserine O-acetyltransferase
589	 51.63	0	592180..592731	-	183	38233231	-	DIP0624	-	hypothetical protein
590	 50.39	0	592944..594719	+	591	38233232	-	DIP0625	-	hypothetical protein
591	 50.56	0	594730..595791	+	353	38233233	hmuT	DIP0626	-	Iron-related transport system receptor precursor protein
592	 48.81	-1	595775..596827	+	350	38233234	hmuU	DIP0627	-	Iron-related transport system membrane protein
593	 52.04	0	596848..597681	+	277	38233235	hmuV	DIP0628	-	Iron-related transport system ATP-binding protein
594	 45.91	-1	597871..598848	+	325	38233236	-	DIP0629	-	hypothetical protein
595	 55.66	0	598958..600274	-	438	38233237	-	DIP0630	-	O-acetylhomoserine aminocarboxypropyltransferase
596	 59.08	+1	600526..602739	-	737	38233238	icd	DIP0631	-	isocitrate dehydrogenase [NADP]
597	 54.64	0	602928..604208	+	426	38233239	-	DIP0632	-	hypothetical protein
598	 53.53	0	604219..605124	+	301	38233240	-	DIP0633	-	putative exodeoxyribonuclease
599	 56.11	0	605270..605449	+	59	38233241	-	DIP0634	-	hypothetical protein
600	 54.20	0	605642..606676	+	344	38233242	trpS	DIP0635	-	tryptophanyl-tRNA synthetase
601	 55.90	0	606805..607965	+	386	38233243	-	DIP0636	-	hypothetical protein
602	 55.72	0	608070..609302	-	410	38233244	-	DIP0637	-	putative peptidoglycan synthesis related protein
603	 50.69	0	609337..610281	+	314	38233245	-	DIP0638	-	hypothetical protein
604	 59.04	+1	610555..611787	-	410	38233246	-	DIP0639	-	hypothetical protein
605	 59.76	+1	611808..612647	-	279	38233247	-	DIP0640	-	hypothetical protein
606	 59.57	+1	612644..612925	-	93	38233248	-	DIP0641	-	hypothetical protein
607	 57.55	0	612990..613625	+	211	38233249	upp	DIP0642	-	uracil phosphoribosyltransferase
608	 54.30	0	613790..614371	+	193	38233250	-	DIP0643	-	putative DNA-binding protein
609	 56.17	0	614468..615658	+	396	38233251	-	DIP0644	-	hypothetical protein
610	 54.72	0	615701..617173	+	490	38233252	lpdA	DIP0645	-	flavoprotein disulfide reductase
611	 57.53	0	617693..621118	+	1141	38233253	pyc	DIP0646	-	pyruvate carboxylase
612	 52.68	0	621208..621972	-	254	38233254	-	DIP0647	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
