IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

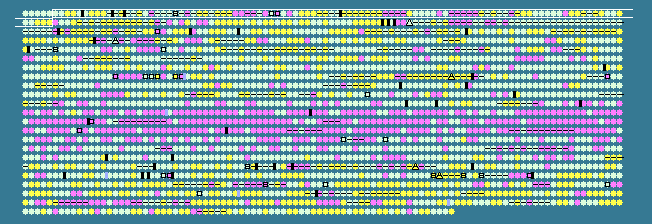

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
6	 55.48	0	7503..7940	-	145	38232648	-	DIP0006	-	hypothetical protein
7	 54.95	0	8201..8473	-	90	38232649	-	DIP0007	-	hypothetical protein
8	 63.73	+2	8478..8681	-	67	38232650	-	DIP0008	-	hypothetical protein
9	 61.07	+1	8792..11362	+	856	38232651	gyrA	DIP0009	-	DNA gyrase subunit A
10	 55.36	0	11362..11706	+	114	38232652	-	DIP0010	-	hypothetical protein
11	 56.79	0	12176..12904	-	242	38232653	-	DIP0011	-	putative regulatory protein
12	 58.41	+1	12992..14662	-	556	38232654	lldP	DIP0012	-	L-lactate permease
13	 57.81	0	15159..15632	+	157	38232655	-	DIP0013	-	hypothetical protein
14	 57.85	0	15721..17364	+	547	38232656	-	DIP0014	-	hypothetical protein
15	 57.19	0	17354..19000	+	548	38232657	-	DIP0015	-	putative transport system, ATP-binding protein
16	 56.70	0	19447..19767	+	106	38232658	-	DIP0016	-	hypothetical protein
17	 62.42	+1	19865..20029	+	54	38232659	-	DIP0017	-	hypothetical protein
18	 55.05	0	20524..20721	+	65	38232660	-	DIP0018	-	hypothetical protein
19	 51.63	0	20713..20958	-	81	38232661	-	DIP0019	-	hypothetical protein
20	 57.58	0	20955..21185	-	76	38232662	-	DIP0020	-	hypothetical protein
21	 55.16	0	21381..22379	+	332	38232663	-	DIP0021	-	putative solute-binding lipoprotein
22	 50.19	0	22376..23407	+	343	38232664	-	DIP0022	-	ABC transporter
23	 53.28	0	23408..24169	+	253	38232665	-	DIP0023	-	ABC transporter ATP-binding protein
24	 56.81	0	24217..24825	-	202	38232666	-	DIP0024	-	hypothetical protein
25	 54.33	0	24888..25430	+	180	38232667	ppiA	DIP0025	-	peptidyl-prolyl cis-trans isomerase A
26	 52.14	0	25519..25752	-	77	38232668	-	DIP0026	-	putative transposase (partial)
27	 52.10	0	25877..26494	+	205	38232669	-	DIP0027	-	hypothetical protein
28	 45.20	-1	26672..27025	-	117	38232670	-	DIP0028	-	hypothetical protein
29	 55.28	0	27567..29366	+	599	38232671	thiC	DIP0029	-	thiamine biosynthesis protein ThiC
30	 59.04	+1	29350..30018	+	222	38232672	thiE	DIP0030	-	thiamine-phosphate pyrophosphorylase
31	 58.77	+1	30015..31103	+	362	38232673	thiO	DIP0031	-	putative thiamine biosynthesis oxidoreductase
32	 56.22	0	31087..31287	+	66	38232674	-	DIP0032	-	hypothetical protein
33	 63.87	+2	31289..32074	+	261	38232675	thiG	DIP0033	-	thiazole synthase
34	 58.58	+1	32071..33084	+	337	38232676	-	DIP0034	-	thiamine biosynthesis protein ThiF
35	 60.20	+1	33081..33899	+	272	38232677	thiD	DIP0035	-	phosphomethylpyrimidine kinase
36	 47.90	-1	34478..37732	+	1084	38232678	-	DIP0036	-	hypothetical protein
37	 48.52	-1	37736..38650	+	304	38232679	-	DIP0037	-	hypothetical protein
38	 44.85	-1	38634..38963	+	109	38232680	-	DIP0038	-	hypothetical protein
39	 41.44	-2	38967..39077	-	36	38232681	-	DIP0039	-	hypothetical protein
40	 50.71	0	39311..39592	-	93	38232682	-	DIP0040	-	hypothetical protein
41	 45.10	-1	40822..40923	-	33	38232683	-	DIP0046	-	hypothetical protein
42	 55.71	0	41066..42614	-	508	38232684	-	DIP0047	-	putative transposase
43	 49.15	0	42736..42969	+	77	38232685	-	DIP0049	-	putative transposase (partial)
44	 51.04	0	43101..43196	+	31	38232686	-	DIP0050	-	hypothetical protein
45	 45.83	-1	43189..43284	+	31	38232687	-	DIP0051	-	hypothetical protein
46	 54.44	0	43308..43577	-	89	38232688	-	DIP0052	-	putative septation inhibitor protein
47	 58.31	0	43694..45715	-	673	38232689	pknB	DIP0053	-	serine/threonine-protein kinase
48	 60.96	+1	45712..47217	-	501	38232690	pknA	DIP0054	-	serine/threonine-protein kinase
49	 58.93	+1	47230..48690	-	486	38232691	pbpA	DIP0055	-	putative secreted penicillin-binding protein
50	 58.89	+1	48687..50036	-	449	38232692	ftsW	DIP0056	-	cell division protein
51	 58.57	+1	50037..51494	-	485	38232693	-	DIP0057	-	putative phosphoprotein phosphatase
52	 52.35	0	51491..51979	-	162	38232694	-	DIP0058	-	hypothetical protein
53	 53.63	0	51993..52859	-	288	38232695	-	DIP0059	-	hypothetical protein
54	 66.58	+2	53813..56047	-	744	38232696	-	DIP0061	-	putative cation-transporting ATPase
55	 64.83	+2	56099..56425	-	108	38232697	-	DIP0062	-	putative heavy metal-associated transport protein
56	 65.87	+2	56540..57667	-	375	38232698	-	DIP0063	-	putative two-component system sensor protein
57	 66.25	+2	57664..58386	-	240	38232699	-	DIP0064	-	putative two-component system response regulator
58	 60.38	+1	58730..59365	+	211	38232700	-	DIP0066	-	hypothetical protein
59	 64.17	+2	59436..60917	+	493	38232701	-	DIP0067	-	putative exported multicopper oxidase
60	 59.87	+1	60895..61203	-	102	38232702	-	DIP0068	-	hypothetical protein
61	 50.00	0	62898..63353	-	151	38232703	-	DIP0071	-	hypothetical protein
62	 46.71	-1	63350..63850	-	166	38232704	-	DIP0072	-	hypothetical protein
63	 46.21	-1	63823..64218	-	131	38232705	-	DIP0073	-	hypothetical protein
64	 43.26	-2	64253..64393	-	46	38232706	-	DIP0074	-	hypothetical protein
65	 58.37	0	64602..66083	+	493	38232707	-	DIP0075	-	hypothetical protein
66	 56.18	0	66426..66797	+	123	38232708	-	DIP0076	-	hypothetical protein
67	 55.18	0	66921..67721	+	266	38232709	-	DIP0077	-	hypothetical protein
68	 57.18	0	67740..68582	+	280	38232710	-	DIP0078	-	hypothetical protein
69	 55.37	0	68563..69828	+	421	38232711	-	DIP0079	-	hypothetical protein
70	 47.73	-1	69994..70125	+	43	38232712	-	DIP0080	-	hypothetical protein
71	 52.22	0	70294..70473	+	59	38232713	-	DIP0081	-	hypothetical protein
72	 45.77	-1	70504..70929	+	141	38232714	-	DIP0082	-	hypothetical protein
73	 48.23	-1	70997..71137	+	46	38232715	-	DIP0083	-	hypothetical protein
74	 44.96	-1	71572..71700	+	42	38232716	-	DIP0084	-	hypothetical protein
75	 46.90	-1	71845..72360	-	171	38232717	-	DIP0085	-	hypothetical protein
76	 49.33	0	72365..72664	-	99	38232718	-	DIP0086	-	putative regulatory protein
77	 59.95	+1	73648..74943	-	431	38232719	-	DIP0089	-	hypothetical protein
78	 56.27	0	75080..75781	-	233	38232720	-	DIP0090	-	ABC transport system ATP-binding protein
79	 58.03	0	75820..76479	-	219	38232721	-	DIP0091	-	putative two-component system response regulator
80	 55.85	0	76479..77708	-	409	38232722	-	DIP0092	-	putative two component system sensor kinase
81	 55.56	0	77804..78145	-	113	38232723	-	DIP0093	-	hypothetical protein
82	 47.86	-1	78214..78330	-	38	38232724	-	DIP0094	-	hypothetical protein
83	 60.15	+1	78414..79088	-	224	38232725	opuBB	DIP0095	-	choline transport system permease protein
84	 60.75	+1	79095..79736	-	213	38232726	opuBD	DIP0096	-	choline transport system permease protein
85	 58.36	0	79727..80557	-	276	38232727	opuBA	DIP0097	-	choline transport system ATP-binding protein
86	 57.14	0	80567..81175	-	202	38232728	-	DIP0098	-	hypothetical protein
87	 55.56	0	81172..81756	-	194	38232729	-	DIP0099	-	putative RNA polymerase sigma factor
88	 51.63	0	81783..82181	-	132	38232730	-	DIP0100	-	hypothetical protein
89	 56.55	0	82259..83899	+	546	38232731	-	DIP0101	-	hypothetical protein
90	 55.34	0	83969..84745	-	258	38232732	tipA	DIP0102	-	transcriptional activator
91	 48.21	-1	84797..84964	-	55	38232733	-	DIP0103	-	hypothetical protein
92	 62.66	+1	84975..86321	-	448	38232734	-	DIP0104	-	putative peptidase
93	 57.93	0	86342..87394	+	350	38232735	bioB	DIP0105	-	biotin synthase
94	 62.84	+1	87394..87654	+	86	38232736	-	DIP0106	-	hypothetical protein
95	 52.78	0	88041..89228	+	395	38232737	irp6A	DIP0108	-	ferrisiderophore receptor Irp6A
96	 58.91	+1	89229..90272	+	347	38232738	irp6B	DIP0109	-	membrane protein permease Irp6B
97	 58.63	+1	90274..91032	+	252	38232739	irp6C	DIP0110	-	ATP-binding protein Irp6C
98	 57.00	0	91122..92600	+	492	38232740	-	DIP0111	-	putative lipoprotein
99	 52.70	0	92618..93025	+	135	38232741	-	DIP0112	-	hypothetical protein
100	 61.97	+1	93040..94380	+	446	38232742	-	DIP0113	-	putative riboflavin biosynthesis protein
101	 54.76	0	94403..94822	+	139	38232743	-	DIP0114	-	hypothetical protein
102	 55.90	0	94809..95876	-	355	38232744	-	DIP0115	-	hypothetical protein
103	 60.21	+1	96123..96881	-	252	38232745	-	DIP0116	-	hypothetical protein
104	 57.60	0	96976..97758	-	260	38232746	-	DIP0117	-	putative lipase
105	 62.69	+1	97855..98433	+	192	38232747	-	DIP0118	-	putative dehydrogenase
53.75	MEAN

4.64	STD DEV
