IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

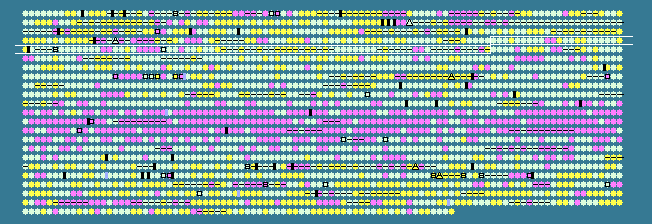

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
379	 54.49	0	373884..374918	+	344	38233021	hemE	DIP0407	-	uroporphyrinogen decarboxylase
380	 55.65	0	374934..376286	+	450	38233022	hemG	DIP0408	-	protoporphyrinogen oxidase
381	 56.84	0	376342..377634	+	430	38233023	hemL	DIP0409	-	glutamate-1-semialdehyde aminotransferase
382	 57.64	0	377631..378239	+	202	38233024	-	DIP0410	-	putative phosphoglycerate mutase
383	 53.30	0	378240..378800	+	186	38233025	-	DIP0411	-	putative electron transport related protein
384	 52.90	0	378797..379588	+	263	38233026	-	DIP0412	-	putative cytochrome C biogenesis protein
385	 51.29	0	379597..381189	+	530	38233027	-	DIP0413	-	hypothetical protein
386	 51.33	0	381198..382097	+	299	38233028	-	DIP0414	-	putative cytochrome C related protein
387	 55.93	0	382094..382363	-	89	38233029	-	DIP0415	-	ArsR family transcriptional regulator
388	 47.09	-1	382403..382591	-	62	38233030	-	DIP0416	-	hypothetical protein
389	 48.54	-1	382590..382931	+	113	38233031	-	DIP0417	-	hypothetical protein
390	 57.64	0	382906..383769	-	287	38233032	menA	DIP0418	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
391	 51.53	0	383911..385020	+	369	38233033	-	DIP0419	-	hypothetical protein
392	 56.67	0	384980..386089	-	369	38233034	-	DIP0420	-	O-succinylbenzoic acid--CoA ligase
393	 59.52	+1	386100..386966	-	288	38233035	menB	DIP0421	-	naphthoate synthase
394	 61.06	+1	386971..387933	+	320	38233036	menC	DIP0422	-	O-succinylbenzoate synthase
395	 54.38	0	387917..389446	+	509	38233037	-	DIP0423	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
396	 53.69	0	389443..389835	+	130	38233038	-	DIP0424	-	hypothetical protein
397	 55.46	0	389811..390836	+	341	38233039	-	DIP0425	-	putative glycosyl transferase
398	 53.91	0	390814..391503	+	229	161598678	ubiE	DIP0426	-	ubiquinone/menaquinone biosynthesis methyltransferase
399	 57.20	0	391490..392440	-	316	38233041	-	DIP0427	-	putative lactate dehydrogenase
400	 59.52	+1	392451..393653	-	400	38233042	-	DIP0428	-	putative FAD-linked oxidoreductase
401	 57.80	0	393735..394727	+	330	38233043	-	DIP0429	-	putative polyprenyl diphosphate synthase component
402	 50.95	0	395376..395744	+	122	38233044	secE	DIP0430	-	preprotein translocase subunit SecE
403	 54.42	0	395838..396629	+	263	38233045	nusG	DIP0431	-	transcription antitermination protein NusG
404	 55.71	0	396774..397202	+	142	38233046	rplK	DIP0432	-	50S ribosomal protein L11
405	 51.84	0	397269..397976	+	235	38233047	rplA	DIP0433	-	50S ribosomal protein L1
406	 52.77	0	398031..398843	-	270	38233048	-	DIP0434	-	putative transposase
407	 54.04	0	398891..399373	-	160	38233049	-	DIP0435	-	putative insertion element DNA-binding protein
408	 54.65	0	399728..400243	+	171	38233050	rplJ	DIP0436	-	50S ribosomal protein L10
409	 53.81	0	400287..400667	+	126	38233051	rplL	DIP0437	-	50S ribosomal protein L7/L12
410	 54.08	0	400793..402262	+	489	38233052	-	DIP0438	-	hypothetical protein
411	 56.08	0	402263..403159	+	298	38233053	-	DIP0439	-	hypothetical protein
412	 57.20	0	403152..403880	+	242	38233054	-	DIP0440	-	ABC transporter ATP-binding protein
413	 53.70	0	403882..404745	+	287	38233055	-	DIP0441	-	hypothetical protein
414	 46.09	-1	404738..406720	+	660	38233056	-	DIP0442	-	hypothetical protein
415	 49.47	0	406738..407592	+	284	38233057	-	DIP0443	-	putative surface-anchored membrane protein
416	 52.25	0	407597..408616	+	339	38233058	-	DIP0444	-	hypothetical protein
417	 55.91	0	408621..409559	+	312	38233059	-	DIP0445	-	hypothetical protein
418	 58.02	0	409723..413250	+	1175	38233060	rpoB	DIP0446	-	DNA-directed RNA polymerase subunit beta
419	 57.14	0	413298..417308	+	1336	38233061	rpoC	DIP0447	-	DNA-directed RNA polymerase subunit beta'
420	 45.19	-1	417620..418336	-	238	38233062	-	DIP0448	-	ABC transporter ATP-binding protein
421	 48.45	-1	418336..420009	-	557	38233063	-	DIP0449	-	ABC transporter inner membrane protein
422	 49.69	0	420167..420643	+	158	38233064	-	DIP0450	-	hypothetical protein
423	 47.53	-1	420648..420971	+	107	38233065	-	DIP0451	-	hypothetical protein
424	 55.93	0	421023..421292	-	89	38233066	-	DIP0452	-	putative transposase
425	 55.00	0	426702..427061	-	119	38233067	-	DIP0455	-	hypothetical protein
426	 50.54	0	427246..427710	-	154	38233068	-	DIP0456	-	hypothetical protein
427	 45.10	-1	427803..428210	-	135	38233069	-	DIP0457	-	hypothetical protein
428	 52.89	0	428385..429611	+	408	38233070	cstS	DIP0458	-	histidine kinase
429	 54.84	0	429616..430317	+	233	38233071	cstA	DIP0459	-	response regulator
430	 59.08	+1	430344..431318	+	324	38233072	-	DIP0460	-	ABC transporter ATP-binding protein
431	 53.26	0	431339..432106	+	255	38233073	-	DIP0461	-	ABC transporter inner membrane protein
432	 55.51	0	432122..432793	+	223	38233074	-	DIP0462	-	hypothetical protein
433	 58.15	0	432790..433728	+	312	38233075	-	DIP0463	-	hypothetical protein
434	 59.13	+1	433725..434228	-	167	38233076	-	DIP0464	-	hypothetical protein
435	 54.29	0	434314..436098	-	594	38233077	-	DIP0465	-	anaerobic ribonucleoside triphosphate reductase
436	 52.54	0	436256..436609	+	117	38233078	-	DIP0466	-	hypothetical protein
437	 58.87	+1	436884..437255	+	123	38233079	rpsL	DIP0467	-	30S ribosomal protein S12
438	 55.98	0	437259..437726	+	155	38233080	rpsG	DIP0468	-	30S ribosomal protein S7
439	 56.17	0	437925..440105	+	726	38233081	fusA	DIP0469	-	elongation factor G
440	 57.60	0	440423..441613	+	396	38233082	tuf	DIP0470	-	elongation factor Tu
441	 51.22	0	441718..442248	+	176	38233083	-	DIP0471	-	hypothetical protein
442	 56.86	0	442760..443065	+	101	38233084	rpsJ	DIP0472	-	30S ribosomal protein S10
443	 58.60	+1	443098..443754	+	218	38233085	rplC	DIP0473	-	50S ribosomal protein L3
444	 58.72	+1	443751..444404	+	217	38233086	rplD	DIP0474	-	50S ribosomal protein L4
445	 57.52	0	444404..444709	+	101	38233087	rplW	DIP0475	-	50S ribosomal protein L23
446	 58.48	+1	444731..445573	+	280	38233088	rplB	DIP0476	-	50S ribosomal protein L2
447	 55.91	0	445590..445868	+	92	38233089	rpsS	DIP0477	-	30S ribosomal protein S19
448	 59.78	+1	445872..446234	+	120	38233090	rplV	DIP0478	-	50S ribosomal protein L22
449	 62.52	+1	446234..446980	+	248	38233091	rpsC	DIP0479	-	30S ribosomal protein S3
450	 54.92	0	446984..447400	+	138	38233092	rplP	DIP0480	-	50S ribosomal protein L16
451	 61.04	+1	447400..447630	+	76	38233093	rpmC	DIP0481	-	50S ribosomal protein L29
452	 54.12	0	447633..447911	+	92	38233094	rpsQ	DIP0482	-	30S ribosomal protein S17
453	 55.56	0	448082..449719	+	545	38233095	-	DIP0483	-	hypothetical protein
454	 53.42	0	449736..450452	+	238	38233096	-	DIP0484	-	ABC transporter ATP-binding protein
455	 50.57	0	450449..451759	+	436	38233097	-	DIP0485	-	ABC transporter inner membrane protein
456	 55.01	0	451955..452323	+	122	38233098	rplN	DIP0486	-	50S ribosomal protein L14
457	 54.92	0	452326..452640	+	104	38233099	rplX	DIP0487	-	50S ribosomal protein L24
458	 56.74	0	452643..453206	+	187	38233100	rplE	DIP0488	-	50S ribosomal protein L5
459	 53.87	0	453909..455252	+	447	38233101	sdaC	DIP0489	-	serine transporter
460	 55.70	0	455277..456653	+	458	38233102	sdaA	DIP0490	-	L-serine dehydratase 1
461	 60.16	+1	456732..457760	+	342	38233103	-	DIP0491	-	putative secreted amino acid hydrolase
462	 54.12	0	457757..458800	-	347	38233104	-	DIP0492	-	molybdopterin biosynthesis protein MoeB
463	 55.42	0	458800..459795	-	331	38233105	-	DIP0493	-	putative bifunctional molybdopterim biosynthesis protein
464	 51.34	0	460091..460834	-	247	38233106	-	DIP0494	-	hypothetical protein
465	 53.11	0	460848..462713	-	621	38233107	-	DIP0495	-	molybdenum ABC transporter ATP-binding protein
466	 50.09	0	462759..463301	-	180	38233108	-	DIP0496	-	putative molybdate binding protein (partial)
467	 49.74	0	463533..464312	-	259	38233109	narI	DIP0497	-	putative nitrate reductase gamma chain
468	 52.06	0	464326..464955	-	209	38233110	-	DIP0498	-	putative nitrate reductase delta chain
469	 52.87	0	465007..466608	-	533	38233111	narH	DIP0499	-	nitrate reductase beta chain
470	 53.61	0	466608..470330	-	1240	38233112	narG	DIP0500	-	respiratory nitrate reductase 1 alpha chain
471	 52.93	0	470374..471705	-	443	38233113	-	DIP0501	-	putative nitrate/nitrite transport system integral membrane protein
472	 54.04	0	472039..473337	-	432	38233114	narK	DIP0502	-	putative nitrate/nitrite transport system integral membrane protein
473	 48.48	-1	473591..474085	+	164	38233115	-	DIP0503	-	putative molybdenum cofactor biosynthesis protein
474	 54.15	0	474082..474696	-	204	38233116	-	DIP0504	-	putative molybdopterin biosynthesis protein
475	 51.92	0	474674..475141	-	155	38233117	moaC	DIP0505	-	molybdenum cofactor biosynthesis protein
476	 54.77	0	475157..476383	-	408	38233118	-	DIP0506	-	putative molybdopterin biosynthesis protein
477	 49.71	0	476407..477438	-	343	38233119	moaA	DIP0507	-	molybdenum cofactor biosynthesis protein A
478	 59.28	+1	479270..480190	-	306	38233120	-	DIP0511	-	putative lysine biosynthesis protein
53.75	MEAN

4.64	STD DEV
