IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

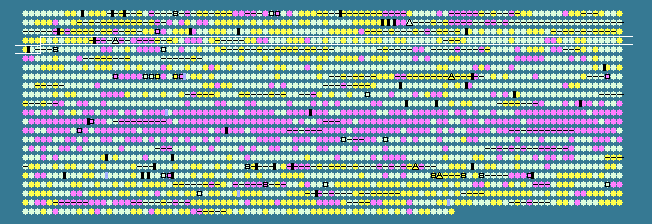

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
304	 61.25	+1	290085..291839	+	584	38232946	-	DIP0325	-	putative transport system membrane protein
305	 50.67	0	291817..293310	-	497	38232947	-	DIP0326	-	hypothetical protein
306	 60.00	+1	293451..296345	+	964	38232948	topA	DIP0327	-	DNA topoisomerase I
307	 57.12	0	296265..297290	-	341	38232949	-	DIP0328	-	hypothetical protein
308	 58.93	+1	297398..299374	-	658	38232950	-	DIP0329	-	OPT family protein. putative membrane protein
309	 60.95	+1	299461..301524	-	687	38232951	-	DIP0330	-	hypothetical protein
310	 61.89	+1	301604..302503	+	299	38232952	-	DIP0331	-	hypothetical protein
311	 57.89	0	302520..304046	-	508	38232953	-	DIP0332	-	putative adenylate cyclase
312	 62.95	+1	304045..305310	+	421	38232954	-	DIP0333	-	DNA polymerase III subunit delta'
313	 48.02	-1	305695..305946	+	83	38232955	-	DIP0334	-	hypothetical protein
314	 45.59	-1	306195..306602	+	135	38232956	-	DIP0335	-	hypothetical protein
315	 54.29	0	306606..306815	-	69	38232957	-	DIP0336	-	hypothetical protein
316	 53.16	0	306912..307370	-	152	38232958	-	DIP0337	-	putative phage integrase
317	 47.15	-1	307437..307559	-	40	38232959	-	DIP0338	-	hypothetical protein
318	 54.76	0	307596..307805	-	69	38232960	-	DIP0339	-	hypothetical protein
319	 43.05	-2	308897..309421	+	174	38232961	-	DIP0343	-	hypothetical protein
320	 40.43	-2	309428..309568	+	46	38232962	-	DIP0344	-	hypothetical protein
321	 42.22	-2	309574..309753	+	59	38232963	-	DIP0345	-	hypothetical protein
322	 50.00	0	309772..309933	+	53	38232964	-	DIP0346	-	putative IS element tranposase (partial)
323	 63.52	+2	309946..310104	+	52	38232965	-	DIP0347	-	hypothetical protein
324	 51.30	0	310129..311286	-	385	38232966	-	DIP0348	-	hypothetical protein
325	 60.80	+1	311422..312120	+	232	38232967	-	DIP0349	-	putative alkylated DNA repair protein
326	 61.82	+1	312169..312993	-	274	38232968	-	DIP0350	-	putative secreted protease
327	 56.99	0	313246..313617	+	123	38232969	-	DIP0351	-	putative plasmid replication protein
328	 41.07	-2	313721..313888	-	55	38232970	-	DIP0352	-	hypothetical protein
329	 47.98	-1	313903..314421	-	172	38232971	-	DIP0353	-	hypothetical protein
330	 50.00	0	315605..315754	-	49	38232972	-	DIP0356	-	hypothetical protein
331	 51.64	0	316102..323838	+	2578	38232973	-	DIP0357	-	putative secreted bifunctional (alpha-amylase and endo-alpha-glucosidase): starch degradation and integral membrane protein
332	 61.95	+1	323875..325527	-	550	38232974	-	DIP0358	-	acyl-CoA synthetase
333	 59.19	+1	325657..326445	+	262	38232975	-	DIP0359	-	putative secreted hydrolase
334	 56.47	0	326409..327281	-	290	38232976	rfbA	DIP0360	-	glucose-1-phosphate thymidylyltransferase
335	 57.16	0	327293..328639	-	448	38232977	-	DIP0361	-	putative bifunctional protein
336	 53.37	0	328678..329685	-	335	38232978	rmlB	DIP0362	-	putative dTDP-(glucose or rhamnose)-4,6-dehydratase
337	 56.76	0	329691..331043	-	450	38232979	-	DIP0363	-	putative metallopeptidase
338	 57.84	0	331040..333034	-	664	38232980	-	DIP0364	-	putative prolyl oligopeptidase family protein
339	 57.68	0	333123..334190	-	355	38232981	slpA	DIP0365	-	surface layer protein A
340	 40.20	-2	334217..334318	-	33	38232982	-	DIP0366	-	hypothetical protein
341	 45.45	-1	334359..334622	-	87	38232983	-	DIP0367	-	hypothetical protein
342	 55.32	0	334658..336067	+	469	38232984	lpd	DIP0368	-	dihydrolipoamide dehydrogenase
343	 54.95	0	336275..337699	-	474	38232985	-	DIP0369	-	putative regulatory protein
344	 55.73	0	338150..338908	+	252	38232986	-	DIP0370	-	putative succinate dehydrogenease cytochrome B subunit
345	 57.94	0	338927..340942	+	671	38232987	sdhA	DIP0371	-	succinate dehydrogenase flavoprotein subunit
346	 58.67	+1	340942..341691	+	249	38232988	-	DIP0372	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
347	 57.26	0	341769..342119	+	116	38232989	-	DIP0373	-	hypothetical protein
348	 47.92	-1	342204..342299	+	31	38232990	-	DIP0374	-	hypothetical protein
349	 55.32	0	342318..343586	+	422	38232991	-	DIP0375	-	hypothetical protein
350	 52.54	0	343599..343874	+	91	38232992	-	DIP0376	-	hypothetical protein
351	 61.35	+1	343881..344369	+	162	38232993	-	DIP0377	-	hypothetical protein
352	 56.45	0	344366..345109	-	247	38232994	-	DIP0378	-	hypothetical protein
353	 56.85	0	345115..345990	-	291	38232995	-	DIP0379	-	putative oxidoreductase
354	 57.93	0	348818..349630	-	270	38232996	-	DIP0382	-	hypothetical protein
355	 55.84	0	349646..350107	-	153	38232997	-	DIP0383	-	hypothetical protein
356	 59.08	+1	350143..351276	+	377	38232998	murB	DIP0384	-	UDP-N-acetylenolpyruvoylglucosamine reductase
357	 51.09	0	351273..351638	-	121	38232999	-	DIP0385	-	hypothetical protein
358	 59.99	+1	351641..353347	-	568	38233000	-	DIP0386	-	acyl-CoA synthetase
359	 58.55	+1	353409..355109	-	566	38233001	-	DIP0387	-	acyl-CoA synthetase
360	 59.27	+1	355193..356476	+	427	38233002	-	DIP0388	-	putative glycosyl transferase
361	 56.62	0	356496..357281	+	261	38233003	gpmA	DIP0389	-	phosphoglyceromutase
362	 54.29	0	357293..358447	+	384	38233004	-	DIP0390	-	putative two component system sensor kinase
363	 57.42	0	358447..359127	+	226	38233005	regX3	DIP0391	-	putative two component system response regulator
364	 59.77	+1	359090..359959	-	289	38233006	-	DIP0392	-	hypothetical protein
365	 55.45	0	360212..360835	+	207	38233007	-	DIP0393	-	hypothetical protein
366	 55.10	0	360869..361681	+	270	38233008	proC	DIP0394	-	pyrroline-5-carboxylate reductase
367	 50.52	0	361938..362129	+	63	38233009	-	DIP0395	-	putative DNA-binding (excisionase) protein
368	 55.70	0	362191..362418	+	75	38233010	-	DIP0396	-	hypothetical protein
369	 54.94	0	362497..363366	+	289	38233011	-	DIP0397	-	hypothetical protein
370	 59.00	+1	363332..364375	-	347	38233012	-	DIP0398	-	hypothetical protein
371	 55.97	0	364441..364683	+	80	38233013	-	DIP0399	-	hypothetical protein
372	 57.56	0	364800..366116	+	438	38233014	hemA	DIP0400	-	glutamyl-tRNA reductase
373	 57.63	0	366113..366997	+	294	38233015	hemC	DIP0401	-	porphobilinogen deaminase
374	 58.05	0	367058..368728	+	556	38233016	-	DIP0402	-	putative uroporphyrin-III C-methyltransferase
375	 53.58	0	368725..369717	+	330	38233017	hemB	DIP0403	-	delta-aminolevulinic acid dehydratase
376	 52.88	0	369844..370155	-	103	38233018	-	DIP0404	-	hypothetical protein
377	 54.75	0	370197..372722	+	841	38233019	-	DIP0405	-	putative cation transport protein
378	 54.69	0	372700..373818	-	372	38233020	-	DIP0406	-	hypothetical protein
379	 54.49	0	373884..374918	+	344	38233021	hemE	DIP0407	-	uroporphyrinogen decarboxylase
380	 55.65	0	374934..376286	+	450	38233022	hemG	DIP0408	-	protoporphyrinogen oxidase
381	 56.84	0	376342..377634	+	430	38233023	hemL	DIP0409	-	glutamate-1-semialdehyde aminotransferase
382	 57.64	0	377631..378239	+	202	38233024	-	DIP0410	-	putative phosphoglycerate mutase
383	 53.30	0	378240..378800	+	186	38233025	-	DIP0411	-	putative electron transport related protein
384	 52.90	0	378797..379588	+	263	38233026	-	DIP0412	-	putative cytochrome C biogenesis protein
385	 51.29	0	379597..381189	+	530	38233027	-	DIP0413	-	hypothetical protein
386	 51.33	0	381198..382097	+	299	38233028	-	DIP0414	-	putative cytochrome C related protein
387	 55.93	0	382094..382363	-	89	38233029	-	DIP0415	-	ArsR family transcriptional regulator
388	 47.09	-1	382403..382591	-	62	38233030	-	DIP0416	-	hypothetical protein
389	 48.54	-1	382590..382931	+	113	38233031	-	DIP0417	-	hypothetical protein
390	 57.64	0	382906..383769	-	287	38233032	menA	DIP0418	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
391	 51.53	0	383911..385020	+	369	38233033	-	DIP0419	-	hypothetical protein
392	 56.67	0	384980..386089	-	369	38233034	-	DIP0420	-	O-succinylbenzoic acid--CoA ligase
393	 59.52	+1	386100..386966	-	288	38233035	menB	DIP0421	-	naphthoate synthase
394	 61.06	+1	386971..387933	+	320	38233036	menC	DIP0422	-	O-succinylbenzoate synthase
395	 54.38	0	387917..389446	+	509	38233037	-	DIP0423	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
396	 53.69	0	389443..389835	+	130	38233038	-	DIP0424	-	hypothetical protein
397	 55.46	0	389811..390836	+	341	38233039	-	DIP0425	-	putative glycosyl transferase
398	 53.91	0	390814..391503	+	229	161598678	ubiE	DIP0426	-	ubiquinone/menaquinone biosynthesis methyltransferase
399	 57.20	0	391490..392440	-	316	38233041	-	DIP0427	-	putative lactate dehydrogenase
400	 59.52	+1	392451..393653	-	400	38233042	-	DIP0428	-	putative FAD-linked oxidoreductase
401	 57.80	0	393735..394727	+	330	38233043	-	DIP0429	-	putative polyprenyl diphosphate synthase component
402	 50.95	0	395376..395744	+	122	38233044	secE	DIP0430	-	preprotein translocase subunit SecE
403	 54.42	0	395838..396629	+	263	38233045	nusG	DIP0431	-	transcription antitermination protein NusG
53.75	MEAN

4.64	STD DEV
