IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

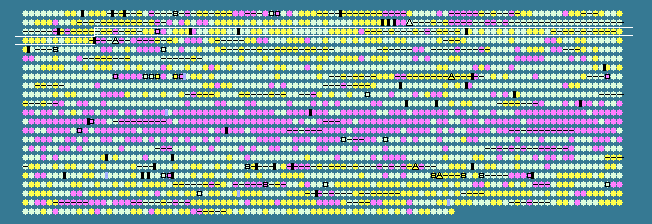

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
213	 56.55	0	195519..195686	-	55	38232855	-	DIP0229	-	hypothetical protein
214	 63.57	+2	197202..197330	-	42	38232856	-	DIP0232	-	hypothetical protein
215	 64.75	+2	197338..198327	-	329	38232857	-	DIP0233	-	putative fimbrial associated sortase-like protein
216	 49.90	0	198371..198847	+	158	38232858	-	DIP0234	-	hypothetical protein
217	 55.87	0	198862..200334	+	490	38232859	-	DIP0235	-	putative fimbrial subunit
218	 59.64	+1	200435..201373	+	312	38232860	-	DIP0236	-	putative fimbrial associated sortase-like protein
219	 66.67	+2	201366..202157	+	263	38232861	-	DIP0237	-	putative surface anchored protein
220	 54.39	0	202163..205282	+	1039	38232862	-	DIP0238	-	putative surface-anchored fimbrial subunit
221	 65.69	+2	205903..206310	-	135	38232863	-	DIP0240	-	hypothetical protein
222	 62.67	+1	206336..206485	-	49	38232864	-	DIP0241	-	hypothetical protein
223	 42.31	-2	206740..207051	-	103	38232865	-	DIP0242	-	putative IS element transposase
224	 44.10	-2	207298..207492	-	64	38232866	-	DIP0243	-	hypothetical protein
225	 53.33	0	207638..208117	-	159	38232867	-	DIP0244	-	hypothetical protein
226	 57.86	0	208253..209263	-	336	38232868	-	DIP0245	-	prephenate dehydrogenase
227	 58.72	+1	209301..209753	+	150	38232869	-	DIP0246	-	hypothetical protein
228	 65.77	+2	209792..210235	+	147	38232870	-	DIP0247	-	putative cytosine deaminase
229	 48.34	-1	210640..211152	+	170	38232871	-	DIP0248	-	putative excisionase
230	 50.75	0	211399..211599	+	66	38232872	-	DIP0249	-	hypothetical protein
231	 57.12	0	211613..213949	+	778	38232873	-	DIP0250	-	hypothetical protein
232	 60.09	+1	214616..215908	+	430	38232874	-	DIP0251	-	putative tRNA-ribosyltransferase
233	 62.08	+1	215918..216811	+	297	38232875	-	DIP0252	-	glutamyl-Q tRNA(Asp) synthetase
234	 63.28	+2	216891..218279	+	462	38232876	gntP	DIP0253	-	gluconate permease
235	 56.55	0	218276..218779	-	167	38232877	-	DIP0254	-	putative transferase
236	 54.29	0	218871..219080	-	69	38232878	-	DIP0255	-	hypothetical protein
237	 57.14	0	219238..219384	+	48	38232879	-	DIP0256	-	hypothetical protein
238	 54.52	0	219574..220833	+	419	38232880	-	DIP0257	-	hypothetical protein
239	 58.88	+1	220837..221388	+	183	38232881	-	DIP0258	-	hypothetical protein
240	 62.15	+1	221399..223522	+	707	38232882	dnaX	DIP0259	-	DNA polymerase III subunits gamma and tau
241	 56.07	0	223595..223915	+	106	38232883	-	DIP0260	-	hypothetical protein
242	 59.06	+1	223919..224575	+	218	38232884	recR	DIP0261	-	recombination protein RecR
243	 61.49	+1	224581..225333	-	250	38232885	-	DIP0262	-	hypothetical protein
244	 64.13	+2	225335..226597	-	420	38232886	-	DIP0263	-	hypothetical protein
245	 58.20	0	226618..227739	-	373	38232887	-	DIP0264	-	DNA polymerase III subunit epsilon
246	 57.12	0	227743..228507	-	254	38232888	-	DIP0265	-	putative nitroreductase
247	 55.58	0	228555..230267	-	570	161598679	leuA	DIP0266	-	2-isopropylmalate synthase
248	 54.55	0	230521..231552	+	343	38232890	-	DIP0267	-	putative regulatory protein
249	 55.22	0	231758..232858	+	366	38232891	-	DIP0268	-	hypothetical protein
250	 54.39	0	234348..235064	+	238	38232892	deoD	DIP0271	-	purine nucleoside phosphorylase
251	 55.09	0	235061..236425	+	454	38232893	-	DIP0272	-	putative antibiotic resistance protein membrane protein
252	 59.67	+1	236460..237116	+	218	38232894	deoC	DIP0273	-	deoxyribose-phosphate aldolase
253	 62.79	+1	237124..238776	+	550	38232895	-	DIP0274	-	putative mutase
254	 61.56	+1	238823..239860	+	345	38232896	-	DIP0275	-	hypothetical protein
255	 60.33	+1	239862..240698	-	278	38232897	-	DIP0276	-	hypothetical protein
256	 58.21	0	240889..242154	+	421	38232898	lysC	DIP0277	-	aspartate kinase
257	 48.50	-1	242501..245743	+	1080	38232899	-	DIP0278	-	putative surface-anchored membrane protein
258	 59.21	+1	246016..247047	+	343	38232900	asd	DIP0279	-	aspartate-semialdehyde dehydrogenase
259	 64.90	+2	247054..247620	-	188	38232901	sigC	DIP0280	-	RNA polymerase sigma factor
260	 60.43	+1	247748..249286	+	512	38232902	cat	DIP0281	-	catalase
261	 56.56	0	249276..250334	-	352	38232903	-	DIP0282	-	ABC transporter ATP-binding protein
262	 57.59	0	250325..251878	-	517	38232904	-	DIP0283	-	putative transport system permease (iron)
263	 55.99	0	251875..252876	-	333	38232905	-	DIP0284	-	ABC transporter
264	 51.13	0	252957..254327	-	456	38232906	-	DIP0285	-	putative glycerol-3-phosphate transporter
265	 55.56	0	254456..255157	-	233	38232907	-	DIP0286	-	two-component regulatory protein
266	 58.02	0	255150..255947	-	265	38232908	-	DIP0287	-	two-component sensor protein
267	 55.78	0	256103..256405	-	100	38232909	-	DIP0288	-	putative monovalent cation/H+ antiporter subunit G
268	 50.19	0	256405..256671	-	88	38232910	-	DIP0289	-	putative monovalent cation/H+ antiporter subunit F
269	 52.65	0	256671..257048	-	125	38232911	-	DIP0290	-	putative monovalent cation/H+ antiporter subunit E
270	 58.07	0	257051..258574	-	507	38232912	-	DIP0291	-	putative monovalent cation/H+ antiporter subunit D
271	 57.98	0	258574..258999	-	141	38232913	-	DIP0292	-	putative monovalent cation/H+ antiporter subunit C
272	 55.30	0	259003..261915	-	970	38232914	-	DIP0293	-	putative monovalent cation/H+ antiporter subunit A
273	 61.02	+1	262085..263482	+	465	38232915	-	DIP0294	-	hypothetical protein
274	 51.52	0	263559..264449	-	296	38232916	-	DIP0295	-	hypothetical protein
275	 57.70	0	264827..265741	-	304	38232917	-	DIP0296	-	hypothetical protein
276	 56.99	0	265769..266233	+	154	38232918	-	DIP0297	-	hypothetical protein
277	 59.71	+1	266238..268622	-	794	38232919	-	DIP0298	-	putative penicillin-binding secreted protein
278	 54.60	0	268821..269168	+	115	38232920	-	DIP0299	-	putative regulatory protein
279	 53.85	0	269209..269364	+	51	38232921	-	DIP0300	-	hypothetical protein
280	 58.71	+1	269366..269830	+	154	38232922	-	DIP0301	-	hypothetical protein
281	 56.73	0	269881..270705	+	274	38232923	-	DIP0302	-	putative hydrolase
282	 58.04	0	270766..271449	-	227	38232924	-	DIP0303	-	putative transcription regulator
283	 56.22	0	271954..272709	+	251	38232925	nth	DIP0304	-	endonuclease III
284	 56.15	0	272702..273262	+	186	38232926	-	DIP0305	-	hypothetical protein
285	 57.72	0	273265..274002	+	245	38232927	-	DIP0306	-	hypothetical protein
286	 58.65	+1	274025..275221	+	398	38232928	-	DIP0307	-	putative serine protease (mycosin)
287	 60.38	+1	275218..276156	-	312	38232929	-	DIP0308	-	putative hydrolase
288	 54.79	0	276244..276765	-	173	38232930	-	DIP0309	-	hypothetical protein
289	 60.40	+1	276872..277525	+	217	38232931	-	DIP0310	-	hypothetical protein
290	 56.29	0	277463..278368	-	301	38232932	-	DIP0311	-	hypothetical protein
291	 60.50	+1	278791..279828	+	345	38232933	-	DIP0312	-	putative morphological differentiation-related protein
292	 57.83	0	279821..280918	+	365	38232934	-	DIP0313	-	hypothetical protein
293	 56.89	0	280915..281661	+	248	38232935	-	DIP0314	-	hypothetical protein
294	 59.24	+1	281661..282239	+	192	38232936	-	DIP0315	-	hypothetical protein
295	 56.57	0	282263..282460	+	65	38232937	-	DIP0316	-	hypothetical protein
296	 60.87	+1	282457..282732	+	91	38232938	-	DIP0317	-	hypothetical protein
297	 59.94	+1	282729..283055	+	108	38232939	-	DIP0318	-	hypothetical protein
298	 60.16	+1	283045..285381	-	778	38232940	-	DIP0319	-	ATP-dependent RNA helicase
299	 58.33	0	285652..285855	+	67	38232941	cspA	DIP0320	-	cold-shock protein
300	 60.68	+1	286029..286646	+	205	38232942	-	DIP0321	-	ABC transporter ATP-binding protein
301	 58.33	0	286643..287350	+	235	38232943	-	DIP0322	-	ABC transporter ATP-binding protein
302	 58.01	0	287347..288594	+	415	38232944	-	DIP0323	-	ABC transporter
303	 60.62	+1	288591..290078	+	495	38232945	-	DIP0324	-	hypothetical protein
304	 61.25	+1	290085..291839	+	584	38232946	-	DIP0325	-	putative transport system membrane protein
305	 50.67	0	291817..293310	-	497	38232947	-	DIP0326	-	hypothetical protein
306	 60.00	+1	293451..296345	+	964	38232948	topA	DIP0327	-	DNA topoisomerase I
307	 57.12	0	296265..297290	-	341	38232949	-	DIP0328	-	hypothetical protein
308	 58.93	+1	297398..299374	-	658	38232950	-	DIP0329	-	OPT family protein. putative membrane protein
309	 60.95	+1	299461..301524	-	687	38232951	-	DIP0330	-	hypothetical protein
310	 61.89	+1	301604..302503	+	299	38232952	-	DIP0331	-	hypothetical protein
311	 57.89	0	302520..304046	-	508	38232953	-	DIP0332	-	putative adenylate cyclase
312	 62.95	+1	304045..305310	+	421	38232954	-	DIP0333	-	DNA polymerase III subunit delta'
53.75	MEAN

4.64	STD DEV
