IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

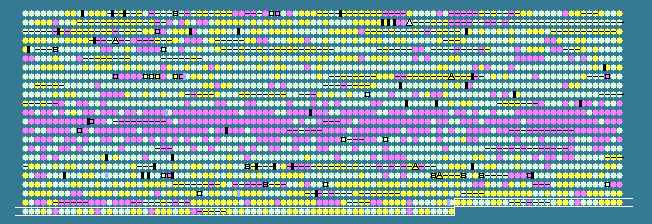

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2173	 59.20	+1	2376306..2377175	-	289	38234815	-	DIP2279	-	ABC transporter ATP-binding protein
2174	 59.95	+1	2377172..2377558	-	128	38234816	-	DIP2280	-	GntR family transcriptional regulator
2175	 61.58	+1	2377787..2379163	+	458	38234817	-	DIP2281	-	hypothetical protein
2176	 55.42	0	2379236..2380000	-	254	38234818	-	DIP2282	-	hypothetical protein
2177	 54.43	0	2380171..2380554	-	127	38234819	-	DIP2284	-	putative thioredoxin
2178	 51.90	0	2380762..2380971	+	69	38234820	-	DIP2285	-	putative cation transport protein
2179	 57.39	0	2381127..2383358	+	743	38234821	-	DIP2286	-	putative cation-transporting P-type ATPase
2180	 64.25	+2	2383456..2384781	+	441	38234822	-	DIP2287	-	putative integral membrane transport protein
2181	 55.23	0	2384785..2386305	-	506	38234823	dnaB	DIP2288	-	replicative DNA helicase
2182	 56.73	0	2386879..2387331	-	150	38234824	rplI	DIP2289	-	50S ribosomal protein L9
2183	 61.00	+1	2387462..2388043	-	193	38234825	ssb1	DIP2290	-	single-strand DNA-binding protein
2184	 54.51	0	2388168..2388455	-	95	161598671	rpsF	DIP2291	-	30S ribosomal protein S6
2185	 47.78	-1	2388650..2388829	-	59	38234827	-	DIP2292	-	hypothetical protein
2186	 56.87	0	2388829..2390400	-	523	38234828	-	DIP2293	-	putative integral membrane protein
2187	 54.97	0	2390445..2392625	-	726	38234829	-	DIP2294	-	putative penicillin-binding protein
2188	 54.27	0	2392713..2393075	-	120	38234830	-	DIP2295	-	hypothetical protein
2189	 52.10	0	2393194..2393646	+	150	38234831	-	DIP2296	-	MarR family transcriptional regulator
2190	 58.07	0	2393656..2394621	+	321	38234832	-	DIP2297	-	hypothetical protein
2191	 60.12	+1	2394633..2395304	+	223	38234833	-	DIP2298	-	short chain dehydrogenase
2192	 56.54	0	2395316..2395789	+	157	38234834	-	DIP2299	-	putative integral membrane protein
2193	 48.82	-1	2395856..2397301	-	481	38234835	-	DIP2300	-	putative DNA-binding protein
2194	 55.27	0	2397459..2398397	-	312	38234836	-	DIP2301	-	hypothetical protein
2195	 56.81	0	2398584..2399222	+	212	38234837	-	DIP2302	-	putative integral membrane protein
2196	 56.17	0	2399360..2399845	-	161	38234838	-	DIP2303	-	putative DNA protection during starvation protein
2197	 58.48	+1	2399933..2400787	+	284	38234839	-	DIP2304	-	putative DNA repair glycosylase
2198	 61.96	+1	2400809..2402317	+	502	38234840	-	DIP2305	-	hypothetical protein
2199	 59.37	+1	2402330..2403466	-	378	38234841	-	DIP2306	-	putative hydrolase
2200	 57.26	0	2403526..2404152	-	208	38234842	-	DIP2307	-	putative integral membrane protein
2201	 55.56	0	2404326..2405387	-	353	38234843	-	DIP2308	-	hypothetical protein
2202	 52.46	0	2405722..2406678	-	318	38234844	-	DIP2309	-	putative DNA-binding protein
2203	 51.30	0	2406782..2407360	-	192	38234845	-	DIP2310	-	hypothetical protein
2204	 57.64	0	2407563..2409290	-	575	38234846	-	DIP2311	-	hypothetical protein
2205	 57.01	0	2409373..2412573	-	1066	38234847	-	DIP2312	-	putative type I restriction/modification system protein
2206	 49.48	0	2412566..2413810	-	414	38234848	-	DIP2313	-	putative type I restriction/modification system DNA specificity protein
2207	 53.98	0	2413807..2415414	-	535	38234849	-	DIP2314	-	putative type I restriction/modification system DNA methylase
2208	 52.32	0	2415495..2417453	-	652	38234850	-	DIP2315	-	DNA-binding protein
2209	 51.21	0	2417717..2418952	-	411	38234851	-	DIP2317	-	DNA-binding protein
2210	 64.79	+2	2419180..2420880	-	566	38234852	-	DIP2318	-	hypothetical protein
2211	 55.72	0	2420959..2421561	-	200	38234853	-	DIP2319	-	putative copper zinc superoxide dismutase
2212	 58.03	0	2421946..2424828	-	960	38234854	leuS	DIP2320	-	leucyl-tRNA synthetase
2213	 49.33	0	2424897..2425046	-	49	38234855	-	DIP2321	-	hypothetical protein
2214	 51.45	0	2425110..2425832	-	240	38234856	-	DIP2322	-	hypothetical protein
2215	 61.41	+1	2425889..2426554	-	221	38234857	-	DIP2323	-	ABC transporter ATP-binding protein
2216	 56.91	0	2426551..2427585	-	344	38234858	-	DIP2324	-	ABC transporter inner membrane protein
2217	 51.02	0	2427721..2430360	-	879	38234859	-	DIP2325	-	putative surface-anchored protein
2218	 55.98	0	2430452..2431705	+	417	38234860	chrS	DIP2326	-	two-component system histidine kinase ChrS
2219	 59.33	+1	2431702..2432301	+	199	38234861	chrA	DIP2327	-	two-component response regulator ChrA
2220	 58.06	0	2432298..2432843	-	181	38234862	-	DIP2328	-	integral membrane protein
2221	 56.15	0	2432940..2434841	-	633	38234863	-	DIP2329	-	integral membrane protein
2222	 45.14	-1	2435213..2436271	+	352	38234864	-	DIP2330	-	hypothetical protein
2223	 60.34	+1	2436460..2437851	+	463	38234865	-	DIP2331	-	putative aldehyde dehydrogenase
2224	 58.11	0	2438019..2438813	+	264	38234866	-	DIP2332	-	putative phosphotransferase system protein
2225	 58.86	+1	2438839..2440401	+	520	38234867	ulaA	DIP2333	-	ascorbate-specific PTS system enzyme IIC
2226	 54.82	0	2440685..2441680	+	331	38234868	-	DIP2334	-	putative dihydroxyacetone kinase sununit
2227	 63.55	+2	2441684..2442325	+	213	38234869	-	DIP2335	-	putative dihydroxyacetone kinase sununit
2228	 59.34	+1	2442322..2442990	+	222	38234870	-	DIP2336	-	hypothetical protein
2229	 47.20	-1	2443176..2444495	+	439	38234871	-	DIP2337	-	putative phage resistance protein
2230	 40.92	-2	2444518..2445123	+	201	38234872	-	DIP2338	-	hypothetical protein
2231	 57.90	0	2445460..2446680	-	406	38234873	-	DIP2339	-	putative major secreted protein
2232	 59.54	+1	2446717..2447712	+	331	38234874	-	DIP2340	-	putative nucleoside hydrolase
2233	 54.55	0	2447808..2448566	+	252	38234875	-	DIP2341	-	putative integral membrane transport protein
2234	 59.60	+1	2448572..2449264	+	230	38234876	-	DIP2342	-	putative integral membrane transport protein
2235	 63.07	+2	2449283..2450449	+	388	38234877	-	DIP2343	-	ABC transporter ATP-binding protein
2236	 56.58	0	2450460..2451242	-	260	38234878	-	DIP2344	-	hypothetical protein
2237	 61.40	+1	2451284..2451928	+	214	38234879	-	DIP2345	-	hypothetical protein
2238	 54.42	0	2451936..2453429	-	497	38234880	-	DIP2346	-	hypothetical protein
2239	 52.59	0	2453493..2453762	-	89	38234881	-	DIP2347	-	hypothetical protein
2240	 55.34	0	2453759..2454376	-	205	38234882	-	DIP2348	-	hypothetical protein
2241	 57.51	0	2454544..2455788	-	414	38234883	-	DIP2349	-	putative integral membrane transport protein
2242	 55.15	0	2455876..2456448	+	190	38234884	-	DIP2350	-	putative integral membrane protein
2243	 54.05	0	2456701..2458032	+	443	38234885	trpB1	DIP2351	-	tryptophan synthase subunit beta
2244	 52.90	0	2458035..2459588	+	517	38234886	trpE	DIP2352	-	anthranilate synthase component I
2245	 57.98	0	2459588..2460232	+	214	38234887	trpG	DIP2353	-	anthranilate synthase component II
2246	 60.82	+1	2460247..2461272	+	341	38234888	trpD	DIP2354	-	anthranilate phosphoribosyltransferase
2247	 57.20	0	2461262..2462719	+	485	38234889	trpC1	DIP2355	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
2248	 53.70	0	2462780..2463157	+	125	38234890	-	DIP2356	-	hypothetical protein
2249	 57.49	0	2463154..2464014	+	286	38234891	panC	DIP2357	-	pantoate--beta-alanine ligase
2250	 58.71	+1	2464011..2464802	-	263	38234892	panB	DIP2358	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2251	 57.95	0	2465139..2466365	+	408	38234893	trpB2	DIP2360	-	tryptophan synthase subunit beta
2252	 59.38	+1	2466370..2467206	+	278	38234894	trpA	DIP2361	-	tryptophan synthase subunit alpha
2253	 60.58	+1	2467213..2467623	+	136	38234895	-	DIP2362	-	putative iron-sulphur protein
2254	 57.48	0	2467644..2468612	+	322	38234896	-	DIP2363	-	putative integral membrane protein
2255	 55.66	0	2468609..2468935	+	108	38234897	-	DIP2364	-	hypothetical protein
2256	 58.74	+1	2469062..2469427	-	121	38234898	-	DIP2365	-	putative integral membrane amino acid transport protein
2257	 57.51	0	2469436..2470167	-	243	38234899	-	DIP2366	-	putative integral membrane amino acid transport protein
2258	 56.95	0	2470168..2470764	-	198	38234900	-	DIP2367	-	hypothetical protein
2259	 56.25	0	2470765..2472252	-	495	38234901	-	DIP2368	-	putative tRNA nucleotidyltransferase
2260	 58.65	+1	2472392..2473264	+	290	38234902	-	DIP2369	-	hypothetical protein
2261	 59.26	+1	2473261..2475975	+	904	38234903	-	DIP2370	-	hypothetical protein
2262	 56.79	0	2476084..2479413	+	1109	38234904	-	DIP2371	-	putative integral membrane protein
2263	 58.71	+1	2479572..2480174	+	200	38234905	-	DIP2372	-	putative RNA polymerase sigma factor
2264	 55.45	0	2480310..2481254	+	314	38234906	trxB	DIP2373	-	thioredoxin reductase
2265	 49.69	0	2481269..2481592	+	107	38234907	trxA	DIP2374	-	thioredoxin
2266	 55.17	0	2481613..2482821	+	402	38234908	-	DIP2375	-	putative hydrolase
2267	 58.24	0	2482889..2483992	-	367	38234909	parB	DIP2376	-	putative chromosome partitioning protein
2268	 58.21	0	2483999..2485015	-	338	38234910	parA	DIP2377	-	putative chromosome partitioning protein
2269	 55.36	0	2485137..2485808	-	223	38234911	gidB	DIP2378	-	glucose-inhibited division protein B
2270	 51.57	0	2485931..2486884	-	317	38234912	-	DIP2379	-	putative inner membrane protein translocase component YidC
2271	 57.22	0	2487177..2487536	-	119	38234913	rnpA	DIP2381	-	ribonuclease P
2272	 60.42	+1	2487568..2487711	-	47	38234914	rpmH	DIP2382	-	50S ribosomal protein L34
53.75	MEAN

4.64	STD DEV
