IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

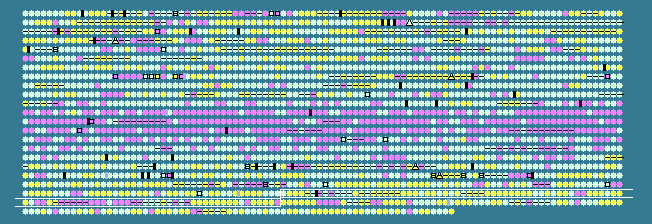

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2044	 56.65	0	2201757..2202914	+	385	38234686	-	DIP2137	-	putative integral membrane protein
2045	 57.94	0	2202940..2206089	+	1049	38234687	lysS	DIP2138	-	lysyl-tRNA synthetase
2046	 60.18	+1	2206196..2206873	-	225	38234688	-	DIP2139	-	hypothetical protein
2047	 58.45	+1	2206836..2207456	-	206	38234689	-	DIP2140	-	putative integral membrane protein
2048	 59.95	+1	2207481..2208686	-	401	38234690	-	DIP2141	-	putative UDP-glucose 6-dehydrogenase
2049	 52.13	0	2208692..2209255	-	187	38234691	dcd	DIP2142	-	deoxycytidine triphosphate deaminase
2050	 49.23	0	2209550..2210329	-	259	38234692	-	DIP2143	-	ABC transporter inner membrane protein
2051	 52.76	0	2210326..2211159	-	277	38234693	-	DIP2144	-	ABC transporter ATP-binding protein
2052	 46.85	-1	2211156..2211488	-	110	38234694	-	DIP2145	-	putative integral membrane protein
2053	 56.28	0	2211488..2212180	-	230	38234695	-	DIP2146	-	putative integral membrane protein
2054	 53.21	0	2212180..2212506	-	108	38234696	-	DIP2147	-	hypothetical protein
2055	 52.33	0	2213799..2214419	-	206	38234697	-	DIP2152	-	hypothetical protein
2056	 65.34	+2	2214506..2214883	-	125	38234698	-	DIP2153	-	putative bacteriophage holin protein
2057	 58.62	+1	2214765..2215559	-	264	38234699	-	DIP2154	-	putative DNA-binding bacteriophage protein
2058	 52.08	0	2215819..2216805	+	328	38234700	-	DIP2155	-	hypothetical protein
2059	 61.54	+1	2217901..2219655	-	584	38234701	-	DIP2158	-	ABC transport protein
2060	 58.75	+1	2219658..2221439	-	593	38234702	-	DIP2159	-	ABC transport protein
2061	 59.08	+1	2221492..2229396	-	2634	38234703	-	DIP2160	-	modular polyketide synthase
2062	 59.22	+1	2229393..2234573	-	1726	38234704	-	DIP2161	-	nonribosomal peptide synthase
2063	 59.80	+1	2234961..2236460	+	499	38234705	-	DIP2162	-	ABC transporter solute-binding protein
2064	 61.22	+1	2236473..2237426	+	317	38234706	-	DIP2163	-	ABC transporter permease
2065	 59.85	+1	2237423..2238244	+	273	38234707	-	DIP2164	-	ABC transporter permease
2066	 58.07	0	2238241..2239647	+	468	38234708	-	DIP2165	-	ABC transporter ATP-binding protein
2067	 56.48	0	2239756..2241060	+	434	38234709	-	DIP2166	-	ABC transporter permease
2068	 57.94	0	2241109..2241360	+	83	38234710	metE	DIP2167	-	5-methyltetrahydropteroyltriglutamate--homocystei ne methyltransferase (partial)
2069	 58.75	+1	2241389..2242600	+	403	38234711	-	DIP2168	-	integral membrane transport protein
2070	 56.46	0	2242597..2244075	-	492	38234712	-	DIP2169	-	hypothetical protein
2071	 57.45	0	2244077..2244868	-	263	38234713	-	DIP2170	-	hypothetical protein
2072	 54.72	0	2244892..2246574	-	560	38234714	-	DIP2171	-	hypothetical protein
2073	 58.76	+1	2246580..2247743	-	387	38234715	-	DIP2172	-	putative secreted glycosyl hydrolase
2074	 52.38	0	2247778..2247966	+	62	38234716	-	DIP2173	-	hypothetical protein
2075	 59.58	+1	2247967..2251044	+	1025	38234717	-	DIP2174	-	hypothetical protein
2076	 57.81	0	2250936..2252075	-	379	38234718	-	DIP2175	-	putative integral membrane acyltransferase
2077	 57.44	0	2252088..2253182	+	364	38234719	-	DIP2176	-	putative integral membrane protein
2078	 60.44	+1	2253173..2254585	+	470	38234720	-	DIP2177	-	putative integral membrane protein
2079	 59.13	+1	2254468..2255622	-	384	38234721	-	DIP2178	-	hypothetical protein
2080	 58.10	0	2255664..2256398	+	244	38234722	-	DIP2179	-	hypothetical protein
2081	 59.22	+1	2256423..2258261	-	612	38234723	pckG	DIP2180	-	phosphoenolpyruvate carboxykinase
2082	 59.87	+1	2258718..2259497	+	259	38234724	trmB	DIP2181	-	tRNA (guanine-N(7))-methyltransferase
2083	 61.51	+1	2259494..2260114	+	206	38234725	-	DIP2182	-	hypothetical protein
2084	 58.68	+1	2260129..2262369	+	746	38234726	-	DIP2183	-	putative integral membrane protein
2085	 59.67	+1	2262371..2263414	+	347	38234727	-	DIP2184	-	putative integral membrane protein
2086	 51.82	0	2263411..2263767	+	118	38234728	-	DIP2185	-	putative integral membrane protein
2087	 54.80	0	2266345..2267895	-	516	38234729	pccB	DIP2188	-	propionyl-CoA carboxylase complex B subunit
2088	 59.08	+1	2267907..2272667	-	1586	38234730	-	DIP2189	-	putative polyketide synthase
2089	 56.58	0	2272766..2274580	-	604	38234731	-	DIP2190	-	acyl-CoA synthase
2090	 59.32	+1	2274655..2275566	-	303	38234732	-	DIP2191	-	hypothetical protein
2091	 59.50	+1	2275572..2276087	-	171	38234733	-	DIP2192	-	hypothetical protein
2092	 57.02	0	2276087..2278003	-	638	38234734	csp1	DIP2193	-	putative secreted antigen
2093	 48.57	-1	2278364..2279380	-	338	38234735	-	DIP2194	-	putative secreted antigen
2094	 46.83	-1	2279547..2281235	-	562	38234736	-	DIP2195	-	hypothetical protein
2095	 57.87	0	2281244..2282221	-	325	38234737	-	DIP2196	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
2096	 58.59	+1	2282218..2282712	-	164	38234738	-	DIP2197	-	putative integral membrane protein
2097	 58.81	+1	2282712..2284697	-	661	38234739	-	DIP2198	-	hypothetical protein
2098	 55.62	0	2284782..2285297	-	171	38234740	-	DIP2199	-	putative integral membrane protein
2099	 57.79	0	2285338..2286915	-	525	38234741	gbsA	DIP2200	-	betaine aldehyde dehydrogenase
2100	 57.82	0	2286982..2289207	-	741	38234742	betT	DIP2201	-	high-affinity choline transport protein
2101	 57.44	0	2289560..2291272	+	570	38234743	betA	DIP2202	-	choline dehydrogenase
2102	 53.17	0	2291458..2292672	-	404	38234744	glf	DIP2203	-	UDP-galactopyranose mutase
2103	 45.45	-1	2292835..2293263	-	142	38234745	-	DIP2204	-	hypothetical protein
2104	 47.76	-1	2293316..2294341	-	341	38234746	-	DIP2205	-	putative DNA-binding protein
2105	 58.33	0	2294403..2294678	-	91	38234747	-	DIP2206	-	putative nucleotide-binding protein
2106	 60.74	+1	2295148..2296968	+	606	38234748	-	DIP2207	-	hypothetical protein
2107	 46.50	-1	2297077..2297805	-	242	38234749	-	DIP2208	-	hypothetical protein
2108	 46.08	-1	2297798..2298856	-	352	38234750	-	DIP2209	-	hypothetical protein
2109	 46.15	-1	2298912..2299496	-	194	38234751	-	DIP2210	-	hypothetical protein
2110	 47.66	-1	2299489..2301045	-	518	38234752	-	DIP2211	-	hypothetical protein
2111	 46.43	-1	2301411..2302097	+	228	38234753	-	DIP2212	-	hypothetical protein
2112	 45.72	-1	2302097..2304727	+	876	38234754	-	DIP2213	-	putative helicase
2113	 45.31	-1	2304729..2305688	+	319	38234755	-	DIP2214	-	hypothetical protein
2114	 44.13	-2	2305689..2306003	+	104	38234756	-	DIP2215	-	hypothetical protein
2115	 54.84	0	2307893..2308408	+	171	38234757	ssb2	DIP2216	-	single-strand DNA-binding protein
2116	 46.58	-1	2308427..2308660	+	77	38234758	-	DIP2217	-	putative DNA-binding protein
2117	 49.56	0	2309127..2309804	+	225	38234759	-	DIP2218	-	hypothetical protein
2118	 47.37	-1	2309879..2310220	+	113	38234760	-	DIP2219	-	hypothetical protein
2119	 45.29	-1	2310210..2310485	+	91	38234761	-	DIP2220	-	hypothetical protein
2120	 48.43	-1	2310601..2310759	-	52	38234762	-	DIP2222	-	hypothetical protein
2121	 55.68	0	2310948..2311757	-	269	38234763	-	DIP2223	-	potential surface-anchored protein
2122	 51.96	0	2311830..2312876	-	348	38234764	-	DIP2224	-	putative fimbrial associated sortase-like protein
2123	 53.19	0	2312860..2313816	-	318	38234765	-	DIP2225	-	putative fimbrial associated sortase-like protein
2124	 57.73	0	2314006..2315673	-	555	38234766	-	DIP2226	-	surface-anchored fimbrial subunit
2125	 54.77	0	2315777..2319904	-	1375	38234767	-	DIP2227	-	surface-anchored fimbrial subunit
2126	 49.18	0	2320038..2320220	+	60	38234768	-	DIP2228	-	hypothetical protein
2127	 56.39	0	2321459..2321896	+	145	38234769	-	DIP2233	-	hypothetical protein
2128	 47.04	-1	2322596..2322967	+	123	38234770	-	DIP2234	-	hypothetical protein
2129	 57.59	0	2323066..2324586	-	506	38234771	glpK	DIP2235	-	glycerol kinase
2130	 60.86	+1	2324605..2325345	-	246	38234772	glpF	DIP2236	-	glycerol uptake facilitator protein
2131	 61.65	+1	2325345..2327078	-	577	38234773	glpD	DIP2237	-	putative glycerol-3-phosphate dehydrogenase
2132	 58.65	+1	2327266..2329098	-	610	38234774	-	DIP2238	-	putative acyltransferase
2133	 57.85	0	2329111..2329938	-	275	38234775	-	DIP2239	-	hypothetical protein
2134	 58.25	0	2329968..2331227	-	419	38234776	serS	DIP2240	-	seryl-tRNA synthetase
2135	 59.26	+1	2331262..2332098	+	278	38234777	-	DIP2241	-	GntR family transcriptional regulator
2136	 60.02	+1	2332109..2333101	+	330	38234778	-	DIP2242	-	hypothetical protein
2137	 54.60	0	2333108..2333455	+	115	38234779	-	DIP2243	-	hypothetical protein
2138	 49.92	0	2333530..2334777	+	415	38234780	-	DIP2244	-	hypothetical protein
2139	 62.33	+1	2334763..2335407	-	214	38234781	-	DIP2245	-	putative phosphoglycerate mutase
2140	 63.90	+2	2335434..2336336	-	300	161598672	pheA	DIP2246	-	prephenate dehydratase
2141	 59.62	+1	2336303..2337508	+	401	38234783	-	DIP2247	-	putative amidase
2142	 58.02	0	2337505..2338221	+	238	38234784	-	DIP2248	-	putative integral membrane protein
2143	 48.91	-1	2338205..2340496	-	763	38234785	-	DIP2249	-	putative nitric-oxide reductase
53.75	MEAN

4.64	STD DEV
