IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

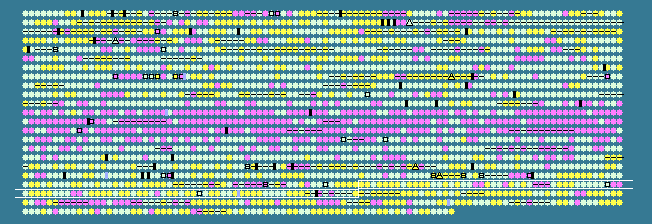

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1957	 58.52	+1	2090430..2091509	-	359	38234599	-	DIP2042	-	carboxylate-amine ligase
1958	 59.55	+1	2091506..2092039	-	177	38234600	-	DIP2043	-	hypothetical protein
1959	 55.39	0	2092042..2092245	-	67	38234601	-	DIP2044	-	hypothetical protein
1960	 59.75	+1	2092244..2092807	+	187	38234602	def	DIP2045	-	peptide deformylase
1961	 60.81	+1	2092824..2093711	+	295	38234603	-	DIP2046	-	hypothetical protein
1962	 59.32	+1	2093716..2094423	+	235	38234604	-	DIP2047	-	putative exonuclease
1963	 58.23	0	2094420..2095853	+	477	38234605	-	DIP2048	-	putative cardiolipin synthase
1964	 56.10	0	2096446..2097183	-	245	38234606	-	DIP2049	-	ABC transporter
1965	 58.49	+1	2097167..2098096	-	309	38234607	-	DIP2050	-	ABC transporter ATP-binding protein
1966	 60.14	+1	2098098..2099354	+	418	38234608	-	DIP2051	-	hypothetical protein
1967	 57.70	0	2099351..2100298	+	315	38234609	-	DIP2052	-	ABC transporter
1968	 60.61	+1	2100295..2102457	+	720	38234610	-	DIP2053	-	putative protein kinase
1969	 55.92	0	2102477..2103676	-	399	38234611	ackA	DIP2054	-	acetate kinase
1970	 54.27	0	2103677..2105128	-	483	38234612	eutD	DIP2055	-	phosphotransacetylase
1971	 59.82	+1	2105308..2106666	+	452	38234613	-	DIP2056	-	putative ferredoxin/ferredoxin-NADP reductase
1972	 56.63	0	2106678..2107574	-	298	38234614	-	DIP2057	-	putative phosphoribosylglycinamide formyltransferase
1973	 57.68	0	2107606..2108106	+	166	38234615	-	DIP2058	-	putative purine phosphoribosyltransferase
1974	 56.35	0	2108231..2109025	+	264	38234616	-	DIP2059	-	hypothetical protein
1975	 53.67	0	2109022..2110452	-	476	38234617	-	DIP2060	-	hypothetical protein
1976	 45.24	-1	2110453..2110620	-	55	38234618	-	DIP2061	-	hypothetical protein
1977	 47.22	-1	2111093..2112964	-	623	38234619	-	DIP2062	-	putative surface anchored protein
1978	 58.53	+1	2113380..2114669	-	429	38234620	purA	DIP2063	-	adenylosuccinate synthetase
1979	 54.29	0	2114764..2114973	+	69	38234621	-	DIP2064	-	putative beta-ketoacyl-ACP synthase gene remnant
1980	 55.07	0	2115398..2115535	+	45	38234622	-	DIP2065	-	putative hydrolase gene remnant
1981	 44.68	-1	2115840..2119082	+	1080	38234623	-	DIP2066	-	putative surface-anchored fimbrial associated protein
1982	 62.30	+1	2119377..2120108	+	243	38234624	-	DIP2067	-	hypothetical protein
1983	 56.65	0	2120105..2121232	-	375	38234625	-	DIP2068	-	hypothetical protein
1984	 60.58	+1	2121346..2122479	+	377	38234626	-	DIP2069	-	hypothetical protein
1985	 55.58	0	2122571..2123752	-	393	38234627	-	DIP2070	-	hypothetical protein
1986	 42.65	-2	2124164..2125075	+	303	38234628	-	DIP2071	-	hypothetical protein
1987	 50.13	0	2125361..2126473	+	370	38234629	-	DIP2072	-	hypothetical protein
1988	 48.11	-1	2126517..2127308	+	263	38234630	-	DIP2073	-	hypothetical protein
1989	 54.37	0	2127573..2127881	+	102	38234631	-	DIP2074	-	putative tranposase
1990	 57.97	0	2127929..2128273	-	114	38234632	-	DIP2075	-	hypothetical protein
1991	 61.16	+1	2128362..2128724	+	120	38234633	-	DIP2076	-	hypothetical protein
1992	 68.39	+2	2128744..2128917	+	57	38234634	-	DIP2077	-	hypothetical protein
1993	 56.44	0	2128919..2129182	-	87	38234635	-	DIP2077A	-	hypothetical protein
1994	 53.66	0	2129194..2130531	-	445	38234636	-	DIP2078	-	inner membrane permease YgbN
1995	 55.30	0	2130534..2131430	-	298	38234637	-	DIP2079	-	putative oxidoreductase
1996	 55.17	0	2131499..2132950	-	483	38234638	-	DIP2080	-	hypothetical protein
1997	 53.36	0	2133153..2133851	-	232	38234639	-	DIP2081	-	putative transcriptional regulator
1998	 53.52	0	2135858..2137066	+	402	38234640	-	DIP2083	-	putative transposase for insertion element
1999	 49.69	0	2138047..2138529	+	160	38234641	-	DIP2085	-	putative insertion element
2000	 49.44	0	2141760..2144615	+	951	38234642	-	DIP2093	-	Sdr family related adhesin
2001	 56.43	0	2144833..2145867	-	344	38234643	fba	DIP2094	-	fructose-bisphosphate aldolase
2002	 58.16	0	2145986..2147113	-	375	38234644	-	DIP2095	-	hypothetical protein
2003	 58.77	+1	2147125..2147643	-	172	38234645	-	DIP2096	-	putative RNA methylase family protein
2004	 57.30	0	2147786..2148319	-	177	38234646	pyrE	DIP2097	-	orotate phosphoribosyltransferase
2005	 58.91	+1	2148375..2149289	-	304	38234647	-	DIP2098	-	hypothetical protein
2006	 55.27	0	2149289..2150113	-	274	38234648	-	DIP2099	-	putative sulfultransferase
2007	 51.95	0	2150259..2150489	-	76	38234649	-	DIP2100	-	hypothetical protein
2008	 52.74	0	2150689..2150889	-	66	38234650	clpB2	DIP2101	-	putative heat shock protein (partial)
2009	 36.57	-2	2151027..2151551	-	174	38234651	-	DIP2102	-	hypothetical protein
2010	 31.37	-2	2151552..2151704	-	50	38234652	-	DIP2103	-	hypothetical protein
2011	 56.43	0	2151849..2154398	-	849	38234653	clpB	DIP2104	-	putative ATP-dependent protease regulatory subunit, ClpB
2012	 61.82	+1	2154597..2154926	-	109	38234654	-	DIP2105	-	hypothetical protein
2013	 58.17	0	2155054..2155842	+	262	38234655	-	DIP2106	-	ABC transporter ATP-binding protein
2014	 57.93	0	2155844..2157412	+	522	38234656	-	DIP2107	-	putative integral membrane transport protein
2015	 57.55	0	2157906..2159243	-	445	38234657	-	DIP2108	-	putative integral membrane protein
2016	 57.16	0	2159370..2160410	-	346	38234658	-	DIP2109	-	putative integral membrane protein
2017	 59.60	+1	2160416..2161519	+	367	38234659	-	DIP2110	-	hypothetical protein
2018	 57.46	0	2161498..2162268	-	256	38234660	-	DIP2111	-	putative hydrolase
2019	 54.72	0	2162322..2162480	-	52	38234661	-	DIP2112	-	hypothetical protein
2020	 57.65	0	2162652..2163782	+	376	38234662	-	DIP2113	-	hypothetical protein
2021	 57.73	0	2163769..2164809	-	346	38234663	adhA	DIP2114	-	alcohol dehydrogenase
2022	 54.70	0	2164963..2166483	-	506	38234664	-	DIP2115	-	putative aldehyde dehydrogenase
2023	 44.05	-2	2166772..2168376	+	534	38234665	-	DIP2116	-	putative membrane anchored protein
2024	 56.89	0	2168433..2168831	-	132	38234666	hspR	DIP2117	-	putative chaperone locus transcriptional regulator, HspR
2025	 60.19	+1	2168853..2170025	-	390	38234667	dnaJ1	DIP2118	-	chaperone protein cofactor 1
2026	 58.79	+1	2170135..2170794	-	219	38234668	grpE	DIP2119	-	chaperone protein cofactor GrpE
2027	 55.88	0	2170794..2172629	-	611	38234669	dnaK	DIP2120	-	molecular chaperone DnaK
2028	 57.85	0	2173043..2174347	+	434	38234670	-	DIP2121	-	hypothetical protein
2029	 58.39	0	2174439..2175719	+	426	38234671	-	DIP2122	-	putative integral membrane protein
2030	 51.91	0	2175813..2176625	-	270	38234672	-	DIP2123	-	putative transposase
2031	 54.45	0	2176673..2177155	-	160	38234673	-	DIP2124	-	putative insertion element DNA-binding protein
2032	 57.94	0	2177232..2177873	-	213	38234674	-	DIP2125	-	ABC transporter ATP-binding protein
2033	 59.36	+1	2177860..2179488	-	542	38234675	-	DIP2126	-	putative binding-protein-dependent integral membrane transport protein
2034	 56.46	0	2179481..2180479	-	332	38234676	-	DIP2127	-	putative binding-protein-dependent integral membrane transport protein
2035	 51.96	0	2180480..2182084	-	534	38234677	-	DIP2128	-	putative substrate-binding transport protein
2036	 58.73	+1	2182285..2183871	-	528	38234678	-	DIP2129	-	putative binding-protein-dependent integral membrane transport protein
2037	 60.75	+1	2190630..2194346	+	1238	38234679	-	DIP2130	-	putative phosphoribosylformylglycinamidine synthase
2038	 59.56	+1	2194426..2195016	-	196	38234680	-	DIP2131	-	nucleosidase
2039	 61.55	+1	2195144..2195632	+	162	38234681	-	DIP2132	-	putative oxidoreductase
2040	 59.24	+1	2195706..2198210	+	834	38234682	-	DIP2133	-	hypothetical protein
2041	 57.17	0	2198286..2198906	+	206	38234683	-	DIP2134	-	hypothetical protein
2042	 55.13	0	2198998..2200089	-	363	38234684	-	DIP2135	-	putative zinc-binding alcohol dehydrogenase
2043	 53.62	0	2200331..2201602	+	423	38234685	-	DIP2136	-	aminotransferase AlaT
2044	 56.65	0	2201757..2202914	+	385	38234686	-	DIP2137	-	putative integral membrane protein
2045	 57.94	0	2202940..2206089	+	1049	38234687	lysS	DIP2138	-	lysyl-tRNA synthetase
2046	 60.18	+1	2206196..2206873	-	225	38234688	-	DIP2139	-	hypothetical protein
2047	 58.45	+1	2206836..2207456	-	206	38234689	-	DIP2140	-	putative integral membrane protein
2048	 59.95	+1	2207481..2208686	-	401	38234690	-	DIP2141	-	putative UDP-glucose 6-dehydrogenase
2049	 52.13	0	2208692..2209255	-	187	38234691	dcd	DIP2142	-	deoxycytidine triphosphate deaminase
2050	 49.23	0	2209550..2210329	-	259	38234692	-	DIP2143	-	ABC transporter inner membrane protein
2051	 52.76	0	2210326..2211159	-	277	38234693	-	DIP2144	-	ABC transporter ATP-binding protein
2052	 46.85	-1	2211156..2211488	-	110	38234694	-	DIP2145	-	putative integral membrane protein
2053	 56.28	0	2211488..2212180	-	230	38234695	-	DIP2146	-	putative integral membrane protein
2054	 53.21	0	2212180..2212506	-	108	38234696	-	DIP2147	-	hypothetical protein
2055	 52.33	0	2213799..2214419	-	206	38234697	-	DIP2152	-	hypothetical protein
2056	 65.34	+2	2214506..2214883	-	125	38234698	-	DIP2153	-	putative bacteriophage holin protein
53.75	MEAN

4.64	STD DEV
