IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

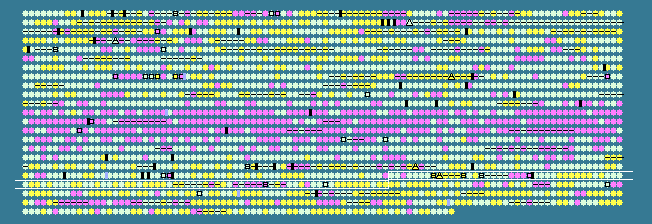

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1862	 51.50	0	1992160..1992726	+	188	38234504	-	DIP1937	-	hypothetical protein
1863	 52.75	0	1992696..1992968	+	90	38234505	-	DIP1938	-	hypothetical protein
1864	 46.03	-1	1992968..1993156	+	62	38234506	-	DIP1939	-	hypothetical protein
1865	 55.78	0	1993265..1993411	+	48	38234507	-	DIP1940	-	hypothetical protein
1866	 51.53	0	1993436..1994935	+	499	38234508	-	DIP1941	-	hypothetical protein
1867	 50.56	0	1994922..1995542	+	206	38234509	-	DIP1942	-	TetR family regulatory protein
1868	 54.18	0	1995598..1997511	+	637	38234510	-	DIP1943	-	xanthine/uracil permeases family protein
1869	 61.13	+1	1998063..1998857	+	264	38234511	tnpA2	DIP1944	-	transposase
1870	 59.91	+1	1998829..1999494	-	221	38234512	-	DIP1947	-	integrase
1871	 61.50	+1	1999595..2000446	+	283	38234513	-	DIP1948	-	dihydropteroate synthase
1872	 65.07	+2	2000574..2001074	+	166	38234514	-	DIP1949	-	putative acetyltransferase
1873	 60.76	+1	2001098..2001385	+	95	38234515	-	DIP1950	-	hypothetical protein
1874	 61.13	+1	2001551..2002345	+	264	38234516	tnpA3	DIP1951	-	transposase
1875	 55.90	0	2002457..2004193	-	578	38234517	-	DIP1952	-	pyruvate dehydrogenase
1876	 59.57	+1	2004306..2005757	+	483	38234518	-	DIP1953	-	putative amino acid export carrier protein
1877	 51.36	0	2006198..2007007	-	269	38234519	-	DIP1955	-	putative transposase
1878	 54.79	0	2007058..2007495	-	145	38234520	-	DIP1956	-	hypothetical protein
1879	 51.55	0	2007631..2007888	-	85	38234521	-	DIP1957	-	hypothetical protein
1880	 54.58	0	2008028..2008507	+	159	38234522	-	DIP1958	-	putative DNA-binding protein
1881	 53.02	0	2008563..2008877	+	104	38234523	-	DIP1959	-	hypothetical protein
1882	 46.22	-1	2009016..2009465	+	149	38234524	-	DIP1960	-	hypothetical protein
1883	 41.00	-2	2009462..2009800	+	112	38234525	-	DIP1961	-	hypothetical protein
1884	 49.56	0	2009896..2010234	-	112	38234526	-	DIP1962	-	hypothetical protein
1885	 48.97	-1	2010331..2011782	+	483	38234527	-	DIP1963	-	transposase
1886	 54.37	0	2012164..2013708	+	514	38234528	-	DIP1964	-	putative amino acid export carrier protein
1887	 51.88	0	2013769..2014113	+	114	38234529	-	DIP1965	-	hypothetical protein
1888	 53.68	0	2014122..2015561	+	479	38234530	-	DIP1966	-	putative glycosyltransferase
1889	 56.60	0	2015595..2016071	+	158	38234531	-	DIP1967	-	hypothetical protein
1890	 58.63	+1	2016061..2016819	+	252	38234532	-	DIP1968	-	putative trehalose-phosphatase
1891	 60.70	+1	2016782..2017921	-	379	38234533	-	DIP1969	-	LacI family transcriptional regulator
1892	 60.40	+1	2017931..2018872	-	313	38234534	-	DIP1970	-	SpoU rRNA methylase family protein
1893	 58.41	+1	2018900..2020291	-	463	38234535	cysS	DIP1971	-	cysteinyl-tRNA synthetase
1894	 58.80	+1	2020310..2020792	-	160	38234536	ispF	DIP1972	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1895	 57.96	0	2020785..2021519	-	244	38234537	ispD	DIP1973	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1896	 56.19	0	2021529..2022110	-	193	38234538	-	DIP1974	-	putative CarD-like transcriptional factor
1897	 59.54	+1	2022342..2022944	-	200	38234539	-	DIP1975	-	hypothetical protein
1898	 54.38	0	2023051..2024442	-	463	38234540	-	DIP1976	-	hypothetical protein
1899	 56.68	0	2024799..2026190	+	463	38234541	-	DIP1977	-	DNA repair protein RadA
1900	 54.11	0	2026218..2026934	-	238	38234542	-	DIP1978	-	hypothetical protein
1901	 56.35	0	2027004..2027633	-	209	38234543	-	DIP1979	-	putative carbonic anhydrase
1902	 59.12	+1	2027764..2028651	+	295	38234544	-	DIP1980	-	putative DNA repair protein
1903	 59.49	+1	2028648..2029901	-	417	38234545	-	DIP1981	-	hypothetical protein
1904	 54.39	0	2030032..2030202	-	56	38234546	-	DIP1982	-	hypothetical protein
1905	 57.77	0	2030233..2032884	-	883	38234547	clpC	DIP1983	-	ATP-dependent Clp protease ATP-binding subunit
1906	 53.07	0	2033317..2033772	-	151	38234548	-	DIP1984	-	hypothetical protein
1907	 56.03	0	2033808..2034446	+	212	38234549	-	DIP1985	-	hypothetical protein
1908	 54.06	0	2034499..2035347	+	282	38234550	-	DIP1986	-	hypothetical protein
1909	 59.37	+1	2035873..2037435	-	520	38234551	lysS	DIP1987	-	lysyl-tRNA synthetase
1910	 59.53	+1	2037819..2038799	+	326	38234552	-	DIP1988	-	hypothetical protein
1911	 54.81	0	2038819..2039577	-	252	38234553	-	DIP1989	-	hypothetical protein
1912	 52.71	0	2039574..2040497	-	307	38234554	-	DIP1990	-	ABC transporter ATP-binding protein
1913	 57.48	0	2040971..2041939	+	322	38234555	-	DIP1991	-	hypothetical protein
1914	 55.81	0	2042051..2043478	+	475	38234556	-	DIP1992	-	sodium/dicarboxylate symporter family protein
1915	 55.90	0	2043495..2044274	-	259	38234557	panC	DIP1993	-	pantoate--beta-alanine ligase
1916	 58.65	+1	2044287..2044910	-	207	38234558	-	DIP1994	-	hypothetical protein
1917	 55.01	0	2044907..2045824	-	305	38234559	-	DIP1995	-	hypothetical protein
1918	 59.19	+1	2045826..2046293	-	155	38234560	-	DIP1996	-	hypothetical protein
1919	 59.79	+1	2046290..2046769	-	159	38234561	folK	DIP1997	-	putative 7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
1920	 53.83	0	2046779..2047144	-	121	38234562	-	DIP1998	-	putative dihydroneopterin aldolase
1921	 62.84	+1	2047150..2047986	-	278	38234563	-	DIP1999	-	putative dihydropteroate synthase
1922	 65.40	+2	2048110..2048424	-	104	38234564	-	DIP2000	-	hypothetical protein
1923	 58.46	+1	2048427..2048999	-	190	38234565	folE	DIP2001	-	GTP cyclohydrolase I
1924	 59.27	+1	2049007..2051481	-	824	38234566	ftsH	DIP2002	-	cell division protein
1925	 52.13	0	2051613..2052176	-	187	38234567	hpt	DIP2003	-	hypoxanthine-guanine phosphoribosyltransferase
1926	 63.58	+2	2052221..2053063	-	280	38234568	-	DIP2004	-	hypothetical protein
1927	 60.11	+1	2053092..2054372	-	426	38234569	-	DIP2005	-	putative D-Ala D-Ala carboxypeptidase
1928	 54.72	0	2054407..2054883	+	158	38234570	ppa	DIP2006	-	inorganic pyrophosphatase
1929	 56.23	0	2055040..2055336	+	98	38234571	-	DIP2007	-	hypothetical protein
1930	 56.49	0	2055410..2055871	+	153	38234572	-	DIP2008	-	MarR family regulatory protein
1931	 61.30	+1	2055872..2059675	+	1267	38234573	-	DIP2009	-	putative peptide synthase
1932	 46.50	-1	2059672..2065290	-	1872	38234574	-	DIP2010	-	putative surface-anchored membrane protein
1933	 59.87	+1	2065294..2065911	-	205	38234575	-	DIP2011	-	putative surface anchored protein
1934	 59.20	+1	2065901..2066770	-	289	38234576	-	DIP2012	-	putative fimbrial associated sortase-like protein
1935	 53.74	0	2066771..2068348	-	525	38234577	-	DIP2013	-	putative surface-anchored fimbrial subunit
1936	 45.82	-1	2068581..2069309	+	242	38234578	-	DIP2014	-	putative membrane-anchored protein
1937	 50.86	0	2069482..2070753	+	423	38234579	-	DIP2015	-	putative exported lipase
1938	 48.61	-1	2070770..2071666	-	298	38234580	-	DIP2016	-	hypothetical protein
1939	 45.83	-1	2071758..2073029	-	423	38234581	-	DIP2017	-	hypothetical protein
1940	 43.97	-2	2073112..2073252	-	46	38234582	-	DIP2018	-	hypothetical protein
1941	 44.12	-2	2073342..2073647	-	101	38234583	-	DIP2019	-	putative transposase
1942	 55.76	0	2073868..2075508	-	546	38234584	groEL	DIP2020	-	chaperonin GroEL
1943	 57.31	0	2075866..2076036	-	56	38234585	-	DIP2021	-	hypothetical protein
1944	 45.83	-1	2076283..2076546	-	87	38234586	-	DIP2022	-	hypothetical protein
1945	 56.40	0	2076614..2077324	+	236	38234587	-	DIP2023	-	hypothetical protein
1946	 55.26	0	2077317..2077544	-	75	38234588	-	DIP2024	-	hypothetical protein
1947	 63.83	+2	2077594..2078898	-	434	38234589	-	DIP2025	-	hypothetical protein
1948	 48.85	-1	2080479..2081561	-	360	38234590	-	DIP2030	-	putative NAD(P)H-dependent reductase
1949	 51.20	0	2081863..2084454	+	863	38234591	uvrA2	DIP2031	-	excinuclease ABC subunit A
1950	 51.77	0	2084696..2085232	+	178	38234592	-	DIP2032	-	putative protease
1951	 53.03	0	2085350..2085481	-	43	38234593	-	DIP2033	-	putative transposase
1952	 55.51	0	2086286..2086948	+	220	38234594	-	DIP2036	-	hypothetical protein
1953	 60.35	+1	2087440..2088801	+	453	38234595	-	DIP2037	-	hypothetical protein
1954	 60.19	+1	2088814..2089029	+	71	38234596	-	DIP2038	-	hypothetical protein
1955	 60.82	+1	2089037..2089327	+	96	38234597	-	DIP2039	-	hypothetical protein
1956	 59.86	+1	2089327..2090487	+	386	38234598	-	DIP2040	-	hypothetical protein
1957	 58.52	+1	2090430..2091509	-	359	38234599	-	DIP2042	-	carboxylate-amine ligase
1958	 59.55	+1	2091506..2092039	-	177	38234600	-	DIP2043	-	hypothetical protein
1959	 55.39	0	2092042..2092245	-	67	38234601	-	DIP2044	-	hypothetical protein
1960	 59.75	+1	2092244..2092807	+	187	38234602	def	DIP2045	-	peptide deformylase
1961	 60.81	+1	2092824..2093711	+	295	38234603	-	DIP2046	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
