IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

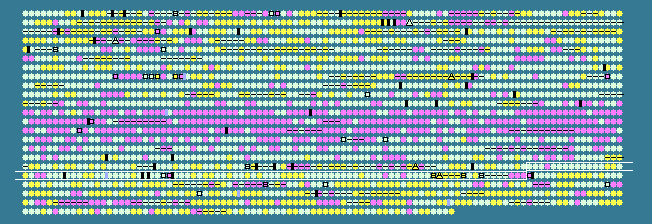

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1785	 52.92	0	1899940..1900281	-	113	38234427	clpS	DIP1857	-	ATP-dependent Clp protease adaptor protein ClpS
1786	 55.33	0	1900343..1901656	+	437	38234428	-	DIP1858	-	nicotinate phosphoribosyltransferase
1787	 53.95	0	1901706..1903655	+	649	38234429	-	DIP1859	-	DeaD/DeaH family helicase
1788	 49.05	-1	1903657..1904184	+	175	38234430	-	DIP1860	-	acetyltransferase (GNAT) family protein
1789	 54.50	0	1904274..1905374	+	366	38234431	-	DIP1861	-	hypothetical protein
1790	 53.53	0	1905358..1906065	-	235	38234432	-	DIP1862	-	hypothetical protein
1791	 53.61	0	1906058..1907290	-	410	38234433	-	DIP1863	-	putative hydrolase
1792	 55.40	0	1907448..1909142	-	564	38234434	ctaD	DIP1864	-	cytochrome C oxidase polypeptide I
1793	 50.35	0	1909504..1910490	-	328	38234435	nrdF	DIP1865	-	ribonucleotide-diphosphate reductase subunit beta
1794	 53.70	0	1910803..1911288	+	161	38234436	-	DIP1866	-	putative bacterioferritin
1795	 52.64	0	1911340..1913499	-	719	38234437	nrdE	DIP1867	-	ribonucleotide-diphosphate reductase subunit alpha
1796	 51.88	0	1913549..1913974	-	141	38234438	nrdI	DIP1868	-	ribonucleotide reductase stimulatory protein
1797	 56.41	0	1914068..1914301	-	77	38234439	-	DIP1869	-	hypothetical protein
1798	 59.79	+1	1914603..1915475	+	290	38234440	-	DIP1870	-	putative phytoene synthase
1799	 60.58	+1	1915468..1916994	+	508	38234441	-	DIP1871	-	phytoene dehydrogenase related enzyme
1800	 55.28	0	1917063..1917185	-	40	38234442	rpmJ	DIP1872	-	50S ribosomal protein L36
1801	 58.73	+1	1917354..1918172	+	272	38234443	nadE	DIP1873	-	NAD synthetase
1802	 50.68	0	1918169..1918606	-	145	38234444	-	DIP1874	-	hypothetical protein
1803	 47.90	-1	1918653..1918961	-	102	38234445	-	DIP1875	-	hypothetical protein
1804	 50.04	0	1918965..1920353	-	462	38234446	-	DIP1876	-	putative multicopper oxidase
1805	 50.50	0	1920343..1921635	-	430	38234447	-	DIP1877	-	hypothetical protein
1806	 51.62	0	1921639..1922748	-	369	38234448	-	DIP1878	-	hypothetical protein
1807	 55.26	0	1922840..1923505	+	221	38234449	-	DIP1879	-	putative DNA-biding protein
1808	 51.84	0	1923706..1924440	-	244	38234450	-	DIP1880	-	hypothetical protein
1809	 50.99	0	1924490..1924942	-	150	38234451	-	DIP1881	-	hypothetical protein
1810	 57.08	0	1924981..1926618	-	545	38234452	pgm	DIP1882	-	phosphoglucomutase
1811	 58.68	+1	1926684..1926971	+	95	38234453	ccrB	DIP1883	-	camphor resistance protein CrcB
1812	 58.73	+1	1926968..1927282	+	104	38234454	-	DIP1884	-	hypothetical protein
1813	 52.44	0	1927279..1929843	-	854	38234455	-	DIP1885	-	ABC transporter permease
1814	 50.67	0	1929844..1930593	-	249	38234456	-	DIP1886	-	ABC transporter ATP-binding protein
1815	 56.25	0	1937107..1938363	-	418	38234457	murA	DIP1887	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1816	 54.17	0	1938402..1938977	+	191	38234458	-	DIP1888	-	hypothetical protein
1817	 54.37	0	1939030..1939875	-	281	38234459	-	DIP1889	-	putative transcriptional regulator
1818	 56.52	0	1940558..1941493	+	311	38234460	-	DIP1890	-	putative cysteine synthase
1819	 59.26	+1	1941600..1942166	+	188	38234461	cysE	DIP1891	-	serine acetyltransferase
1820	 53.90	0	1942208..1942489	-	93	38234462	-	DIP1892	-	hypothetical protein
1821	 53.30	0	1942871..1943947	-	358	38234463	-	DIP1893	-	hypothetical protein
1822	 52.39	0	1944430..1947027	-	865	38234464	-	DIP1894	-	hypothetical protein
1823	 56.51	0	1947027..1948868	-	613	38234465	-	DIP1895	-	putative DNA methylase
1824	 54.97	0	1949307..1949477	+	56	38234466	-	DIP1896	-	putative transposase (partial)
1825	 47.88	-1	1949524..1949853	+	109	38234467	-	DIP1897	-	putative transposase (partial)
1826	 54.37	0	1950742..1952253	+	503	38234468	-	DIP1898	-	putative cytochrome ubiquinol oxidase subunit
1827	 53.64	0	1952261..1953235	+	324	38234469	-	DIP1899	-	putative cytochrome ubiquinol oxidase subunit
1828	 56.81	0	1953232..1954803	+	523	38234470	-	DIP1900	-	ABC transporter ATP-binding protein
1829	 58.91	+1	1954800..1956347	+	515	38234471	-	DIP1901	-	ABC transporter ATP-binding protein
1830	 56.50	0	1956426..1957979	-	517	38234472	cat1	DIP1902	-	succinyl-CoA:coenzyme A transferase
1831	 60.94	+1	1958274..1959425	+	383	38234473	-	DIP1903	-	hypothetical protein
1832	 58.57	+1	1959444..1960196	+	250	38234474	-	DIP1904	-	hypothetical protein
1833	 53.99	0	1960346..1960558	-	70	38234475	-	DIP1905	-	hypothetical protein
1834	 54.75	0	1961506..1962369	-	287	38234476	pstA	DIP1908	-	phosphate transport system permease protein
1835	 61.01	+1	1962383..1963408	-	341	38234477	pstC	DIP1909	-	phosphate transport system permease protein
1836	 53.41	0	1963421..1964506	-	361	38234478	-	DIP1910	-	putative phosphate-binding periplasmic protein
1837	 55.04	0	1964778..1965689	-	303	38234479	-	DIP1911	-	putative acetyltransferase
1838	 59.08	+1	1965728..1966531	+	267	38234480	-	DIP1912	-	hypothetical protein
1839	 55.13	0	1966561..1967583	-	340	38234481	-	DIP1913	-	hypothetical protein
1840	 57.67	0	1967623..1968300	+	225	38234482	-	DIP1915	-	hypothetical protein
1841	 56.30	0	1968307..1969203	-	298	38234483	-	DIP1916	-	4-amino-4-deoxychorismate lyase
1842	 56.21	0	1969299..1970360	+	353	38234484	-	DIP1917	-	hypothetical protein
1843	 52.17	0	1970581..1970787	+	68	38234485	-	DIP1918	-	hypothetical protein
1844	 59.62	+1	1970918..1971982	-	354	38234486	purM	DIP1919	-	phosphoribosylaminoimidazole synthetase
1845	 57.56	0	1972042..1973523	-	493	38234487	purF	DIP1920	-	amidophosphoribosyltransferase
1846	 60.35	+1	1973657..1974052	-	131	38234488	-	DIP1921	-	hypothetical protein
1847	 60.46	+1	1974391..1975179	-	262	38234489	-	DIP1922	-	hypothetical protein
1848	 53.52	0	1975317..1975742	+	141	38234490	nrdI	DIP1923	-	ribonucleotide reductase stimulatory protein
1849	 54.97	0	1975739..1976764	+	341	38234491	nrdF	DIP1924	-	ribonucleotide-diphosphate reductase subunit beta
1850	 50.32	0	1978463..1978933	-	156	38234492	-	DIP1925	-	putative glutathione peroxidase
1851	 53.76	0	1978935..1981064	-	709	38234493	-	DIP1926	-	putative prolyl oligopeptidase
1852	 54.81	0	1981355..1982248	-	297	38234494	hemH	DIP1927	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1853	 54.86	0	1982334..1983773	-	479	38234495	purB	DIP1928	-	adenylosuccinate lyase
1854	 57.08	0	1983773..1984909	-	378	38234496	-	DIP1929	-	putative aspartate aminotransferase
1855	 53.12	0	1984920..1985576	-	218	38234497	-	DIP1930	-	hypothetical protein
1856	 55.21	0	1985569..1986903	-	444	38234498	-	DIP1931	-	sodium transport protein
1857	 57.73	0	1986987..1988273	-	428	38234499	purD	DIP1932	-	phosphoribosylamine--glycine ligase
1858	 53.99	0	1988352..1988777	+	141	38234500	-	DIP1933	-	HIT family protein
1859	 54.80	0	1988794..1989459	+	221	38234501	-	DIP1934	-	hypothetical protein
1860	 52.95	0	1989473..1991032	-	519	38234502	-	DIP1935	-	putative two somponent system sensor kinase protein
1861	 47.26	-1	1991068..1991778	-	236	38234503	-	DIP1936	-	putative two component system response regulator protein
1862	 51.50	0	1992160..1992726	+	188	38234504	-	DIP1937	-	hypothetical protein
1863	 52.75	0	1992696..1992968	+	90	38234505	-	DIP1938	-	hypothetical protein
1864	 46.03	-1	1992968..1993156	+	62	38234506	-	DIP1939	-	hypothetical protein
1865	 55.78	0	1993265..1993411	+	48	38234507	-	DIP1940	-	hypothetical protein
1866	 51.53	0	1993436..1994935	+	499	38234508	-	DIP1941	-	hypothetical protein
1867	 50.56	0	1994922..1995542	+	206	38234509	-	DIP1942	-	TetR family regulatory protein
1868	 54.18	0	1995598..1997511	+	637	38234510	-	DIP1943	-	xanthine/uracil permeases family protein
1869	 61.13	+1	1998063..1998857	+	264	38234511	tnpA2	DIP1944	-	transposase
1870	 59.91	+1	1998829..1999494	-	221	38234512	-	DIP1947	-	integrase
1871	 61.50	+1	1999595..2000446	+	283	38234513	-	DIP1948	-	dihydropteroate synthase
1872	 65.07	+2	2000574..2001074	+	166	38234514	-	DIP1949	-	putative acetyltransferase
1873	 60.76	+1	2001098..2001385	+	95	38234515	-	DIP1950	-	hypothetical protein
1874	 61.13	+1	2001551..2002345	+	264	38234516	tnpA3	DIP1951	-	transposase
1875	 55.90	0	2002457..2004193	-	578	38234517	-	DIP1952	-	pyruvate dehydrogenase
1876	 59.57	+1	2004306..2005757	+	483	38234518	-	DIP1953	-	putative amino acid export carrier protein
1877	 51.36	0	2006198..2007007	-	269	38234519	-	DIP1955	-	putative transposase
1878	 54.79	0	2007058..2007495	-	145	38234520	-	DIP1956	-	hypothetical protein
1879	 51.55	0	2007631..2007888	-	85	38234521	-	DIP1957	-	hypothetical protein
1880	 54.58	0	2008028..2008507	+	159	38234522	-	DIP1958	-	putative DNA-binding protein
1881	 53.02	0	2008563..2008877	+	104	38234523	-	DIP1959	-	hypothetical protein
1882	 46.22	-1	2009016..2009465	+	149	38234524	-	DIP1960	-	hypothetical protein
1883	 41.00	-2	2009462..2009800	+	112	38234525	-	DIP1961	-	hypothetical protein
1884	 49.56	0	2009896..2010234	-	112	38234526	-	DIP1962	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
