IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

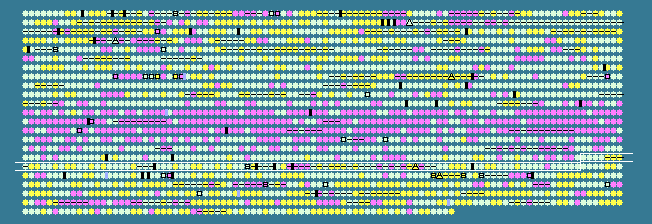

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1694	 56.99	0	1811324..1811881	+	185	38234336	-	DIP1765	-	hypothetical protein
1695	 57.20	0	1812042..1812305	+	87	38234337	rpsT	DIP1766	-	30S ribosomal protein S20
1696	 56.18	0	1812354..1812992	-	212	38234338	-	DIP1767	-	putative LysE type translocator
1697	 55.72	0	1812982..1813383	-	133	38234339	-	DIP1768	-	hypothetical protein
1698	 58.56	+1	1813394..1814368	-	324	38234340	-	DIP1769	-	hypothetical protein
1699	 57.47	0	1814322..1815995	-	557	38234341	-	DIP1770	-	hypothetical protein
1700	 57.94	0	1815992..1816621	-	209	38234342	-	DIP1771	-	hypothetical protein
1701	 56.08	0	1816728..1817549	-	273	38234343	-	DIP1772	-	hypothetical protein
1702	 59.89	+1	1817554..1818276	-	240	38234344	-	DIP1773	-	phosphoglycerate mutase family protein
1703	 57.69	0	1818283..1818750	-	155	38234345	-	DIP1774	-	hypothetical protein
1704	 56.48	0	1818773..1819459	-	228	38234346	nadD	DIP1775	-	nicotinic acid mononucleotide adenylyltransferase
1705	 56.61	0	1819483..1820775	-	430	38234347	proA	DIP1776	-	gamma-glutamyl phosphate reductase
1706	 58.00	0	1820793..1821923	-	376	38234348	proB	DIP1777	-	gamma-glutamyl kinase
1707	 56.35	0	1821944..1822195	-	83	38234349	-	DIP1778	-	hypothetical protein
1708	 58.61	+1	1822199..1823725	-	508	38234350	obgE	DIP1779	-	GTPase ObgE
1709	 57.30	0	1823886..1824152	-	88	38234351	rpmA	DIP1780	-	50S ribosomal protein L27
1710	 55.23	0	1824193..1824498	-	101	38234352	rplU	DIP1781	-	50S ribosomal protein L21
1711	 56.59	0	1824673..1827561	-	962	38234353	-	DIP1782	-	putative RNA-associated protein
1712	 58.39	0	1827843..1828277	-	144	38234354	ndk	DIP1783	-	nucleoside diphosphate kinase
1713	 53.86	0	1828445..1828858	-	137	38234355	-	DIP1784	-	hypothetical protein
1714	 59.52	+1	1828855..1830351	-	498	38234356	-	DIP1785	-	Mur ligase family protein
1715	 57.10	0	1830348..1833107	-	919	38234357	valS	DIP1786	-	valyl-tRNA synthetase
1716	 55.96	0	1833151..1834131	-	326	38234358	mdh	DIP1787	-	malate dehydrogenase
1717	 55.11	0	1834614..1835366	+	250	38234359	-	DIP1788	-	TetR family regulatory protein
1718	 53.44	0	1835403..1836695	-	430	38234360	clpX	DIP1789	-	ATP-dependent protease ATP-binding subunit
1719	 58.65	+1	1836842..1839373	-	843	38234361	-	DIP1790	-	glutamine amidotransferase protein
1720	 57.14	0	1839462..1840091	-	209	38234362	clpP2	DIP1791	-	ATP-dependent Clp protease proteolytic subunit
1721	 54.33	0	1840109..1840708	-	199	38234363	clpP	DIP1792	-	ATP-dependent Clp protease proteolytic subunit
1722	 57.02	0	1840874..1842220	-	448	38234364	tig	DIP1793	-	trigger factor
1723	 56.54	0	1843047..1843283	+	78	38234365	-	DIP1794	-	hypothetical protein
1724	 55.94	0	1843430..1844212	+	260	38234366	-	DIP1795	-	hypothetical protein
1725	 56.75	0	1844289..1844762	-	157	38234367	-	DIP1796	-	ribose-5-phosphate isomerase B
1726	 58.45	+1	1844794..1845414	-	206	38234368	-	DIP1797	-	hypothetical protein
1727	 54.03	0	1845536..1848154	+	872	38234369	-	DIP1798	-	putative aminopeptidase
1728	 56.34	0	1848410..1849426	+	338	38234370	-	DIP1799	-	putative mechanosensitive ion channel protein
1729	 57.76	0	1849438..1849830	+	130	38234371	-	DIP1800	-	putative hemoglobin
1730	 58.94	+1	1849827..1850447	-	206	38234372	-	DIP1801	-	hypothetical protein
1731	 56.31	0	1850457..1850900	-	147	38234373	-	DIP1802	-	hypothetical protein
1732	 56.31	0	1851027..1852697	-	556	38234374	-	DIP1803	-	putative ABC transporter ATP-binding protein
1733	 58.08	0	1852795..1853283	-	162	38234375	-	DIP1804	-	putative single-strand binding protein
1734	 56.65	0	1853467..1855503	-	678	38234376	-	DIP1805	-	hypothetical protein
1735	 59.58	+1	1855730..1858015	+	761	38234377	cstA1	DIP1806	-	carbon starvation protein
1736	 54.23	0	1858036..1858236	+	66	38234378	-	DIP1807	-	hypothetical protein
1737	 54.04	0	1858313..1858795	+	160	38234379	-	DIP1808	-	putative insertion element DNA-binding protein
1738	 51.78	0	1858843..1859655	+	270	38234380	-	DIP1809	-	putative transposase
1739	 59.20	+1	1859708..1860913	-	401	38234381	-	DIP1810	-	hypothetical protein
1740	 57.02	0	1861303..1862349	+	348	38234382	-	DIP1811	-	putative zinc-binding dehydrogenase
1741	 55.43	0	1862409..1863209	+	266	38234383	-	DIP1812	-	putative short chain dehydrogenase
1742	 53.08	0	1863228..1863860	+	210	38234384	orn	DIP1813	-	oligoribonuclease
1743	 53.43	0	1864038..1864868	+	276	38234385	-	DIP1814	-	dihydrodipicolinate synthase family protein
1744	 59.74	+1	1864869..1866038	-	389	38234386	-	DIP1815	-	putative lipoprotein
1745	 48.15	-1	1866129..1866317	-	62	38234387	-	DIP1816	-	hypothetical protein
1746	 49.78	0	1866723..1866953	+	76	38234388	-	DIP1817	-	hypothetical protein
1747	 45.96	-1	1866950..1867234	+	94	38234389	-	DIP1818	-	hypothetical protein
1748	 48.18	-1	1867227..1867556	+	109	38234390	-	DIP1819	-	hypothetical protein
1749	 52.50	0	1867754..1867873	+	39	38234391	-	DIP1820	-	hypothetical protein
1750	 60.16	+1	1867939..1868061	+	40	38234392	-	DIP1821	-	hypothetical protein
1751	 55.72	0	1868441..1868842	+	133	38234393	-	DIP1822	-	hypothetical protein
1752	 58.42	+1	1868835..1869113	+	92	38234394	-	DIP1823	-	HNH endonuclease family protein
1753	 60.70	+1	1869496..1870953	+	485	38234395	-	DIP1824	-	putative phage terminase protein
1754	 60.00	+1	1871192..1872241	+	349	38234396	-	DIP1825	-	hypothetical protein
1755	 55.98	0	1872225..1872776	+	183	38234397	-	DIP1826	-	hypothetical protein
1756	 61.11	+1	1872831..1873118	-	95	38234398	-	DIP1827	-	hypothetical protein
1757	 56.48	0	1873196..1874599	+	467	38234399	-	DIP1828	-	hypothetical protein
1758	 56.41	0	1874599..1874910	+	103	38234400	-	DIP1829	-	hypothetical protein
1759	 53.82	0	1874955..1875281	+	108	38234401	-	DIP1830	-	hypothetical protein
1760	 48.23	-1	1875281..1875703	+	140	38234402	-	DIP1831	-	hypothetical protein
1761	 55.56	0	1875706..1876119	+	137	38234403	-	DIP1832	-	hypothetical protein
1762	 48.40	-1	1876119..1876430	+	103	38234404	-	DIP1833	-	hypothetical protein
1763	 53.83	0	1876508..1878073	+	521	38234405	-	DIP1834	-	hypothetical protein
1764	 47.90	-1	1878067..1879254	+	395	38234406	-	DIP1835	-	hypothetical protein
1765	 57.79	0	1879255..1880043	+	262	38234407	-	DIP1836	-	triple helix repeat-containing collagen
1766	 58.46	+1	1880040..1880855	-	271	38234408	-	DIP1837	-	putative phage integrase
1767	 45.00	-1	1881329..1881508	-	59	38234409	-	DIP1838	-	hypothetical protein
1768	 56.43	0	1881693..1882151	+	152	38234410	-	DIP1840	-	hypothetical protein
1769	 56.21	0	1882155..1882460	-	101	38234411	-	DIP1841	-	hypothetical protein
1770	 55.07	0	1882473..1882748	-	91	38234412	-	DIP1842	-	hypothetical protein
1771	 57.17	0	1882837..1883310	+	157	38234413	bcp	DIP1843	-	bacterioferritin comigratory protein
1772	 60.47	+1	1883311..1883955	+	214	38234414	-	DIP1844	-	TetR family regulatory protein
1773	 60.68	+1	1883952..1884335	-	127	38234415	acpS	DIP1845	-	4'-phosphopantetheinyl transferase
1774	 59.55	+1	1884370..1893303	-	2977	38234416	fas	DIP1846	-	putative fatty acid synthase
1775	 53.17	0	1893482..1893859	-	125	38234417	-	DIP1847	-	hypothetical protein
1776	 52.12	0	1894158..1894535	+	125	38234418	-	DIP1848	-	hypothetical protein
1777	 53.78	0	1894563..1894919	+	118	38234419	-	DIP1849	-	hypothetical protein
1778	 59.78	+1	1894916..1895539	-	207	38234420	-	DIP1850	-	putative deoxyribonucleotide triphosphate pyrophosphatase
1779	 57.99	0	1895536..1896261	-	241	38234421	rph	DIP1851	-	ribonuclease PH
1780	 56.90	0	1896272..1897090	-	272	38234422	-	DIP1852	-	hypothetical protein
1781	 56.14	0	1897092..1897889	-	265	38234423	murI	DIP1853	-	glutamate racemase
1782	 56.37	0	1897886..1898458	-	190	38234424	-	DIP1854	-	hypothetical protein
1783	 61.31	+1	1898455..1899387	-	310	38234425	-	DIP1855	-	hypothetical protein
1784	 55.68	0	1899387..1899923	-	178	38234426	-	DIP1856	-	hypothetical protein
1785	 52.92	0	1899940..1900281	-	113	38234427	clpS	DIP1857	-	ATP-dependent Clp protease adaptor protein ClpS
1786	 55.33	0	1900343..1901656	+	437	38234428	-	DIP1858	-	nicotinate phosphoribosyltransferase
1787	 53.95	0	1901706..1903655	+	649	38234429	-	DIP1859	-	DeaD/DeaH family helicase
1788	 49.05	-1	1903657..1904184	+	175	38234430	-	DIP1860	-	acetyltransferase (GNAT) family protein
1789	 54.50	0	1904274..1905374	+	366	38234431	-	DIP1861	-	hypothetical protein
1790	 53.53	0	1905358..1906065	-	235	38234432	-	DIP1862	-	hypothetical protein
1791	 53.61	0	1906058..1907290	-	410	38234433	-	DIP1863	-	putative hydrolase
1792	 55.40	0	1907448..1909142	-	564	38234434	ctaD	DIP1864	-	cytochrome C oxidase polypeptide I
1793	 50.35	0	1909504..1910490	-	328	38234435	nrdF	DIP1865	-	ribonucleotide-diphosphate reductase subunit beta
53.75	MEAN

4.64	STD DEV
