IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

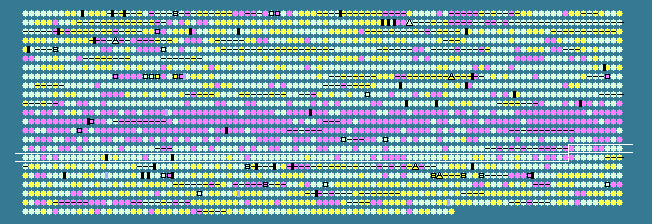

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1592	 49.67	0	1697001..1698353	-	450	38234234	-	DIP1661	-	hypothetical protein
1593	 52.19	0	1698485..1699168	+	227	38234235	-	DIP1662	-	GntR family transcriptional regulator
1594	 55.56	0	1699190..1700449	+	419	38234236	-	DIP1663	-	MFS family transporter
1595	 54.00	0	1700446..1700982	-	178	38234237	-	DIP1664	-	hypothetical protein
1596	 47.62	-1	1701013..1701159	-	48	38234238	-	DIP1665	-	hypothetical protein
1597	 49.21	0	1701262..1702710	-	482	38234239	thrC	DIP1666	-	threonine synthase
1598	 53.90	0	1702727..1703674	+	315	38234240	-	DIP1667	-	hypothetical protein
1599	 53.33	0	1703671..1703940	-	89	38234241	-	DIP1668	-	hypothetical protein
1600	 54.32	0	1704009..1704656	-	215	38234242	hmuO	DIP1669	-	heme oxygenase
1601	 53.84	0	1704796..1707960	-	1054	38234243	glnE	DIP1670	-	adenylyltransferase
1602	 53.69	0	1708011..1709351	-	446	38234244	glnA2	DIP1671	-	glutamine synthetase II
1603	 50.48	0	1709494..1711068	+	524	38234245	-	DIP1672	-	hypothetical protein
1604	 48.44	-1	1711078..1711269	-	63	38234246	-	DIP1673	-	hypothetical protein
1605	 54.17	0	1711326..1712669	+	447	38234247	-	DIP1674	-	hypothetical protein
1606	 48.73	-1	1714046..1714753	-	235	38234248	-	DIP1677	-	hypothetical protein
1607	 52.91	0	1715369..1716502	-	377	38234249	-	DIP1678	-	bifunctional RNase H/acid phosphatase
1608	 54.39	0	1716502..1717218	-	238	38234250	-	DIP1679	-	hypothetical protein
1609	 53.03	0	1717298..1718434	-	378	38234251	-	DIP1680	-	hypothetical protein
1610	 52.95	0	1718437..1719471	-	344	38234252	-	DIP1681	-	hypothetical protein
1611	 51.78	0	1719502..1720146	+	214	38234253	-	DIP1682	-	putative phosphoglycolate phosphatase
1612	 53.90	0	1720169..1720630	+	153	38234254	-	DIP1683	-	low molecular weight protein-tyrosine-phosphatase
1613	 52.52	0	1720659..1721492	+	277	38234255	-	DIP1684	-	hypothetical protein
1614	 57.59	0	1721486..1722388	-	300	38234256	-	DIP1685	-	putative cobalamin biosynthesis protein
1615	 55.25	0	1722618..1723055	-	145	38234257	-	DIP1686	-	hypothetical protein
1616	 57.24	0	1723276..1726011	+	911	38234258	aceE	DIP1687	-	pyruvate dehydrogenase subunit E1
1617	 50.53	0	1726207..1726770	+	187	38234259	-	DIP1688	-	hypothetical protein
1618	 51.94	0	1726799..1729045	-	748	38234260	-	DIP1689	-	hypothetical protein
1619	 50.34	0	1729135..1730457	+	440	38234261	-	DIP1690	-	hypothetical protein
1620	 51.86	0	1730402..1731367	-	321	38234262	-	DIP1691	-	putative alpha/beta hydrolase fold family protein
1621	 49.61	0	1731464..1731721	+	85	38234263	-	DIP1692	-	putative acyl carrier protein
1622	 51.85	0	1731758..1732567	+	269	38234264	-	DIP1693	-	putative N-acetylglucosamine related protein
1623	 56.10	0	1732564..1732932	-	122	38234265	-	DIP1694	-	hypothetical protein
1624	 54.01	0	1733031..1733852	-	273	38234266	-	DIP1695	-	hypothetical protein
1625	 54.35	0	1733849..1734676	-	275	38234267	-	DIP1696	-	hypothetical protein
1626	 54.32	0	1735145..1735387	+	80	38234268	-	DIP1697	-	hypothetical protein
1627	 56.09	0	1735479..1736036	+	185	38234269	-	DIP1698	-	putative thiamine biosynthesis related protein
1628	 53.29	0	1736085..1737983	-	632	38234270	dnaG	DIP1699	-	DNA primase
1629	 53.19	0	1737994..1739871	-	625	38234271	glmS	DIP1700	-	D-fructose-6-phosphate amidotransferase
1630	 53.16	0	1739962..1740420	+	152	38234272	-	DIP1701	-	putative ribonuclease
1631	 54.10	0	1740467..1740649	+	60	38234273	-	DIP1702	-	hypothetical protein
1632	 52.44	0	1740639..1741910	-	423	38234274	-	DIP1703	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1633	 55.01	0	1741917..1742594	-	225	38234275	-	DIP1704	-	hypothetical protein
1634	 56.20	0	1742648..1744654	+	668	38234276	-	DIP1705	-	hypothetical protein
1635	 58.90	+1	1744651..1745049	-	132	38234277	-	DIP1706	-	hypothetical protein
1636	 50.95	0	1745055..1745582	-	175	38234278	-	DIP1707	-	hypothetical protein
1637	 54.62	0	1745608..1746993	-	461	38234279	glyS	DIP1708	-	glycyl-tRNA synthetase
1638	 43.92	-2	1747304..1747681	+	125	38234280	-	DIP1709	-	ArsR family transcriptional regulator
1639	 51.52	0	1747858..1748286	+	142	38234281	-	DIP1710	-	putative ferric uptake regulatory protein
1640	 52.81	0	1748293..1749288	-	331	38234282	-	DIP1711	-	hypothetical protein
1641	 53.93	0	1749363..1750100	-	245	38234283	-	DIP1712	-	putative undecaprenyl phosphate synthetase
1642	 54.05	0	1750120..1750848	-	242	38234284	recO	DIP1713	-	DNA repair protein RecO
1643	 52.72	0	1750848..1751765	-	305	38234285	era	DIP1714	-	GTP-binding protein Era
1644	 54.70	0	1751817..1752677	-	286	38234286	-	DIP1715	-	pyridoxamine kinase
1645	 51.77	0	1752679..1754007	-	442	38234287	-	DIP1716	-	hypothetical protein
1646	 56.01	0	1754004..1754594	-	196	38234288	-	DIP1717	-	putative metalloprotease
1647	 50.36	0	1754595..1755563	-	322	38234289	-	DIP1718	-	putative PhoH-like protein
1648	 57.31	0	1755611..1756369	-	252	38234290	-	DIP1719	-	hypothetical protein
1649	 55.50	0	1756371..1757498	-	375	38234291	dnaJ2	DIP1720	-	chaperone protein 2
1650	 53.56	0	1757572..1758609	-	345	38234292	hrcA	DIP1721	-	heat-inducible transcription repressor
1651	 56.17	0	1758649..1759782	-	377	38234293	hemN	DIP1722	-	coproporphyrinogen III oxidase
1652	 54.76	0	1759772..1760443	-	223	38234294	-	DIP1723	-	hypothetical protein
1653	 47.92	-1	1760582..1763809	-	1075	38234295	-	DIP1724	-	putative surface-anchored membrane protein
1654	 53.99	0	1763886..1765715	-	609	38234296	-	DIP1725	-	putative long-chain-fatty-acid-CoA ligase
1655	 55.97	0	1765812..1767980	+	722	38234297	-	DIP1726	-	putative glucanotransferase
1656	 56.86	0	1768127..1768330	-	67	38234298	-	DIP1727	-	hypothetical protein
1657	 53.18	0	1768327..1770306	-	659	38234299	-	DIP1728	-	putative peptidase
1658	 55.75	0	1770335..1771534	+	399	38234300	-	DIP1729	-	putative drug resistance protein (hydrolase)
1659	 50.18	0	1771521..1772072	-	183	38234301	idi	DIP1730	-	isopentenyl-diphosphate delta-isomerase
1660	 50.48	0	1772091..1773665	-	524	38234302	-	DIP1731	-	hypothetical protein
1661	 45.08	-1	1773666..1774244	-	192	38234303	-	DIP1732	-	hypothetical protein
1662	 43.26	-2	1774501..1775658	-	385	38234304	-	DIP1733	-	hypothetical protein
1663	 47.20	-1	1775840..1776250	-	136	38234305	-	DIP1734	-	hypothetical protein
1664	 48.54	-1	1776468..1778315	+	615	38234306	-	DIP1735	-	ABC transporter ATP-binding protein
1665	 50.75	0	1778334..1779464	+	376	38234307	aecD	DIP1736	-	beta C-S lyase
1666	 55.48	0	1779545..1780849	+	434	38234308	brnQ	DIP1737	-	branched-chain amino acid ABC transport system membrane protein
1667	 56.71	0	1780859..1781812	+	317	38234309	-	DIP1738	-	hypothetical protein
1668	 53.42	0	1781790..1783616	-	608	38234310	ectP	DIP1739	-	ectoine, glycine betaine and proline transport system membrane protein
1669	 52.19	0	1783772..1785298	+	508	38234311	-	DIP1740	-	ABC transporter solute-binding protein
1670	 53.38	0	1785305..1786252	+	315	38234312	-	DIP1741	-	putative oligopeptide ABC transport system membrane protein
1671	 58.52	+1	1786256..1787077	+	273	38234313	-	DIP1742	-	putative oligopeptide ABC transport system membrane protein
1672	 55.23	0	1787074..1788516	+	480	38234314	-	DIP1743	-	ABC transporter ATP-binding protein
1673	 53.17	0	1788659..1789873	-	404	38234315	-	DIP1744	-	putative prolyl aminopeptidase
1674	 53.75	0	1789874..1790539	+	221	38234316	-	DIP1745	-	hypothetical protein
1675	 54.64	0	1790536..1791924	+	462	38234317	-	DIP1746	-	putative xylulose kinase
1676	 58.87	+1	1791955..1792185	+	76	38234318	-	DIP1747	-	hypothetical protein
1677	 58.36	0	1792489..1794102	+	537	38234319	-	DIP1748	-	putative oxidase
1678	 54.65	0	1794114..1794371	+	85	38234320	-	DIP1749	-	hypothetical protein
1679	 53.29	0	1794357..1795889	-	510	38234321	-	DIP1750	-	putative potassium transport related membrane protein
1680	 47.95	-1	1795929..1796147	+	72	38234322	-	DIP1751	-	hypothetical protein
1681	 56.55	0	1796249..1797652	+	467	38234323	-	DIP1752	-	antibiotic ABC transporter
1682	 56.98	0	1797649..1798587	+	312	38234324	iunH	DIP1753	-	inosine-uridine preferring nucleoside hydrolase
1683	 58.86	+1	1798593..1799399	+	268	38234325	-	DIP1754	-	hypothetical protein
1684	 55.91	0	1799436..1800095	+	219	38234326	-	DIP1755	-	hypothetical protein
1685	 50.81	0	1800239..1803019	+	926	38234327	-	DIP1756	-	putative DNA methyltransferase
1686	 49.49	0	1803016..1803906	+	296	38234328	-	DIP1757	-	putative Mrr restriction system protein
1687	 50.72	0	1803982..1804326	-	114	38234329	-	DIP1758	-	hypothetical protein
1688	 42.53	-2	1804436..1805272	-	278	38234330	-	DIP1759	-	hypothetical protein
1689	 43.01	-2	1805322..1805507	-	61	38234331	-	DIP1760	-	hypothetical protein
1690	 50.96	0	1805784..1806617	+	277	38234332	-	DIP1761	-	hypothetical protein
1691	 48.54	-1	1806618..1807301	+	227	38234333	-	DIP1762	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
