IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

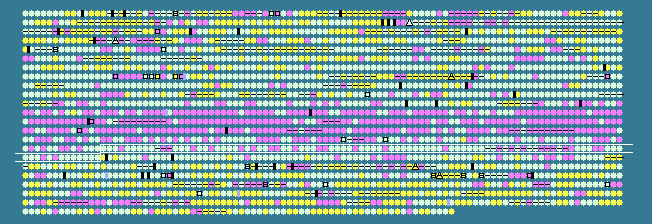

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1514	 50.89	0	1610019..1610918	+	299	38234156	-	DIP1581	-	hypothetical protein
1515	 55.86	0	1610892..1611437	-	181	38234157	-	DIP1582	-	hypothetical protein
1516	 54.26	0	1611445..1612371	-	308	38234158	rluC	DIP1583	-	putative pseudouridine synthase
1517	 48.76	-1	1612368..1612892	-	174	38234159	-	DIP1584	-	putative lipoprotein signal peptidase
1518	 52.90	0	1612953..1613918	+	321	38234160	-	DIP1585	-	hypothetical protein
1519	 54.59	0	1614007..1614627	-	206	38234161	-	DIP1586	-	hypothetical protein
1520	 54.18	0	1614825..1615745	+	306	38234162	-	DIP1587	-	putative L-asparaginase
1521	 53.24	0	1615746..1617101	-	451	38234163	dinB	DIP1588	-	DNA polymerase IV
1522	 51.22	0	1617227..1620385	-	1052	38234164	ileS	DIP1589	-	isoleucyl-tRNA synthetase
1523	 55.79	0	1620783..1621784	-	333	38234165	ag84	DIP1590	-	antigen 84
1524	 43.40	-2	1622125..1622412	-	95	38234166	-	DIP1591	-	hypothetical protein
1525	 48.26	-1	1622397..1622597	-	66	38234167	-	DIP1592	-	hypothetical protein
1526	 53.78	0	1622609..1623058	-	149	38234168	-	DIP1593	-	hypothetical protein
1527	 52.23	0	1623168..1623908	-	246	38234169	-	DIP1594	-	hypothetical protein
1528	 52.99	0	1623908..1625143	-	411	38234170	ftsZ	DIP1595	-	cell division protein FtsZ
1529	 47.95	-1	1625535..1626191	-	218	38234171	-	DIP1596	-	putative cell division protein precursor
1530	 51.53	0	1626188..1627621	-	477	38234172	murC	DIP1597	-	UDP-N-acetylmuramate--L-alanine ligase
1531	 50.37	0	1627639..1628718	-	359	38234173	murG	DIP1598	-	N-acetylglucosaminyl transferase
1532	 50.10	0	1628720..1630228	-	502	38234174	-	DIP1599	-	putative cell division protein
1533	 52.95	0	1630255..1631697	-	480	38234175	murD	DIP1600	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1534	 50.58	0	1631702..1632820	-	372	38234176	mraY	DIP1601	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1535	 52.31	0	1632828..1634318	-	496	38234177	murF	DIP1602	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diamino pimelate--D-alanyl-D-alanyl ligase
1536	 52.20	0	1634372..1635913	-	513	38234178	murE	DIP1603	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1537	 48.40	-1	1636021..1638045	-	674	38234179	ftsI	DIP1604	-	putative penicillin-binding (cell division related) protein
1538	 53.62	0	1638076..1638849	-	257	38234180	-	DIP1605	-	hypothetical protein
1539	 49.80	0	1638906..1639925	-	339	38234181	mraW	DIP1606	-	S-adenosyl-methyltransferase MraW
1540	 51.16	0	1640108..1640539	-	143	38234182	-	DIP1607	-	cell division protein MraZ
1541	 51.60	0	1641087..1641491	-	134	38234183	-	DIP1608	-	hypothetical protein
1542	 48.29	-1	1641600..1642154	-	184	38234184	-	DIP1609	-	hypothetical protein
1543	 49.74	0	1642218..1642796	+	192	38234185	-	DIP1610	-	hypothetical protein
1544	 52.74	0	1642793..1643776	-	327	38234186	-	DIP1611	-	putative methylenetetrahydrofolate reductase
1545	 52.27	0	1643980..1645104	+	374	38234187	-	DIP1612	-	putative geranylgeranyl pyrophosphate synthase
1546	 50.00	0	1645126..1646613	+	495	38234188	-	DIP1613	-	hypothetical protein
1547	 50.41	0	1646614..1646982	-	122	38234189	-	DIP1614	-	hypothetical protein
1548	 54.35	0	1647084..1649276	+	730	38234190	-	DIP1615	-	putative serine/threonine protein kinase
1549	 51.98	0	1649344..1650732	-	462	38234191	aroH	DIP1616	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1550	 49.41	0	1650846..1651355	-	169	38234192	-	DIP1617	-	hypothetical protein
1551	 49.04	-1	1651422..1652147	-	241	38234193	-	DIP1618	-	putative acyltransferase
1552	 54.19	0	1652199..1653152	-	317	38234194	glk	DIP1619	-	glucose kinase
1553	 50.97	0	1653283..1654416	-	377	38234195	-	DIP1620	-	hypothetical protein
1554	 51.97	0	1654437..1655450	-	337	38234196	-	DIP1621	-	hypothetical protein
1555	 52.29	0	1655620..1656384	-	254	38234197	-	DIP1622	-	hypothetical protein
1556	 42.39	-2	1656493..1656735	-	80	38234198	-	DIP1623	-	hypothetical protein
1557	 50.83	0	1657014..1658636	-	540	38234199	qcrB	DIP1624	-	ubiquinol-cytochrome C reductase cytochrome B subunit
1558	 51.92	0	1658633..1659853	-	406	38234200	qcrA	DIP1625	-	ubiquinol-cytochrome C reductase iron-sulfur protein
1559	 53.55	0	1659850..1660695	-	281	38234201	qcrC	DIP1626	-	ubiquinol-cytochrome C reductase cytochrome C subunit
1560	 50.65	0	1660829..1661446	-	205	38234202	ctaE	DIP1627	-	cytochrome C oxidase subunit III
1561	 49.07	-1	1661984..1662415	-	143	38234203	-	DIP1628	-	hypothetical protein
1562	 51.61	0	1662439..1663527	-	362	38234204	-	DIP1629	-	putative cytochrome C oxidase precursor
1563	 50.44	0	1663954..1665876	+	640	38234205	asnB	DIP1630	-	putative asparagine synthetase
1564	 51.59	0	1665967..1666311	-	114	38234206	-	DIP1631	-	hypothetical protein
1565	 51.11	0	1666530..1667204	+	224	38234207	-	DIP1632	-	hypothetical protein
1566	 52.09	0	1667205..1667753	+	182	38234208	cobU	DIP1633	-	putative cobinamide kinase
1567	 51.17	0	1667803..1668873	+	356	38234209	cobT	DIP1634	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1568	 51.15	0	1668881..1669705	+	274	38234210	cobS	DIP1635	-	cobalamin synthase
1569	 53.23	0	1669782..1670897	-	371	38234211	ilvE	DIP1636	-	branched-chain amino acid aminotransferase
1570	 54.89	0	1670998..1672500	+	500	38234212	-	DIP1637	-	leucyl aminopeptidase
1571	 48.68	-1	1672564..1672980	-	138	38234213	-	DIP1638	-	putative oxidoreductase
1572	 55.90	0	1673085..1675034	+	649	38234214	aceF	DIP1639	-	dihydrolipoamide acetyltransferase
1573	 54.85	0	1675151..1675903	+	250	38234215	lipB	DIP1640	-	lipoyltransferase
1574	 53.44	0	1675956..1677044	+	362	38234216	lipA	DIP1641	-	lipoyl synthase
1575	 55.43	0	1677107..1677880	+	257	38234217	-	DIP1642	-	hypothetical protein
1576	 56.02	0	1677927..1678433	-	168	38234218	-	DIP1643	-	hypothetical protein
1577	 55.53	0	1678597..1680033	+	478	38234219	glnA1	DIP1644	-	glutamine synthetase I
1578	 54.02	0	1680222..1680482	+	86	38234220	-	DIP1645	-	hypothetical protein
1579	 50.42	0	1680647..1681126	+	159	38234221	-	DIP1646	-	hypothetical protein
1580	 46.56	-1	1681123..1681500	+	125	38234222	-	DIP1647	-	hypothetical protein
1581	 51.23	0	1683094..1683417	-	107	38234223	-	DIP1650	-	hypothetical protein
1582	 46.69	-1	1683728..1684663	-	311	38234224	-	DIP1651	-	hypothetical protein
1583	 51.45	0	1684673..1688437	-	1254	38234225	-	DIP1652	-	hypothetical protein
1584	 49.78	0	1688451..1689344	-	297	38234226	-	DIP1653	-	hypothetical protein
1585	 51.57	0	1689384..1690178	-	264	38234227	-	DIP1654	-	hypothetical protein
1586	 52.04	0	1690224..1690688	-	154	38234228	-	DIP1655	-	hypothetical protein
1587	 48.37	-1	1691457..1693697	+	746	38234229	-	DIP1656	-	hypothetical protein
1588	 45.13	-1	1693807..1694001	+	64	38234230	-	DIP1657	-	hypothetical protein
1589	 49.77	0	1694157..1695038	-	293	38234231	-	DIP1658	-	putative membrane-anchored protein
1590	 52.58	0	1695397..1696269	-	290	38234232	-	DIP1659	-	hypothetical protein
1591	 48.57	-1	1696679..1696888	-	69	38234233	-	DIP1660	-	hypothetical protein
1592	 49.67	0	1697001..1698353	-	450	38234234	-	DIP1661	-	hypothetical protein
1593	 52.19	0	1698485..1699168	+	227	38234235	-	DIP1662	-	GntR family transcriptional regulator
1594	 55.56	0	1699190..1700449	+	419	38234236	-	DIP1663	-	MFS family transporter
1595	 54.00	0	1700446..1700982	-	178	38234237	-	DIP1664	-	hypothetical protein
1596	 47.62	-1	1701013..1701159	-	48	38234238	-	DIP1665	-	hypothetical protein
1597	 49.21	0	1701262..1702710	-	482	38234239	thrC	DIP1666	-	threonine synthase
1598	 53.90	0	1702727..1703674	+	315	38234240	-	DIP1667	-	hypothetical protein
1599	 53.33	0	1703671..1703940	-	89	38234241	-	DIP1668	-	hypothetical protein
1600	 54.32	0	1704009..1704656	-	215	38234242	hmuO	DIP1669	-	heme oxygenase
1601	 53.84	0	1704796..1707960	-	1054	38234243	glnE	DIP1670	-	adenylyltransferase
1602	 53.69	0	1708011..1709351	-	446	38234244	glnA2	DIP1671	-	glutamine synthetase II
1603	 50.48	0	1709494..1711068	+	524	38234245	-	DIP1672	-	hypothetical protein
1604	 48.44	-1	1711078..1711269	-	63	38234246	-	DIP1673	-	hypothetical protein
1605	 54.17	0	1711326..1712669	+	447	38234247	-	DIP1674	-	hypothetical protein
1606	 48.73	-1	1714046..1714753	-	235	38234248	-	DIP1677	-	hypothetical protein
1607	 52.91	0	1715369..1716502	-	377	38234249	-	DIP1678	-	bifunctional RNase H/acid phosphatase
1608	 54.39	0	1716502..1717218	-	238	38234250	-	DIP1679	-	hypothetical protein
1609	 53.03	0	1717298..1718434	-	378	38234251	-	DIP1680	-	hypothetical protein
1610	 52.95	0	1718437..1719471	-	344	38234252	-	DIP1681	-	hypothetical protein
1611	 51.78	0	1719502..1720146	+	214	38234253	-	DIP1682	-	putative phosphoglycolate phosphatase
1612	 53.90	0	1720169..1720630	+	153	38234254	-	DIP1683	-	low molecular weight protein-tyrosine-phosphatase
1613	 52.52	0	1720659..1721492	+	277	38234255	-	DIP1684	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
