IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

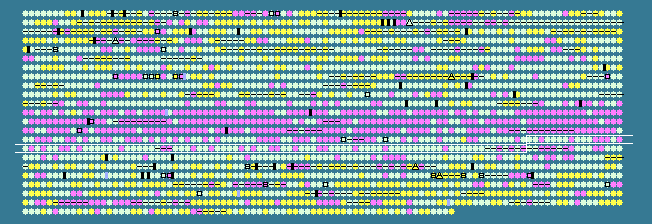

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1485	 53.99	0	1579137..1581566	+	809	38234127	-	DIP1552	-	putative glycogen phosphorylase
1486	 51.83	0	1581632..1583053	-	473	38234128	pyk	DIP1553	-	pyruvate kinase
1487	 49.06	-1	1583263..1584114	-	283	38234129	-	DIP1554	-	prolipoprotein diacylglyceryl transferase
1488	 56.33	0	1584186..1584998	-	270	38234130	trpC2	DIP1555	-	indole-3-glycerol phosphate synthase
1489	 54.34	0	1585111..1585686	-	191	38234131	-	DIP1556	-	hypothetical protein
1490	 50.43	0	1585787..1586137	-	116	38234132	hisI	DIP1557	-	phosphoribosyl-AMP cyclohydrolase
1491	 52.12	0	1586159..1586935	-	258	38234133	hisF	DIP1558	-	imidazole glycerol phosphate synthase subunit HisF
1492	 50.13	0	1587026..1587811	-	261	38234134	impA	DIP1559	-	inositol monophosphate phosphatase
1493	 52.26	0	1587808..1588536	-	242	38234135	hisA	DIP1560	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1494	 52.45	0	1588634..1589266	-	210	38234136	hisH	DIP1561	-	imidazole glycerol phosphate synthase subunit HisH
1495	 51.59	0	1589333..1590745	-	470	38234137	-	DIP1562	-	putative transport membrane protein
1496	 48.61	-1	1590914..1591129	-	71	38234138	-	DIP1563	-	hypothetical protein
1497	 48.28	-1	1591132..1591740	-	202	38234139	hisB	DIP1564	-	imidazoleglycerol-phosphate dehydratase
1498	 48.68	-1	1591822..1592922	-	366	38234140	hisC	DIP1565	-	histidinol-phosphate aminotransferase
1499	 51.93	0	1592961..1594310	-	449	38234141	hisD	DIP1566	-	histidinol dehydrogenase
1500	 48.11	-1	1594635..1595690	+	351	38234142	-	DIP1567	-	hypothetical protein
1501	 52.19	0	1595728..1595955	+	75	38234143	-	DIP1568	-	hypothetical protein
1502	 49.22	0	1595969..1596226	+	85	38234144	-	DIP1569	-	hypothetical protein
1503	 55.66	0	1596430..1597092	-	220	38234145	-	DIP1570	-	hypothetical protein
1504	 48.17	-1	1597317..1597862	+	181	38234146	-	DIP1571	-	TetR family transcriptional regulator
1505	 52.63	0	1597883..1600090	+	735	38234147	glgX	DIP1572	-	glycogen operon protein
1506	 51.97	0	1600226..1601572	+	448	38234148	-	DIP1573	-	putative DNA polymerase III epsilon subunit
1507	 49.68	0	1601707..1602324	+	205	38234149	-	DIP1574	-	hypothetical protein
1508	 50.20	0	1602408..1603427	+	339	38234150	-	DIP1575	-	hypothetical protein
1509	 56.08	0	1603691..1604068	-	125	38234151	-	DIP1576	-	putative RNA-binding heat shock protein
1510	 47.62	-1	1604074..1604304	-	76	38234152	-	DIP1577	-	hypothetical protein
1511	 51.71	0	1604330..1604971	-	213	38234153	-	DIP1578	-	hypothetical protein
1512	 52.05	0	1604995..1606335	-	446	38234154	ilvA	DIP1579	-	threonine dehydratase
1513	 50.60	0	1606336..1609896	-	1186	38234155	dnaE	DIP1580	-	DNA polymerase III subunit alpha
1514	 50.89	0	1610019..1610918	+	299	38234156	-	DIP1581	-	hypothetical protein
1515	 55.86	0	1610892..1611437	-	181	38234157	-	DIP1582	-	hypothetical protein
1516	 54.26	0	1611445..1612371	-	308	38234158	rluC	DIP1583	-	putative pseudouridine synthase
1517	 48.76	-1	1612368..1612892	-	174	38234159	-	DIP1584	-	putative lipoprotein signal peptidase
1518	 52.90	0	1612953..1613918	+	321	38234160	-	DIP1585	-	hypothetical protein
1519	 54.59	0	1614007..1614627	-	206	38234161	-	DIP1586	-	hypothetical protein
1520	 54.18	0	1614825..1615745	+	306	38234162	-	DIP1587	-	putative L-asparaginase
1521	 53.24	0	1615746..1617101	-	451	38234163	dinB	DIP1588	-	DNA polymerase IV
1522	 51.22	0	1617227..1620385	-	1052	38234164	ileS	DIP1589	-	isoleucyl-tRNA synthetase
1523	 55.79	0	1620783..1621784	-	333	38234165	ag84	DIP1590	-	antigen 84
1524	 43.40	-2	1622125..1622412	-	95	38234166	-	DIP1591	-	hypothetical protein
1525	 48.26	-1	1622397..1622597	-	66	38234167	-	DIP1592	-	hypothetical protein
1526	 53.78	0	1622609..1623058	-	149	38234168	-	DIP1593	-	hypothetical protein
1527	 52.23	0	1623168..1623908	-	246	38234169	-	DIP1594	-	hypothetical protein
1528	 52.99	0	1623908..1625143	-	411	38234170	ftsZ	DIP1595	-	cell division protein FtsZ
1529	 47.95	-1	1625535..1626191	-	218	38234171	-	DIP1596	-	putative cell division protein precursor
1530	 51.53	0	1626188..1627621	-	477	38234172	murC	DIP1597	-	UDP-N-acetylmuramate--L-alanine ligase
1531	 50.37	0	1627639..1628718	-	359	38234173	murG	DIP1598	-	N-acetylglucosaminyl transferase
1532	 50.10	0	1628720..1630228	-	502	38234174	-	DIP1599	-	putative cell division protein
1533	 52.95	0	1630255..1631697	-	480	38234175	murD	DIP1600	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1534	 50.58	0	1631702..1632820	-	372	38234176	mraY	DIP1601	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1535	 52.31	0	1632828..1634318	-	496	38234177	murF	DIP1602	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diamino pimelate--D-alanyl-D-alanyl ligase
1536	 52.20	0	1634372..1635913	-	513	38234178	murE	DIP1603	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1537	 48.40	-1	1636021..1638045	-	674	38234179	ftsI	DIP1604	-	putative penicillin-binding (cell division related) protein
1538	 53.62	0	1638076..1638849	-	257	38234180	-	DIP1605	-	hypothetical protein
1539	 49.80	0	1638906..1639925	-	339	38234181	mraW	DIP1606	-	S-adenosyl-methyltransferase MraW
1540	 51.16	0	1640108..1640539	-	143	38234182	-	DIP1607	-	cell division protein MraZ
1541	 51.60	0	1641087..1641491	-	134	38234183	-	DIP1608	-	hypothetical protein
1542	 48.29	-1	1641600..1642154	-	184	38234184	-	DIP1609	-	hypothetical protein
1543	 49.74	0	1642218..1642796	+	192	38234185	-	DIP1610	-	hypothetical protein
1544	 52.74	0	1642793..1643776	-	327	38234186	-	DIP1611	-	putative methylenetetrahydrofolate reductase
1545	 52.27	0	1643980..1645104	+	374	38234187	-	DIP1612	-	putative geranylgeranyl pyrophosphate synthase
1546	 50.00	0	1645126..1646613	+	495	38234188	-	DIP1613	-	hypothetical protein
1547	 50.41	0	1646614..1646982	-	122	38234189	-	DIP1614	-	hypothetical protein
1548	 54.35	0	1647084..1649276	+	730	38234190	-	DIP1615	-	putative serine/threonine protein kinase
1549	 51.98	0	1649344..1650732	-	462	38234191	aroH	DIP1616	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1550	 49.41	0	1650846..1651355	-	169	38234192	-	DIP1617	-	hypothetical protein
1551	 49.04	-1	1651422..1652147	-	241	38234193	-	DIP1618	-	putative acyltransferase
1552	 54.19	0	1652199..1653152	-	317	38234194	glk	DIP1619	-	glucose kinase
1553	 50.97	0	1653283..1654416	-	377	38234195	-	DIP1620	-	hypothetical protein
1554	 51.97	0	1654437..1655450	-	337	38234196	-	DIP1621	-	hypothetical protein
1555	 52.29	0	1655620..1656384	-	254	38234197	-	DIP1622	-	hypothetical protein
1556	 42.39	-2	1656493..1656735	-	80	38234198	-	DIP1623	-	hypothetical protein
1557	 50.83	0	1657014..1658636	-	540	38234199	qcrB	DIP1624	-	ubiquinol-cytochrome C reductase cytochrome B subunit
1558	 51.92	0	1658633..1659853	-	406	38234200	qcrA	DIP1625	-	ubiquinol-cytochrome C reductase iron-sulfur protein
1559	 53.55	0	1659850..1660695	-	281	38234201	qcrC	DIP1626	-	ubiquinol-cytochrome C reductase cytochrome C subunit
1560	 50.65	0	1660829..1661446	-	205	38234202	ctaE	DIP1627	-	cytochrome C oxidase subunit III
1561	 49.07	-1	1661984..1662415	-	143	38234203	-	DIP1628	-	hypothetical protein
1562	 51.61	0	1662439..1663527	-	362	38234204	-	DIP1629	-	putative cytochrome C oxidase precursor
1563	 50.44	0	1663954..1665876	+	640	38234205	asnB	DIP1630	-	putative asparagine synthetase
1564	 51.59	0	1665967..1666311	-	114	38234206	-	DIP1631	-	hypothetical protein
1565	 51.11	0	1666530..1667204	+	224	38234207	-	DIP1632	-	hypothetical protein
1566	 52.09	0	1667205..1667753	+	182	38234208	cobU	DIP1633	-	putative cobinamide kinase
1567	 51.17	0	1667803..1668873	+	356	38234209	cobT	DIP1634	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1568	 51.15	0	1668881..1669705	+	274	38234210	cobS	DIP1635	-	cobalamin synthase
1569	 53.23	0	1669782..1670897	-	371	38234211	ilvE	DIP1636	-	branched-chain amino acid aminotransferase
1570	 54.89	0	1670998..1672500	+	500	38234212	-	DIP1637	-	leucyl aminopeptidase
1571	 48.68	-1	1672564..1672980	-	138	38234213	-	DIP1638	-	putative oxidoreductase
1572	 55.90	0	1673085..1675034	+	649	38234214	aceF	DIP1639	-	dihydrolipoamide acetyltransferase
1573	 54.85	0	1675151..1675903	+	250	38234215	lipB	DIP1640	-	lipoyltransferase
1574	 53.44	0	1675956..1677044	+	362	38234216	lipA	DIP1641	-	lipoyl synthase
1575	 55.43	0	1677107..1677880	+	257	38234217	-	DIP1642	-	hypothetical protein
1576	 56.02	0	1677927..1678433	-	168	38234218	-	DIP1643	-	hypothetical protein
1577	 55.53	0	1678597..1680033	+	478	38234219	glnA1	DIP1644	-	glutamine synthetase I
1578	 54.02	0	1680222..1680482	+	86	38234220	-	DIP1645	-	hypothetical protein
1579	 50.42	0	1680647..1681126	+	159	38234221	-	DIP1646	-	hypothetical protein
1580	 46.56	-1	1681123..1681500	+	125	38234222	-	DIP1647	-	hypothetical protein
1581	 51.23	0	1683094..1683417	-	107	38234223	-	DIP1650	-	hypothetical protein
1582	 46.69	-1	1683728..1684663	-	311	38234224	-	DIP1651	-	hypothetical protein
1583	 51.45	0	1684673..1688437	-	1254	38234225	-	DIP1652	-	hypothetical protein
1584	 49.78	0	1688451..1689344	-	297	38234226	-	DIP1653	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
