IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

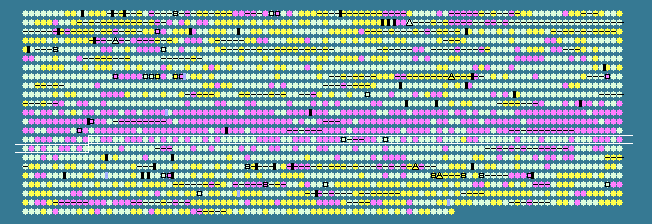

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1412	 51.55	0	1492786..1493592	-	268	38234054	-	DIP1473	-	hypothetical protein
1413	 52.35	0	1493639..1494958	-	439	38234055	-	DIP1474	-	putative DNA-damage inducible protein
1414	 48.88	-1	1494955..1495848	-	297	38234056	-	DIP1475	-	hypothetical protein
1415	 49.55	0	1495936..1496379	-	147	38234057	rbfA	DIP1476	-	ribosome-binding factor A
1416	 56.46	0	1496519..1499380	-	953	38234058	infB	DIP1477	-	translation initiation factor IF-2
1417	 55.26	0	1499491..1499823	-	110	38234059	-	DIP1478	-	hypothetical protein
1418	 47.85	-1	1500079..1501077	-	332	38234060	nusA	DIP1479	-	transcription elongation factor NusA
1419	 46.49	-1	1501074..1501628	-	184	38234061	-	DIP1480	-	hypothetical protein
1420	 50.17	0	1501680..1502588	+	302	38234062	-	DIP1481	-	hypothetical protein
1421	 51.99	0	1502667..1504424	-	585	38234063	proS	DIP1482	-	prolyl-tRNA synthetase
1422	 47.93	-1	1504456..1505202	+	248	38234064	-	DIP1483	-	hypothetical protein
1423	 50.49	0	1505222..1506031	-	269	38234065	-	DIP1484	-	putative uroporphyrinogen III methyltransferase
1424	 49.81	0	1506045..1507391	+	448	38234066	-	DIP1485	-	hypothetical protein
1425	 51.38	0	1507395..1508519	-	374	38234067	-	DIP1486	-	putative cobalamin synthesis related protein
1426	 49.61	0	1508539..1509048	-	169	38234068	-	DIP1487	-	putative DNA repair related protein
1427	 52.39	0	1509038..1510417	-	459	161598673	-	DIP1488	-	cobyrinic acid a,c-diamide synthase
1428	 49.44	0	1510411..1511031	-	206	38234070	-	DIP1489	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1429	 51.73	0	1513204..1514703	-	499	38234071	mqo	DIP1492	-	malate:quinone oxidoreductase
1430	 50.49	0	1515080..1516093	+	337	38234072	-	DIP1493	-	hypothetical protein
1431	 49.28	0	1516191..1517582	+	463	38234073	-	DIP1494	-	mycothione/glutathione reductase
1432	 50.97	0	1517640..1519079	-	479	38234074	cobQ	DIP1495	-	cobyric acid synthase
1433	 47.91	-1	1519142..1520026	-	294	38234075	mapB	DIP1496	-	methionine aminopeptidase
1434	 51.10	0	1520073..1521929	-	618	38234076	-	DIP1497	-	putative secreted penicillin-binding protein
1435	 50.60	0	1522046..1523221	-	391	38234077	ispG	DIP1498	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1436	 51.44	0	1523327..1524541	-	404	38234078	-	DIP1499	-	hypothetical protein
1437	 52.32	0	1524586..1525749	-	387	38234079	dxr	DIP1500	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1438	 52.99	0	1525987..1526505	+	172	38234080	-	DIP1501	-	hypothetical protein
1439	 50.95	0	1526585..1527691	-	368	38234081	-	DIP1502	-	hypothetical protein
1440	 45.57	-1	1527861..1528244	+	127	38234082	-	DIP1503	-	hypothetical protein
1441	 48.81	-1	1528307..1529185	-	292	38234083	-	DIP1504	-	putative phospholipid biosynthesis
1442	 47.49	-1	1529309..1529866	-	185	38234084	frr	DIP1505	-	ribosome recycling factor
1443	 49.51	0	1529938..1530747	-	269	38234085	pyrH	DIP1506	-	uridylate kinase
1444	 55.19	0	1530890..1531717	-	275	38234086	tsf	DIP1507	-	elongation factor Ts
1445	 54.06	0	1531998..1532798	-	266	38234087	rpsB	DIP1508	-	30S ribosomal protein S2
1446	 49.44	0	1533166..1533699	+	177	38234088	-	DIP1509	-	hypothetical protein
1447	 48.40	-1	1533714..1534622	-	302	38234089	xerC	DIP1510	-	site-specific tyrosine recombinase XerC
1448	 49.91	0	1534889..1536040	-	383	38234090	-	DIP1511	-	hypothetical protein
1449	 51.00	0	1536037..1537587	-	516	38234091	-	DIP1512	-	hypothetical protein
1450	 47.16	-1	1537574..1538101	-	175	38234092	-	DIP1513	-	hypothetical protein
1451	 48.04	-1	1538173..1538478	-	101	38234093	-	DIP1514	-	hypothetical protein
1452	 49.86	0	1538491..1539180	-	229	38234094	rnhB	DIP1515	-	ribonuclease HII
1453	 48.37	-1	1539177..1540034	-	285	38234095	-	DIP1516	-	putative signal peptidase
1454	 52.15	0	1540598..1541410	-	270	38234096	-	DIP1517	-	putative transposase
1455	 54.04	0	1541458..1541940	-	160	38234097	-	DIP1518	-	putative insertion element DNA-binding protein
1456	 48.80	-1	1542092..1543009	-	305	38234098	-	DIP1519	-	hypothetical protein
1457	 45.84	-1	1543197..1545506	-	769	38234099	-	DIP1520	-	hypothetical protein
1458	 43.86	-2	1545659..1545772	-	37	38234100	-	DIP1521	-	hypothetical protein
1459	 49.37	0	1545949..1546185	-	78	38234101	-	DIP1522	-	hypothetical protein
1460	 54.04	0	1547110..1547592	+	160	38234102	-	DIP1525	-	putative insertion element DNA-binding protein
1461	 52.15	0	1547640..1548452	+	270	38234103	-	DIP1526	-	putative transposase
1462	 53.22	0	1548534..1548875	-	113	38234104	rplS	DIP1527	-	50S ribosomal protein L19
1463	 51.12	0	1549049..1551325	-	758	38234105	-	DIP1528	-	putative transcriptional accessory protein
1464	 48.51	-1	1551351..1551719	-	122	38234106	-	DIP1529	-	hypothetical protein
1465	 50.74	0	1551703..1552581	-	292	38234107	trmD	DIP1530	-	tRNA (guanine-N(1)-)-methyltransferase
1466	 47.50	-1	1552581..1553081	-	166	38234108	rimM	DIP1531	-	16S rRNA-processing protein
1467	 54.43	0	1553211..1553684	-	157	38234109	rpsP	DIP1532	-	30S ribosomal protein S16
1468	 50.77	0	1553918..1555534	-	538	38234110	ffh	DIP1533	-	signal recognition particle protein
1469	 51.16	0	1555644..1557803	-	719	38234111	glnD	DIP1534	-	PII uridylyl-transferase
1470	 48.97	-1	1557809..1558147	-	112	38234112	glnB	DIP1535	-	nitrogen regulatory protein
1471	 52.49	0	1559123..1560610	-	495	38234113	-	DIP1538	-	putative cell division protein
1472	 52.15	0	1560748..1564308	-	1186	38234114	-	DIP1539	-	hypothetical protein
1473	 51.38	0	1564413..1567898	-	1161	38234115	-	DIP1540	-	putative chromosome partition protein
1474	 57.64	0	1567923..1568210	-	95	38234116	-	DIP1541	-	putative acylphosphatase
1475	 48.79	-1	1568210..1569697	-	495	38234117	-	DIP1542	-	putative amino acid carrier protein
1476	 48.60	-1	1569776..1570666	-	296	38234118	-	DIP1543	-	formamidopyrimidine-DNA glycosylase
1477	 50.53	0	1570684..1571433	-	249	38234119	rnc	DIP1544	-	ribonuclease III
1478	 51.79	0	1571430..1571960	-	176	38234120	-	DIP1545	-	hypothetical protein
1479	 52.80	0	1572001..1572714	-	237	38234121	-	DIP1546	-	hypothetical protein
1480	 52.34	0	1572978..1574324	-	448	38234122	gdh	DIP1547	-	glutamate dehydrogenase
1481	 52.10	0	1574742..1575908	+	388	38234123	-	DIP1548	-	putative glycerate kinase
1482	 52.21	0	1575878..1576306	-	142	38234124	-	DIP1549	-	hypothetical protein
1483	 49.96	0	1576350..1577666	+	438	38234125	-	DIP1550	-	hypothetical protein
1484	 52.11	0	1577710..1579014	+	434	38234126	-	DIP1551	-	putative peptidase
1485	 53.99	0	1579137..1581566	+	809	38234127	-	DIP1552	-	putative glycogen phosphorylase
1486	 51.83	0	1581632..1583053	-	473	38234128	pyk	DIP1553	-	pyruvate kinase
1487	 49.06	-1	1583263..1584114	-	283	38234129	-	DIP1554	-	prolipoprotein diacylglyceryl transferase
1488	 56.33	0	1584186..1584998	-	270	38234130	trpC2	DIP1555	-	indole-3-glycerol phosphate synthase
1489	 54.34	0	1585111..1585686	-	191	38234131	-	DIP1556	-	hypothetical protein
1490	 50.43	0	1585787..1586137	-	116	38234132	hisI	DIP1557	-	phosphoribosyl-AMP cyclohydrolase
1491	 52.12	0	1586159..1586935	-	258	38234133	hisF	DIP1558	-	imidazole glycerol phosphate synthase subunit HisF
1492	 50.13	0	1587026..1587811	-	261	38234134	impA	DIP1559	-	inositol monophosphate phosphatase
1493	 52.26	0	1587808..1588536	-	242	38234135	hisA	DIP1560	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1494	 52.45	0	1588634..1589266	-	210	38234136	hisH	DIP1561	-	imidazole glycerol phosphate synthase subunit HisH
1495	 51.59	0	1589333..1590745	-	470	38234137	-	DIP1562	-	putative transport membrane protein
1496	 48.61	-1	1590914..1591129	-	71	38234138	-	DIP1563	-	hypothetical protein
1497	 48.28	-1	1591132..1591740	-	202	38234139	hisB	DIP1564	-	imidazoleglycerol-phosphate dehydratase
1498	 48.68	-1	1591822..1592922	-	366	38234140	hisC	DIP1565	-	histidinol-phosphate aminotransferase
1499	 51.93	0	1592961..1594310	-	449	38234141	hisD	DIP1566	-	histidinol dehydrogenase
1500	 48.11	-1	1594635..1595690	+	351	38234142	-	DIP1567	-	hypothetical protein
1501	 52.19	0	1595728..1595955	+	75	38234143	-	DIP1568	-	hypothetical protein
1502	 49.22	0	1595969..1596226	+	85	38234144	-	DIP1569	-	hypothetical protein
1503	 55.66	0	1596430..1597092	-	220	38234145	-	DIP1570	-	hypothetical protein
1504	 48.17	-1	1597317..1597862	+	181	38234146	-	DIP1571	-	TetR family transcriptional regulator
1505	 52.63	0	1597883..1600090	+	735	38234147	glgX	DIP1572	-	glycogen operon protein
1506	 51.97	0	1600226..1601572	+	448	38234148	-	DIP1573	-	putative DNA polymerase III epsilon subunit
1507	 49.68	0	1601707..1602324	+	205	38234149	-	DIP1574	-	hypothetical protein
1508	 50.20	0	1602408..1603427	+	339	38234150	-	DIP1575	-	hypothetical protein
1509	 56.08	0	1603691..1604068	-	125	38234151	-	DIP1576	-	putative RNA-binding heat shock protein
1510	 47.62	-1	1604074..1604304	-	76	38234152	-	DIP1577	-	hypothetical protein
1511	 51.71	0	1604330..1604971	-	213	38234153	-	DIP1578	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
