IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

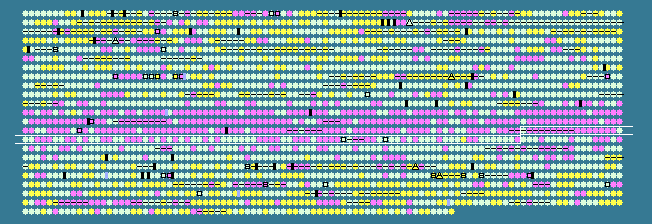

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1384	 51.39	0	1464212..1465540	+	442	38234026	-	DIP1445	-	hypothetical protein
1385	 45.52	-1	1465728..1466753	+	341	38234027	-	DIP1446	-	hypothetical protein
1386	 46.95	-1	1466762..1467400	-	212	38234028	-	DIP1447	-	hypothetical protein
1387	 48.94	-1	1467450..1469000	-	516	38234029	-	DIP1448	-	hypothetical protein
1388	 46.91	-1	1469157..1469738	-	193	38234030	recX	DIP1449	-	recombination regulator RecX
1389	 46.74	-1	1469776..1470894	-	372	38234031	recA	DIP1450	-	recombinase A
1390	 46.88	-1	1471150..1471341	-	63	38234032	-	DIP1451	-	hypothetical protein
1391	 49.40	0	1471428..1472012	+	194	38234033	-	DIP1452	-	hypothetical protein
1392	 43.87	-2	1472076..1472768	+	230	38234034	-	DIP1453	-	ABC transporter ATP-binding protein
1393	 50.24	0	1472765..1473379	+	204	38234035	-	DIP1454	-	hypothetical protein
1394	 49.52	0	1473435..1474274	-	279	38234036	-	DIP1455	-	hypothetical protein
1395	 50.00	0	1474405..1474734	-	109	38234037	-	DIP1456	-	putative DNA-binding protein
1396	 48.80	-1	1474823..1475320	-	165	38234038	-	DIP1457	-	putative competence-damage related protein
1397	 45.69	-1	1475349..1475939	-	196	38234039	-	DIP1458	-	putative phosphatidyltransferase
1398	 47.96	-1	1476035..1476328	+	97	38234040	-	DIP1459	-	hypothetical protein
1399	 44.94	-1	1476411..1477418	-	335	38234041	-	DIP1460	-	hypothetical protein
1400	 51.21	0	1477699..1480752	-	1017	38234042	-	DIP1461	-	putative cell division protein
1401	 50.45	0	1480828..1481493	-	221	38234043	-	DIP1462	-	hypothetical protein
1402	 51.73	0	1481579..1483633	-	684	38234044	-	DIP1463	-	hypothetical protein
1403	 50.11	0	1483636..1484541	-	301	38234045	dapA	DIP1464	-	dihydrodipicolinate synthase
1404	 47.96	-1	1484623..1485381	-	252	38234046	thyX	DIP1465	-	FAD-dependent thymidylate synthase
1405	 49.80	0	1485381..1486127	-	248	38234047	dapB	DIP1466	-	dihydrodipicolinate reductase
1406	 50.75	0	1486307..1488574	-	755	38234048	gpsI	DIP1467	-	polynucleotide phosphorylase/polyadenylase
1407	 54.81	0	1488766..1489035	-	89	38234049	rpsO	DIP1468	-	30S ribosomal protein S15
1408	 50.00	0	1489207..1490166	-	319	38234050	-	DIP1469	-	putative nucleoside hydrolase
1409	 49.59	0	1490204..1491175	-	323	38234051	ribF	DIP1470	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1410	 50.61	0	1491198..1492100	+	300	38234052	truB	DIP1471	-	tRNA pseudouridine synthase B
1411	 47.76	-1	1492097..1492789	-	230	38234053	-	DIP1472	-	putative transferase
1412	 51.55	0	1492786..1493592	-	268	38234054	-	DIP1473	-	hypothetical protein
1413	 52.35	0	1493639..1494958	-	439	38234055	-	DIP1474	-	putative DNA-damage inducible protein
1414	 48.88	-1	1494955..1495848	-	297	38234056	-	DIP1475	-	hypothetical protein
1415	 49.55	0	1495936..1496379	-	147	38234057	rbfA	DIP1476	-	ribosome-binding factor A
1416	 56.46	0	1496519..1499380	-	953	38234058	infB	DIP1477	-	translation initiation factor IF-2
1417	 55.26	0	1499491..1499823	-	110	38234059	-	DIP1478	-	hypothetical protein
1418	 47.85	-1	1500079..1501077	-	332	38234060	nusA	DIP1479	-	transcription elongation factor NusA
1419	 46.49	-1	1501074..1501628	-	184	38234061	-	DIP1480	-	hypothetical protein
1420	 50.17	0	1501680..1502588	+	302	38234062	-	DIP1481	-	hypothetical protein
1421	 51.99	0	1502667..1504424	-	585	38234063	proS	DIP1482	-	prolyl-tRNA synthetase
1422	 47.93	-1	1504456..1505202	+	248	38234064	-	DIP1483	-	hypothetical protein
1423	 50.49	0	1505222..1506031	-	269	38234065	-	DIP1484	-	putative uroporphyrinogen III methyltransferase
1424	 49.81	0	1506045..1507391	+	448	38234066	-	DIP1485	-	hypothetical protein
1425	 51.38	0	1507395..1508519	-	374	38234067	-	DIP1486	-	putative cobalamin synthesis related protein
1426	 49.61	0	1508539..1509048	-	169	38234068	-	DIP1487	-	putative DNA repair related protein
1427	 52.39	0	1509038..1510417	-	459	161598673	-	DIP1488	-	cobyrinic acid a,c-diamide synthase
1428	 49.44	0	1510411..1511031	-	206	38234070	-	DIP1489	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1429	 51.73	0	1513204..1514703	-	499	38234071	mqo	DIP1492	-	malate:quinone oxidoreductase
1430	 50.49	0	1515080..1516093	+	337	38234072	-	DIP1493	-	hypothetical protein
1431	 49.28	0	1516191..1517582	+	463	38234073	-	DIP1494	-	mycothione/glutathione reductase
1432	 50.97	0	1517640..1519079	-	479	38234074	cobQ	DIP1495	-	cobyric acid synthase
1433	 47.91	-1	1519142..1520026	-	294	38234075	mapB	DIP1496	-	methionine aminopeptidase
1434	 51.10	0	1520073..1521929	-	618	38234076	-	DIP1497	-	putative secreted penicillin-binding protein
1435	 50.60	0	1522046..1523221	-	391	38234077	ispG	DIP1498	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1436	 51.44	0	1523327..1524541	-	404	38234078	-	DIP1499	-	hypothetical protein
1437	 52.32	0	1524586..1525749	-	387	38234079	dxr	DIP1500	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1438	 52.99	0	1525987..1526505	+	172	38234080	-	DIP1501	-	hypothetical protein
1439	 50.95	0	1526585..1527691	-	368	38234081	-	DIP1502	-	hypothetical protein
1440	 45.57	-1	1527861..1528244	+	127	38234082	-	DIP1503	-	hypothetical protein
1441	 48.81	-1	1528307..1529185	-	292	38234083	-	DIP1504	-	putative phospholipid biosynthesis
1442	 47.49	-1	1529309..1529866	-	185	38234084	frr	DIP1505	-	ribosome recycling factor
1443	 49.51	0	1529938..1530747	-	269	38234085	pyrH	DIP1506	-	uridylate kinase
1444	 55.19	0	1530890..1531717	-	275	38234086	tsf	DIP1507	-	elongation factor Ts
1445	 54.06	0	1531998..1532798	-	266	38234087	rpsB	DIP1508	-	30S ribosomal protein S2
1446	 49.44	0	1533166..1533699	+	177	38234088	-	DIP1509	-	hypothetical protein
1447	 48.40	-1	1533714..1534622	-	302	38234089	xerC	DIP1510	-	site-specific tyrosine recombinase XerC
1448	 49.91	0	1534889..1536040	-	383	38234090	-	DIP1511	-	hypothetical protein
1449	 51.00	0	1536037..1537587	-	516	38234091	-	DIP1512	-	hypothetical protein
1450	 47.16	-1	1537574..1538101	-	175	38234092	-	DIP1513	-	hypothetical protein
1451	 48.04	-1	1538173..1538478	-	101	38234093	-	DIP1514	-	hypothetical protein
1452	 49.86	0	1538491..1539180	-	229	38234094	rnhB	DIP1515	-	ribonuclease HII
1453	 48.37	-1	1539177..1540034	-	285	38234095	-	DIP1516	-	putative signal peptidase
1454	 52.15	0	1540598..1541410	-	270	38234096	-	DIP1517	-	putative transposase
1455	 54.04	0	1541458..1541940	-	160	38234097	-	DIP1518	-	putative insertion element DNA-binding protein
1456	 48.80	-1	1542092..1543009	-	305	38234098	-	DIP1519	-	hypothetical protein
1457	 45.84	-1	1543197..1545506	-	769	38234099	-	DIP1520	-	hypothetical protein
1458	 43.86	-2	1545659..1545772	-	37	38234100	-	DIP1521	-	hypothetical protein
1459	 49.37	0	1545949..1546185	-	78	38234101	-	DIP1522	-	hypothetical protein
1460	 54.04	0	1547110..1547592	+	160	38234102	-	DIP1525	-	putative insertion element DNA-binding protein
1461	 52.15	0	1547640..1548452	+	270	38234103	-	DIP1526	-	putative transposase
1462	 53.22	0	1548534..1548875	-	113	38234104	rplS	DIP1527	-	50S ribosomal protein L19
1463	 51.12	0	1549049..1551325	-	758	38234105	-	DIP1528	-	putative transcriptional accessory protein
1464	 48.51	-1	1551351..1551719	-	122	38234106	-	DIP1529	-	hypothetical protein
1465	 50.74	0	1551703..1552581	-	292	38234107	trmD	DIP1530	-	tRNA (guanine-N(1)-)-methyltransferase
1466	 47.50	-1	1552581..1553081	-	166	38234108	rimM	DIP1531	-	16S rRNA-processing protein
1467	 54.43	0	1553211..1553684	-	157	38234109	rpsP	DIP1532	-	30S ribosomal protein S16
1468	 50.77	0	1553918..1555534	-	538	38234110	ffh	DIP1533	-	signal recognition particle protein
1469	 51.16	0	1555644..1557803	-	719	38234111	glnD	DIP1534	-	PII uridylyl-transferase
1470	 48.97	-1	1557809..1558147	-	112	38234112	glnB	DIP1535	-	nitrogen regulatory protein
1471	 52.49	0	1559123..1560610	-	495	38234113	-	DIP1538	-	putative cell division protein
1472	 52.15	0	1560748..1564308	-	1186	38234114	-	DIP1539	-	hypothetical protein
1473	 51.38	0	1564413..1567898	-	1161	38234115	-	DIP1540	-	putative chromosome partition protein
1474	 57.64	0	1567923..1568210	-	95	38234116	-	DIP1541	-	putative acylphosphatase
1475	 48.79	-1	1568210..1569697	-	495	38234117	-	DIP1542	-	putative amino acid carrier protein
1476	 48.60	-1	1569776..1570666	-	296	38234118	-	DIP1543	-	formamidopyrimidine-DNA glycosylase
1477	 50.53	0	1570684..1571433	-	249	38234119	rnc	DIP1544	-	ribonuclease III
1478	 51.79	0	1571430..1571960	-	176	38234120	-	DIP1545	-	hypothetical protein
1479	 52.80	0	1572001..1572714	-	237	38234121	-	DIP1546	-	hypothetical protein
1480	 52.34	0	1572978..1574324	-	448	38234122	gdh	DIP1547	-	glutamate dehydrogenase
1481	 52.10	0	1574742..1575908	+	388	38234123	-	DIP1548	-	putative glycerate kinase
1482	 52.21	0	1575878..1576306	-	142	38234124	-	DIP1549	-	hypothetical protein
1483	 49.96	0	1576350..1577666	+	438	38234125	-	DIP1550	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
