IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

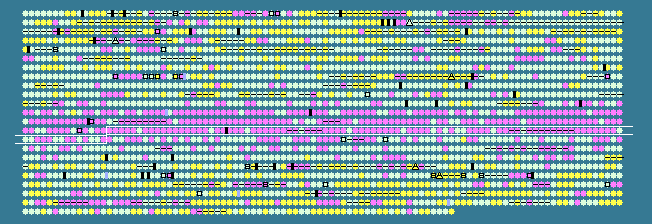

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1315	 49.07	-1	1390632..1392410	-	592	38233957	secD	DIP1372	-	preprotein translocase subunit SecD
1316	 44.62	-1	1392415..1392600	-	61	38233958	-	DIP1373	-	hypothetical protein
1317	 42.86	-2	1392641..1392934	-	97	38233959	-	DIP1374	-	hypothetical protein
1318	 50.05	0	1392938..1394026	-	362	38233960	ruvB	DIP1375	-	Holliday junction DNA helicase B
1319	 49.18	0	1394044..1394655	-	203	38233961	ruvA	DIP1376	-	Holliday junction DNA helicase motor protein
1320	 52.64	0	1394694..1395185	-	163	38233962	ruvC	DIP1377	-	Holliday junction resolvase
1321	 49.40	0	1395368..1396120	-	250	38233963	yfcA	DIP1378	-	hypothetical protein
1322	 49.01	-1	1396358..1397212	-	284	38233964	tesB	DIP1379	-	putative acyl-CoA thioesterase II
1323	 44.85	-1	1397443..1398588	+	381	38233965	-	DIP1380	-	hypothetical protein
1324	 49.19	0	1398642..1399385	+	247	38233966	-	DIP1381	-	6-carboxyhexanoate--CoA ligase
1325	 48.87	-1	1399385..1400575	+	396	38233967	-	DIP1382	-	putative aminotransferase (biotin synthesis related protein)
1326	 46.10	-1	1400572..1401033	-	153	38233968	-	DIP1383	-	hypothetical protein
1327	 47.62	-1	1401045..1402136	-	363	38233969	-	DIP1384	-	putative transferase (LPS related)
1328	 47.35	-1	1402163..1403104	-	313	38233970	-	DIP1385	-	lipid A biosynthesis lauroyl acyltransferase
1329	 48.17	-1	1403131..1403784	-	217	38233971	-	DIP1386	-	putative phosphatidyltransferase
1330	 49.74	0	1403777..1404361	-	194	38233972	-	DIP1387	-	hypothetical protein
1331	 48.59	-1	1404545..1406608	-	687	38233973	thrS	DIP1388	-	threonyl-tRNA synthetase
1332	 50.29	0	1406797..1408017	-	406	38233974	-	DIP1389	-	hypothetical protein
1333	 46.83	-1	1408111..1408725	-	204	38233975	-	DIP1390	-	hypothetical protein
1334	 44.50	-1	1408732..1409376	-	214	38233976	-	DIP1391	-	hypothetical protein
1335	 46.05	-1	1410549..1411358	+	269	38233977	-	DIP1392	-	hypothetical protein
1336	 48.18	-1	1411416..1411826	+	136	38233978	-	DIP1393	-	hypothetical protein
1337	 47.66	-1	1411905..1412609	-	234	38233979	-	DIP1394	-	hypothetical protein
1338	 51.37	0	1412834..1413415	+	193	38233980	-	DIP1395	-	hypothetical protein
1339	 48.45	-1	1413434..1414657	+	407	38233981	-	DIP1396	-	putative ribonuclease
1340	 47.69	-1	1414718..1416625	-	635	38233982	dxs	DIP1397	-	1-deoxy-D-xylulose-5-phosphate synthase
1341	 48.06	-1	1416837..1418099	-	420	38233983	-	DIP1398	-	hypothetical protein
1342	 49.72	0	1418417..1419136	-	239	38233984	-	DIP1399	-	hypothetical protein
1343	 49.67	0	1419195..1419653	-	152	38233985	dut	DIP1400	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1344	 49.32	0	1419796..1420308	+	170	38233986	-	DIP1401	-	hypothetical protein
1345	 46.94	-1	1420344..1420637	-	97	38233987	-	DIP1402	-	hypothetical protein
1346	 47.48	-1	1420829..1421662	-	277	38233988	-	DIP1403	-	putative hydrolase
1347	 50.66	0	1421865..1422626	+	253	38233989	ppgK	DIP1404	-	polyphosphate glucokinase
1348	 43.43	-2	1422759..1422956	+	65	38233990	-	DIP1405	-	hypothetical protein
1349	 49.24	0	1423091..1424599	+	502	38233991	sigA	DIP1406	-	RNA polymerase sigma factor
1350	 44.94	-1	1424933..1425406	-	157	38233992	-	DIP1407	-	hypothetical protein
1351	 49.12	0	1425515..1427224	-	569	38233993	-	DIP1408	-	hypothetical protein
1352	 49.17	0	1427224..1427463	-	79	38233994	-	DIP1409	-	hypothetical protein
1353	 45.60	-1	1427523..1428011	+	162	38233995	-	DIP1410	-	hypothetical protein
1354	 48.96	-1	1428054..1429589	+	511	38233996	-	DIP1411	-	putative transferase
1355	 51.37	0	1429600..1430037	+	145	38233997	-	DIP1412	-	D-tyrosyl-tRNA deacylase
1356	 50.00	0	1430121..1431110	+	329	38233998	sigB	DIP1413	-	RNA polymerase sigma factor SigB
1357	 49.49	0	1431335..1432015	+	226	38233999	dtxR	DIP1414	-	diphtheria toxin repressor
1358	 49.75	0	1432038..1433024	+	328	38234000	galE	DIP1415	-	UDP-glucose 4-epimerase
1359	 45.21	-1	1433073..1434116	-	347	38234001	-	DIP1416	-	hypothetical protein
1360	 46.71	-1	1434368..1435309	+	313	38234002	-	DIP1417	-	hypothetical protein
1361	 46.94	-1	1435342..1437876	+	844	38234003	-	DIP1418	-	putative helicase
1362	 47.81	-1	1437952..1438476	-	174	38234004	-	DIP1419	-	hypothetical protein
1363	 49.75	0	1438479..1439075	-	198	38234005	dirA	DIP1420	-	iron repressible polypeptide (putative reductase)
1364	 51.65	0	1439301..1440239	+	312	38234006	-	DIP1421	-	putative transcriptional regulator
1365	 46.48	-1	1440295..1441260	-	321	38234007	-	DIP1422	-	hypothetical protein
1366	 47.29	-1	1441388..1445341	+	1317	38234008	-	DIP1423	-	putative ATP-dependent helicase
1367	 46.27	-1	1445404..1445859	-	151	38234009	-	DIP1424	-	transcriptional regulator NrdR
1368	 44.64	-1	1445957..1446292	-	111	38234010	-	DIP1425	-	hypothetical protein
1369	 50.70	0	1446632..1447345	+	237	38234011	lexA	DIP1426	-	LexA repressor
1370	 49.68	0	1447668..1448444	+	258	38234012	-	DIP1427	-	putative sugar related operon transcriptional regulator (PTS system)
1371	 52.51	0	1448538..1450232	-	564	38234013	ptsI	DIP1428	-	phosphoenolpyruvate:sugar phosphotransferase system enzyme I (PTS system)
1372	 50.25	0	1450500..1451303	+	267	38234014	-	DIP1429	-	putative sugar related operon transcriptional regulator (PTS system)
1373	 50.93	0	1451300..1452265	+	321	38234015	-	DIP1430	-	putative phosphofructokinase (PTS system)
1374	 52.06	0	1454634..1454900	+	88	38234016	-	DIP1435	-	putative carbohydrate carrier protein (PTS system)
1375	 49.06	-1	1455065..1456183	+	372	38234017	-	DIP1436	-	putative oxidoreductase
1376	 48.80	-1	1456242..1456907	+	221	38234018	-	DIP1437	-	putative oxidoreductase
1377	 48.64	-1	1456969..1458255	-	428	38234019	-	DIP1438	-	putative transport membrane protein
1378	 49.66	0	1458338..1459948	-	536	38234020	-	DIP1439	-	putative GTP-binding protein
1379	 52.12	0	1460095..1460850	+	251	38234021	-	DIP1440	-	hypothetical protein
1380	 44.95	-1	1460925..1461449	+	174	38234022	-	DIP1441	-	hypothetical protein
1381	 48.88	-1	1461458..1462351	-	297	38234023	dapF	DIP1442	-	diaminopimelate epimerase
1382	 48.40	-1	1462348..1463256	-	302	38234024	miaA	DIP1443	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1383	 47.56	-1	1463319..1464014	-	231	38234025	-	DIP1444	-	hypothetical protein
1384	 51.39	0	1464212..1465540	+	442	38234026	-	DIP1445	-	hypothetical protein
1385	 45.52	-1	1465728..1466753	+	341	38234027	-	DIP1446	-	hypothetical protein
1386	 46.95	-1	1466762..1467400	-	212	38234028	-	DIP1447	-	hypothetical protein
1387	 48.94	-1	1467450..1469000	-	516	38234029	-	DIP1448	-	hypothetical protein
1388	 46.91	-1	1469157..1469738	-	193	38234030	recX	DIP1449	-	recombination regulator RecX
1389	 46.74	-1	1469776..1470894	-	372	38234031	recA	DIP1450	-	recombinase A
1390	 46.88	-1	1471150..1471341	-	63	38234032	-	DIP1451	-	hypothetical protein
1391	 49.40	0	1471428..1472012	+	194	38234033	-	DIP1452	-	hypothetical protein
1392	 43.87	-2	1472076..1472768	+	230	38234034	-	DIP1453	-	ABC transporter ATP-binding protein
1393	 50.24	0	1472765..1473379	+	204	38234035	-	DIP1454	-	hypothetical protein
1394	 49.52	0	1473435..1474274	-	279	38234036	-	DIP1455	-	hypothetical protein
1395	 50.00	0	1474405..1474734	-	109	38234037	-	DIP1456	-	putative DNA-binding protein
1396	 48.80	-1	1474823..1475320	-	165	38234038	-	DIP1457	-	putative competence-damage related protein
1397	 45.69	-1	1475349..1475939	-	196	38234039	-	DIP1458	-	putative phosphatidyltransferase
1398	 47.96	-1	1476035..1476328	+	97	38234040	-	DIP1459	-	hypothetical protein
1399	 44.94	-1	1476411..1477418	-	335	38234041	-	DIP1460	-	hypothetical protein
1400	 51.21	0	1477699..1480752	-	1017	38234042	-	DIP1461	-	putative cell division protein
1401	 50.45	0	1480828..1481493	-	221	38234043	-	DIP1462	-	hypothetical protein
1402	 51.73	0	1481579..1483633	-	684	38234044	-	DIP1463	-	hypothetical protein
1403	 50.11	0	1483636..1484541	-	301	38234045	dapA	DIP1464	-	dihydrodipicolinate synthase
1404	 47.96	-1	1484623..1485381	-	252	38234046	thyX	DIP1465	-	FAD-dependent thymidylate synthase
1405	 49.80	0	1485381..1486127	-	248	38234047	dapB	DIP1466	-	dihydrodipicolinate reductase
1406	 50.75	0	1486307..1488574	-	755	38234048	gpsI	DIP1467	-	polynucleotide phosphorylase/polyadenylase
1407	 54.81	0	1488766..1489035	-	89	38234049	rpsO	DIP1468	-	30S ribosomal protein S15
1408	 50.00	0	1489207..1490166	-	319	38234050	-	DIP1469	-	putative nucleoside hydrolase
1409	 49.59	0	1490204..1491175	-	323	38234051	ribF	DIP1470	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1410	 50.61	0	1491198..1492100	+	300	38234052	truB	DIP1471	-	tRNA pseudouridine synthase B
1411	 47.76	-1	1492097..1492789	-	230	38234053	-	DIP1472	-	putative transferase
1412	 51.55	0	1492786..1493592	-	268	38234054	-	DIP1473	-	hypothetical protein
1413	 52.35	0	1493639..1494958	-	439	38234055	-	DIP1474	-	putative DNA-damage inducible protein
1414	 48.88	-1	1494955..1495848	-	297	38234056	-	DIP1475	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
