IslandPathversion 1.0

IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

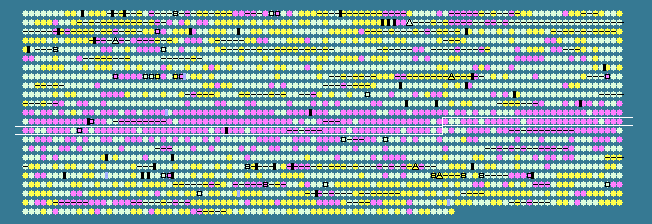

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1271	 50.18	0	1340329..1340607	-	92	38233913	rpoZ	DIP1327	-	DNA-directed RNA polymerase subunit omega
1272	 51.91	0	1340681..1341256	-	191	38233914	gmk	DIP1328	-	guanylate kinase
1273	 54.32	0	1341260..1341583	-	107	38233915	mihF	DIP1329	-	integration host factor
1274	 50.06	0	1341932..1342780	-	282	38233916	pyrF	DIP1330	-	orotidine 5'-phosphate decarboxylase
1275	 49.48	0	1342777..1346133	-	1118	38233917	carB	DIP1331	-	carbamoyl phosphate synthase large subunit
1276	 47.98	-1	1346154..1347293	-	379	38233918	carA	DIP1332	-	carbamoyl phosphate synthase small subunit
1277	 50.71	0	1347449..1348795	-	448	38233919	pyrC	DIP1333	-	dihydroorotase
1278	 49.04	-1	1348820..1349761	-	313	38233920	pyrB	DIP1334	-	aspartate carbamoyltransferase catalytic subunit
1279	 46.77	-1	1349761..1350333	-	190	38233921	pyrR	DIP1335	-	pyrimidine regulatory protein PyrR
1280	 49.78	0	1350598..1351959	+	453	38233922	-	DIP1336	-	hypothetical protein
1281	 42.01	-2	1351965..1352402	+	145	38233923	-	DIP1337	-	hypothetical protein
1282	 43.31	-2	1352402..1352812	+	136	38233924	-	DIP1338	-	hypothetical protein
1283	 49.18	0	1352866..1353414	-	182	38233925	nusB	DIP1339	-	transcription antitermination protein NusB
1284	 50.35	0	1353483..1354046	-	187	38233926	efp	DIP1340	-	elongation factor P
1285	 46.99	-1	1354148..1355245	-	365	38233927	-	DIP1341	-	putative metallopeptidase
1286	 45.35	-1	1355271..1355711	-	146	38233928	aroQ	DIP1342	-	3-dehydroquinate dehydratase
1287	 45.65	-1	1355712..1356791	-	359	38233929	aroB	DIP1343	-	3-dehydroquinate synthase
1288	 48.66	-1	1356838..1357359	-	173	38233930	aroK	DIP1344	-	shikimate kinase
1289	 49.34	0	1357394..1358605	-	403	38233931	aroC	DIP1345	-	chorismate synthase
1290	 46.15	-1	1358683..1359189	-	168	38233932	-	DIP1346	-	hypothetical protein
1291	 46.44	-1	1359196..1360065	-	289	38233933	aroE	DIP1347	-	shikimate 5-dehydrogenase
1292	 48.74	-1	1360160..1361308	-	382	38233934	-	DIP1348	-	hypothetical protein
1293	 46.20	-1	1361421..1361972	-	183	38233935	-	DIP1349	-	Holliday junction resolvase-like protein
1294	 49.16	0	1362202..1364868	-	888	38233936	alaS	DIP1350	-	alanyl-tRNA synthetase
1295	 47.48	-1	1365030..1366400	-	456	38233937	-	DIP1351	-	recombination factor protein RarA
1296	 46.56	-1	1366425..1367687	-	420	38233938	-	DIP1352	-	hypothetical protein
1297	 50.78	0	1367810..1369615	-	601	38233939	aspS	DIP1353	-	aspartyl-tRNA synthetase
1298	 48.70	-1	1369837..1370721	+	294	38233940	-	DIP1354	-	hypothetical protein
1299	 46.03	-1	1370802..1373456	-	884	38233941	-	DIP1355	-	hypothetical protein
1300	 50.25	0	1373535..1375556	-	673	38233942	-	DIP1356	-	hypothetical protein
1301	 49.39	0	1375574..1376308	-	244	38233943	-	DIP1357	-	hypothetical protein
1302	 48.73	-1	1376471..1377061	+	196	38233944	-	DIP1358	-	TetR family transcriptional regulator
1303	 50.83	0	1377106..1378494	+	462	38233945	sdaB	DIP1359	-	L-serine dehydratase
1304	 51.97	0	1378566..1379837	-	423	38233946	hisS	DIP1360	-	histidyl-tRNA synthetase
1305	 48.10	-1	1379878..1380534	-	218	38233947	-	DIP1361	-	hypothetical protein
1306	 46.39	-1	1380544..1381041	-	165	38233948	tpx	DIP1362	-	thiol peroxidase
1307	 49.70	0	1381185..1382027	+	280	38233949	-	DIP1363	-	putative isomerase
1308	 45.74	-1	1382185..1382466	+	93	38233950	-	DIP1364	-	hypothetical protein
1309	 51.77	0	1382517..1382657	+	46	38233951	-	DIP1365	-	hypothetical protein
1310	 48.99	-1	1382700..1384079	+	459	38233952	-	DIP1366	-	putative transposase
1311	 48.64	-1	1384750..1387029	-	759	38233953	relA	DIP1368	-	GTP pyrophosphokinase
1312	 50.45	0	1387088..1387642	-	184	38233954	apt	DIP1369	-	adenine phosphoribosyltransferase
1313	 47.49	-1	1387698..1389449	-	583	38233955	-	DIP1370	-	hypothetical protein
1314	 47.35	-1	1389519..1390631	-	370	38233956	secF	DIP1371	-	preprotein translocase subunit SecF
1315	 49.07	-1	1390632..1392410	-	592	38233957	secD	DIP1372	-	preprotein translocase subunit SecD
1316	 44.62	-1	1392415..1392600	-	61	38233958	-	DIP1373	-	hypothetical protein
1317	 42.86	-2	1392641..1392934	-	97	38233959	-	DIP1374	-	hypothetical protein
1318	 50.05	0	1392938..1394026	-	362	38233960	ruvB	DIP1375	-	Holliday junction DNA helicase B
1319	 49.18	0	1394044..1394655	-	203	38233961	ruvA	DIP1376	-	Holliday junction DNA helicase motor protein
1320	 52.64	0	1394694..1395185	-	163	38233962	ruvC	DIP1377	-	Holliday junction resolvase
1321	 49.40	0	1395368..1396120	-	250	38233963	yfcA	DIP1378	-	hypothetical protein
1322	 49.01	-1	1396358..1397212	-	284	38233964	tesB	DIP1379	-	putative acyl-CoA thioesterase II
1323	 44.85	-1	1397443..1398588	+	381	38233965	-	DIP1380	-	hypothetical protein
1324	 49.19	0	1398642..1399385	+	247	38233966	-	DIP1381	-	6-carboxyhexanoate--CoA ligase
1325	 48.87	-1	1399385..1400575	+	396	38233967	-	DIP1382	-	putative aminotransferase (biotin synthesis related protein)
1326	 46.10	-1	1400572..1401033	-	153	38233968	-	DIP1383	-	hypothetical protein
1327	 47.62	-1	1401045..1402136	-	363	38233969	-	DIP1384	-	putative transferase (LPS related)
1328	 47.35	-1	1402163..1403104	-	313	38233970	-	DIP1385	-	lipid A biosynthesis lauroyl acyltransferase
1329	 48.17	-1	1403131..1403784	-	217	38233971	-	DIP1386	-	putative phosphatidyltransferase
1330	 49.74	0	1403777..1404361	-	194	38233972	-	DIP1387	-	hypothetical protein
1331	 48.59	-1	1404545..1406608	-	687	38233973	thrS	DIP1388	-	threonyl-tRNA synthetase
1332	 50.29	0	1406797..1408017	-	406	38233974	-	DIP1389	-	hypothetical protein
1333	 46.83	-1	1408111..1408725	-	204	38233975	-	DIP1390	-	hypothetical protein
1334	 44.50	-1	1408732..1409376	-	214	38233976	-	DIP1391	-	hypothetical protein
1335	 46.05	-1	1410549..1411358	+	269	38233977	-	DIP1392	-	hypothetical protein
1336	 48.18	-1	1411416..1411826	+	136	38233978	-	DIP1393	-	hypothetical protein
1337	 47.66	-1	1411905..1412609	-	234	38233979	-	DIP1394	-	hypothetical protein
1338	 51.37	0	1412834..1413415	+	193	38233980	-	DIP1395	-	hypothetical protein
1339	 48.45	-1	1413434..1414657	+	407	38233981	-	DIP1396	-	putative ribonuclease
1340	 47.69	-1	1414718..1416625	-	635	38233982	dxs	DIP1397	-	1-deoxy-D-xylulose-5-phosphate synthase
1341	 48.06	-1	1416837..1418099	-	420	38233983	-	DIP1398	-	hypothetical protein
1342	 49.72	0	1418417..1419136	-	239	38233984	-	DIP1399	-	hypothetical protein
1343	 49.67	0	1419195..1419653	-	152	38233985	dut	DIP1400	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1344	 49.32	0	1419796..1420308	+	170	38233986	-	DIP1401	-	hypothetical protein
1345	 46.94	-1	1420344..1420637	-	97	38233987	-	DIP1402	-	hypothetical protein
1346	 47.48	-1	1420829..1421662	-	277	38233988	-	DIP1403	-	putative hydrolase
1347	 50.66	0	1421865..1422626	+	253	38233989	ppgK	DIP1404	-	polyphosphate glucokinase
1348	 43.43	-2	1422759..1422956	+	65	38233990	-	DIP1405	-	hypothetical protein
1349	 49.24	0	1423091..1424599	+	502	38233991	sigA	DIP1406	-	RNA polymerase sigma factor
1350	 44.94	-1	1424933..1425406	-	157	38233992	-	DIP1407	-	hypothetical protein
1351	 49.12	0	1425515..1427224	-	569	38233993	-	DIP1408	-	hypothetical protein
1352	 49.17	0	1427224..1427463	-	79	38233994	-	DIP1409	-	hypothetical protein
1353	 45.60	-1	1427523..1428011	+	162	38233995	-	DIP1410	-	hypothetical protein
1354	 48.96	-1	1428054..1429589	+	511	38233996	-	DIP1411	-	putative transferase
1355	 51.37	0	1429600..1430037	+	145	38233997	-	DIP1412	-	D-tyrosyl-tRNA deacylase
1356	 50.00	0	1430121..1431110	+	329	38233998	sigB	DIP1413	-	RNA polymerase sigma factor SigB
1357	 49.49	0	1431335..1432015	+	226	38233999	dtxR	DIP1414	-	diphtheria toxin repressor
1358	 49.75	0	1432038..1433024	+	328	38234000	galE	DIP1415	-	UDP-glucose 4-epimerase
1359	 45.21	-1	1433073..1434116	-	347	38234001	-	DIP1416	-	hypothetical protein
1360	 46.71	-1	1434368..1435309	+	313	38234002	-	DIP1417	-	hypothetical protein
1361	 46.94	-1	1435342..1437876	+	844	38234003	-	DIP1418	-	putative helicase
1362	 47.81	-1	1437952..1438476	-	174	38234004	-	DIP1419	-	hypothetical protein
1363	 49.75	0	1438479..1439075	-	198	38234005	dirA	DIP1420	-	iron repressible polypeptide (putative reductase)
1364	 51.65	0	1439301..1440239	+	312	38234006	-	DIP1421	-	putative transcriptional regulator
1365	 46.48	-1	1440295..1441260	-	321	38234007	-	DIP1422	-	hypothetical protein
1366	 47.29	-1	1441388..1445341	+	1317	38234008	-	DIP1423	-	putative ATP-dependent helicase
1367	 46.27	-1	1445404..1445859	-	151	38234009	-	DIP1424	-	transcriptional regulator NrdR
1368	 44.64	-1	1445957..1446292	-	111	38234010	-	DIP1425	-	hypothetical protein
1369	 50.70	0	1446632..1447345	+	237	38234011	lexA	DIP1426	-	LexA repressor
1370	 49.68	0	1447668..1448444	+	258	38234012	-	DIP1427	-	putative sugar related operon transcriptional regulator (PTS system)
53.75	MEAN

4.64	STD DEV
