IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

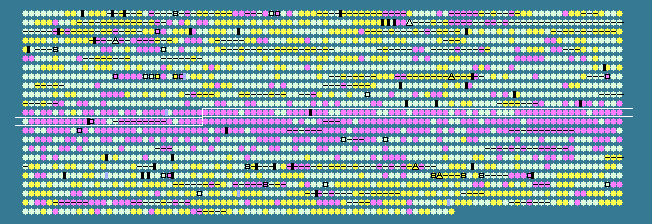

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1131	 47.24	-1	1181709..1182902	+	397	38233773	-	DIP1183	-	hypothetical protein
1132	 46.06	-1	1182927..1183877	+	316	38233774	-	DIP1184	-	hypothetical protein
1133	 46.64	-1	1183899..1184537	+	212	38233775	-	DIP1185	-	hypothetical protein
1134	 45.41	-1	1184540..1185475	+	311	38233776	xerD	DIP1186	-	site-specific tyrosine recombinase XerD
1135	 48.05	-1	1185667..1186536	+	289	38233777	-	DIP1187	-	putative regulatory protein
1136	 47.37	-1	1186579..1187397	+	272	38233778	-	DIP1188	-	hypothetical protein
1137	 50.99	0	1187512..1188117	+	201	38233779	bioD1	DIP1189	-	dethiobiotin synthetase
1138	 48.50	-1	1188118..1189614	-	498	38233780	-	DIP1190	-	putative peptide transport protein
1139	 48.38	-1	1189692..1190987	+	431	38233781	bioA	DIP1191	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1140	 48.13	-1	1191000..1191668	+	222	38233782	bioD	DIP1192	-	dithiobiotin synthetase
1141	 48.44	-1	1191785..1193359	+	524	38233783	-	DIP1193	-	putative Na+/H+ antiporter
1142	 49.73	0	1193378..1193932	+	184	38233784	-	DIP1194	-	hypothetical protein
1143	 51.24	0	1194036..1195001	+	321	38233785	-	DIP1195	-	putative pseudouridine synthase B
1144	 52.07	0	1195003..1195728	+	241	38233786	cmk	DIP1196	-	cytidylate kinase
1145	 49.15	0	1195725..1197368	+	547	38233787	engA	DIP1197	-	GTP-binding protein EngA
1146	 45.82	-1	1197600..1198985	+	461	38233788	dcuB	DIP1198	-	anaerobic C4-dicarboxylate transporter
1147	 46.57	-1	1199016..1200020	-	334	38233789	-	DIP1199	-	putative methyltransferase
1148	 45.56	-1	1200019..1201269	+	416	38233790	-	DIP1200	-	hypothetical protein
1149	 48.68	-1	1201642..1202019	-	125	38233791	-	DIP1201	-	hypothetical protein
1150	 49.33	0	1202026..1203213	-	395	38233792	-	DIP1202	-	hypothetical protein
1151	 49.06	-1	1203482..1205776	+	764	38233793	secA2	DIP1203	-	preprotein translocase subunit SecA
1152	 54.40	0	1205943..1206374	+	143	38233794	-	DIP1204	-	putative signal transduction protein
1153	 50.44	0	1206545..1207222	+	225	38233795	-	DIP1205	-	merR family regulatory protein
1154	 43.71	-2	1207245..1207832	+	195	38233796	-	DIP1206	-	hypothetical protein
1155	 47.06	-1	1207984..1208544	+	186	38233797	-	DIP1207	-	putative transcriptional regulator
1156	 47.77	-1	1208620..1210032	-	470	38233798	-	DIP1208	-	hypothetical protein
1157	 49.15	0	1210064..1210942	-	292	38233799	-	DIP1209	-	hypothetical protein
1158	 47.58	-1	1210939..1211991	-	350	38233800	-	DIP1210	-	hypothetical protein
1159	 47.81	-1	1211988..1213382	-	464	38233801	-	DIP1211	-	hypothetical protein
1160	 50.92	0	1213407..1214765	-	452	38233802	-	DIP1212	-	putative RNA helicase
1161	 52.30	0	1214868..1216322	-	484	38233803	gnd	DIP1213	-	6-phosphogluconate dehydrogenase
1162	 49.02	-1	1216431..1216889	+	152	38233804	-	DIP1214	-	hypothetical protein
1163	 46.50	-1	1216886..1217986	-	366	38233805	-	DIP1215	-	magnesium/cobalt transporter CorA
1164	 45.24	-1	1217993..1218622	+	209	38233806	-	DIP1216	-	hypothetical protein
1165	 51.94	0	1218699..1220063	-	454	38233807	ndh	DIP1217	-	NADH dehydrogenase
1166	 48.84	-1	1220241..1221536	+	431	38233808	-	DIP1218	-	hypothetical protein
1167	 47.68	-1	1222345..1223313	+	322	38233809	-	DIP1221	-	putative sodium-dependent transport membrane protein
1168	 44.26	-2	1223713..1223895	-	60	38233810	-	DIP1222	-	hypothetical protein
1169	 46.35	-1	1223913..1224611	-	232	38233811	-	DIP1223	-	hypothetical protein
1170	 50.00	0	1224625..1224966	-	113	38233812	-	DIP1224	-	hypothetical protein
1171	 48.72	-1	1225219..1225608	+	129	38233813	-	DIP1225	-	hypothetical protein
1172	 50.50	0	1225684..1226487	-	267	38233814	ppm1	DIP1226	-	putative polyprenol phosphate mannosyl transferase 1
1173	 48.85	-1	1226513..1228072	-	519	38233815	-	DIP1227	-	putative transferase/membrane protein
1174	 50.09	0	1228082..1228612	-	176	38233816	fxsA	DIP1228	-	FxsA
1175	 52.13	0	1228651..1232283	-	1210	38233817	cobN	DIP1229	-	cobaltochelatase
1176	 45.65	-1	1232340..1232477	+	45	38233818	-	DIP1230	-	hypothetical protein
1177	 51.09	0	1232650..1233843	+	397	38233819	-	DIP1231	-	hypothetical protein
1178	 51.31	0	1233840..1234490	+	216	38233820	cobH	DIP1232	-	precorrin-8X methylmutase
1179	 49.30	0	1234487..1235983	+	498	38233821	cobIJ	DIP1233	-	putative bifunctional cobalamin biosynthesis protein
1180	 51.64	0	1236065..1236796	-	243	38233822	cobK	DIP1234	-	cobalt-precorrin-6x reductase
1181	 51.68	0	1236784..1237557	-	257	38233823	cobM	DIP1235	-	precorrin-4 C11-methyltransferase
1182	 52.80	0	1237585..1238832	-	415	38233824	-	DIP1236	-	putative precorrin-6Y C5,15-methyltransferase
1183	 48.89	-1	1238888..1239652	-	254	38233825	-	DIP1237	-	hypothetical protein
1184	 48.25	-1	1239661..1240800	-	379	38233826	-	DIP1238	-	putative dipeptidase
1185	 49.91	0	1240851..1243643	-	930	38233827	-	DIP1239	-	putative helicase
1186	 45.22	-1	1243744..1244214	+	156	38233828	-	DIP1240	-	putative tRNA/rRNA methyltransferase
1187	 48.40	-1	1244300..1245394	-	364	38233829	tatC	DIP1241	-	Sec-independent twin-arginine translocase system protein
1188	 49.06	-1	1245467..1245733	-	88	38233830	tatA	DIP1242	-	twin argininte translocase protein A
1189	 47.29	-1	1245768..1246727	-	319	38233831	-	DIP1243	-	hypothetical protein
1190	 49.08	-1	1246792..1247769	-	325	38233832	-	DIP1244	-	hypothetical protein
1191	 47.36	-1	1247794..1249233	-	479	38233833	-	DIP1245	-	hypothetical protein
1192	 45.13	-1	1249238..1249432	-	64	38233834	-	DIP1246	-	hypothetical protein
1193	 46.43	-1	1249490..1251016	-	508	38233835	-	DIP1247	-	hypothetical protein
1194	 47.97	-1	1251013..1252542	-	509	38233836	-	DIP1248	-	ATPase
1195	 51.37	0	1252639..1253475	-	278	38233837	-	DIP1249	-	hypothetical protein
1196	 47.53	-1	1253482..1254840	-	452	38233838	-	DIP1250	-	putative aminopeptidase 2
1197	 47.64	-1	1254942..1255808	+	288	38233839	-	DIP1251	-	hypothetical protein
1198	 45.56	-1	1255902..1256171	+	89	38233840	-	DIP1252	-	putative virulence-associated protein
1199	 47.91	-1	1256231..1257883	-	550	38233841	fhs	DIP1253	-	formate--tetrahydrofolate ligase
1200	 49.65	0	1258020..1259594	-	524	38233842	aspA	DIP1254	-	aspartate ammonia-lyase
1201	 51.61	0	1259869..1261176	-	435	38233843	dcuA	DIP1255	-	anaerobic C4-dicarboxylate transporter
1202	 47.40	-1	1261537..1262382	-	281	38233844	hisG	DIP1256	-	ATP phosphoribosyltransferase
1203	 46.21	-1	1262464..1262727	-	87	38233845	hisE	DIP1257	-	phosphoribosyl-ATP pyrophosphatase
1204	 45.69	-1	1262746..1263441	-	231	38233846	-	DIP1258	-	putative hydrolase
1205	 48.06	-1	1263485..1267090	-	1201	38233847	metH	DIP1259	-	5-methyltetrahydrofolate--homocysteine methyltransferase
1206	 44.19	-2	1267163..1267558	-	131	38233848	-	DIP1260	-	hypothetical protein
1207	 47.79	-1	1267559..1268803	-	414	38233849	cysS	DIP1261	-	cysteinyl-tRNA synthetase
1208	 47.59	-1	1268849..1269697	-	282	38233850	uppP	DIP1262	-	undecaprenyl pyrophosphate phosphatase
1209	 47.81	-1	1269829..1270878	+	349	38233851	-	DIP1263	-	putative lipoprotein
1210	 50.09	0	1270943..1272034	+	363	38233852	pyrD	DIP1264	-	dihydroorotate dehydrogenase 2
1211	 47.22	-1	1272452..1272991	-	179	38233853	-	DIP1265	-	hypothetical protein
1212	 48.99	-1	1273380..1274759	+	459	38233854	-	DIP1266	-	putative transposase
1213	 48.53	-1	1276058..1276807	-	249	38233855	-	DIP1270	-	putative sulfurtransferase
1214	 47.56	-1	1276921..1277925	-	334	38233856	-	DIP1271	-	arginine/ornithine transport system ATPase
1215	 51.45	0	1278111..1280318	-	735	38233857	sbm	DIP1272	-	methylmalonyl-CoA mutase
1216	 50.39	0	1280321..1282132	-	603	38233858	-	DIP1273	-	putative methylmalonyl-CoA mutase small subunit
1217	 44.59	-1	1282382..1283083	+	233	38233859	-	DIP1274	-	hypothetical protein
1218	 49.74	0	1283144..1283710	+	188	38233860	-	DIP1275	-	putative DNA-binding protein
1219	 47.16	-1	1283795..1284922	-	375	38233861	-	DIP1276	-	hypothetical protein
1220	 46.21	-1	1284919..1285353	-	144	38233862	-	DIP1277	-	hypothetical protein
1221	 46.86	-1	1285420..1286262	-	280	38233863	-	DIP1278	-	hypothetical protein
1222	 49.24	0	1286298..1287083	+	261	38233864	-	DIP1279	-	hypothetical protein
1223	 44.32	-2	1287056..1288165	-	369	38233865	hemH	DIP1280	-	ferrochelatase
1224	 48.57	-1	1288281..1289999	-	572	38233866	-	DIP1281	-	putative invasion protein
1225	 47.55	-1	1290514..1290717	+	67	38233867	-	DIP1282	-	hypothetical protein
1226	 50.34	0	1290749..1293565	+	938	161598674	acnA	DIP1283	-	aconitate hydratase
1227	 49.91	0	1293673..1294245	+	190	38233869	-	DIP1284	-	putative TetR-famlily transcriptional regulator
1228	 45.13	-1	1294271..1294999	+	242	38233870	-	DIP1285	-	glutamine amidotransferase
1229	 43.33	-2	1295088..1295357	+	89	38233871	-	DIP1286	-	hypothetical protein
1230	 50.26	0	1295374..1296738	+	454	38233872	-	DIP1287	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
