IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

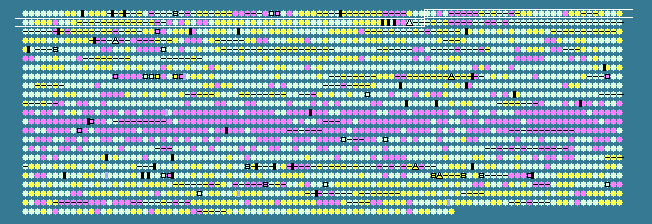

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
68	 57.18	0	67740..68582	+	280	38232710	-	DIP0078	-	hypothetical protein
69	 55.37	0	68563..69828	+	421	38232711	-	DIP0079	-	hypothetical protein
70	 47.73	-1	69994..70125	+	43	38232712	-	DIP0080	-	hypothetical protein
71	 52.22	0	70294..70473	+	59	38232713	-	DIP0081	-	hypothetical protein
72	 45.77	-1	70504..70929	+	141	38232714	-	DIP0082	-	hypothetical protein
73	 48.23	-1	70997..71137	+	46	38232715	-	DIP0083	-	hypothetical protein
74	 44.96	-1	71572..71700	+	42	38232716	-	DIP0084	-	hypothetical protein
75	 46.90	-1	71845..72360	-	171	38232717	-	DIP0085	-	hypothetical protein
76	 49.33	0	72365..72664	-	99	38232718	-	DIP0086	-	putative regulatory protein
77	 59.95	+1	73648..74943	-	431	38232719	-	DIP0089	-	hypothetical protein
78	 56.27	0	75080..75781	-	233	38232720	-	DIP0090	-	ABC transport system ATP-binding protein
79	 58.03	0	75820..76479	-	219	38232721	-	DIP0091	-	putative two-component system response regulator
80	 55.85	0	76479..77708	-	409	38232722	-	DIP0092	-	putative two component system sensor kinase
81	 55.56	0	77804..78145	-	113	38232723	-	DIP0093	-	hypothetical protein
82	 47.86	-1	78214..78330	-	38	38232724	-	DIP0094	-	hypothetical protein
83	 60.15	+1	78414..79088	-	224	38232725	opuBB	DIP0095	-	choline transport system permease protein
84	 60.75	+1	79095..79736	-	213	38232726	opuBD	DIP0096	-	choline transport system permease protein
85	 58.36	0	79727..80557	-	276	38232727	opuBA	DIP0097	-	choline transport system ATP-binding protein
86	 57.14	0	80567..81175	-	202	38232728	-	DIP0098	-	hypothetical protein
87	 55.56	0	81172..81756	-	194	38232729	-	DIP0099	-	putative RNA polymerase sigma factor
88	 51.63	0	81783..82181	-	132	38232730	-	DIP0100	-	hypothetical protein
89	 56.55	0	82259..83899	+	546	38232731	-	DIP0101	-	hypothetical protein
90	 55.34	0	83969..84745	-	258	38232732	tipA	DIP0102	-	transcriptional activator
91	 48.21	-1	84797..84964	-	55	38232733	-	DIP0103	-	hypothetical protein
92	 62.66	+1	84975..86321	-	448	38232734	-	DIP0104	-	putative peptidase
93	 57.93	0	86342..87394	+	350	38232735	bioB	DIP0105	-	biotin synthase
94	 62.84	+1	87394..87654	+	86	38232736	-	DIP0106	-	hypothetical protein
95	 52.78	0	88041..89228	+	395	38232737	irp6A	DIP0108	-	ferrisiderophore receptor Irp6A
96	 58.91	+1	89229..90272	+	347	38232738	irp6B	DIP0109	-	membrane protein permease Irp6B
97	 58.63	+1	90274..91032	+	252	38232739	irp6C	DIP0110	-	ATP-binding protein Irp6C
98	 57.00	0	91122..92600	+	492	38232740	-	DIP0111	-	putative lipoprotein
99	 52.70	0	92618..93025	+	135	38232741	-	DIP0112	-	hypothetical protein
100	 61.97	+1	93040..94380	+	446	38232742	-	DIP0113	-	putative riboflavin biosynthesis protein
101	 54.76	0	94403..94822	+	139	38232743	-	DIP0114	-	hypothetical protein
102	 55.90	0	94809..95876	-	355	38232744	-	DIP0115	-	hypothetical protein
103	 60.21	+1	96123..96881	-	252	38232745	-	DIP0116	-	hypothetical protein
104	 57.60	0	96976..97758	-	260	38232746	-	DIP0117	-	putative lipase
105	 62.69	+1	97855..98433	+	192	38232747	-	DIP0118	-	putative dehydrogenase
106	 48.16	-1	98438..100177	-	579	38232748	-	DIP0119	-	hypothetical protein
107	 54.07	0	100588..100722	+	44	38232749	-	DIP0121	-	putative transposon (partial)
108	 55.32	0	101238..101792	+	184	38232750	-	DIP0122	-	putative siderophore binding protein
109	 62.06	+1	101789..102787	-	332	38232751	-	DIP0123	-	hypothetical protein
110	 62.95	+1	103155..104525	+	456	38232752	-	DIP0124	-	hypothetical protein
111	 55.80	0	104676..105761	+	361	38232753	-	DIP0125	-	hypothetical protein
112	 60.53	+1	105773..107386	+	537	38232754	-	DIP0126	-	hypothetical protein
113	 53.93	0	107390..107860	+	156	38232755	-	DIP0127	-	MarR family regulatory protein
114	 58.59	+1	107838..108890	-	350	38232756	-	DIP0128	-	hypothetical protein
115	 57.95	0	108895..109479	-	194	38232757	-	DIP0129	-	hypothetical protein
116	 60.18	+1	109478..110248	+	256	38232758	-	DIP0130	-	hypothetical protein
117	 61.76	+1	110238..112583	-	781	38232759	-	DIP0131	-	putative ATP-dependent helicase
118	 58.07	0	112573..113142	-	189	38232760	-	DIP0132	-	putative sugar acetyltransferase
119	 59.65	+1	113144..113884	+	246	38232761	-	DIP0133	-	putative DNA repair protein
120	 58.16	0	113937..114524	+	195	38232762	-	DIP0134	-	putative DNA-repair protein
121	 54.60	0	114529..115257	+	242	38232763	-	DIP0135	-	putative oxidoreductase
122	 58.89	+1	115518..116276	+	252	38232764	-	DIP0136	-	putative lipoprotein
123	 50.00	0	116460..116687	-	75	38232765	-	DIP0137	-	hypothetical protein
124	 50.79	0	116920..117045	-	41	38232766	-	DIP0138	-	hypothetical protein
125	 44.24	-2	117050..117379	-	109	38232767	-	DIP0139	-	hypothetical protein
126	 50.90	0	117622..117900	-	92	38232768	-	DIP0140	-	hypothetical protein
127	 47.22	-1	118089..118232	+	47	38232769	-	DIP0141	-	hypothetical protein
128	 57.93	0	118306..118980	+	224	38232770	-	DIP0142	-	hypothetical protein
129	 55.05	0	120068..120265	-	65	38232771	-	DIP0145	-	hypothetical protein
130	 44.36	-2	120487..120867	+	126	38232772	-	DIP0146	-	putative integral membrane protein
131	 47.22	-1	120867..120974	+	35	38232773	-	DIP0147	-	putative lipoprotein
132	 56.67	0	121423..121722	+	99	38232774	-	DIP0149	-	hypothetical protein
133	 58.30	0	121722..122546	+	274	38232775	-	DIP0150	-	hypothetical protein
134	 62.42	+1	122552..122857	+	101	38232776	-	DIP0151	-	hypothetical protein
135	 60.15	+1	122867..123787	-	306	38232777	-	DIP0152	-	hypothetical protein
136	 59.33	+1	123927..124553	+	208	38232778	-	DIP0153	-	hypothetical protein
137	 57.76	0	124561..126570	-	669	38232779	-	DIP0154	-	putative endopeptidase
138	 56.40	0	126599..127231	+	210	38232780	-	DIP0155	-	hypothetical protein
139	 57.33	0	127228..128148	+	306	38232781	-	DIP0156	-	hypothetical protein
140	 57.10	0	128138..129046	+	302	38232782	-	DIP0157	-	hypothetical protein
141	 57.53	0	129067..129504	-	145	38232783	-	DIP0158	-	hypothetical protein
142	 60.01	+1	129730..133155	-	1141	38232784	-	DIP0159	-	putative transferase
143	 56.12	0	133148..135232	-	694	38232785	-	DIP0160	-	hypothetical protein
144	 59.32	+1	135343..136104	-	253	38232786	-	DIP0161	-	short chain dehydrogenase
145	 59.44	+1	136124..137590	-	488	38232787	-	DIP0162	-	putative oxidoreductase, FAD-binding
146	 53.41	0	137707..137955	-	82	38232788	-	DIP0163	-	hypothetical protein
147	 59.77	+1	137984..138418	+	144	38232789	-	DIP0164	-	hypothetical protein
148	 60.84	+1	138415..138963	+	182	38232790	-	DIP0165	-	hypothetical protein
149	 55.95	0	138975..139394	+	139	38232791	-	DIP0166	-	hypothetical protein
150	 56.67	0	139604..140383	+	259	38232792	-	DIP0167	-	hypothetical protein
151	 63.73	+2	140517..141434	-	305	38232793	-	DIP0168	-	putative glycosyl transferase
152	 52.90	0	141608..142573	+	321	38232794	-	DIP0169	-	hypothetical protein
153	 54.56	0	142673..143407	+	244	38232795	-	DIP0170	-	hypothetical protein
154	 55.78	0	143404..144303	+	299	38232796	-	DIP0171	-	hypothetical protein
155	 56.92	0	144300..145151	+	283	38232797	-	DIP0172	-	hypothetical protein
156	 57.29	0	145272..146273	+	333	38232798	-	DIP0173	-	hypothetical protein
157	 59.49	+1	146339..147118	-	259	38232799	-	DIP0174	-	ABC transporter ATP-binding protein
158	 61.32	+1	147137..147997	-	286	38232800	-	DIP0175	-	ABC transporter permease
159	 60.97	+1	148133..149326	+	397	38232801	-	DIP0176	-	hypothetical protein
160	 60.76	+1	149323..150270	-	315	38232802	-	DIP0177	-	putative quinone oxidoreductase
161	 60.10	+1	150627..151661	-	344	38232803	-	DIP0178	-	putative aminotransferase
162	 53.08	0	152426..154000	+	524	38232804	-	DIP0179	-	hypothetical protein
163	 46.19	-1	154365..154994	+	209	38232805	-	DIP0180	-	hypothetical protein
164	 42.12	-2	155099..155371	+	90	38232806	-	DIP0181	-	hypothetical protein
165	 54.60	0	155600..156826	-	408	38232807	-	DIP0182	-	putative phage integrase
166	 53.57	0	156926..157948	-	340	38232808	-	DIP0183	-	putative transcriptional regulator
167	 55.67	0	157960..158523	-	187	38232809	-	DIP0184	-	hypothetical protein
53.75	MEAN

4.64	STD DEV
