IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

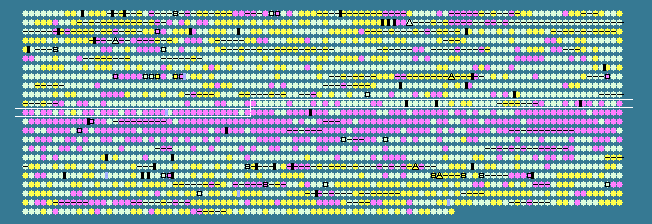

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1039	 46.61	-1	1069391..1070098	+	235	38233681	-	DIP1087	-	integral membrane protein
1040	 53.64	0	1070298..1071326	+	342	38233682	pfkA	DIP1088	-	6-phosphofructokinase
1041	 52.79	0	1071435..1072940	+	501	38233683	gatB	DIP1089	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1042	 50.82	0	1073046..1074143	+	365	38233684	-	DIP1090	-	putative aldo/keto-reductase family protein
1043	 51.97	0	1074172..1074858	-	228	38233685	lysE	DIP1091	-	lysine exporter protein
1044	 53.63	0	1074929..1075810	+	293	38233686	lysG	DIP1092	-	chromosome replication initiation inhibitor protein
1045	 49.22	0	1075821..1076903	-	360	38233687	-	DIP1093	-	hypothetical protein
1046	 51.93	0	1076975..1077727	+	250	38233688	-	DIP1094	-	hypothetical protein
1047	 51.51	0	1077807..1078934	+	375	38233689	-	DIP1095	-	hypothetical protein
1048	 52.77	0	1079011..1080852	-	613	38233690	ilvD	DIP1096	-	dihydroxy-acid dehydratase
1049	 50.00	0	1081141..1081626	-	161	38233691	-	DIP1097	-	putative low molecular weight protein antigen 6
1050	 51.30	0	1082013..1083971	+	652	38233692	ilvB	DIP1098	-	acetolactate synthase 1 catalytic subunit
1051	 46.48	-1	1083987..1084511	+	174	38233693	ilvH	DIP1099	-	acetolactate synthase 3 regulatory subunit
1052	 51.28	0	1084631..1085644	+	337	38233694	ilvC	DIP1100	-	ketol-acid reductoisomerase
1053	 48.81	-1	1085794..1086717	+	307	38233695	-	DIP1101	-	cation-efflux system integral membrane protein
1054	 51.74	0	1086770..1088578	+	602	38233696	-	DIP1102	-	hypothetical protein
1055	 51.82	0	1088634..1090115	+	493	38233697	-	DIP1103	-	hypothetical protein
1056	 52.38	0	1090278..1091873	+	531	38233698	serA	DIP1104	-	D-3-phosphoglycerate dehydrogenase
1057	 52.06	0	1092016..1093035	+	339	38233699	leuB	DIP1105	-	3-isopropylmalate dehydrogenase
1058	 50.56	0	1094680..1094859	+	59	38233700	-	DIP1110	-	hypothetical protein
1059	 48.05	-1	1094905..1095237	+	110	38233701	-	DIP1111	-	putative integral membrane protein
1060	 49.62	0	1095311..1096108	+	265	38233702	-	DIP1112	-	FAA family hydrolase
1061	 53.02	0	1096131..1096775	+	214	38233703	-	DIP1113	-	hypothetical protein
1062	 54.67	0	1096756..1097889	-	377	38233704	-	DIP1114	-	isochorismate synthase
1063	 52.41	0	1097919..1099412	+	497	38233705	gltX	DIP1115	-	glutamyl-tRNA synthetase
1064	 56.33	0	1099572..1100606	+	344	38233706	-	DIP1116	-	putative exported esterase/hydrolase
1065	 54.95	0	1100963..1101508	-	181	38233707	-	DIP1117	-	TetR family transcriptional regulator
1066	 55.80	0	1101650..1103803	+	717	38233708	-	DIP1118	-	MmpL family integral membrane protein
1067	 53.59	0	1103979..1105439	+	486	38233709	-	DIP1119	-	hypothetical protein
1068	 52.48	0	1105526..1105807	+	93	38233710	-	DIP1120	-	hypothetical protein
1069	 51.11	0	1105862..1105996	+	44	38233711	-	DIP1121	-	hypothetical protein
1070	 53.16	0	1106381..1109089	+	902	38233712	ppc	DIP1122	-	phosphoenolpyruvate carboxylase
1071	 53.85	0	1109099..1109488	-	129	38233713	-	DIP1123	-	hypothetical protein
1072	 57.40	0	1109532..1110524	-	330	38233714	-	DIP1124	-	biotin synthase family transferase
1073	 53.58	0	1110605..1111162	+	185	38233715	-	DIP1125	-	hypothetical protein
1074	 57.85	0	1111173..1111898	-	241	38233716	-	DIP1126	-	IclR family transcriptional regulator
1075	 57.38	0	1111988..1113430	+	480	38233717	leuC	DIP1127	-	isopropylmalate isomerase large subunit
1076	 56.35	0	1113442..1114032	+	196	38233718	leuD	DIP1128	-	isopropylmalate isomerase small subunit
1077	 53.91	0	1114111..1115121	-	336	38233719	-	DIP1129	-	hypothetical protein
1078	 53.31	0	1115316..1116311	+	331	38233720	gpsA	DIP1130	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1079	 52.28	0	1116334..1117431	+	365	38233721	ddl	DIP1131	-	D-alanyl-alanine synthetase A
1080	 54.74	0	1117438..1118376	-	312	38233722	-	DIP1132	-	hypothetical protein
1081	 58.38	0	1118468..1119457	+	329	38233723	thiL	DIP1133	-	thiamine monophosphate kinase
1082	 57.25	0	1119460..1120128	+	222	38233724	ung	DIP1134	-	uracil-DNA glycosylase
1083	 57.24	0	1120294..1121799	+	501	38233725	-	DIP1135	-	putative kinase
1084	 57.02	0	1121804..1123918	+	704	38233726	recG	DIP1136	-	ATP-dependent DNA helicase
1085	 53.60	0	1123946..1124167	+	73	38233727	-	DIP1137	-	putative biotin carboxyl carrier protein
1086	 50.09	0	1124164..1124742	+	192	38233728	-	DIP1138	-	putative DNA methylase
1087	 48.12	-1	1124750..1125229	+	159	38233729	coaD	DIP1139	-	phosphopantetheine adenylyltransferase
1088	 53.46	0	1125316..1125474	+	52	38233730	-	DIP1140	-	hypothetical protein
1089	 56.32	0	1125604..1125777	+	57	38233731	-	DIP1141	-	hypothetical protein
1090	 51.82	0	1125798..1126565	-	255	38233732	atrC	DIP1142	-	ABC transporter ATP-binding protein
1091	 49.74	0	1126569..1127513	-	314	38233733	-	DIP1143	-	ABC transporter
1092	 50.45	0	1127571..1128464	-	297	38233734	-	DIP1144	-	hypothetical protein
1093	 48.98	-1	1128534..1129466	-	310	38233735	-	DIP1145	-	hypothetical protein
1094	 49.15	0	1129828..1132527	+	899	38233736	polA	DIP1146	-	DNA polymerase I
1095	 45.57	-1	1132577..1133344	-	255	38233737	-	DIP1147	-	hypothetical protein
1096	 57.22	0	1133555..1135015	+	486	38233738	rpsA	DIP1148	-	30S ribosomal protein S1
1097	 49.26	0	1135099..1136511	-	470	38233739	-	DIP1149	-	putative transport protein
1098	 51.81	0	1136731..1137558	-	275	38233740	-	DIP1150	-	putative transcription antiterminator
1099	 54.31	0	1137670..1139700	-	676	38233741	ptsG	DIP1151	-	PTS system, glucose-specific IIABC component
1100	 50.08	0	1140082..1140684	+	200	38233742	coaE	DIP1152	-	dephospho-CoA kinase
1101	 48.58	-1	1140904..1142103	+	399	38233743	-	DIP1153	-	putative coenzyme PQQ synthesis related protein
1102	 47.70	-1	1142204..1144249	+	681	38233744	uvrB	DIP1154	-	excinuclease ABC subunit B
1103	 50.34	0	1144478..1144918	+	146	38233745	-	DIP1155	-	putative stress related protein
1104	 49.89	0	1144967..1147279	-	770	38233746	-	DIP1156	-	putative helicase
1105	 48.46	-1	1147403..1148248	-	281	38233747	-	DIP1157	-	hypothetical protein
1106	 51.08	0	1148433..1149080	-	215	38233748	-	DIP1158	-	putative hydrolase
1107	 48.01	-1	1149234..1152095	+	953	38233749	uvrA	DIP1159	-	excinuclease ABC subunit A
1108	 53.17	0	1152383..1152886	+	167	38233750	infC	DIP1160	-	translation initiation factor IF-3
1109	 58.46	+1	1152916..1153110	+	64	38233751	rpmI	DIP1161	-	50S ribosomal protein L35
1110	 54.69	0	1153172..1153555	+	127	38233752	rplT	DIP1162	-	50S ribosomal protein L20
1111	 47.25	-1	1153805..1154350	-	181	38233753	-	DIP1163	-	hypothetical protein
1112	 48.84	-1	1154597..1155415	+	272	38233754	tsnR	DIP1164	-	putative rRNA methyltransferase
1113	 50.47	0	1155546..1156601	+	351	38233755	pheS	DIP1165	-	phenylalanyl-tRNA synthetase subunit alpha
1114	 49.66	0	1156643..1159153	+	836	38233756	pheT	DIP1166	-	phenylalanyl-tRNA synthetase subunit beta
1115	 47.70	-1	1159280..1160323	+	347	38233757	argC	DIP1167	-	N-acetyl-gamma-glutamyl-phosphate reductase
1116	 48.84	-1	1160398..1161558	+	386	38233758	argJ	DIP1168	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1117	 50.48	0	1161595..1162527	+	310	38233759	argB	DIP1169	-	acetylglutamate kinase
1118	 47.50	-1	1162520..1163761	+	413	38233760	argD	DIP1170	-	acetylornithine aminotransferase
1119	 46.98	-1	1163790..1164749	+	319	38233761	argF	DIP1171	-	ornithine carbamoyltransferase
1120	 50.41	0	1164856..1165347	+	163	38233762	argR	DIP1172	-	arginine repressor
1121	 49.58	0	1165505..1166704	+	399	38233763	argG	DIP1173	-	argininosuccinate synthase
1122	 50.21	0	1166704..1168137	+	477	38233764	argH	DIP1174	-	argininosuccinate lyase
1123	 46.95	-1	1168201..1168413	+	70	38233765	-	DIP1175	-	hypothetical protein
1124	 46.95	-1	1168427..1169689	+	420	38233766	tyrS	DIP1176	-	tyrosyl-tRNA synthetase
1125	 50.70	0	1175639..1176715	+	358	38233767	-	DIP1177	-	hypothetical protein
1126	 48.59	-1	1176792..1177748	+	318	38233768	-	DIP1178	-	hypothetical protein
1127	 41.36	-2	1177766..1177927	+	53	38233769	-	DIP1179	-	hypothetical protein
1128	 48.54	-1	1177969..1178790	+	273	38233770	-	DIP1180	-	putative cytotoxin/hemolysin
1129	 48.74	-1	1178790..1179743	+	317	38233771	ppnK	DIP1181	-	inorganic polyphosphate/ATP-NAD kinase
1130	 49.66	0	1179859..1181598	+	579	38233772	recN	DIP1182	-	DNA repair protein
1131	 47.24	-1	1181709..1182902	+	397	38233773	-	DIP1183	-	hypothetical protein
1132	 46.06	-1	1182927..1183877	+	316	38233774	-	DIP1184	-	hypothetical protein
1133	 46.64	-1	1183899..1184537	+	212	38233775	-	DIP1185	-	hypothetical protein
1134	 45.41	-1	1184540..1185475	+	311	38233776	xerD	DIP1186	-	site-specific tyrosine recombinase XerD
1135	 48.05	-1	1185667..1186536	+	289	38233777	-	DIP1187	-	putative regulatory protein
1136	 47.37	-1	1186579..1187397	+	272	38233778	-	DIP1188	-	hypothetical protein
1137	 50.99	0	1187512..1188117	+	201	38233779	bioD1	DIP1189	-	dethiobiotin synthetase
1138	 48.50	-1	1188118..1189614	-	498	38233780	-	DIP1190	-	putative peptide transport protein
53.75	MEAN

4.64	STD DEV
