IslandPath Analysis: Corynebacterium diphtheriae NCTC 13129

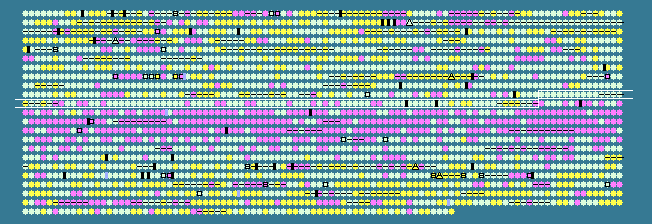

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.75 STD DEV: 4.64
Corynebacterium diphtheriae NCTC 13129, complete genome - 1..2488635
2272 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
987	 52.33	0	1013777..1015429	+	550	38233629	argS	DIP1034	-	arginyl-tRNA synthetase
988	 52.52	0	1015432..1016760	+	442	38233630	lysA	DIP1035	-	diaminopimelate decarboxylase
989	 52.64	0	1016931..1018277	+	448	38233631	thrA	DIP1036	-	homoserine dehydrogenase
990	 53.61	0	1018282..1019208	+	308	38233632	thrB	DIP1037	-	homoserine kinase
991	 52.80	0	1019270..1021021	-	583	38233633	-	DIP1038	-	acyl-CoA synthetase
992	 53.59	0	1021371..1023434	+	687	38233634	rho	DIP1040	-	transcription termination factor Rho
993	 53.97	0	1023434..1024504	+	356	38233635	prfA	DIP1041	-	peptide chain release factor 1
994	 51.28	0	1024509..1025327	+	272	38233636	-	DIP1042	-	HemK family methytransferase
995	 54.22	0	1025435..1026085	+	216	38233637	-	DIP1043	-	hypothetical protein
996	 52.56	0	1026086..1027255	+	389	38233638	-	DIP1044	-	glycosyl trasferase
997	 51.80	0	1027273..1027716	+	147	38233639	-	DIP1045	-	integral membrane protein
998	 51.91	0	1028202..1028987	+	261	38233640	atpB	DIP1046	-	F0F1 ATP synthase subunit A
999	 55.42	0	1029073..1029312	+	79	38233641	atpE	DIP1047	-	F0F1 ATP synthase subunit C
1000	 55.91	0	1029340..1029906	+	188	38233642	atpF	DIP1048	-	F0F1 ATP synthase subunit B
1001	 57.54	0	1029912..1030733	+	273	38233643	atpH	DIP1049	-	F0F1 ATP synthase subunit delta
1002	 56.84	0	1030794..1032422	+	542	38233644	atpA	DIP1050	-	F0F1 ATP synthase subunit alpha
1003	 54.29	0	1032476..1033453	+	325	38233645	atpG	DIP1051	-	F0F1 ATP synthase subunit gamma
1004	 58.02	0	1033457..1034902	+	481	38233646	atpD	DIP1052	-	F0F1 ATP synthase subunit beta
1005	 56.18	0	1034916..1035287	+	123	38233647	atpC	DIP1053	-	F0F1 ATP synthase subunit epsilon
1006	 48.29	-1	1035514..1035981	+	155	38233648	-	DIP1054	-	hypothetical protein
1007	 49.86	0	1036006..1036695	+	229	38233649	-	DIP1055	-	hypothetical protein
1008	 52.28	0	1036724..1037008	+	94	38233650	-	DIP1056	-	hypothetical protein
1009	 52.94	0	1037086..1037544	-	152	38233651	-	DIP1057	-	putative methylmalonyl-CoA epimerase
1010	 49.54	0	1037621..1037947	+	108	38233652	-	DIP1058	-	hypothetical protein
1011	 50.24	0	1037950..1038771	-	273	38233653	-	DIP1059	-	putative iron-siderophore uptake system ATP-binding component
1012	 56.77	0	1038768..1039727	-	319	38233654	-	DIP1060	-	putative iron-siderophore uptake system transmembrane component
1013	 54.27	0	1039729..1040736	-	335	38233655	-	DIP1061	-	putative iron-siderophore uptake system transmembrane component
1014	 49.14	0	1040784..1041827	+	347	38233656	-	DIP1062	-	putative iron-siderophore uptake system exported solute-binding component
1015	 50.78	0	1041924..1042307	-	127	38233657	-	DIP1063	-	putative integral membrane protein
1016	 52.06	0	1042460..1043356	+	298	38233658	-	DIP1064	-	putative thioredoxin-like protein
1017	 54.34	0	1043761..1045959	-	732	38233659	glgB	DIP1065	-	glycogen branching enzyme
1018	 54.10	0	1046014..1048050	-	678	38233660	-	DIP1066	-	putative alpha-amylase (glucanase)
1019	 53.68	0	1048145..1049014	+	289	38233661	-	DIP1067	-	ABC transporter ATP-binding protein
1020	 53.70	0	1049093..1049902	+	269	38233662	-	DIP1068	-	NUDIX/MutT family hydrolase
1021	 53.16	0	1049947..1051131	+	394	38233663	-	DIP1069	-	hypothetical protein
1022	 51.07	0	1051307..1052101	+	264	38233664	etfB	DIP1070	-	electron transfer flavoprotein subunit beta
1023	 53.98	0	1052119..1053072	+	317	38233665	etfA	DIP1071	-	electron transfer flavoprotein subunit alpha
1024	 54.09	0	1053532..1054668	+	378	38233666	-	DIP1072	-	putative aminotransferase, class V
1025	 52.30	0	1054665..1055513	-	282	38233667	-	DIP1073	-	putative transferase
1026	 52.41	0	1055670..1056770	+	366	38233668	trmU	DIP1074	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1027	 54.96	0	1056799..1057866	+	355	38233669	-	DIP1075	-	hypothetical protein
1028	 47.94	-1	1057910..1058614	-	234	38233670	-	DIP1076	-	DNA polymerase III subunit epsilon
1029	 51.47	0	1058711..1060744	+	677	38233671	ligA	DIP1077	-	NAD-dependent DNA ligase LigA
1030	 53.24	0	1060807..1061469	-	220	38233672	-	DIP1078	-	hypothetical protein
1031	 54.67	0	1061719..1062018	+	99	38233673	gatC	DIP1079	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1032	 53.13	0	1062018..1063502	+	494	38233674	gatA	DIP1080	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1033	 48.78	-1	1063604..1064095	-	163	38233675	-	DIP1081	-	putative acetyltransferase
1034	 49.79	0	1064159..1065574	+	471	38233676	-	DIP1082	-	major facilitator family transmembrane efflux protein
1035	 56.25	0	1065633..1065968	-	111	38233677	-	DIP1083	-	hypothetical protein
1036	 51.78	0	1066370..1067410	+	346	38233678	-	DIP1084	-	iron ABC transporter membrane protein
1037	 51.75	0	1067410..1068207	+	265	38233679	-	DIP1085	-	putative iron ABC transport system, ATP-binding protein
1038	 48.26	-1	1068219..1069283	+	354	38233680	-	DIP1086	-	putative iron transport system exported solute-binding component
1039	 46.61	-1	1069391..1070098	+	235	38233681	-	DIP1087	-	integral membrane protein
1040	 53.64	0	1070298..1071326	+	342	38233682	pfkA	DIP1088	-	6-phosphofructokinase
1041	 52.79	0	1071435..1072940	+	501	38233683	gatB	DIP1089	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1042	 50.82	0	1073046..1074143	+	365	38233684	-	DIP1090	-	putative aldo/keto-reductase family protein
1043	 51.97	0	1074172..1074858	-	228	38233685	lysE	DIP1091	-	lysine exporter protein
1044	 53.63	0	1074929..1075810	+	293	38233686	lysG	DIP1092	-	chromosome replication initiation inhibitor protein
1045	 49.22	0	1075821..1076903	-	360	38233687	-	DIP1093	-	hypothetical protein
1046	 51.93	0	1076975..1077727	+	250	38233688	-	DIP1094	-	hypothetical protein
1047	 51.51	0	1077807..1078934	+	375	38233689	-	DIP1095	-	hypothetical protein
1048	 52.77	0	1079011..1080852	-	613	38233690	ilvD	DIP1096	-	dihydroxy-acid dehydratase
1049	 50.00	0	1081141..1081626	-	161	38233691	-	DIP1097	-	putative low molecular weight protein antigen 6
1050	 51.30	0	1082013..1083971	+	652	38233692	ilvB	DIP1098	-	acetolactate synthase 1 catalytic subunit
1051	 46.48	-1	1083987..1084511	+	174	38233693	ilvH	DIP1099	-	acetolactate synthase 3 regulatory subunit
1052	 51.28	0	1084631..1085644	+	337	38233694	ilvC	DIP1100	-	ketol-acid reductoisomerase
1053	 48.81	-1	1085794..1086717	+	307	38233695	-	DIP1101	-	cation-efflux system integral membrane protein
1054	 51.74	0	1086770..1088578	+	602	38233696	-	DIP1102	-	hypothetical protein
1055	 51.82	0	1088634..1090115	+	493	38233697	-	DIP1103	-	hypothetical protein
1056	 52.38	0	1090278..1091873	+	531	38233698	serA	DIP1104	-	D-3-phosphoglycerate dehydrogenase
1057	 52.06	0	1092016..1093035	+	339	38233699	leuB	DIP1105	-	3-isopropylmalate dehydrogenase
1058	 50.56	0	1094680..1094859	+	59	38233700	-	DIP1110	-	hypothetical protein
1059	 48.05	-1	1094905..1095237	+	110	38233701	-	DIP1111	-	putative integral membrane protein
1060	 49.62	0	1095311..1096108	+	265	38233702	-	DIP1112	-	FAA family hydrolase
1061	 53.02	0	1096131..1096775	+	214	38233703	-	DIP1113	-	hypothetical protein
1062	 54.67	0	1096756..1097889	-	377	38233704	-	DIP1114	-	isochorismate synthase
1063	 52.41	0	1097919..1099412	+	497	38233705	gltX	DIP1115	-	glutamyl-tRNA synthetase
1064	 56.33	0	1099572..1100606	+	344	38233706	-	DIP1116	-	putative exported esterase/hydrolase
1065	 54.95	0	1100963..1101508	-	181	38233707	-	DIP1117	-	TetR family transcriptional regulator
1066	 55.80	0	1101650..1103803	+	717	38233708	-	DIP1118	-	MmpL family integral membrane protein
1067	 53.59	0	1103979..1105439	+	486	38233709	-	DIP1119	-	hypothetical protein
1068	 52.48	0	1105526..1105807	+	93	38233710	-	DIP1120	-	hypothetical protein
1069	 51.11	0	1105862..1105996	+	44	38233711	-	DIP1121	-	hypothetical protein
1070	 53.16	0	1106381..1109089	+	902	38233712	ppc	DIP1122	-	phosphoenolpyruvate carboxylase
1071	 53.85	0	1109099..1109488	-	129	38233713	-	DIP1123	-	hypothetical protein
1072	 57.40	0	1109532..1110524	-	330	38233714	-	DIP1124	-	biotin synthase family transferase
1073	 53.58	0	1110605..1111162	+	185	38233715	-	DIP1125	-	hypothetical protein
1074	 57.85	0	1111173..1111898	-	241	38233716	-	DIP1126	-	IclR family transcriptional regulator
1075	 57.38	0	1111988..1113430	+	480	38233717	leuC	DIP1127	-	isopropylmalate isomerase large subunit
1076	 56.35	0	1113442..1114032	+	196	38233718	leuD	DIP1128	-	isopropylmalate isomerase small subunit
1077	 53.91	0	1114111..1115121	-	336	38233719	-	DIP1129	-	hypothetical protein
1078	 53.31	0	1115316..1116311	+	331	38233720	gpsA	DIP1130	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1079	 52.28	0	1116334..1117431	+	365	38233721	ddl	DIP1131	-	D-alanyl-alanine synthetase A
1080	 54.74	0	1117438..1118376	-	312	38233722	-	DIP1132	-	hypothetical protein
1081	 58.38	0	1118468..1119457	+	329	38233723	thiL	DIP1133	-	thiamine monophosphate kinase
1082	 57.25	0	1119460..1120128	+	222	38233724	ung	DIP1134	-	uracil-DNA glycosylase
1083	 57.24	0	1120294..1121799	+	501	38233725	-	DIP1135	-	putative kinase
1084	 57.02	0	1121804..1123918	+	704	38233726	recG	DIP1136	-	ATP-dependent DNA helicase
1085	 53.60	0	1123946..1124167	+	73	38233727	-	DIP1137	-	putative biotin carboxyl carrier protein
1086	 50.09	0	1124164..1124742	+	192	38233728	-	DIP1138	-	putative DNA methylase
53.75	MEAN

4.64	STD DEV
