IslandPathversion 1.0

IslandPath Analysis: Clostridium perfringens str. 13

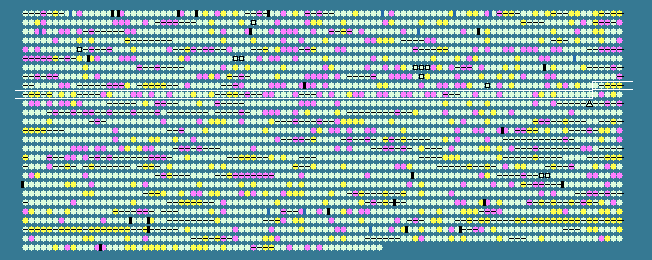

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
896	 27.24	0	1097054..1098481	+	475	18309878	-	CPE0896	-	two-component sensor histidine kinase
897	 31.94	0	1098691..1100124	+	477	18309879	eutA	CPE0897	-	reactivating factor for ethanolamine ammonia lyase
898	 34.36	+1	1100143..1101510	+	455	18309880	eutB	CPE0898	-	ethanolamine ammonia lyase heavy chain
899	 34.35	+1	1101527..1102414	+	295	18309881	eutC	CPE0899	-	ethanolamine ammonia-lyase small subunit
900	 36.54	+2	1102436..1103089	+	217	18309882	eutL	CPE0900	-	ethanolamine utilization protein
901	 29.90	0	1103102..1103887	+	261	18309883	pduJ	CPE0901	-	propanediol utilization protein
902	 34.96	+1	1103887..1105365	+	492	18309884	adhE	CPE0902	-	alcohol dehydrogenase
903	 41.58	+2	1105721..1106011	+	96	18309885	pduJ	CPE0903	-	propanediol utilization protein
904	 30.88	0	1106050..1106865	+	271	18309886	eutT	CPE0904	-	ethanolamine utilization cobalamin adenosyltransferase
905	 33.65	+1	1106875..1107510	+	211	18309887	pduL	CPE0905	-	propanediol utilization protein
906	 29.64	0	1107716..1108474	+	252	18309888	-	CPE0906	-	hypothetical protein
907	 35.53	+1	1108622..1108894	+	90	18309889	eutN	CPE0907	-	ethanolamine utilization protein
908	 30.45	0	1108896..1109450	+	184	18309890	pduT	CPE0908	-	propanediol utilization protein
909	 34.70	+1	1109501..1110598	+	365	18309891	eutH	CPE0909	-	ethanolamine utilization protein
910	 31.01	0	1110601..1111074	+	157	18309892	eutQ	CPE0910	-	ethanolamine utilization protein
911	 28.30	0	1111442..1111918	+	158	18309893	bsaA	CPE0911	-	glutathione peroxidase
912	 26.56	0	1112351..1112896	+	181	18309894	-	CPE0912	-	hypothetical protein
913	 27.24	0	1113188..1113499	+	103	18309895	-	CPE0913	-	hypothetical protein
914	 23.95	-1	1113813..1115453	+	546	18309896	-	CPE0914	-	hypothetical protein
915	 34.30	+1	1115535..1116155	+	206	18309897	-	CPE0915	-	NADPH-dependent FMN reductase
916	 31.22	0	1116597..1117022	+	141	18309898	-	CPE0916	-	hypothetical protein
917	 29.30	0	1117404..1119164	+	586	18309899	nrdD	CPE0917	-	anaerobic ribonucleoside triphosphate reductase
918	 29.14	0	1119215..1119619	+	134	18309900	-	CPE0918	-	hypothetical protein
919	 25.03	-1	1119814..1120536	+	240	18309901	-	CPE0919	-	hypothetical protein
920	 17.81	-2	1120741..1120959	-	72	18309902	-	CPE0920	-	hypothetical protein
921	 27.62	0	1121179..1121721	+	180	18309903	-	CPE0921	-	nitroreductase family protein
922	 25.52	-1	1122001..1122627	+	208	18309904	-	CPE0922	-	hypothetical protein
923	 28.02	0	1122654..1123067	+	137	18309905	-	CPE0923	-	hypothetical protein
924	 26.35	0	1123136..1123966	+	276	18309906	-	CPE0924	-	metallo-beta-lactamase family protein
925	 19.21	-2	1124142..1124318	+	58	18309907	-	CPE0925	-	hypothetical protein
926	 32.20	0	1124547..1125251	+	234	18309908	glpF	CPE0926	-	glycerol uptake facilitator protein
927	 28.87	0	1125438..1126670	+	410	18309909	-	CPE0927	-	sensor histidine kinase
928	 27.62	0	1126690..1127442	+	250	18309910	-	CPE0928	-	two-component response regulator
929	 35.20	+1	1127780..1129444	+	554	18309911	-	CPE0929	-	coenzyme B12-dependent glycerol dehydrogenase large subunit
930	 31.41	0	1129452..1130024	+	190	18309912	-	CPE0930	-	coenzyme B12-dependent glycerol dehydrogenase medium subunit
931	 31.22	0	1130044..1130469	+	141	18309913	-	CPE0931	-	coenzyme B12-dependent glycerol dehydrogenase small subunit
932	 33.33	+1	1130486..1132336	+	616	18309914	-	CPE0932	-	glycerol dehydratase reactivation factor, large subunit
933	 28.49	0	1132329..1132679	+	116	18309915	-	CPE0933	-	glycerol dehydratase reactivation factor, small subunit
934	 30.60	0	1132698..1133210	+	170	18309916	-	CPE0934	-	hypothetical protein
935	 33.80	+1	1133234..1133662	+	142	18309917	-	CPE0935	-	hypothetical protein
936	 35.66	+1	1133756..1134913	+	385	18309918	-	CPE0936	-	1,3-propanediol dehydrogenase
937	 30.95	0	1135498..1136967	+	489	18309919	-	CPE0937	-	amino acid permease family protein
938	 22.67	-1	1137256..1137930	+	224	18309920	-	CPE0938	-	hypothetical protein
939	 29.04	0	1138271..1138783	+	170	18309921	-	CPE0939	-	GNAT family acetyltransferase
940	 31.26	0	1138851..1139621	-	256	18309922	-	CPE0940	-	hypothetical protein
941	 21.61	-2	1139727..1140545	-	272	18309923	-	CPE0941	-	hypothetical protein
942	 25.00	-1	1140656..1141015	-	119	18309924	-	CPE0942	-	hypothetical protein
943	 26.09	0	1141047..1141391	-	114	18309925	-	CPE0943	-	hypothetical protein
944	 27.78	0	1141575..1142564	+	329	18309926	pldB	CPE0944	-	lysophospholipase
945	 26.33	0	1142621..1143277	-	218	18309927	-	CPE0945	-	hypothetical protein
946	 24.26	-1	1143533..1144414	-	293	18309928	-	CPE0946	-	hypothetical protein
947	 29.89	0	1145169..1146476	+	435	18309929	-	CPE0947	-	transmembrane symporter
948	 27.10	0	1146821..1147510	+	229	18309930	-	CPE0948	-	DNA-binding response regulator
949	 27.47	0	1147720..1148640	+	306	18309931	-	CPE0949	-	ABC transporter
950	 23.51	-1	1148633..1149385	+	250	18309932	-	CPE0950	-	hypothetical protein
951	 26.16	0	1149399..1150304	+	301	18309933	-	CPE0951	-	sensor histidine kinase
952	 24.12	-1	1150404..1150631	-	75	18309934	-	CPE0952	-	hypothetical protein
953	 29.62	0	1150930..1152141	+	403	18309935	-	CPE0953	-	pyridine nucleotide-disulphide oxidoreductase family protein
954	 29.98	0	1152358..1152894	+	178	18309936	gpo	CPE0954	-	glutathione peroxidase
955	 41.96	+2	1153011..1154204	-	397	18309937	clg	CPE0955	-	collagen triple helix repeat protein
956	 22.84	-1	1154306..1154896	-	196	18309938	-	CPE0956	-	putative metal-dependent hydrolase, membrane-bound
957	 21.00	-2	1155088..1155306	-	72	18309939	-	CPE0957	-	hypothetical protein
958	 27.32	0	1155516..1156130	+	204	18309940	mutT	CPE0958	-	mutator MutT protein
959	 28.85	0	1156225..1156380	-	51	18309941	-	CPE0959	-	hypothetical protein
960	 23.05	-1	1156509..1157150	+	213	18309942	-	CPE0960	-	hypothetical protein
961	 24.31	-1	1157357..1157788	+	143	18309943	-	CPE0961	-	MarR family transcriptional regulator
962	 26.35	0	1158113..1159072	+	319	18309944	-	CPE0962	-	hypothetical protein
963	 29.88	0	1159176..1160798	-	540	18309945	-	CPE0963	-	transporter
964	 23.39	-1	1161203..1161373	+	56	18309946	-	CPE0964	-	hypothetical protein
965	 21.61	-2	1161697..1163334	-	545	18309947	-	CPE0965	-	GGDEF domain protein
966	 27.50	0	1163773..1164252	+	159	18309948	-	CPE0966	-	hypothetical protein
967	 30.67	0	1164789..1165952	+	387	18309949	-	CPE0967	-	glutamate/ aspartate transporter
968	 21.29	-2	1166285..1167280	+	331	18309950	-	CPE0968	-	hypothetical protein
969	 24.80	-1	1167573..1169483	+	636	18309951	-	CPE0969	-	hypothetical protein
970	 30.10	0	1169513..1170967	-	484	18309952	-	CPE0970	-	Na+/H+ antiporter
971	 22.71	-1	1170996..1171616	-	206	18309953	-	CPE0971	-	hypothetical protein
972	 29.52	0	1171854..1172639	+	261	18309954	hisB	CPE0972	-	histidinol phosphatase
973	 28.07	0	1172822..1172992	-	56	18309955	-	CPE0973	-	hypothetical protein
974	 27.65	0	1173309..1174328	-	339	18309956	-	CPE0974	-	hypothetical protein
975	 30.60	0	1174529..1176469	+	646	18309957	-	CPE0975	-	tetracycline resistant protein
976	 23.16	-1	1176634..1176987	+	117	18309958	-	CPE0976	-	hypothetical protein
977	 27.55	0	1177094..1178044	-	316	18309959	-	CPE0977	-	hypothetical protein
978	 29.56	0	1178435..1179097	-	220	18309960	-	CPE0978	-	hypothetical protein
979	 29.24	0	1179675..1180187	-	170	18309961	-	CPE0979	-	ferritin family protein
980	 22.59	-1	1180337..1181155	-	272	18309962	-	CPE0980	-	transcriptional regulator
981	 29.24	0	1181316..1183148	+	610	18309963	-	CPE0981	-	glycosyl hydrolase, family 20
982	 32.26	0	1183266..1183733	+	155	18309964	-	CPE0982	-	hypothetical protein
983	 32.18	0	1183854..1184630	-	258	18309965	-	CPE0983	-	hypothetical protein
984	 30.73	0	1184746..1186167	-	473	18309966	spoVAF	CPE0984	-	stage V sporulation protein AF
985	 31.21	0	1186397..1187905	-	502	18309967	-	CPE0985	-	hypothetical protein
986	 25.32	-1	1188307..1190178	+	623	18309968	-	CPE0986	-	two-component sensor histidine kinase
987	 32.87	+1	1190402..1191469	+	355	18309969	pfoS	CPE0987	-	regulatory protein
988	 32.60	+1	1191501..1192181	+	226	18309970	sdhB	CPE0988	-	L-serine dehydratase beta subunit
989	 35.95	+1	1192185..1193063	+	292	18309971	sdhA	CPE0989	-	L-serine dehydratase alpha subunit
990	 29.12	0	1193131..1193865	-	244	18309972	-	CPE0990	-	hypothetical protein
991	 28.25	0	1194072..1194818	+	248	18309973	truA	CPE0991	-	tRNA pseudouridine synthase A
992	 31.27	0	1194885..1195952	-	355	18309974	-	CPE0992	-	oxidoreductase, 2-nitropropane dioxygenase family
993	 28.83	0	1196153..1196863	+	236	18309975	-	CPE0993	-	transcriptional regulator
994	 28.07	0	1196919..1197830	-	303	18309976	-	CPE0994	-	radical SAM domain protein
995	 32.08	0	1197974..1199008	+	344	18309977	-	CPE0995	-	glucanase
29.13	MEAN

3.46	STD DEV
