IslandPath Analysis: Clostridium perfringens str. 13

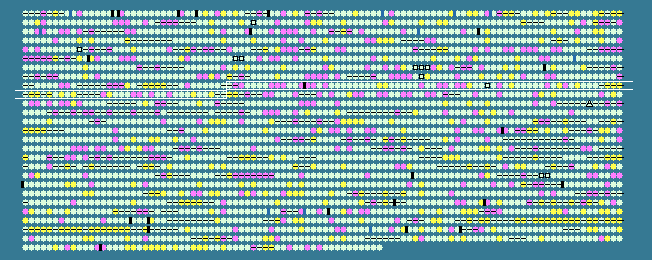

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
835	 29.72	0	1023868..1024365	+	165	18309817	-	CPE0835	-	hypothetical protein
836	 24.98	-1	1024374..1026002	+	542	18309818	-	CPE0836	-	hypothetical protein
837	 25.61	-1	1026369..1026653	+	94	18309819	-	CPE0837	-	transcriptional regulator
838	 31.58	0	1026771..1027169	+	132	18309820	-	CPE0838	-	arsenate reductase ArsC
839	 30.07	0	1027186..1028502	+	438	18309821	-	CPE0839	-	hypothetical protein
840	 28.25	0	1028688..1029356	+	222	18309822	-	CPE0840	-	two-component response regulator
841	 26.31	0	1029353..1030363	+	336	18309823	-	CPE0841	-	two-component sensor histidine kinase
842	 19.64	-2	1030647..1030814	+	55	18309824	-	CPE0842	-	hypothetical protein
843	 24.15	-1	1030943..1031356	+	137	18309825	-	CPE0843	-	hypothetical protein
844	 23.90	-1	1031615..1031773	-	52	18309826	-	CPE0844	-	hypothetical protein
845	 26.96	0	1031779..1032390	-	203	18309827	-	CPE0845	-	hypothetical protein
846	 29.90	0	1032778..1034352	+	524	18309828	-	CPE0846	-	alpha-clostripain
847	 19.37	-2	1035447..1036241	+	264	18309829	-	CPE0847	-	hypothetical protein
848	 22.09	-2	1036701..1037438	+	245	18309830	-	CPE0848	-	hypothetical protein
849	 21.97	-2	1037849..1038499	+	216	18309831	-	CPE0849	-	hypothetical protein
850	 29.17	0	1039372..1040139	+	255	18309832	-	CPE0850	-	ABC transporter
851	 25.64	-1	1040120..1042174	+	684	18309833	-	CPE0851	-	ABC transporter
852	 29.68	0	1042539..1043960	+	473	18309834	-	CPE0852	-	hypothetical protein
853	 27.39	0	1044211..1044513	-	100	18309835	-	CPE0853	-	hypothetical protein
854	 29.83	0	1044777..1045919	+	380	18309836	aspC	CPE0854	-	aminotransferase, class V
855	 30.74	0	1046108..1046647	+	179	18309837	rubY	CPE0855	-	rubrerythrin
856	 32.45	0	1047164..1050232	+	1022	18309838	-	CPE0856	-	alpha-mannosidase
857	 29.75	0	1050489..1051046	-	185	18309839	-	CPE0857	-	hypothetical protein
858	 31.46	0	1051286..1052458	+	390	18309840	bdhA	CPE0858	-	NADH-dependent butanol dehydrogenase
859	 26.62	0	1052896..1053834	+	312	18309841	-	CPE0859	-	putative carbohydrate diacid regulator
860	 36.90	+2	1053981..1055240	+	419	18309842	-	CPE0860	-	gluconate permease
861	 35.03	+1	1055464..1056585	+	373	18309843	-	CPE0861	-	hypothetical protein
862	 29.85	0	1056913..1058349	+	478	18309844	deaD	CPE0862	-	ATP-dependent RNA helicase DeaD
863	 26.36	0	1058504..1058962	+	152	18309845	-	CPE0863	-	hypothetical protein
864	 29.82	0	1059103..1060527	+	474	18309846	-	CPE0864	-	MATE efflux family protein
865	 26.44	0	1060634..1060807	+	57	18309847	-	CPE0865	-	hypothetical protein
866	 31.48	0	1061148..1067462	+	2104	18309848	-	CPE0866	-	alpha-N-acetylglucosaminidase family protein
867	 25.00	-1	1067722..1067901	+	59	18309849	-	CPE0867	-	hypothetical protein
868	 30.75	0	1068014..1069174	-	386	18309850	alr	CPE0868	-	alanine racemase
869	 29.65	0	1069713..1070282	+	189	18309851	-	CPE0869	-	GNAT family acetyltransferase
870	 21.98	-2	1070334..1071452	-	372	18309852	-	CPE0870	-	two-component sensor histidine kinase
871	 23.23	-1	1071723..1072286	-	187	18309853	-	CPE0871	-	hypothetical protein
872	 31.08	0	1072648..1074423	+	591	18309854	-	CPE0872	-	metallopeptidase, M24 family
873	 24.38	-1	1074643..1075044	+	133	18309855	-	CPE0873	-	hypothetical protein
874	 19.18	-2	1075169..1075387	+	72	18309856	-	CPE0874	-	hypothetical protein
875	 33.69	+1	1075490..1076617	+	375	18309857	-	CPE0875	-	metalloprotease family protein
876	 31.98	0	1076721..1077164	+	147	18309858	-	CPE0876	-	GNAT family acetyltransferase
877	 30.03	0	1077347..1078012	-	221	18309859	-	CPE0877	-	hypothetical protein
878	 25.92	0	1078174..1079346	-	390	18309860	-	CPE0878	-	transposase
879	 29.47	0	1080208..1080750	+	180	18309861	-	CPE0879	-	GNAT family acetyltransferase
880	 22.75	-1	1081006..1081761	-	251	18309862	-	CPE0880	-	hypothetical protein
881	 30.53	0	1081969..1085862	+	1297	18309863	nagI	CPE0881	-	hyaluronidase
882	 34.89	+1	1086183..1086503	-	106	18309864	-	CPE0882	-	hypothetical protein
883	 28.57	0	1086932..1087120	+	62	18309865	-	CPE0883	-	hypothetical protein
884	 28.43	0	1087176..1087991	+	271	18309866	-	CPE0884	-	ABC transporter
885	 25.94	0	1087988..1089637	+	549	18309867	-	CPE0885	-	hypothetical protein
886	 26.59	0	1089786..1090571	-	261	18309868	-	CPE0886	-	LysM domain protein
887	 28.99	0	1090894..1091445	-	183	18309869	-	CPE0887	-	hypothetical protein
888	 25.04	-1	1091766..1092416	+	216	18309870	-	CPE0888	-	pyrophosphatase, MutT/nudix family
889	 26.19	0	1092507..1092926	+	139	18309871	-	CPE0889	-	hypothetical protein
890	 35.29	+1	1093292..1093546	+	84	18309872	-	CPE0890	-	hypothetical protein
891	 24.78	-1	1093462..1093917	+	151	18309873	-	CPE0891	-	hypothetical protein
892	 29.89	0	1094185..1095315	+	376	18309874	-	CPE0892	-	NADPH-dependent butanol dehydrogenase
893	 33.62	+1	1095669..1096019	+	116	18309875	pduU	CPE0893	-	propanediol utilization protein
894	 30.57	0	1096023..1096457	+	144	18309876	pduV	CPE0894	-	propanediol utilization protein
895	 29.69	0	1096475..1097050	+	191	18309877	-	CPE0895	-	two-component response regulator
896	 27.24	0	1097054..1098481	+	475	18309878	-	CPE0896	-	two-component sensor histidine kinase
897	 31.94	0	1098691..1100124	+	477	18309879	eutA	CPE0897	-	reactivating factor for ethanolamine ammonia lyase
898	 34.36	+1	1100143..1101510	+	455	18309880	eutB	CPE0898	-	ethanolamine ammonia lyase heavy chain
899	 34.35	+1	1101527..1102414	+	295	18309881	eutC	CPE0899	-	ethanolamine ammonia-lyase small subunit
900	 36.54	+2	1102436..1103089	+	217	18309882	eutL	CPE0900	-	ethanolamine utilization protein
901	 29.90	0	1103102..1103887	+	261	18309883	pduJ	CPE0901	-	propanediol utilization protein
902	 34.96	+1	1103887..1105365	+	492	18309884	adhE	CPE0902	-	alcohol dehydrogenase
903	 41.58	+2	1105721..1106011	+	96	18309885	pduJ	CPE0903	-	propanediol utilization protein
904	 30.88	0	1106050..1106865	+	271	18309886	eutT	CPE0904	-	ethanolamine utilization cobalamin adenosyltransferase
905	 33.65	+1	1106875..1107510	+	211	18309887	pduL	CPE0905	-	propanediol utilization protein
906	 29.64	0	1107716..1108474	+	252	18309888	-	CPE0906	-	hypothetical protein
907	 35.53	+1	1108622..1108894	+	90	18309889	eutN	CPE0907	-	ethanolamine utilization protein
908	 30.45	0	1108896..1109450	+	184	18309890	pduT	CPE0908	-	propanediol utilization protein
909	 34.70	+1	1109501..1110598	+	365	18309891	eutH	CPE0909	-	ethanolamine utilization protein
910	 31.01	0	1110601..1111074	+	157	18309892	eutQ	CPE0910	-	ethanolamine utilization protein
911	 28.30	0	1111442..1111918	+	158	18309893	bsaA	CPE0911	-	glutathione peroxidase
912	 26.56	0	1112351..1112896	+	181	18309894	-	CPE0912	-	hypothetical protein
913	 27.24	0	1113188..1113499	+	103	18309895	-	CPE0913	-	hypothetical protein
914	 23.95	-1	1113813..1115453	+	546	18309896	-	CPE0914	-	hypothetical protein
915	 34.30	+1	1115535..1116155	+	206	18309897	-	CPE0915	-	NADPH-dependent FMN reductase
916	 31.22	0	1116597..1117022	+	141	18309898	-	CPE0916	-	hypothetical protein
917	 29.30	0	1117404..1119164	+	586	18309899	nrdD	CPE0917	-	anaerobic ribonucleoside triphosphate reductase
918	 29.14	0	1119215..1119619	+	134	18309900	-	CPE0918	-	hypothetical protein
919	 25.03	-1	1119814..1120536	+	240	18309901	-	CPE0919	-	hypothetical protein
920	 17.81	-2	1120741..1120959	-	72	18309902	-	CPE0920	-	hypothetical protein
921	 27.62	0	1121179..1121721	+	180	18309903	-	CPE0921	-	nitroreductase family protein
922	 25.52	-1	1122001..1122627	+	208	18309904	-	CPE0922	-	hypothetical protein
923	 28.02	0	1122654..1123067	+	137	18309905	-	CPE0923	-	hypothetical protein
924	 26.35	0	1123136..1123966	+	276	18309906	-	CPE0924	-	metallo-beta-lactamase family protein
925	 19.21	-2	1124142..1124318	+	58	18309907	-	CPE0925	-	hypothetical protein
926	 32.20	0	1124547..1125251	+	234	18309908	glpF	CPE0926	-	glycerol uptake facilitator protein
927	 28.87	0	1125438..1126670	+	410	18309909	-	CPE0927	-	sensor histidine kinase
928	 27.62	0	1126690..1127442	+	250	18309910	-	CPE0928	-	two-component response regulator
929	 35.20	+1	1127780..1129444	+	554	18309911	-	CPE0929	-	coenzyme B12-dependent glycerol dehydrogenase large subunit
930	 31.41	0	1129452..1130024	+	190	18309912	-	CPE0930	-	coenzyme B12-dependent glycerol dehydrogenase medium subunit
931	 31.22	0	1130044..1130469	+	141	18309913	-	CPE0931	-	coenzyme B12-dependent glycerol dehydrogenase small subunit
932	 33.33	+1	1130486..1132336	+	616	18309914	-	CPE0932	-	glycerol dehydratase reactivation factor, large subunit
933	 28.49	0	1132329..1132679	+	116	18309915	-	CPE0933	-	glycerol dehydratase reactivation factor, small subunit
934	 30.60	0	1132698..1133210	+	170	18309916	-	CPE0934	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
