IslandPath Analysis: Clostridium perfringens str. 13

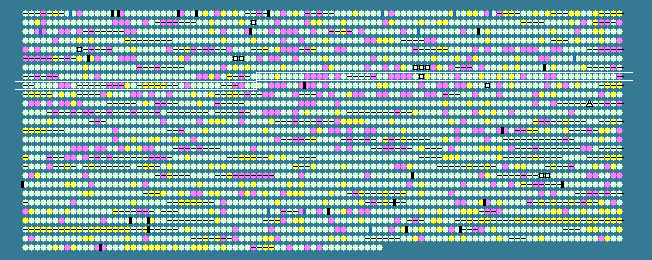

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
740	 26.73	0	916727..917059	+	110	18309722	-	CPE0740	-	hypothetical protein
741	 26.73	0	917086..918297	+	403	18309723	-	CPE0741	-	cytochrome C-type biogenesis protein
742	 26.77	0	918827..920548	+	573	18309724	lipB	CPE0742	-	lipase
743	 32.78	+1	921005..922456	+	483	18309725	cstA	CPE0743	-	carbon starvation protein CstA
744	 31.35	0	922600..922902	+	100	18309726	-	CPE0744	-	hypothetical protein
745	 27.57	0	922990..923544	-	184	18309727	-	CPE0745	-	hypothetical protein
746	 31.62	0	923942..924643	+	233	18309728	-	CPE0746	-	ABC transporter ATP-binding protein
747	 29.10	0	924660..928058	+	1132	18309729	-	CPE0747	-	hypothetical protein
748	 24.04	-1	928284..928649	+	121	18309730	-	CPE0748	-	hypothetical protein
749	 22.98	-1	928856..929869	+	337	18309731	-	CPE0749	-	hypothetical protein
750	 22.87	-1	929956..930366	+	136	18309732	-	CPE0750	-	hypothetical protein
751	 20.47	-2	930503..930673	+	56	18309733	-	CPE0751	-	hypothetical protein
752	 26.84	0	930915..931253	+	112	18309734	-	CPE0752	-	hypothetical protein
753	 20.00	-2	931305..932249	+	314	18309735	-	CPE0753	-	hypothetical protein
754	 27.50	0	932386..933843	-	485	18309736	clsC	CPE0754	-	cardiolipin synthetase
755	 27.07	0	934078..934572	+	164	18309737	-	CPE0755	-	hypothetical protein
756	 30.01	0	934665..935927	-	420	18309738	-	CPE0756	-	cytosine deaminase
757	 32.54	0	936375..937130	+	251	18309739	-	CPE0757	-	creatinase
758	 28.80	0	937179..938105	+	308	18309740	-	CPE0758	-	hypothetical protein
759	 25.50	-1	938231..939430	-	399	18309741	-	CPE0759	-	hypothetical protein
760	 29.20	0	939619..940029	+	136	18309742	def	CPE0760	-	peptide deformylase
761	 31.91	0	940362..941627	-	421	18309743	gltT	CPE0761	-	proton/sodium- glutamate symport protein
762	 25.54	-1	942203..942895	-	230	18309744	-	CPE0762	-	HAD superfamily (subfamily IA) hydrolase
763	 25.26	-1	943121..944074	+	317	18309745	-	CPE0763	-	hypothetical protein
764	 25.56	-1	944309..944938	-	209	18309746	-	CPE0764	-	hypothetical protein
765	 22.64	-1	945090..945893	+	267	18309747	-	CPE0765	-	transcriptional regulator
766	 28.24	0	946053..947447	-	464	18309748	-	CPE0766	-	hypothetical protein
767	 25.92	0	947568..948767	-	399	18309749	-	CPE0767	-	IS1136 transposase
768	 33.33	+1	949320..949475	+	51	18309750	-	CPE0768	-	hypothetical protein
769	 29.01	0	949815..951179	+	454	18309751	gutA	CPE0769	-	sugar transport protein
770	 28.21	0	951402..952241	-	279	18309752	-	CPE0770	-	transcriptional regulator
771	 27.66	0	952605..955634	+	1009	18309753	bgaL	CPE0771	-	beta-galactosidase
772	 30.52	0	955777..957018	-	413	18309754	-	CPE0772	-	hypothetical protein
773	 19.61	-2	957162..957314	-	50	18309755	-	CPE0773	-	hypothetical protein
774	 26.51	0	957776..958522	+	248	18309756	-	CPE0774	-	hypothetical protein
775	 26.47	0	958700..959398	+	232	18309757	-	CPE0775	-	hypothetical protein
776	 27.21	0	959551..960252	+	233	18309758	-	CPE0776	-	transcriptional regulator
777	 32.72	+1	960510..960671	-	53	18309759	rubR1	CPE0777	-	rubredoxin
778	 26.91	0	961274..962020	+	248	18309760	-	CPE0778	-	flavohemoprotein
779	 27.57	0	962239..962949	+	236	18309761	-	CPE0779	-	transcriptional regulator
780	 35.19	+1	963004..963165	-	53	18309762	rubR2	CPE0780	-	rubredoxin
781	 25.80	0	963192..964412	-	406	18309763	-	CPE0781	-	metallo-beta-lactamase family protein
782	 32.98	+1	964622..965191	+	189	18309764	-	CPE0782	-	alkyl hydrogen peroxide reductase
783	 31.36	0	965438..967108	+	556	18309765	-	CPE0783	-	thioredoxin reductase
784	 25.42	-1	967229..968935	-	568	18309766	vgaB	CPE0784	-	ABC transporter
785	 31.54	0	969653..970711	+	352	18309767	pfoS/R	CPE0785	-	regulatory protein
786	 31.50	0	970747..971673	+	308	18309768	apbA	CPE0786	-	2-dehydropantoate 2-reductase
787	 28.17	0	971936..972361	+	141	18309769	-	CPE0787	-	MarR family transcriptional regulator
788	 24.80	-1	972580..973083	+	167	18309770	-	CPE0788	-	hypothetical protein
789	 24.10	-1	973186..973629	+	147	18309771	-	CPE0789	-	transcriptional regulator
790	 30.95	0	973712..974593	+	293	18309772	-	CPE0790	-	pirin-like protein
791	 27.14	0	974627..975223	+	198	18309773	-	CPE0791	-	NAD(P)H dehydrogenase
792	 30.28	0	975399..976349	-	316	18309774	-	CPE0792	-	iron(III) dicitrate ABC transporter
793	 29.55	0	976479..977483	+	334	18309775	-	CPE0793	-	iron(III) dicitrate ABC transporter
794	 27.86	0	977483..978505	+	340	18309776	-	CPE0794	-	iron(III) dicitrate ABC transporter
795	 27.11	0	978511..979281	+	256	18309777	-	CPE0795	-	iron(III) dicitrate ABC transporter
796	 29.84	0	979635..980150	+	171	18309778	-	CPE0796	-	MutT/nudix family protein
797	 27.84	0	980300..980881	-	193	18309779	-	CPE0797	-	PAP2 family protein
798	 27.40	0	981105..981845	+	246	18309780	-	CPE0798	-	hypothetical protein
799	 26.83	0	982027..983271	+	414	18309781	-	CPE0799	-	hypothetical protein
800	 22.92	-1	983406..983933	-	175	18309782	-	CPE0800	-	hypothetical protein
801	 26.71	0	984452..984919	+	155	18309783	-	CPE0801	-	hypothetical protein
802	 27.50	0	985047..985406	+	119	18309784	-	CPE0802	-	hypothetical protein
803	 28.04	0	985384..985761	+	125	18309785	-	CPE0803	-	hypothetical protein
804	 26.51	0	985945..987819	+	624	18309786	-	CPE0804	-	sensory box protein/histidinol phosphate phosphatase family protein
805	 30.28	0	988114..989946	+	610	18309787	-	CPE0805	-	cyclomaltodextrinase
806	 30.76	0	990191..991474	+	427	18309788	-	CPE0806	-	hypothetical protein
807	 22.62	-1	991753..992256	-	167	18309789	-	CPE0807	-	hypothetical protein
808	 23.26	-1	992576..993121	+	181	18309790	-	CPE0808	-	hypothetical protein
809	 27.86	0	993161..993781	-	206	18309791	-	CPE0809	-	hypothetical protein
810	 32.17	0	994044..994988	+	314	18309792	fhuD	CPE0810	-	iron(III) dicitrate ABC transporter
811	 32.54	0	995087..996100	+	337	18309793	fhuB	CPE0811	-	ferrichrome ABC transporter
812	 28.90	0	996104..997117	+	337	18309794	fhuG	CPE0812	-	ferrichrome ABC transporter
813	 31.93	0	997182..997964	+	260	18309795	fhuC	CPE0813	-	ferrichrome ABC transporter
814	 26.58	0	998264..998752	+	162	18309796	-	CPE0814	-	GNAT family acetyltransferase
815	 25.46	-1	998829..999044	+	71	18309797	-	CPE0815	-	hypothetical protein
816	 20.75	-2	999037..999354	+	105	18309798	-	CPE0816	-	hypothetical protein
817	 21.41	-2	999566..999892	-	108	18309799	-	CPE0817	-	hypothetical protein
818	 33.33	+1	1000306..1003689	+	1127	18309800	-	CPE0818	-	endo-beta-N-acetylglucosaminidase
819	 28.16	0	1003890..1004798	+	302	18309801	ddl	CPE0819	-	D-alanine--D-alanine ligase
820	 26.69	0	1004945..1005772	+	275	18309802	-	CPE0820	-	hypothetical protein
821	 35.88	+1	1006099..1007079	+	326	18309803	-	CPE0821	-	PTS system
822	 37.56	+2	1007130..1007933	+	267	18309804	-	CPE0822	-	PTS system, mannose/fructose/sorbose family, IIC component
823	 35.77	+1	1007953..1008444	+	163	18309805	-	CPE0823	-	PTS system
824	 33.55	+1	1008407..1008865	+	152	18309806	-	CPE0824	-	PTS system
825	 29.07	0	1009036..1009410	+	124	18309807	-	CPE0825	-	hypothetical protein
826	 28.17	0	1009782..1010033	+	83	18309808	-	CPE0826	-	hypothetical protein
827	 30.61	0	1010354..1011271	+	305	18309809	-	CPE0827	-	polysaccharide deacetylase family protein
828	 22.61	-1	1011728..1012510	+	260	18309810	-	CPE0828	-	hypothetical protein
829	 25.90	0	1012767..1013708	+	313	18309811	-	CPE0829	-	hypothetical protein
830	 27.29	0	1013773..1015128	-	451	18309812	-	CPE0830	-	hypothetical protein
831	 29.19	0	1015357..1017771	+	804	18309813	bgaL	CPE0831	-	beta-galactosidase
832	 29.98	0	1018565..1019518	+	317	18309814	-	CPE0832	-	hypothetical protein
833	 28.50	0	1020041..1021861	+	606	18309815	-	CPE0833	-	ABC transporter
834	 27.30	0	1021861..1023651	+	596	18309816	-	CPE0834	-	ABC transporter
835	 29.72	0	1023868..1024365	+	165	18309817	-	CPE0835	-	hypothetical protein
836	 24.98	-1	1024374..1026002	+	542	18309818	-	CPE0836	-	hypothetical protein
837	 25.61	-1	1026369..1026653	+	94	18309819	-	CPE0837	-	transcriptional regulator
838	 31.58	0	1026771..1027169	+	132	18309820	-	CPE0838	-	arsenate reductase ArsC
839	 30.07	0	1027186..1028502	+	438	18309821	-	CPE0839	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
