IslandPathversion 1.0

IslandPath Analysis: Clostridium perfringens str. 13

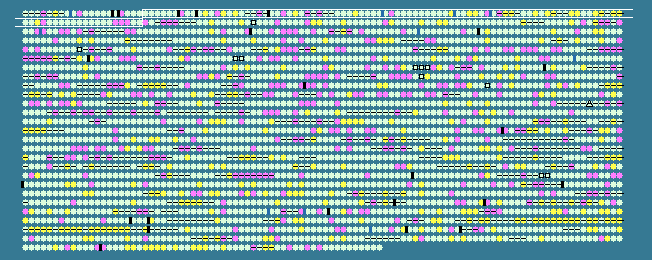

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
21	 29.05	0	29582..33388	+	1268	18309003	addA	CPE0021	-	ATP-dependent deoxyribonuclease chain A
22	 25.80	0	33646..34920	-	424	18309004	papS	CPE0022	-	polyA polymerase family protein
23	 30.21	0	35030..36022	+	330	18309005	-	CPE0023	-	CMP-binding factor
24	 26.70	0	36054..37214	-	386	18309006	-	CPE0024	-	ErfK/YbiS/YcfS/YnhG family protein
25	 30.96	0	37407..38627	+	406	18309007	pepT	CPE0025	-	peptidase T
26	 30.37	0	38733..39608	-	291	18309008	-	CPE0026	-	degV family protein
27	 24.56	-1	40045..41184	+	379	18309009	-	CPE0027	-	hypothetical protein
28	 28.02	0	41300..42184	-	294	18309010	psdD	CPE0028	-	phosphatidylserine decarboxylase
29	 25.79	0	42348..42917	+	189	18309011	-	CPE0029	-	TetR family transcriptional regulator
30	 30.17	0	43192..44457	+	421	18309012	hlyA	CPE0030	-	hemolysin-related protein
31	 34.26	+1	44460..44891	+	143	18309013	-	CPE0031	-	cytidine/deoxycytidylate deaminase family protein
32	 27.23	0	44954..45412	+	152	18309014	-	CPE0032	-	hypothetical protein
33	 21.31	-2	45536..45901	+	121	18309015	-	CPE0033	-	hypothetical protein
34	 35.14	+1	46011..46673	+	220	18309016	-	CPE0034	-	hypothetical protein
35	 31.77	0	46787..48259	-	490	18309017	yplC	CPE0035	-	hypothetical protein
36	 33.17	+1	48590..49786	+	398	18309018	plc	CPE0036	-	phospholipase C
37	 27.40	0	49974..50900	+	308	18309019	cobW	CPE0037	-	CobW/P47K family protein
38	 26.67	0	50920..51504	+	194	18309020	-	CPE0038	-	hypothetical protein
39	 29.42	0	51507..52400	+	297	18309021	-	CPE0039	-	hypothetical protein
40	 25.00	-1	52413..53132	+	239	18309022	-	CPE0040	-	hypothetical protein
41	 29.66	0	53398..54186	+	262	18309023	-	CPE0041	-	prolipoprotein diacylglyceryl transferase
42	 27.58	0	54959..55462	+	167	18309024	-	CPE0042	-	putative lipoprotein
43	 29.99	0	55899..57185	+	428	18309025	brnQ	CPE0043	-	branched chain amino acid ABC transporter carrier protein
44	 22.63	-1	57339..57824	-	161	18309026	folA	CPE0044	-	dihydrofolate reductase
45	 30.35	0	58015..59658	+	547	18309027	dnaX	CPE0045	-	DNA polymerase III subunits gamma and tau
46	 38.35	+2	59770..60108	+	112	18309028	-	CPE0046	-	hypothetical protein
47	 32.50	0	60206..60802	+	198	18309029	recR	CPE0047	-	recombination protein RecR
48	 25.45	-1	61028..61306	+	92	18309030	-	CPE0048	-	hypothetical protein
49	 27.60	0	61322..61600	+	92	18309031	-	CPE0049	-	hypothetical protein
50	 23.25	-1	61875..63005	+	376	18309032	-	CPE0050	-	hypothetical protein
51	 30.00	0	63169..63348	+	59	18309033	-	CPE0051	-	hypothetical protein
52	 30.05	0	63417..63599	+	60	18309034	-	CPE0052	-	hypothetical protein
53	 29.99	0	63763..64839	+	358	18309035	-	CPE0053	-	aminotransferase, class V
54	 28.26	0	64908..65813	+	301	18309036	serA	CPE0054	-	putative D-3-phosphoglycerate dehydrogenase
55	 26.89	0	65960..67216	+	418	18309037	-	CPE0055	-	hypothetical protein
56	 34.34	+1	67272..67967	-	231	18309038	mtn	CPE0056	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
57	 31.36	0	68347..69108	+	253	18309039	-	CPE0057	-	HesA/MoeB/ThiF family protein
58	 29.56	0	69399..70565	+	388	18309040	-	CPE0058	-	hypothetical protein
59	 26.30	0	70590..71528	+	312	18309041	-	CPE0059	-	GNAT family acetyltransferase
60	 29.40	0	71545..72231	+	228	18309042	dgk2	CPE0060	-	deoxyguanosine kinase
61	 31.90	0	78534..79856	+	440	18309043	-	CPE0061	-	integral membrane transport protein
62	 21.33	-2	79983..80132	+	49	18309044	-	CPE0062	-	hypothetical protein
63	 28.69	0	80480..82504	+	674	18309045	glgB	CPE0063	-	glycogen branching enzyme
64	 29.54	0	82532..83980	+	482	18309046	glgA	CPE0064	-	glycogen synthase
65	 30.46	0	84010..86445	+	811	18309047	glgP	CPE0065	-	glycogen phosphorylase
66	 28.61	0	86541..88361	+	606	18309048	-	CPE0066	-	amylopullulanase
67	 28.83	0	88416..88859	+	147	18309049	-	CPE0067	-	hypothetical protein
68	 30.03	0	89069..90250	+	393	18309050	glgC	CPE0068	-	glucose-1-phosphate adenylyltransferase
69	 26.11	0	90280..91386	+	368	18309051	glgD	CPE0069	-	glycogen biosynthesis protein
70	 26.62	0	91449..91895	+	148	18309052	-	CPE0070	-	phosphotransbutyrylase
71	 26.96	0	92062..93504	-	480	18309053	clsA	CPE0071	-	cardiolipin synthase
72	 34.17	+1	93936..95492	+	518	18309054	-	CPE0072	-	hypothetical protein
73	 26.32	0	101425..102009	+	194	18309055	-	CPE0073	-	transcription antiterminator
74	 27.51	0	101897..102274	+	125	18309056	-	CPE0074	-	transcription antiterminator
75	 35.66	+1	102497..102754	-	85	18309057	-	CPE0075	-	hypothetical protein
76	 33.09	+1	103447..104664	+	405	18309058	-	CPE0076	-	PTS system, N-acetylglucosamine-specific IIBC component
77	 28.49	0	104712..104897	+	61	18309059	-	CPE0077	-	hypothetical protein
78	 23.31	-1	104966..105484	-	172	18309060	-	CPE0078	-	TetR family transcriptional regulator
79	 30.80	0	111585..113675	+	696	18309061	fus	CPE0079	-	elongation factor G
80	 24.05	-1	114098..114334	+	78	18309062	-	CPE0080	-	hypothetical protein
81	 35.55	+1	114586..115533	+	315	18309063	glcK	CPE0081	-	glucose kinase
82	 37.57	+2	116074..116616	+	180	18309064	-	CPE0082	-	hypothetical protein
83	 26.60	0	116949..117572	+	207	18309065	gpmA	CPE0083	-	phosphoglycerate mutase family protein
84	 26.72	0	117931..118701	-	256	18309066	iolR	CPE0084	-	transcription repressor of myo-inositol catabolism operon
85	 32.38	0	119183..120337	+	384	18309067	mdh	CPE0085	-	alcohol dehydrogenase
86	 34.87	+1	120344..121189	+	281	18309068	alf1	CPE0086	-	fructose-bisphosphate aldolase
87	 32.25	0	121203..122219	+	338	18309069	iolC	CPE0087	-	myo-inositol catabolism protein
88	 32.94	+1	122233..123000	+	255	18309070	iolB	CPE0088	-	myo-inositol catabolism protein
89	 34.11	+1	123017..124936	+	639	18309071	iolD	CPE0089	-	myo-inositol catabolism protein
90	 31.75	0	125006..126013	+	335	18309072	-	CPE0090	-	dehydrogenase
91	 30.20	0	126132..127025	+	297	18309073	iolE	CPE0091	-	myo-inositol catabolism protein
92	 32.70	+1	127107..128696	+	529	18309074	-	CPE0092	-	putative symporter YidK
93	 32.67	+1	128783..129832	+	349	18309075	-	CPE0093	-	dehydrogenase
94	 31.75	0	130202..130960	+	252	18309076	-	CPE0094	-	hypothetical protein
95	 32.56	0	131191..131967	+	258	18309077	-	CPE0095	-	crotonase
96	 35.27	+1	132070..133620	+	516	18309078	-	CPE0096	-	propionate CoA-transferase
97	 33.51	+1	133724..134860	+	378	18309079	acdS	CPE0097	-	acyl-CoA dehydrogenase
98	 28.77	0	135262..135612	-	116	18309080	-	CPE0098	-	hypothetical protein
99	 33.86	+1	136190..137320	+	376	18309081	gldA	CPE0099	-	glycerol dehydrogenase
100	 33.10	+1	137346..139094	+	582	18309082	-	CPE0100	-	dihydroxyacetone kinase
101	 30.54	0	139454..140887	+	477	18309083	-	CPE0101	-	multidrug resistance protein
102	 28.21	0	141164..141436	+	90	18309084	-	CPE0102	-	hypothetical protein
103	 32.70	+1	141837..142790	-	317	18309085	ldh	CPE0103	-	L-lactate dehydrogenase
104	 23.04	-1	143416..144591	+	391	18309086	-	CPE0104	-	hypothetical protein
105	 27.40	0	144710..145147	+	145	18309087	-	CPE0105	-	hypothetical protein
106	 27.80	0	145358..146098	+	246	18309088	-	CPE0106	-	hypothetical protein
107	 26.12	0	146210..147082	+	290	18309089	-	CPE0107	-	hypothetical protein
108	 30.84	0	147218..148582	-	454	18309090	-	CPE0108	-	GTP-binding protein
109	 27.02	0	149310..149594	-	94	18309091	-	CPE0109	-	hypothetical protein
110	 31.50	0	150273..151694	-	473	18309092	thiH	CPE0110	-	thiamine biosynthesis protein ThiH
111	 32.14	0	151800..152051	-	83	18309093	-	CPE0111	-	hypothetical protein
112	 30.33	0	152495..154060	+	521	18309094	-	CPE0112	-	hypothetical protein
113	 31.58	0	154209..154436	+	75	18309095	-	CPE0113	-	hypothetical protein
114	 28.00	0	154720..154944	+	74	18309096	-	CPE0114	-	hypothetical protein
115	 27.92	0	155002..155943	-	313	18309097	-	CPE0115	-	N-acetylmuramoyl-L-alanine amidase
116	 23.08	-1	155956..157116	-	386	18309098	-	CPE0116	-	hypothetical protein
117	 24.94	-1	157128..158378	-	416	18309099	-	CPE0117	-	hypothetical protein
118	 22.60	-1	158494..159294	+	266	18309100	-	CPE0118	-	hypothetical protein
119	 29.22	0	159434..160114	+	226	18309101	-	CPE0119	-	two-component response regulator
120	 26.92	0	160111..161124	+	337	18309102	-	CPE0120	-	two-component sensor histidine kinase
29.13	MEAN

3.46	STD DEV
