IslandPathversion 1.0

IslandPath Analysis: Clostridium perfringens str. 13

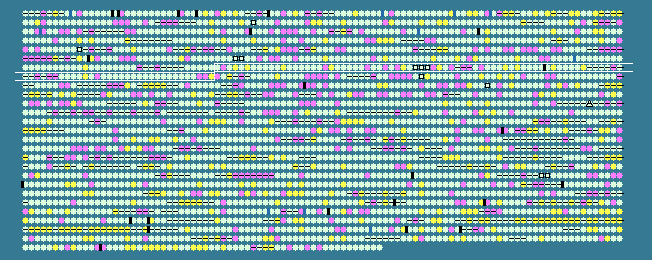

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
633	 31.03	0	794912..795910	+	332	18309615	trpS	CPE0633	-	tryptophanyl-tRNA synthetase
634	 21.85	-2	796572..797111	+	179	18309616	-	CPE0634	-	hypothetical protein
635	 29.74	0	797206..798318	+	370	18309617	-	CPE0635	-	anaerobic sulfatase-maturase
636	 33.81	+1	798746..799576	+	276	18309618	-	CPE0636	-	phosphate ABC transporter phosphate-binding protein
637	 32.48	0	799800..800618	+	272	18309619	-	CPE0637	-	phosphate ABC transporter phosphate-binding protein
638	 32.77	+1	800700..801587	+	295	18309620	-	CPE0638	-	phosphate ABC transporter permease
639	 31.64	0	801590..802414	+	274	18309621	-	CPE0639	-	phosphate ABC transporter permease
640	 31.50	0	802432..803193	+	253	18309622	-	CPE0640	-	phosphate ABC transporter ATP-binding protein
641	 27.06	0	803218..803871	+	217	18309623	phoU	CPE0641	-	phosphate transporter PhoU
642	 27.73	0	804031..804726	+	231	18309624	-	CPE0642	-	DNA-binding response regulator
643	 27.08	0	804897..805520	-	207	18309625	-	CPE0643	-	hypothetical protein
644	 34.29	+1	805554..805970	-	138	18309626	flaV	CPE0644	-	flavodoxin
645	 31.53	0	806384..808042	-	552	18309627	gltX	CPE0645	-	glutaminyl-tRNA synthetase
646	 32.05	0	808295..808450	-	51	18309628	-	CPE0646	-	hypothetical protein
647	 25.90	0	808605..809693	-	362	18309629	-	CPE0647	-	hypothetical protein
648	 30.03	0	809789..811210	+	473	18309630	gerKA	CPE0648	-	spore germination protein KA
649	 28.00	0	811185..812309	+	374	18309631	gerBC	CPE0649	-	spore germination protein B3
650	 26.90	0	812504..813637	+	377	18309632	-	CPE0650	-	AAA domain family protein
651	 25.36	-1	813713..814126	+	137	18309633	-	CPE0651	-	hypothetical protein
652	 32.92	+1	814422..815642	+	406	18309634	tyrS	CPE0652	-	tyrosyl-tRNA synthetase
653	 30.16	0	816062..816754	+	230	18309635	-	CPE0653	-	Ser/Thr protein phosphatase family protein
654	 28.79	0	816873..817664	+	263	18309636	relA	CPE0654	-	relA/spoT family protein
655	 28.50	0	817937..818722	+	261	18309637	-	CPE0655	-	hypothetical protein
656	 29.39	0	818840..819955	+	371	18309638	-	CPE0656	-	hypothetical protein
657	 28.85	0	819969..821306	+	445	18309639	-	CPE0657	-	hypothetical protein
658	 24.35	-1	821464..822855	+	463	18309640	-	CPE0658	-	hypothetical protein
659	 31.46	0	823205..824698	+	497	18309641	-	CPE0659	-	hypothetical protein
660	 28.10	0	824764..825528	+	254	18309642	-	CPE0660	-	4Fe-4S binding domain protein/radical SAM domain protein
661	 24.03	-1	825828..826343	+	171	18309643	-	CPE0661	-	hypothetical protein
662	 27.74	0	826452..827255	-	267	18309644	-	CPE0662	-	hypothetical protein
663	 24.87	-1	827578..828888	-	436	18309645	-	CPE0663	-	F5/8 type C domain protein
664	 34.20	+1	829607..829951	-	114	18309646	-	CPE0664	-	hypothetical protein
665	 28.42	0	830406..831137	+	243	18309647	-	CPE0665	-	hypothetical protein
666	 28.57	0	831185..831457	+	90	18309648	-	CPE0666	-	transposase
667	 31.64	0	831468..831821	+	117	18309649	-	CPE0667	-	transposase
668	 29.85	0	831763..832623	+	286	18309650	-	CPE0668	-	transposase
669	 25.20	-1	832865..833872	+	335	18309651	-	CPE0669	-	hypothetical protein
670	 33.41	+1	834018..836468	-	816	18309652	leuS	CPE0670	-	leucyl-tRNA synthetase
671	 27.81	0	837243..837803	-	186	18309653	-	CPE0671	-	hypothetical protein
672	 23.97	-1	838095..838457	+	120	18309654	-	CPE0672	-	hypothetical protein
673	 30.80	0	838662..839648	+	328	18309655	birA	CPE0673	-	bifunctional biotin operon repressor/biotin--[acetyl-CoA-carboxylase] synthetase
674	 24.40	-1	839807..840892	+	361	18309656	-	CPE0674	-	HRDC domain protein
675	 16.67	-2	840894..841061	+	55	18309657	-	CPE0675	-	hypothetical protein
676	 26.94	0	841162..841896	+	244	18309658	-	CPE0676	-	hypothetical protein
677	 23.86	-1	842086..842391	+	101	18309659	-	CPE0677	-	hypothetical protein
678	 29.34	0	842638..843288	+	216	18309660	dut	CPE0678	-	deoxyuridine 5`-triphosphate nucleotidohydrolase
679	 31.58	0	843791..845101	+	436	18309661	thiC	CPE0679	-	thiamine biosynthesis protein ThiC
680	 31.86	0	845339..849139	+	1266	18309662	purL	CPE0680	-	phosphoribosylformylglycinamidine synthase
681	 33.54	+1	849450..849929	+	159	18309663	purE	CPE0681	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
682	 28.95	0	849929..850636	+	235	18309664	purC	CPE0682	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
683	 34.23	+1	850658..852103	+	481	18309665	purF	CPE0683	-	amidophosphoribosyltransferase
684	 31.64	0	852104..853105	+	333	18309666	purM	CPE0684	-	phosphoribosylaminoimidazole synthetase
685	 30.08	0	853093..853707	+	204	18309667	purN	CPE0685	-	phosphoribosylglycinamide formyltransferase
686	 30.94	0	853720..855225	+	501	18309668	purH	CPE0686	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
687	 30.63	0	855632..856591	+	319	18309669	purD	CPE0687	-	phosphoribosylamine-glycine ligase
688	 31.68	0	857504..857866	+	120	18309670	-	CPE0688	-	hypothetical protein
689	 34.62	+1	858399..858941	+	180	18309671	-	CPE0689	-	hypothetical protein
690	 28.34	0	859074..860474	-	466	18309672	argH	CPE0690	-	argininosuccinate lyase
691	 29.80	0	860568..861785	-	405	18309673	argG	CPE0691	-	argininosuccinate synthase
692	 31.79	0	862390..863037	+	215	18309674	-	CPE0692	-	putative translaldolase
693	 32.23	0	863437..868497	+	1686	18309675	-	CPE0693	-	hypothetical protein
694	 34.71	+1	868969..869982	+	337	18309676	-	CPE0694	-	3-deoxy-7-phosphoheptulonate synthase
695	 28.58	0	870079..871131	+	350	18309677	aroB	CPE0695	-	3-dehydroquinate synthase
696	 28.63	0	871378..872652	+	424	18309678	aroA	CPE0696	-	3-phosphoshikimate 1-carboxyvinyltransferase
697	 32.31	0	872716..873789	+	357	161485643	aroC	CPE0697	-	chorismate synthase
698	 27.21	0	873958..874251	+	97	18309680	-	CPE0698	-	chorismate mutase
699	 18.95	-2	874579..874731	+	50	18309681	-	CPE0699	-	hypothetical protein
700	 28.80	0	875075..875890	+	271	18309682	aroE	CPE0700	-	shikimate 5-dehydrogenase
701	 30.43	0	876144..876659	+	171	18309683	aroK	CPE0701	-	shikimate kinase
702	 29.48	0	876855..877295	+	146	18309684	aroQ	CPE0702	-	3-dehydroquinate dehydratase
703	 23.64	-1	877378..877893	+	171	18309685	-	CPE0703	-	hypothetical protein
704	 27.93	0	878020..878352	+	110	18309686	-	CPE0704	-	30S ribosomal protein
705	 23.89	-1	878354..879211	+	285	18309687	-	CPE0705	-	hypothetical protein
706	 22.54	-1	879423..880265	+	280	18309688	-	CPE0706	-	hypothetical protein
707	 29.74	0	880391..881281	+	296	18309689	-	CPE0707	-	ABC transporter
708	 28.22	0	881283..882494	+	403	18309690	-	CPE0708	-	hypothetical protein
709	 27.47	0	882605..883594	+	329	18309691	cbh	CPE0709	-	choloylglycine hydrolase
710	 32.51	0	884390..884872	+	160	18309692	-	CPE0710	-	AsnC family transcriptional regulator
711	 33.59	+1	884869..886047	+	392	18309693	aspC	CPE0711	-	aspartate aminotransferase
712	 27.00	0	886162..887187	+	341	18309694	-	CPE0712	-	hypothetical protein
713	 20.43	-2	887244..887708	-	154	18309695	-	CPE0713	-	hypothetical protein
714	 27.30	0	887767..888909	-	380	18309696	-	CPE0714	-	hypothetical protein
715	 26.36	0	889388..889903	+	171	18309697	-	CPE0715	-	GNAT family acetyltransferase
716	 27.94	0	890124..890642	+	172	18309698	sigW	CPE0716	-	RNA polymerase ECF-type sigma factor
717	 26.11	0	890718..892130	+	470	18309699	-	CPE0717	-	hypothetical protein
718	 28.43	0	892351..893553	+	400	18309700	-	CPE0718	-	DHHA1 domain protein
719	 25.67	0	893608..894612	+	334	18309701	-	CPE0719	-	capsular polysaccharide biosynthesis protein
720	 29.34	0	894764..895939	+	391	18309702	-	CPE0720	-	hypothetical protein
721	 31.59	0	896376..897233	+	285	18309703	-	CPE0721	-	zinc transporter ZupT
722	 27.45	0	897523..898185	+	220	18309704	-	CPE0722	-	DeoR family transcriptional regulator
723	 28.64	0	898316..899104	+	262	18309705	-	CPE0723	-	HAD hydrolase, IIB family
724	 27.02	0	899303..900331	+	342	18309706	splB	CPE0724	-	spore photoproduct lyase
725	 28.63	0	900997..903081	+	694	18309707	nanI	CPE0725	-	exo-alpha-sialidase
726	 30.65	0	903129..904283	+	384	18309708	-	CPE0726	-	hypothetical protein
727	 29.00	0	904693..905499	+	268	18309709	-	CPE0727	-	hypothetical protein
728	 31.18	0	905664..905942	+	92	18309710	-	CPE0728	-	hypothetical protein
729	 29.94	0	905890..906390	+	166	18309711	-	CPE0729	-	hypothetical protein
730	 25.16	-1	906584..907048	+	154	18309712	-	CPE0730	-	hypothetical protein
731	 25.42	-1	907404..907580	+	58	18309713	-	CPE0731	-	hypothetical protein
732	 33.16	+1	907833..908408	+	191	18309714	-	CPE0732	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
