IslandPath Analysis: Clostridium perfringens str. 13

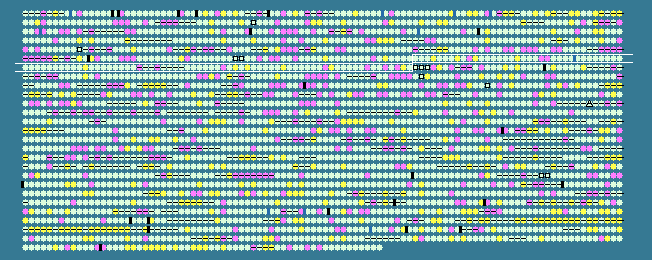

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
566	 28.07	0	704572..705672	+	366	18309548	ribB	CPE0566	-	riboflavin biosynthesis protein RibD
567	 28.75	0	705691..706344	+	217	18309549	risA	CPE0567	-	riboflavin synthase subunit alpha
568	 32.11	0	706550..707695	+	381	18309550	ribA	CPE0568	-	riboflavin biosynthesis protein RibA
569	 33.98	+1	707810..708271	+	153	18309551	ribH	CPE0569	-	riboflavin synthase subunit beta
570	 30.93	0	708394..709266	-	290	18309552	-	CPE0570	-	hypothetical protein
571	 29.17	0	709370..709777	-	135	18309553	-	CPE0571	-	hypothetical protein
572	 29.55	0	710160..710423	+	87	18309554	-	CPE0572	-	hypothetical protein
573	 32.70	+1	710699..712918	+	739	18309555	-	CPE0573	-	hypothetical protein
574	 26.35	0	713265..714854	+	529	18309556	-	CPE0574	-	sensor histidine kinase
575	 25.60	-1	714866..716455	+	529	18309557	-	CPE0575	-	DNA-binding response regulator, AraC family
576	 34.20	+1	716608..717993	+	461	18309558	-	CPE0576	-	ABC transporter
577	 31.62	0	718072..719007	+	311	18309559	-	CPE0577	-	ABC transporter permease
578	 31.05	0	719139..719882	+	247	18309560	-	CPE0578	-	ABC transporter
579	 31.18	0	720118..720813	+	231	18309561	-	CPE0579	-	DedA family protein
580	 26.61	0	720785..721915	+	376	18309562	-	CPE0580	-	iron-sulfur binding reductase
581	 25.68	0	722078..722665	+	195	18309563	-	CPE0581	-	hypothetical protein
582	 28.28	0	722951..723583	+	210	18309564	-	CPE0582	-	hypothetical protein
583	 34.33	+1	723576..724574	+	332	18309565	-	CPE0583	-	phosphate ABC transporter permease
584	 32.54	0	725006..726898	-	630	18309566	-	CPE0584	-	PTS system
585	 29.86	0	726902..727822	-	306	18309567	fruB	CPE0585	-	1-phosphofructokinase
586	 28.65	0	727822..728568	-	248	18309568	fruR	CPE0586	-	transcriptional regulator
587	 24.69	-1	728859..729182	+	107	18309569	-	CPE0587	-	hypothetical protein
588	 25.16	-1	729363..730463	-	366	18309570	-	CPE0588	-	permease
589	 26.52	0	730721..731380	+	219	18309571	-	CPE0589	-	isochorismatase family protein
590	 31.20	0	731757..733070	+	437	18309572	-	CPE0590	-	hypothetical protein
591	 29.00	0	733374..734297	+	307	18309573	-	CPE0591	-	glutaminase
592	 29.48	0	734586..735311	+	241	18309574	-	CPE0592	-	Mg2+ transporter
593	 28.86	0	741120..741812	+	230	18309575	sfsA	CPE0593	-	sugar fermentation stimulation protein A
594	 28.48	0	742291..742764	+	157	18309576	-	CPE0594	-	hydrolase, NUDIX family
595	 30.84	0	743070..744470	+	466	18309577	lysA	CPE0595	-	diaminopimelate decarboxylase
596	 29.21	0	744879..745145	+	88	18309578	-	CPE0596	-	hypothetical protein
597	 28.63	0	745148..745678	+	176	18309579	sipS	CPE0597	-	signal peptidase type I
598	 32.17	0	745703..747856	+	717	18309580	ftsH	CPE0598	-	ATP-dependent metalloprotease FtsH
599	 26.97	0	748076..750196	+	706	18309581	-	CPE0599	-	hypothetical protein
600	 31.18	0	750652..751488	+	278	18309582	-	CPE0600	-	amino acid ABC transporter
601	 30.51	0	751519..752190	+	223	18309583	-	CPE0601	-	amino acid ABC transporter
602	 30.15	0	752187..752909	+	240	18309584	-	CPE0602	-	amino acid ABC transporter
603	 28.91	0	753127..754935	+	602	18309585	-	CPE0603	-	hypothetical protein
604	 27.21	0	755187..757031	+	614	18309586	-	CPE0604	-	hypothetical protein
605	 28.26	0	757134..758315	-	393	18309587	-	CPE0605	-	cation efflux family protein
606	 31.18	0	758558..760465	+	635	18309588	entD	CPE0606	-	enterotoxin
607	 29.63	0	760607..761902	+	431	18309589	-	CPE0607	-	putative aminopeptidase 2
608	 30.26	0	761995..762189	-	64	18309590	-	CPE0608	-	hypothetical protein
609	 28.21	0	762581..763420	+	279	18309591	-	CPE0609	-	HAD hydrolase, IIB family
610	 28.83	0	763637..766966	-	1109	18309592	-	CPE0610	-	hypothetical protein
611	 33.21	+1	767227..768822	-	531	18309593	-	CPE0611	-	peptide chain release factor 3
612	 30.20	0	769036..769641	-	201	18309594	-	CPE0612	-	hypothetical protein
613	 29.84	0	770017..770817	+	266	18309595	-	CPE0613	-	hypothetical protein
614	 28.21	0	770858..771520	+	220	18309596	rfbP	CPE0614	-	undecaprenyl phosphate galactosephosphotransferase
615	 26.45	0	771521..772435	+	304	18309597	rfbN	CPE0615	-	rhamnosyl transferase
616	 31.63	0	772458..773339	+	293	18309598	rfbA	CPE0616	-	glucose-1-phosphate thymidylyltransferase
617	 30.23	0	773532..774014	+	160	18309599	rfbC	CPE0617	-	dTDP-4-dehydrorhamnose 3,5-epimerase
618	 29.04	0	774028..774912	+	294	18309600	rfbD	CPE0618	-	dTDP-4-dehydrorhamnose reductase
619	 29.71	0	774940..775989	+	349	18309601	rfbB	CPE0619	-	dTDP-glucose 4,6-dehydratase
620	 21.73	-2	776014..777228	+	404	18309602	-	CPE0620	-	hypothetical protein
621	 26.15	0	777225..778073	+	282	18309603	-	CPE0621	-	glycosyltransferase
622	 26.59	0	778167..778907	+	246	18309604	-	CPE0622	-	hypothetical protein
623	 23.48	-1	778916..780367	+	483	18309605	-	CPE0623	-	capsular polysaccharide synthesis protein
624	 29.46	0	780389..782812	+	807	18309606	-	CPE0624	-	hypothetical protein
625	 30.85	0	782941..784593	+	550	18309607	-	CPE0625	-	hypothetical protein
626	 28.72	0	784795..786159	+	454	18309608	-	CPE0626	-	hypothetical protein
627	 27.55	0	786364..788232	+	622	18309609	licA	CPE0627	-	choline kinase
628	 30.34	0	788258..789226	+	322	18309610	licB	CPE0628	-	lic-1 operon protein
629	 27.78	0	789373..790056	+	227	18309611	licC	CPE0629	-	lic-1 operon protein
630	 31.63	0	790175..791467	-	430	18309612	-	CPE0630	-	hypothetical protein
631	 30.29	0	791586..792605	-	339	18309613	-	CPE0631	-	PBP5 synthesis regulator protein
632	 29.88	0	792885..794159	-	424	18309614	brnQ	CPE0632	-	branched chain amino acid ABC transporter carrier protein
633	 31.03	0	794912..795910	+	332	18309615	trpS	CPE0633	-	tryptophanyl-tRNA synthetase
634	 21.85	-2	796572..797111	+	179	18309616	-	CPE0634	-	hypothetical protein
635	 29.74	0	797206..798318	+	370	18309617	-	CPE0635	-	anaerobic sulfatase-maturase
636	 33.81	+1	798746..799576	+	276	18309618	-	CPE0636	-	phosphate ABC transporter phosphate-binding protein
637	 32.48	0	799800..800618	+	272	18309619	-	CPE0637	-	phosphate ABC transporter phosphate-binding protein
638	 32.77	+1	800700..801587	+	295	18309620	-	CPE0638	-	phosphate ABC transporter permease
639	 31.64	0	801590..802414	+	274	18309621	-	CPE0639	-	phosphate ABC transporter permease
640	 31.50	0	802432..803193	+	253	18309622	-	CPE0640	-	phosphate ABC transporter ATP-binding protein
641	 27.06	0	803218..803871	+	217	18309623	phoU	CPE0641	-	phosphate transporter PhoU
642	 27.73	0	804031..804726	+	231	18309624	-	CPE0642	-	DNA-binding response regulator
643	 27.08	0	804897..805520	-	207	18309625	-	CPE0643	-	hypothetical protein
644	 34.29	+1	805554..805970	-	138	18309626	flaV	CPE0644	-	flavodoxin
645	 31.53	0	806384..808042	-	552	18309627	gltX	CPE0645	-	glutaminyl-tRNA synthetase
646	 32.05	0	808295..808450	-	51	18309628	-	CPE0646	-	hypothetical protein
647	 25.90	0	808605..809693	-	362	18309629	-	CPE0647	-	hypothetical protein
648	 30.03	0	809789..811210	+	473	18309630	gerKA	CPE0648	-	spore germination protein KA
649	 28.00	0	811185..812309	+	374	18309631	gerBC	CPE0649	-	spore germination protein B3
650	 26.90	0	812504..813637	+	377	18309632	-	CPE0650	-	AAA domain family protein
651	 25.36	-1	813713..814126	+	137	18309633	-	CPE0651	-	hypothetical protein
652	 32.92	+1	814422..815642	+	406	18309634	tyrS	CPE0652	-	tyrosyl-tRNA synthetase
653	 30.16	0	816062..816754	+	230	18309635	-	CPE0653	-	Ser/Thr protein phosphatase family protein
654	 28.79	0	816873..817664	+	263	18309636	relA	CPE0654	-	relA/spoT family protein
655	 28.50	0	817937..818722	+	261	18309637	-	CPE0655	-	hypothetical protein
656	 29.39	0	818840..819955	+	371	18309638	-	CPE0656	-	hypothetical protein
657	 28.85	0	819969..821306	+	445	18309639	-	CPE0657	-	hypothetical protein
658	 24.35	-1	821464..822855	+	463	18309640	-	CPE0658	-	hypothetical protein
659	 31.46	0	823205..824698	+	497	18309641	-	CPE0659	-	hypothetical protein
660	 28.10	0	824764..825528	+	254	18309642	-	CPE0660	-	4Fe-4S binding domain protein/radical SAM domain protein
661	 24.03	-1	825828..826343	+	171	18309643	-	CPE0661	-	hypothetical protein
662	 27.74	0	826452..827255	-	267	18309644	-	CPE0662	-	hypothetical protein
663	 24.87	-1	827578..828888	-	436	18309645	-	CPE0663	-	F5/8 type C domain protein
664	 34.20	+1	829607..829951	-	114	18309646	-	CPE0664	-	hypothetical protein
665	 28.42	0	830406..831137	+	243	18309647	-	CPE0665	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
