IslandPath Analysis: Clostridium perfringens str. 13

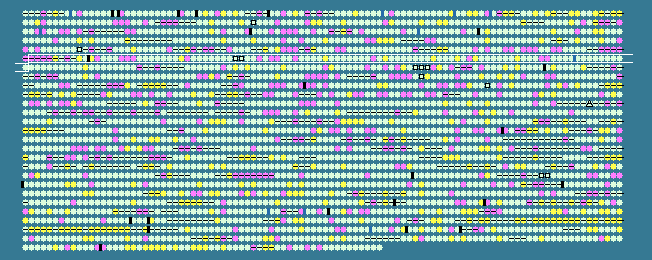

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
502	 24.00	-1	623775..624878	+	367	18309484	-	CPE0502	-	lipopolysaccharide biosynthesis protein
503	 17.98	-2	624883..626367	+	494	18309485	-	CPE0503	-	hypothetical protein
504	 20.44	-2	626387..627433	+	348	18309486	-	CPE0504	-	spore coat polysaccharide biosynthesis protein
505	 22.35	-1	627408..628928	+	506	18309487	-	CPE0505	-	flippase
506	 33.12	+1	629121..630041	+	306	18309488	galF	CPE0506	-	UTP-glucose-1-phosphate uridylyltransferase
507	 29.94	0	630408..631055	+	215	18309489	-	CPE0507	-	putative RNA polymerase sigma factor
508	 23.80	-1	631476..633719	+	747	18309490	-	CPE0508	-	hypothetical protein
509	 31.07	0	633797..634813	+	338	18309491	galE	CPE0509	-	UDP-glucose 4-epimerase
510	 32.80	+1	635095..636039	+	314	18309492	galF	CPE0510	-	UTP-glucose-1-phosphate uridylyltransferase
511	 26.26	0	636364..637056	+	230	18309493	-	CPE0511	-	hypothetical protein
512	 32.79	+1	637566..639770	+	734	18309494	agaN	CPE0512	-	alpha-galactosidase
513	 24.53	-1	639916..640665	-	249	18309495	-	CPE0513	-	hypothetical protein
514	 25.71	0	640904..641428	+	174	18309496	-	CPE0514	-	signal peptidase type I
515	 31.13	0	641482..642117	+	211	18309497	-	CPE0515	-	hypothetical protein
516	 26.31	0	642165..642890	+	241	18309498	-	CPE0516	-	hypothetical protein
517	 24.82	-1	642907..644751	+	614	18309499	-	CPE0517	-	von Willebrand factor type A domain-containing protein
518	 25.52	-1	644991..645707	+	238	18309500	-	CPE0518	-	DNA-binding response regulator
519	 22.38	-1	645712..647007	+	431	18309501	-	CPE0519	-	sensor histidine kinase
520	 26.77	0	647185..647991	+	268	18309502	-	CPE0520	-	hypothetical protein
521	 30.65	0	648362..648808	+	148	18309503	-	CPE0521	-	hypothetical protein
522	 30.04	0	648983..649255	+	90	18309504	-	CPE0522	-	hypothetical protein
523	 28.85	0	649296..650567	+	423	18309505	ulaA	CPE0523	-	ascorbate-specific PTS system enzyme IIC
524	 29.18	0	650923..651717	+	264	18309506	-	CPE0524	-	HAD hydrolase, IIB family
525	 26.62	0	651851..652297	-	148	18309507	-	CPE0525	-	MarR family transcriptional regulator
526	 31.64	0	652622..654919	+	765	18309508	-	CPE0526	-	ABC transporter
527	 32.69	+1	654912..656768	+	618	18309509	-	CPE0527	-	ABC transporter
528	 22.11	-2	657262..658143	+	293	18309510	-	CPE0528	-	hypothetical protein
529	 28.86	0	658398..659447	+	349	18309511	-	CPE0529	-	transporter, auxin efflux carrier family
530	 31.83	0	659756..660754	+	332	18309512	ldhD	CPE0530	-	D-lactate dehydrogenase
531	 27.14	0	661050..662600	+	516	18309513	-	CPE0531	-	sensor histidine kinase
532	 29.00	0	662600..663268	+	222	18309514	-	CPE0532	-	two-component response regulator
533	 29.44	0	663349..663528	+	59	18309515	-	CPE0533	-	hypothetical protein
534	 29.76	0	663686..664216	+	176	18309516	-	CPE0534	-	hypothetical protein
535	 30.06	0	665353..665994	+	213	18309517	-	CPE0535	-	hypothetical protein
536	 26.00	0	666446..667372	+	308	18309518	-	CPE0536	-	transposase
537	 26.01	0	667372..667644	+	90	18309519	-	CPE0537	-	transposase
538	 28.74	0	667806..668219	+	137	18309520	-	CPE0538	-	hypothetical protein
539	 25.99	0	668530..669645	+	371	18309521	-	CPE0539	-	NAD-dependent 4-hydroxybutyrate dehydrogenase
540	 24.34	-1	669654..669842	+	62	18309522	-	CPE0540	-	hypothetical protein
541	 26.73	0	669878..670558	+	226	18309523	-	CPE0541	-	TrkA domain protein
542	 22.52	-1	670673..671125	-	150	18309524	-	CPE0542	-	MarR family transcriptional regulator
543	 25.22	-1	671379..672512	+	377	18309525	-	CPE0543	-	permease
544	 32.61	+1	672917..674308	+	463	18309526	-	CPE0544	-	proton/peptide symporter
545	 28.70	0	674471..674686	-	71	18309527	-	CPE0545	-	hypothetical protein
546	 22.08	-2	674700..674930	-	76	18309528	-	CPE0546	-	hypothetical protein
547	 31.46	0	675180..676730	+	516	18309529	-	CPE0547	-	nitrite/sulfite reductase-like protein
548	 29.17	0	677043..677858	+	271	18309530	speD	CPE0548	-	S-adenosylmethionine decarboxylase
549	 32.23	0	677876..679330	+	484	18309531	dclY	CPE0549	-	Orn/Lys/Arg decarboxylase
550	 30.75	0	679345..680196	+	283	18309532	speE	CPE0550	-	spermidine synthase
551	 33.10	+1	680183..681040	+	285	18309533	speB	CPE0551	-	agmatinase
552	 26.52	0	681358..681621	-	87	18309534	-	CPE0552	-	hypothetical protein
553	 30.75	0	681830..685351	+	1173	18309535	nanJ	CPE0553	-	exo-alpha-sialidase
554	 28.66	0	685497..686138	+	213	18309536	-	CPE0554	-	hypothetical protein
555	 30.94	0	686246..688915	-	889	18309537	-	CPE0555	-	copper-translocating P-type ATPase
556	 30.75	0	689207..689863	+	218	18309538	-	CPE0556	-	NAD(P)H dehydrogenase
557	 28.94	0	691147..692283	+	378	18309539	-	CPE0557	-	glycine betaine/carnitine/choline ABC transporter
558	 29.47	0	692276..693829	+	517	18309540	-	CPE0558	-	glycine betaine/carnitine/choline ABC transporter
559	 24.13	-1	694087..694662	+	191	18309541	sigV	CPE0559	-	RNA polymerase sigma-70 factor
560	 27.55	0	694655..695743	+	362	18309542	-	CPE0560	-	hypothetical protein
561	 34.81	+1	696091..697512	+	473	18309543	-	CPE0561	-	PTS system
562	 27.64	0	697716..699383	+	555	18309544	-	CPE0562	-	alpha-glucosidase
563	 28.25	0	699647..700354	+	235	18309545	treR	CPE0563	-	transcriptional regulator
564	 32.01	0	700806..702992	-	728	18309546	spoVD	CPE0564	-	stage V sporulation protein D
565	 27.95	0	703337..704005	+	222	18309547	-	CPE0565	-	N-acetylmuramoyl-L-alanine amidase
566	 28.07	0	704572..705672	+	366	18309548	ribB	CPE0566	-	riboflavin biosynthesis protein RibD
567	 28.75	0	705691..706344	+	217	18309549	risA	CPE0567	-	riboflavin synthase subunit alpha
568	 32.11	0	706550..707695	+	381	18309550	ribA	CPE0568	-	riboflavin biosynthesis protein RibA
569	 33.98	+1	707810..708271	+	153	18309551	ribH	CPE0569	-	riboflavin synthase subunit beta
570	 30.93	0	708394..709266	-	290	18309552	-	CPE0570	-	hypothetical protein
571	 29.17	0	709370..709777	-	135	18309553	-	CPE0571	-	hypothetical protein
572	 29.55	0	710160..710423	+	87	18309554	-	CPE0572	-	hypothetical protein
573	 32.70	+1	710699..712918	+	739	18309555	-	CPE0573	-	hypothetical protein
574	 26.35	0	713265..714854	+	529	18309556	-	CPE0574	-	sensor histidine kinase
575	 25.60	-1	714866..716455	+	529	18309557	-	CPE0575	-	DNA-binding response regulator, AraC family
576	 34.20	+1	716608..717993	+	461	18309558	-	CPE0576	-	ABC transporter
577	 31.62	0	718072..719007	+	311	18309559	-	CPE0577	-	ABC transporter permease
578	 31.05	0	719139..719882	+	247	18309560	-	CPE0578	-	ABC transporter
579	 31.18	0	720118..720813	+	231	18309561	-	CPE0579	-	DedA family protein
580	 26.61	0	720785..721915	+	376	18309562	-	CPE0580	-	iron-sulfur binding reductase
581	 25.68	0	722078..722665	+	195	18309563	-	CPE0581	-	hypothetical protein
582	 28.28	0	722951..723583	+	210	18309564	-	CPE0582	-	hypothetical protein
583	 34.33	+1	723576..724574	+	332	18309565	-	CPE0583	-	phosphate ABC transporter permease
584	 32.54	0	725006..726898	-	630	18309566	-	CPE0584	-	PTS system
585	 29.86	0	726902..727822	-	306	18309567	fruB	CPE0585	-	1-phosphofructokinase
586	 28.65	0	727822..728568	-	248	18309568	fruR	CPE0586	-	transcriptional regulator
587	 24.69	-1	728859..729182	+	107	18309569	-	CPE0587	-	hypothetical protein
588	 25.16	-1	729363..730463	-	366	18309570	-	CPE0588	-	permease
589	 26.52	0	730721..731380	+	219	18309571	-	CPE0589	-	isochorismatase family protein
590	 31.20	0	731757..733070	+	437	18309572	-	CPE0590	-	hypothetical protein
591	 29.00	0	733374..734297	+	307	18309573	-	CPE0591	-	glutaminase
592	 29.48	0	734586..735311	+	241	18309574	-	CPE0592	-	Mg2+ transporter
593	 28.86	0	741120..741812	+	230	18309575	sfsA	CPE0593	-	sugar fermentation stimulation protein A
594	 28.48	0	742291..742764	+	157	18309576	-	CPE0594	-	hydrolase, NUDIX family
595	 30.84	0	743070..744470	+	466	18309577	lysA	CPE0595	-	diaminopimelate decarboxylase
596	 29.21	0	744879..745145	+	88	18309578	-	CPE0596	-	hypothetical protein
597	 28.63	0	745148..745678	+	176	18309579	sipS	CPE0597	-	signal peptidase type I
598	 32.17	0	745703..747856	+	717	18309580	ftsH	CPE0598	-	ATP-dependent metalloprotease FtsH
599	 26.97	0	748076..750196	+	706	18309581	-	CPE0599	-	hypothetical protein
600	 31.18	0	750652..751488	+	278	18309582	-	CPE0600	-	amino acid ABC transporter
601	 30.51	0	751519..752190	+	223	18309583	-	CPE0601	-	amino acid ABC transporter
29.13	MEAN

3.46	STD DEV
