IslandPath Analysis: Clostridium perfringens str. 13

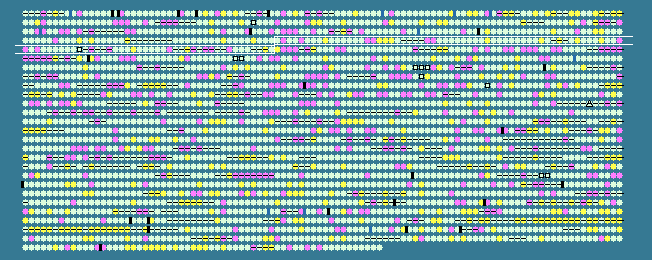

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
343	 29.43	0	433948..436122	+	724	18309325	recQ	CPE0343	-	ATP-dependent DNA helicase RecQ
344	 25.56	-1	436353..437150	+	265	18309326	-	CPE0344	-	hypothetical protein
345	 29.90	0	437275..438732	+	485	18309327	-	CPE0345	-	hypothetical protein
346	 26.67	0	438898..439647	+	249	18309328	-	CPE0346	-	transcriptional regulator
347	 25.00	-1	439781..440452	-	223	18309329	-	CPE0347	-	transcriptional regulator
348	 32.45	0	441396..444215	+	939	18309330	uvrA	CPE0348	-	excinuclease ABC subunit A
349	 30.11	0	444550..444984	+	144	18309331	-	CPE0349	-	FHA domain protein
350	 29.43	0	444998..446227	+	409	18309332	ftsW	CPE0350	-	cell cycle protein, FtsW/RodA/SpoVE family
351	 33.61	+1	446228..447691	+	487	18309333	-	CPE0351	-	penicillin-binding protein
352	 31.78	0	447848..449710	+	620	18309334	uvrC	CPE0352	-	excinuclease ABC subunit C
353	 32.24	0	449859..450773	+	304	18309335	murB	CPE0353	-	UDP-N-acetylenolpyruvoylglucosamine reductase
354	 30.85	0	451013..451897	+	294	18309336	-	CPE0354	-	hypothetical protein
355	 31.77	0	451894..453240	+	448	18309337	-	CPE0355	-	hypothetical protein
356	 31.55	0	453243..454193	+	316	18309338	-	CPE0356	-	hypothetical protein
357	 28.47	0	454367..454921	+	184	18309339	-	CPE0357	-	hypothetical protein
358	 24.82	-1	455050..456294	-	414	18309340	-	CPE0358	-	hypothetical protein
359	 23.46	-1	456308..456844	-	178	18309341	-	CPE0359	-	RNA polymerase ECF-type sigma factor
360	 33.19	+1	457313..460891	+	1192	18309342	dnaE	CPE0360	-	DNA polymerase III DnaE
361	 34.79	+1	461602..462561	+	319	18309343	pfkA	CPE0361	-	6-phosphofructokinase
362	 36.89	+2	462655..464058	+	467	18309344	pykA	CPE0362	-	pyruvate kinase
363	 31.37	0	464641..464997	+	118	18309345	-	CPE0363	-	hypothetical protein
364	 29.07	0	465305..466102	+	265	18309346	-	CPE0364	-	dehydrogenase
365	 30.60	0	466277..467812	+	511	18309347	clsB	CPE0365	-	cardiolipin synthetase
366	 29.05	0	468439..470001	+	520	18309348	-	CPE0366	-	GntR family transcriptional regulator/aminotransferase
367	 31.21	0	470131..471498	+	455	18309349	-	CPE0367	-	RNA methyltransferase
368	 25.22	-1	472441..473340	+	299	18309350	-	CPE0368	-	hypothetical protein
369	 19.59	-2	473520..477425	+	1301	18309351	-	CPE0369	-	hypothetical protein
370	 25.76	0	477962..478819	-	285	18309352	-	CPE0370	-	transcriptional regulator
371	 31.91	0	479008..480276	+	422	18309353	-	CPE0371	-	hypothetical protein
372	 26.54	0	480350..481276	+	308	18309354	-	CPE0372	-	ABC transporter
373	 29.47	0	481293..482120	+	275	18309355	-	CPE0373	-	suger ABC transporter
374	 29.03	0	482148..484355	+	735	18309356	aga	CPE0374	-	alpha-galactosidase
375	 28.17	0	484394..486931	+	845	18309357	-	CPE0375	-	endo-beta-galactosidase C
376	 25.91	0	487133..487684	+	183	18309358	-	CPE0376	-	hypothetical protein
377	 30.40	0	487803..488381	+	192	18309359	-	CPE0377	-	TetR family transcriptional regulator
378	 33.00	+1	488731..490524	+	597	18309360	-	CPE0378	-	67 kDa myosin-cross-reactive antigen family protein
379	 29.24	0	490919..492652	+	577	18309361	-	CPE0379	-	ABC transporter permease/ATP-binding protein
380	 30.19	0	492645..494426	+	593	18309362	-	CPE0380	-	ABC transporter
381	 28.57	0	494507..494905	-	132	18309363	-	CPE0381	-	hypothetical protein
382	 29.93	0	495171..496199	+	342	18309364	-	CPE0382	-	autolytic lysozyme
383	 29.90	0	496521..496928	+	135	18309365	-	CPE0383	-	hypothetical protein
384	 27.04	0	497081..498001	-	306	18309366	-	CPE0384	-	hypothetical protein
385	 32.39	0	498485..499225	+	246	18309367	-	CPE0385	-	oxidoreductase
386	 28.14	0	499248..499979	-	243	18309368	-	CPE0386	-	transcriptional regulator
387	 34.35	+1	500213..500998	+	261	18309369	udp	CPE0387	-	uridine phosphorylase
388	 32.33	0	501176..502366	+	396	18309370	deoB	CPE0388	-	phosphopentomutase
389	 32.37	0	502793..504238	-	481	18309371	arcD	CPE0389	-	amino acid permease
390	 33.96	+1	504284..505246	-	320	18309372	dchS	CPE0390	-	histidine decarboxylase, pyruvoyl type
391	 28.54	0	505714..506547	+	277	18309373	-	CPE0391	-	phosphoesterase
392	 31.37	0	506672..506824	+	50	18309374	-	CPE0392	-	hypothetical protein
393	 32.64	+1	506921..507784	+	287	18309375	-	CPE0393	-	hypothetical protein
394	 28.81	0	508092..508997	+	301	18309376	nadA	CPE0394	-	quinolinate synthetase
395	 31.06	0	509002..510321	+	439	18309377	nadB	CPE0395	-	L-aspartate oxidase
396	 32.38	0	510278..511117	+	279	18309378	nadC	CPE0396	-	nicotinate-nucleotide pyrophosphorylase
397	 36.13	+2	511369..512727	-	452	18309379	uapC	CPE0397	-	transporter
398	 31.50	0	513402..514220	+	272	18309380	deoD	CPE0398	-	purine nucleoside phosphorylase
399	 27.43	0	514310..514987	+	225	18309381	-	CPE0399	-	transporter
400	 24.30	-1	515021..515662	+	213	18309382	-	CPE0400	-	hypothetical protein
401	 21.38	-2	515887..516204	+	105	18309383	-	CPE0401	-	hypothetical protein
402	 28.10	0	516217..516828	+	203	18309384	-	CPE0402	-	hypothetical protein
403	 23.09	-1	517036..517572	+	178	18309385	-	CPE0403	-	hypothetical protein
404	 30.94	0	518306..519643	+	445	18309386	brnQ	CPE0404	-	branched chain amino acid ABC transporter carrier protein
405	 29.90	0	519899..520771	+	290	18309387	-	CPE0405	-	hypothetical protein
406	 29.18	0	520903..522249	+	448	18309388	-	CPE0406	-	putative reticuline oxidase
407	 25.71	0	522549..522902	+	117	18309389	-	CPE0407	-	hypothetical protein
408	 31.15	0	523097..523921	+	274	18309390	-	CPE0408	-	hypothetical protein
409	 29.92	0	524071..525504	+	477	18309391	-	CPE0409	-	hypothetical protein
410	 25.92	0	525713..526912	+	399	18309392	-	CPE0410	-	transposase
411	 27.87	0	527033..527965	+	310	18309393	-	CPE0411	-	monooxygenase
412	 25.40	-1	528206..528583	+	125	18309394	-	CPE0412	-	hypothetical protein
413	 31.59	0	528800..529372	+	190	18309395	-	CPE0413	-	carbonic anhydrase
414	 28.17	0	529513..530151	+	212	18309396	-	CPE0414	-	hypothetical protein
415	 25.64	-1	530176..530565	+	129	18309397	-	CPE0415	-	hypothetical protein
416	 26.71	0	530899..532770	+	623	18309398	htpG	CPE0416	-	heat shock protein 90
417	 28.70	0	532934..533926	+	330	18309399	-	CPE0417	-	LacI family transcriptional regulator
418	 30.57	0	534362..536026	+	554	18309400	-	CPE0418	-	exo-alpha-1,4-glucosidase
419	 33.21	+1	536285..537940	+	551	18309401	-	CPE0419	-	PTS system, IIBC component
420	 28.03	0	537951..538742	+	263	18309402	-	CPE0420	-	endonuclease/exonuclease/phosphatase family protein
421	 27.24	0	539283..540020	+	245	18309403	glpQ	CPE0421	-	glycerophosphodiester phosphodiesterase
422	 30.54	0	540117..541403	+	428	18309404	-	CPE0422	-	hypothetical protein
423	 28.59	0	541903..544515	+	870	18309405	pcrA	CPE0423	-	ATP-dependent DNA helicase
424	 28.94	0	544692..545351	+	219	18309406	trmB	CPE0424	-	tRNA (guanine-N(7))-methyltransferase
425	 24.56	-1	545510..546364	-	284	18309407	-	CPE0425	-	hypothetical protein
426	 31.46	0	546981..548264	+	427	18309408	-	CPE0426	-	hypothetical protein
427	 26.60	0	548732..549310	+	192	18309409	-	CPE0427	-	hypothetical protein
428	 32.69	+1	549541..549696	+	51	18309410	-	CPE0428	-	hypothetical protein
429	 24.09	-1	550064..550615	+	183	18309411	-	CPE0429	-	hypothetical protein
430	 27.81	0	550703..551245	-	180	18309412	sipS	CPE0430	-	type I signal peptidase
431	 24.44	-1	551453..552295	+	280	18309413	-	CPE0431	-	hypothetical protein
432	 25.36	-1	552580..553419	+	279	18309414	-	CPE0432	-	hydrolase, alpha/beta fold family
433	 30.40	0	553503..554798	+	431	18309415	-	CPE0433	-	hypothetical protein
434	 30.27	0	555174..555662	+	162	18309416	-	CPE0434	-	GNAT family acetyltransferase
435	 24.70	-1	555721..556056	-	111	18309417	-	CPE0435	-	hypothetical protein
436	 29.74	0	556062..556478	-	138	18309418	-	CPE0436	-	hypothetical protein
437	 28.33	0	557024..558361	+	445	18309419	hlyB	CPE0437	-	hemolysin
438	 29.91	0	558636..559688	+	350	18309420	-	CPE0438	-	ion-uptake ABC transporter
439	 28.44	0	559688..561280	+	530	18309421	-	CPE0439	-	iron-uptake ABC transporter
440	 29.66	0	561283..561963	+	226	18309422	-	CPE0440	-	ABC transporter
441	 33.77	+1	562253..562942	+	229	18309423	-	CPE0441	-	hypothetical protein
442	 32.18	0	563132..563305	+	57	18309424	-	CPE0442	-	BFD-like iron-sulfur cluster-binding protein
29.13	MEAN

3.46	STD DEV
