IslandPath Analysis: Clostridium perfringens str. 13

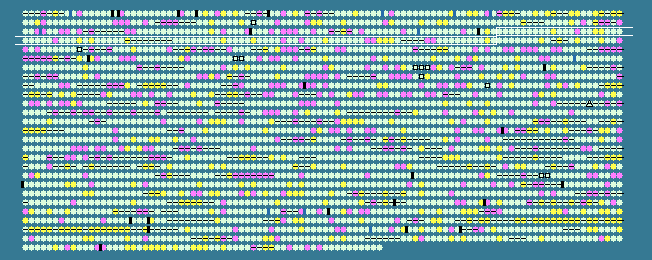

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
280	 28.59	0	359922..360764	+	280	18309262	-	CPE0280	-	tetrapyrrole methylase family protein
281	 31.25	0	361080..361319	-	79	18309263	-	CPE0281	-	AbrB family transcriptional regulator
282	 29.17	0	362011..362610	+	199	18309264	-	CPE0282	-	hypothetical protein
283	 27.05	0	362646..363521	-	291	18309265	-	CPE0283	-	hypothetical protein
284	 30.40	0	363632..364654	-	340	18309266	-	CPE0284	-	transcriptional regulator
285	 27.46	0	364830..365681	+	283	18309267	-	CPE0285	-	YihY family protein
286	 32.32	0	365742..366728	-	328	18309268	galE	CPE0286	-	UDP-glucose 4-epimerase
287	 29.86	0	366883..367227	+	114	18309269	-	CPE0287	-	phage-related single-strand DNA binding protein
288	 31.37	0	367303..368424	-	373	18309270	-	CPE0288	-	flavoprotein
289	 32.63	+1	369002..372418	-	1138	18309271	-	CPE0289	-	endo-beta-N-acetylglucosaminidase
290	 28.10	0	372789..373094	+	101	18309272	-	CPE0290	-	hypothetical protein
291	 28.36	0	373143..373544	+	133	18309273	acpS	CPE0291	-	4'-phosphopantetheinyl transferase
292	 28.47	0	373531..375030	+	499	18309274	-	CPE0292	-	carbohydrate kinase family protein
293	 25.42	-1	375091..375684	+	197	18309275	-	CPE0293	-	hypothetical protein
294	 29.63	0	375931..376173	+	80	18309276	-	CPE0294	-	hypothetical protein
295	 30.79	0	376179..376532	+	117	18309277	-	CPE0295	-	PemK family protein
296	 35.64	+1	376970..377794	+	274	18309278	tktN	CPE0296	-	transketolase N-terminal section
297	 34.50	+1	377794..378738	+	314	18309279	tktC	CPE0297	-	transketolase C-terminal section
298	 29.95	0	378965..379822	+	285	18309280	-	CPE0298	-	hypothetical protein
299	 32.02	0	380028..380714	+	228	18309281	ftsE	CPE0299	-	cell-division ATP-binding protein
300	 31.83	0	380680..381612	+	310	18309282	ftsX	CPE0300	-	cell-division protein
301	 31.55	0	381701..382987	+	428	18309283	-	CPE0301	-	carboxyl-terminal protease
302	 28.10	0	383010..384290	+	426	18309284	-	CPE0302	-	hypothetical protein
303	 32.07	0	384378..386357	+	659	18309285	uvrB	CPE0303	-	excinuclease ABC subunit B
304	 31.81	0	386623..387474	+	283	18309286	-	CPE0304	-	degV family protein
305	 30.17	0	387705..388430	+	241	18309287	-	CPE0305	-	ABC transporter
306	 25.33	-1	388423..390021	+	532	18309288	-	CPE0306	-	hypothetical protein
307	 30.55	0	390238..391242	+	334	18309289	-	CPE0307	-	lipase
308	 26.50	0	391401..392966	+	521	18309290	-	CPE0308	-	MutS domain protein
309	 29.84	0	392981..393667	+	228	18309291	-	CPE0309	-	transcriptional regulator
310	 33.27	+1	393902..395425	+	507	18309292	-	CPE0310	-	L-lactate permease
311	 31.56	0	395519..396307	+	262	18309293	etfB	CPE0311	-	electron transfer flavoprotein beta-subunit
312	 32.83	+1	396320..397513	+	397	18309294	eftA	CPE0312	-	electron-transfer flavoprotein alpha-subunit
313	 30.62	0	397515..398915	+	466	18309295	-	CPE0313	-	glycolate oxidase subunit
314	 31.58	0	398998..399396	-	132	18309296	-	CPE0314	-	hypothetical protein
315	 29.80	0	399764..400273	+	169	18309297	sipS	CPE0315	-	type I signal peptidase
316	 28.33	0	400516..401295	-	259	18309298	-	CPE0316	-	transcriptional regulator
317	 29.99	0	401487..402890	+	467	18309299	fucK	CPE0317	-	rhamnulokinase
318	 34.45	+1	402971..404758	+	595	18309300	fucI	CPE0318	-	L-fucose isomerase
319	 30.75	0	404788..405444	+	218	18309301	fucA	CPE0319	-	L-fuculose phosphate aldolase
320	 27.40	0	405449..405886	+	145	18309302	-	CPE0320	-	hypothetical protein
321	 28.48	0	405877..406350	+	157	18309303	-	CPE0321	-	PTS system protein
322	 31.53	0	406367..407143	+	258	18309304	-	CPE0322	-	PTS system protein
323	 28.86	0	407140..407943	+	267	18309305	-	CPE0323	-	PTS system protein
324	 30.90	0	408080..409396	+	438	18309306	-	CPE0324	-	glycosyl hydrolase
325	 28.20	0	409414..411303	+	629	18309307	-	CPE0325	-	hypothetical protein
326	 32.40	0	411556..411984	+	142	18309308	lacA	CPE0326	-	galactose-6-phosphate isomerase subunit LacA
327	 30.04	0	412020..412535	+	171	18309309	lacB	CPE0327	-	galactose-6-phosphate isomerase subunit LacB
328	 28.40	0	412552..413484	+	310	18309310	lacC	CPE0328	-	tagatose-6-phosphate kinase
329	 29.94	0	413725..416112	+	795	18309311	-	CPE0329	-	hypothetical protein
330	 31.23	0	416323..416703	-	126	18309312	-	CPE0330	-	hypothetical protein
331	 28.30	0	417022..417696	+	224	18309313	-	CPE0331	-	hypothetical protein
332	 30.13	0	417887..418510	-	207	18309314	-	CPE0332	-	DedA family protein
333	 31.38	0	418607..421264	-	885	18309315	-	CPE0333	-	cation-transporting ATPase
334	 37.59	+2	422038..422601	+	187	18309316	-	CPE0334	-	hypothetical protein
335	 28.80	0	423159..423731	+	190	18309317	xpt	CPE0335	-	xanthine phosphoribosyltransferase
336	 27.22	0	424217..425149	+	310	18309318	-	CPE0336	-	hypothetical protein
337	 32.54	0	425340..426722	+	460	18309319	-	CPE0337	-	amino acid transporter
338	 27.74	0	426876..428180	-	434	18309320	-	CPE0338	-	hypothetical protein
339	 33.91	+1	428452..429837	+	461	18309321	tldD	CPE0339	-	TldD protein
340	 30.07	0	429853..431202	+	449	18309322	pmbA	CPE0340	-	TldD/PmbA family protein
341	 30.43	0	431519..433105	+	528	18309323	-	CPE0341	-	aspartate aminotransferase
342	 30.43	0	433417..433899	+	160	18309324	-	CPE0342	-	methylated-DNA-protein-cystein methyltransferase
343	 29.43	0	433948..436122	+	724	18309325	recQ	CPE0343	-	ATP-dependent DNA helicase RecQ
344	 25.56	-1	436353..437150	+	265	18309326	-	CPE0344	-	hypothetical protein
345	 29.90	0	437275..438732	+	485	18309327	-	CPE0345	-	hypothetical protein
346	 26.67	0	438898..439647	+	249	18309328	-	CPE0346	-	transcriptional regulator
347	 25.00	-1	439781..440452	-	223	18309329	-	CPE0347	-	transcriptional regulator
348	 32.45	0	441396..444215	+	939	18309330	uvrA	CPE0348	-	excinuclease ABC subunit A
349	 30.11	0	444550..444984	+	144	18309331	-	CPE0349	-	FHA domain protein
350	 29.43	0	444998..446227	+	409	18309332	ftsW	CPE0350	-	cell cycle protein, FtsW/RodA/SpoVE family
351	 33.61	+1	446228..447691	+	487	18309333	-	CPE0351	-	penicillin-binding protein
352	 31.78	0	447848..449710	+	620	18309334	uvrC	CPE0352	-	excinuclease ABC subunit C
353	 32.24	0	449859..450773	+	304	18309335	murB	CPE0353	-	UDP-N-acetylenolpyruvoylglucosamine reductase
354	 30.85	0	451013..451897	+	294	18309336	-	CPE0354	-	hypothetical protein
355	 31.77	0	451894..453240	+	448	18309337	-	CPE0355	-	hypothetical protein
356	 31.55	0	453243..454193	+	316	18309338	-	CPE0356	-	hypothetical protein
357	 28.47	0	454367..454921	+	184	18309339	-	CPE0357	-	hypothetical protein
358	 24.82	-1	455050..456294	-	414	18309340	-	CPE0358	-	hypothetical protein
359	 23.46	-1	456308..456844	-	178	18309341	-	CPE0359	-	RNA polymerase ECF-type sigma factor
360	 33.19	+1	457313..460891	+	1192	18309342	dnaE	CPE0360	-	DNA polymerase III DnaE
361	 34.79	+1	461602..462561	+	319	18309343	pfkA	CPE0361	-	6-phosphofructokinase
362	 36.89	+2	462655..464058	+	467	18309344	pykA	CPE0362	-	pyruvate kinase
363	 31.37	0	464641..464997	+	118	18309345	-	CPE0363	-	hypothetical protein
364	 29.07	0	465305..466102	+	265	18309346	-	CPE0364	-	dehydrogenase
365	 30.60	0	466277..467812	+	511	18309347	clsB	CPE0365	-	cardiolipin synthetase
366	 29.05	0	468439..470001	+	520	18309348	-	CPE0366	-	GntR family transcriptional regulator/aminotransferase
367	 31.21	0	470131..471498	+	455	18309349	-	CPE0367	-	RNA methyltransferase
368	 25.22	-1	472441..473340	+	299	18309350	-	CPE0368	-	hypothetical protein
369	 19.59	-2	473520..477425	+	1301	18309351	-	CPE0369	-	hypothetical protein
370	 25.76	0	477962..478819	-	285	18309352	-	CPE0370	-	transcriptional regulator
371	 31.91	0	479008..480276	+	422	18309353	-	CPE0371	-	hypothetical protein
372	 26.54	0	480350..481276	+	308	18309354	-	CPE0372	-	ABC transporter
373	 29.47	0	481293..482120	+	275	18309355	-	CPE0373	-	suger ABC transporter
374	 29.03	0	482148..484355	+	735	18309356	aga	CPE0374	-	alpha-galactosidase
375	 28.17	0	484394..486931	+	845	18309357	-	CPE0375	-	endo-beta-galactosidase C
376	 25.91	0	487133..487684	+	183	18309358	-	CPE0376	-	hypothetical protein
377	 30.40	0	487803..488381	+	192	18309359	-	CPE0377	-	TetR family transcriptional regulator
378	 33.00	+1	488731..490524	+	597	18309360	-	CPE0378	-	67 kDa myosin-cross-reactive antigen family protein
379	 29.24	0	490919..492652	+	577	18309361	-	CPE0379	-	ABC transporter permease/ATP-binding protein
29.13	MEAN

3.46	STD DEV
