IslandPath Analysis: Clostridium perfringens str. 13

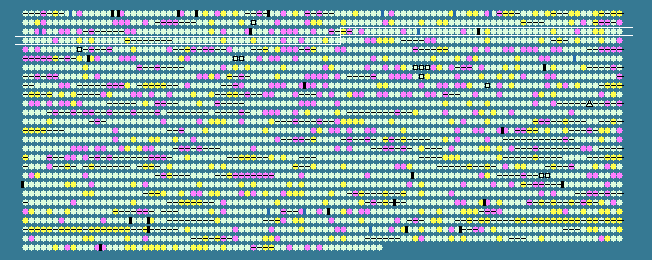

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
254	 32.93	+1	327069..327317	+	82	18309236	-	CPE0254	-	hypothetical protein
255	 19.05	-2	327402..327716	-	104	18309237	-	CPE0255	-	hypothetical protein
256	 31.16	0	327853..328587	-	244	18309238	-	CPE0256	-	NAD-dependent deacetylase
257	 25.62	-1	328757..329080	+	107	18309239	-	CPE0257	-	hypothetical protein
258	 25.71	0	329114..329323	+	69	18309240	-	CPE0258	-	transcriptional regulator
259	 27.42	0	329698..330204	+	168	18309241	-	CPE0259	-	CarD family transcriptional regulator
260	 26.12	0	330592..331728	+	378	18309242	-	CPE0260	-	mechanosensitive ion channel family protein
261	 29.97	0	331725..332348	+	207	18309243	-	CPE0261	-	copper homeostasis protein
262	 30.35	0	332724..332924	+	66	18309244	-	CPE0262	-	hypothetical protein
263	 29.24	0	333045..334364	-	439	18309245	-	CPE0263	-	hypothetical protein
264	 22.90	-1	334577..334873	-	98	18309246	-	CPE0264	-	hypothetical protein
265	 29.20	0	335081..335758	-	225	18309247	-	CPE0265	-	uracil-DNA glycosylase
266	 30.06	0	336095..338632	+	845	18309248	-	CPE0266	-	beta-hexosamidase A
267	 25.85	0	344672..345139	-	155	18309249	-	CPE0267	-	bacterioferritin comigratory protein
268	 30.92	0	345779..346525	+	248	18309250	-	CPE0268	-	hypothetical protein
269	 29.27	0	346988..347800	+	270	18309251	-	CPE0269	-	ABC transporter
270	 29.75	0	347818..348990	+	390	18309252	-	CPE0270	-	ABC transporter
271	 27.88	0	349004..350287	+	427	18309253	-	CPE0271	-	hypothetical protein
272	 27.51	0	350306..351541	+	411	18309254	-	CPE0272	-	hypothetical protein
273	 29.78	0	351555..352736	+	393	18309255	-	CPE0273	-	ABC transporter
274	 25.24	-1	352851..354284	+	477	18309256	-	CPE0274	-	hypothetical protein
275	 29.97	0	354420..355073	-	217	18309257	-	CPE0275	-	haloacid dehalogenase, IA family protein
276	 31.56	0	355156..356505	-	449	18309258	-	CPE0276	-	hydrogenase
277	 26.46	0	357202..357492	+	96	18309259	-	CPE0277	-	hypothetical protein
278	 33.33	+1	357677..358975	+	432	18309260	-	CPE0278	-	hypothetical protein
279	 30.22	0	359149..359919	+	256	18309261	-	CPE0279	-	hypothetical protein
280	 28.59	0	359922..360764	+	280	18309262	-	CPE0280	-	tetrapyrrole methylase family protein
281	 31.25	0	361080..361319	-	79	18309263	-	CPE0281	-	AbrB family transcriptional regulator
282	 29.17	0	362011..362610	+	199	18309264	-	CPE0282	-	hypothetical protein
283	 27.05	0	362646..363521	-	291	18309265	-	CPE0283	-	hypothetical protein
284	 30.40	0	363632..364654	-	340	18309266	-	CPE0284	-	transcriptional regulator
285	 27.46	0	364830..365681	+	283	18309267	-	CPE0285	-	YihY family protein
286	 32.32	0	365742..366728	-	328	18309268	galE	CPE0286	-	UDP-glucose 4-epimerase
287	 29.86	0	366883..367227	+	114	18309269	-	CPE0287	-	phage-related single-strand DNA binding protein
288	 31.37	0	367303..368424	-	373	18309270	-	CPE0288	-	flavoprotein
289	 32.63	+1	369002..372418	-	1138	18309271	-	CPE0289	-	endo-beta-N-acetylglucosaminidase
290	 28.10	0	372789..373094	+	101	18309272	-	CPE0290	-	hypothetical protein
291	 28.36	0	373143..373544	+	133	18309273	acpS	CPE0291	-	4'-phosphopantetheinyl transferase
292	 28.47	0	373531..375030	+	499	18309274	-	CPE0292	-	carbohydrate kinase family protein
293	 25.42	-1	375091..375684	+	197	18309275	-	CPE0293	-	hypothetical protein
294	 29.63	0	375931..376173	+	80	18309276	-	CPE0294	-	hypothetical protein
295	 30.79	0	376179..376532	+	117	18309277	-	CPE0295	-	PemK family protein
296	 35.64	+1	376970..377794	+	274	18309278	tktN	CPE0296	-	transketolase N-terminal section
297	 34.50	+1	377794..378738	+	314	18309279	tktC	CPE0297	-	transketolase C-terminal section
298	 29.95	0	378965..379822	+	285	18309280	-	CPE0298	-	hypothetical protein
299	 32.02	0	380028..380714	+	228	18309281	ftsE	CPE0299	-	cell-division ATP-binding protein
300	 31.83	0	380680..381612	+	310	18309282	ftsX	CPE0300	-	cell-division protein
301	 31.55	0	381701..382987	+	428	18309283	-	CPE0301	-	carboxyl-terminal protease
302	 28.10	0	383010..384290	+	426	18309284	-	CPE0302	-	hypothetical protein
303	 32.07	0	384378..386357	+	659	18309285	uvrB	CPE0303	-	excinuclease ABC subunit B
304	 31.81	0	386623..387474	+	283	18309286	-	CPE0304	-	degV family protein
305	 30.17	0	387705..388430	+	241	18309287	-	CPE0305	-	ABC transporter
306	 25.33	-1	388423..390021	+	532	18309288	-	CPE0306	-	hypothetical protein
307	 30.55	0	390238..391242	+	334	18309289	-	CPE0307	-	lipase
308	 26.50	0	391401..392966	+	521	18309290	-	CPE0308	-	MutS domain protein
309	 29.84	0	392981..393667	+	228	18309291	-	CPE0309	-	transcriptional regulator
310	 33.27	+1	393902..395425	+	507	18309292	-	CPE0310	-	L-lactate permease
311	 31.56	0	395519..396307	+	262	18309293	etfB	CPE0311	-	electron transfer flavoprotein beta-subunit
312	 32.83	+1	396320..397513	+	397	18309294	eftA	CPE0312	-	electron-transfer flavoprotein alpha-subunit
313	 30.62	0	397515..398915	+	466	18309295	-	CPE0313	-	glycolate oxidase subunit
314	 31.58	0	398998..399396	-	132	18309296	-	CPE0314	-	hypothetical protein
315	 29.80	0	399764..400273	+	169	18309297	sipS	CPE0315	-	type I signal peptidase
316	 28.33	0	400516..401295	-	259	18309298	-	CPE0316	-	transcriptional regulator
317	 29.99	0	401487..402890	+	467	18309299	fucK	CPE0317	-	rhamnulokinase
318	 34.45	+1	402971..404758	+	595	18309300	fucI	CPE0318	-	L-fucose isomerase
319	 30.75	0	404788..405444	+	218	18309301	fucA	CPE0319	-	L-fuculose phosphate aldolase
320	 27.40	0	405449..405886	+	145	18309302	-	CPE0320	-	hypothetical protein
321	 28.48	0	405877..406350	+	157	18309303	-	CPE0321	-	PTS system protein
322	 31.53	0	406367..407143	+	258	18309304	-	CPE0322	-	PTS system protein
323	 28.86	0	407140..407943	+	267	18309305	-	CPE0323	-	PTS system protein
324	 30.90	0	408080..409396	+	438	18309306	-	CPE0324	-	glycosyl hydrolase
325	 28.20	0	409414..411303	+	629	18309307	-	CPE0325	-	hypothetical protein
326	 32.40	0	411556..411984	+	142	18309308	lacA	CPE0326	-	galactose-6-phosphate isomerase subunit LacA
327	 30.04	0	412020..412535	+	171	18309309	lacB	CPE0327	-	galactose-6-phosphate isomerase subunit LacB
328	 28.40	0	412552..413484	+	310	18309310	lacC	CPE0328	-	tagatose-6-phosphate kinase
329	 29.94	0	413725..416112	+	795	18309311	-	CPE0329	-	hypothetical protein
330	 31.23	0	416323..416703	-	126	18309312	-	CPE0330	-	hypothetical protein
331	 28.30	0	417022..417696	+	224	18309313	-	CPE0331	-	hypothetical protein
332	 30.13	0	417887..418510	-	207	18309314	-	CPE0332	-	DedA family protein
333	 31.38	0	418607..421264	-	885	18309315	-	CPE0333	-	cation-transporting ATPase
334	 37.59	+2	422038..422601	+	187	18309316	-	CPE0334	-	hypothetical protein
335	 28.80	0	423159..423731	+	190	18309317	xpt	CPE0335	-	xanthine phosphoribosyltransferase
336	 27.22	0	424217..425149	+	310	18309318	-	CPE0336	-	hypothetical protein
337	 32.54	0	425340..426722	+	460	18309319	-	CPE0337	-	amino acid transporter
338	 27.74	0	426876..428180	-	434	18309320	-	CPE0338	-	hypothetical protein
339	 33.91	+1	428452..429837	+	461	18309321	tldD	CPE0339	-	TldD protein
340	 30.07	0	429853..431202	+	449	18309322	pmbA	CPE0340	-	TldD/PmbA family protein
341	 30.43	0	431519..433105	+	528	18309323	-	CPE0341	-	aspartate aminotransferase
342	 30.43	0	433417..433899	+	160	18309324	-	CPE0342	-	methylated-DNA-protein-cystein methyltransferase
343	 29.43	0	433948..436122	+	724	18309325	recQ	CPE0343	-	ATP-dependent DNA helicase RecQ
344	 25.56	-1	436353..437150	+	265	18309326	-	CPE0344	-	hypothetical protein
345	 29.90	0	437275..438732	+	485	18309327	-	CPE0345	-	hypothetical protein
346	 26.67	0	438898..439647	+	249	18309328	-	CPE0346	-	transcriptional regulator
347	 25.00	-1	439781..440452	-	223	18309329	-	CPE0347	-	transcriptional regulator
348	 32.45	0	441396..444215	+	939	18309330	uvrA	CPE0348	-	excinuclease ABC subunit A
349	 30.11	0	444550..444984	+	144	18309331	-	CPE0349	-	FHA domain protein
350	 29.43	0	444998..446227	+	409	18309332	ftsW	CPE0350	-	cell cycle protein, FtsW/RodA/SpoVE family
351	 33.61	+1	446228..447691	+	487	18309333	-	CPE0351	-	penicillin-binding protein
352	 31.78	0	447848..449710	+	620	18309334	uvrC	CPE0352	-	excinuclease ABC subunit C
353	 32.24	0	449859..450773	+	304	18309335	murB	CPE0353	-	UDP-N-acetylenolpyruvoylglucosamine reductase
29.13	MEAN

3.46	STD DEV
