IslandPath Analysis: Clostridium perfringens str. 13

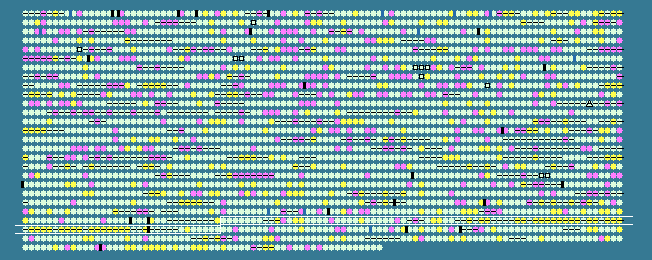

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2334	 28.00	0	2686351..2686650	-	99	18311316	-	CPE2334	-	TrpR-like protein YerC/YecD
2335	 32.14	0	2686790..2687629	-	279	18311317	-	CPE2335	-	hypothetical protein
2336	 29.02	0	2687746..2689764	-	672	18311318	gde	CPE2336	-	glycogen debranching protein
2337	 29.57	0	2690107..2692470	-	787	18311319	glgP	CPE2337	-	glycogen phosphorylase
2338	 31.06	0	2692463..2693956	-	497	18311320	malQ	CPE2338	-	4-alpha-glucanotransferase
2339	 28.91	0	2693978..2696125	-	715	18311321	-	CPE2339	-	alpha-glucosidase
2340	 29.09	0	2696149..2697162	-	337	18311322	malR	CPE2340	-	LacI family transcriptional regulator
2341	 31.66	0	2697457..2698350	-	297	18311323	-	CPE2341	-	maltose ABC transporter
2342	 30.40	0	2698352..2699305	-	317	18311324	-	CPE2342	-	maltose ABC transporter
2343	 33.25	+1	2699392..2700618	-	408	18311325	-	CPE2343	-	maltose ABC transporter
2344	 24.63	-1	2701079..2702020	-	313	18311326	-	CPE2344	-	hypothetical protein
2345	 31.44	0	2702055..2703164	-	369	18311327	-	CPE2345	-	maltose ABC transportor
2346	 33.51	+1	2703382..2705100	-	572	18311328	hydA	CPE2346	-	iron hydrogenase
2347	 32.68	+1	2705326..2706396	-	356	18311329	buk	CPE2347	-	butyrate kinase
2348	 31.52	0	2706421..2707410	-	329	18311330	ptb	CPE2348	-	phosphate butyryltransferase
2349	 31.65	0	2707512..2709113	-	533	18311331	-	CPE2349	-	hypothetical protein
2350	 29.95	0	2709189..2710517	-	442	18311332	-	CPE2350	-	hypothetical protein
2351	 28.09	0	2710484..2711341	-	285	18311333	-	CPE2351	-	hypothetical protein
2352	 23.57	-1	2711502..2712464	+	320	18311334	-	CPE2352	-	hypothetical protein
2353	 32.01	0	2712535..2713137	+	200	18311335	-	CPE2353	-	spore cortex-lytic enzyme
2354	 32.17	0	2713169..2714029	-	286	18311336	trxR	CPE2354	-	thioredoxin reductase
2355	 30.79	0	2714056..2714370	-	104	18311337	-	CPE2355	-	thioredoxin
2356	 31.62	0	2714487..2715656	-	389	18311338	-	CPE2356	-	isoaspartyl dipeptidase
2357	 33.83	+1	2715821..2717440	-	539	18311339	-	CPE2357	-	phosphoenolpyruvate-protein phosphotransferase
2358	 28.60	0	2717915..2719921	+	668	18311340	-	CPE2358	-	sigma-L-dependent transcriptional regulator
2359	 31.82	0	2720091..2720684	-	197	18311341	rpsD	CPE2359	-	30S ribosomal protein S4
2360	 28.79	0	2721085..2722119	-	344	18311342	nrdF	CPE2360	-	ribonucleotide-diphosphate reductase subunit beta
2361	 31.45	0	2722215..2724446	-	743	18311343	nrdA	CPE2361	-	ribonucleotide-diphosphate reductase subunit alpha
2362	 27.73	0	2724730..2725086	-	118	18311344	-	CPE2362	-	ArsC family protein
2363	 25.40	-1	2725258..2727084	-	608	18311345	-	CPE2363	-	two-component sensor histidine kinase
2364	 28.04	0	2727062..2727760	-	232	18311346	-	CPE2364	-	DNA-binding response regulator
2365	 28.09	0	2728014..2728871	+	285	18311347	-	CPE2365	-	hypothetical protein
2366	 18.30	-2	2728973..2729125	+	50	18311348	-	CPE2366	-	hypothetical protein
2367	 30.21	0	2729132..2729803	-	223	18311349	-	CPE2367	-	N-acetylmuramoyl-L-alanine amidase
2368	 30.67	0	2729994..2731607	-	537	18311350	-	CPE2368	-	hypothetical protein
2369	 34.10	+1	2731995..2732387	-	130	18311351	rpsI	CPE2369	-	30S ribosomal protein S9
2370	 36.32	+2	2732414..2732848	-	144	18311352	rplM	CPE2370	-	50S ribosomal protein L13
2371	 31.02	0	2732995..2733729	-	244	18311353	truA	CPE2371	-	tRNA pseudouridine synthase A
2372	 27.63	0	2733887..2734693	-	268	18311354	-	CPE2372	-	hypothetical protein
2373	 31.00	0	2734709..2735566	-	285	18311355	-	CPE2373	-	cobalt transporter ATP-binding subunit
2374	 32.39	0	2735551..2736396	-	281	18311356	-	CPE2374	-	cobalt transporter ATP-binding subunit
2375	 36.26	+2	2736819..2737160	-	113	18311357	rplQ	CPE2375	-	50S ribosomal protein L17
2376	 31.75	0	2737177..2738124	-	315	18311358	rpoA	CPE2376	-	DNA-directed RNA polymerase subunit alpha
2377	 35.10	+1	2738209..2738829	-	206	18311359	rpsD	CPE2377	-	30S ribosomal protein S4
2378	 39.39	+2	2738853..2739248	-	131	18311360	rpsK	CPE2378	-	30S ribosomal protein S11
2379	 32.51	0	2739265..2739630	-	121	18311361	rpsM	CPE2379	-	30S ribosomal protein S13
2380	 32.46	0	2739867..2739980	-	37	18311362	rpmJ	CPE2380	-	ribosomal protein L36
2381	 31.96	0	2739993..2740211	-	72	18311363	infA	CPE2381	-	translation initiation factor IF-1
2382	 30.10	0	2740219..2740527	-	102	18311364	-	CPE2382	-	hypothetical protein
2383	 35.87	+1	2740586..2741335	-	249	18311365	map	CPE2383	-	methionine aminopeptidase, type I
2384	 33.33	+1	2741335..2741991	-	218	18311366	adk	CPE2384	-	adenylate kinase
2385	 31.53	0	2742012..2743289	-	425	18311367	secY	CPE2385	-	preprotein translocase subunit SecY
2386	 36.96	+2	2743292..2743732	-	146	18311368	rplO	CPE2386	-	50S ribosomal protein L15
2387	 32.76	+1	2743766..2743939	-	57	18311369	rpmD	CPE2387	-	50S ribosomal protein L30
2388	 37.55	+2	2743951..2744448	-	165	18311370	rpsE	CPE2388	-	30S ribosomal protein S5
2389	 36.67	+2	2744469..2744828	-	119	18311371	rplR	CPE2389	-	50S ribosomal protein L18
2390	 36.67	+2	2744859..2745398	-	179	18311372	rplF	CPE2390	-	50S ribosomal protein L6
2391	 35.34	+1	2745495..2745893	-	132	18311373	rpsH	CPE2391	-	30S ribosomal protein S8
2392	 36.56	+2	2745927..2746112	-	61	18311374	rpsN	CPE2392	-	30S ribosomal protein S14
2393	 32.96	+1	2746129..2746668	-	179	18311375	rplE	CPE2393	-	50S ribosomal protein L5
2394	 32.06	0	2746691..2747005	-	104	18311376	rplX	CPE2394	-	50S ribosomal protein L24
2395	 35.77	+1	2747029..2747397	-	122	18311377	rplN	CPE2395	-	50S ribosomal protein L14
2396	 33.33	+1	2747428..2747682	-	84	18311378	rpsQ	CPE2396	-	30S ribosomal protein S17
2397	 30.00	0	2747704..2747913	-	69	18311379	rpmC	CPE2397	-	ribosomal protein L29
2398	 38.39	+2	2747913..2748347	-	144	18311380	rplP	CPE2398	-	50S ribosomal protein L16
2399	 35.13	+1	2748378..2749046	-	222	18311381	rpsC	CPE2399	-	30S ribosomal protein S3
2400	 34.82	+1	2749067..2749402	-	111	18311382	rplV	CPE2400	-	50S ribosomal protein L22
2401	 31.91	0	2749430..2749711	-	93	18311383	rpsS	CPE2401	-	30S ribosomal protein S19
2402	 38.97	+2	2749782..2750615	-	277	18311384	rplB	CPE2402	-	50S ribosomal protein L2
2403	 35.37	+1	2750670..2750963	-	97	18311385	rplW	CPE2403	-	50S ribosomal protein L23
2404	 35.80	+1	2751051..2751578	-	175	18311386	rplD	CPE2404	-	50S ribosomal protein L4
2405	 36.83	+2	2751603..2752232	-	209	161485641	rplC	CPE2405	-	50S ribosomal protein L3
2406	 32.36	0	2752315..2752623	-	102	18311388	rpsJ	CPE2406	-	30S ribosomal protein S10
2407	 39.45	+2	2753318..2754511	-	397	18311389	tuf	CPE2407	-	elongation factor Tu
2408	 37.40	+2	2754585..2756651	-	688	18311390	fus	CPE2408	-	elongation factor G
2409	 35.46	+1	2756732..2757202	-	156	18311391	rpsG	CPE2409	-	30S ribosomal protein S7
2410	 38.32	+2	2757362..2757742	-	126	18311392	rpsL	CPE2410	-	30S ribosomal protein S12
2411	 31.09	0	2757800..2758066	-	88	18311393	-	CPE2411	-	ribosomal protein L7AE family protein
2412	 34.38	+1	2758152..2761688	-	1178	18311394	rpoC	CPE2412	-	DNA-directed RNA polymerase subunit beta'
2413	 34.98	+1	2761768..2765472	-	1234	18311395	rpoB	CPE2413	-	DNA-directed RNA polymerase subunit beta
2414	 36.89	+2	2765777..2766142	-	121	18311396	rplL	CPE2414	-	ribosomal protein L7/L12
2415	 34.93	+1	2766197..2766697	-	166	161485640	rplJ	CPE2415	-	50S ribosomal protein L10
2416	 36.09	+2	2766914..2767603	-	229	18311398	rplA	CPE2416	-	50S ribosomal protein L1
2417	 37.09	+2	2767661..2768086	-	141	18311399	rplK	CPE2417	-	50S ribosomal protein L11
2418	 33.52	+1	2768161..2768682	-	173	18311400	nusG	CPE2418	-	transcription antitermination protein NusG
2419	 32.00	0	2768720..2768944	-	74	18311401	secE	CPE2419	-	preprotein translocase subunit SecE
2420	 32.00	0	2768998..2769147	-	49	18311402	rpmG	CPE2420	-	50S ribosomal protein L33
2421	 39.70	+2	2769330..2770523	-	397	18311403	tuf	CPE2421	-	elongation factor Tu
2422	 28.09	0	2770748..2771395	-	215	18311404	sigH	CPE2422	-	RNA polymerase factor sigma-70
2423	 29.02	0	2771477..2771986	-	169	18311405	-	CPE2423	-	hypothetical protein
2424	 29.54	0	2772002..2772871	-	289	18311406	-	CPE2424	-	RNA methyltransferase, TrmH family, group 3
2425	 32.38	0	2772894..2773631	-	245	18311407	thyX	CPE2425	-	FAD-dependent thymidylate synthase
2426	 29.44	0	2773647..2774057	-	136	18311408	-	CPE2426	-	hypothetical protein
2427	 30.41	0	2774285..2775685	-	466	18311409	cysS	CPE2427	-	cysteinyl-tRNA synthetase
2428	 32.92	+1	2775790..2777502	-	570	18311410	proS	CPE2428	-	prolyl-tRNA synthetase
2429	 29.35	0	2777857..2778534	-	225	18311411	ispD	CPE2429	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2430	 29.90	0	2778548..2779654	-	368	18311412	-	CPE2430	-	PIN/TRAM domain protein
2431	 31.09	0	2779966..2780367	+	133	18311413	-	CPE2431	-	hypothetical protein
2432	 30.23	0	2780401..2781465	-	354	18311414	-	CPE2432	-	DNA integrity scanning protein DisA
2433	 32.53	0	2781485..2782846	-	453	18311415	radA	CPE2433	-	DNA repair protein RadA
29.13	MEAN

3.46	STD DEV
