IslandPathversion 1.0

IslandPath Analysis: Clostridium perfringens str. 13

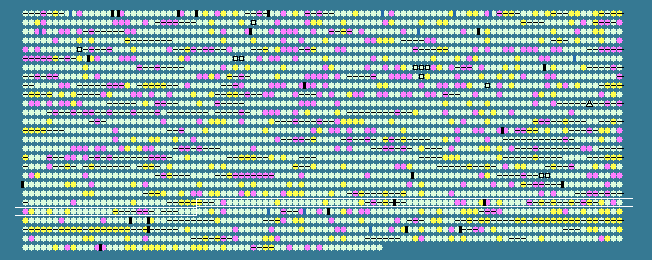

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2130	 36.54	+2	2440415..2440726	-	103	18311112	rplU	CPE2130	-	50S ribosomal protein L21
2131	 26.61	0	2440852..2442294	-	480	18311113	rng	CPE2131	-	ribonuclease, Rne/Rng family
2132	 28.53	0	2442311..2443018	-	235	18311114	-	CPE2132	-	hypothetical protein
2133	 31.66	0	2442996..2444849	-	617	18311115	-	CPE2133	-	radical SAM domain protein
2134	 23.27	-1	2444981..2445835	-	284	18311116	-	CPE2134	-	peptidase, M50 family
2135	 27.16	0	2445832..2446674	-	280	18311117	-	CPE2135	-	hypothetical protein
2136	 31.73	0	2446824..2447948	-	374	18311118	spoVE	CPE2136	-	cell cycle protein, FtsW/RodA/SpoVE family
2137	 28.94	0	2448096..2448368	-	90	18311119	minE	CPE2137	-	cell division topological specificity factor MinE
2138	 31.33	0	2448379..2449176	-	265	18311120	minD	CPE2138	-	septum site-determining protein MinD
2139	 29.09	0	2449205..2449840	-	211	18311121	minC	CPE2139	-	septum formation inhibitor
2140	 30.99	0	2450087..2453158	-	1023	18311122	-	CPE2140	-	penicillin-binding protein 2
2141	 27.11	0	2453167..2453664	-	165	18311123	-	CPE2141	-	rod shape-determining protein MreD
2142	 30.28	0	2453680..2454531	-	283	18311124	mreC	CPE2142	-	rod shape-determining protein MreC
2143	 35.57	+1	2454535..2455563	-	342	18311125	mreB	CPE2143	-	rod shape-determining protein
2144	 31.29	0	2455583..2456266	-	227	18311126	radC	CPE2144	-	DNA repair protein RadC
2145	 30.40	0	2456313..2456891	-	192	18311127	maf	CPE2145	-	Maf-like protein
2146	 28.61	0	2457117..2457920	-	267	18311128	-	CPE2146	-	hypothetical protein
2147	 28.45	0	2458182..2459000	-	272	18311129	-	CPE2147	-	hypothetical protein
2148	 29.89	0	2459328..2460779	-	483	18311130	pepD	CPE2148	-	aminoacyl-histidine dipeptidase
2149	 32.00	0	2460912..2462336	+	474	18311131	pykA	CPE2149	-	pyruvate kinase
2150	 29.02	0	2462453..2463589	-	378	18311132	rpsA	CPE2150	-	30S ribosomal protein S1
2151	 33.33	+1	2463735..2463938	-	67	18311133	-	CPE2151	-	heavy metal binding protein
2152	 29.28	0	2464043..2464807	-	254	18311134	-	CPE2152	-	hypothetical protein
2153	 27.49	0	2464973..2465383	-	136	18311135	guaB	CPE2153	-	inosine-5'-monophosphate dehydrogenase
2154	 26.25	0	2465469..2466371	-	300	18311136	-	CPE2154	-	exonuclease family protein
2155	 27.75	0	2466626..2468380	-	584	18311137	-	CPE2155	-	hypothetical protein
2156	 27.40	0	2468553..2470340	-	595	18311138	-	CPE2156	-	mutS domain protein
2157	 33.99	+1	2470664..2472193	-	509	18311139	-	CPE2157	-	PTS system, glucose-specific IIBC component
2158	 29.88	0	2472360..2473256	-	298	18311140	-	CPE2158	-	ABC transporter substrate-binding protein
2159	 23.26	-1	2473482..2476250	-	922	18311141	-	CPE2159	-	hypothetical protein
2160	 27.38	0	2476240..2477382	-	380	18311142	-	CPE2160	-	phosphoesterase
2161	 35.52	+1	2477660..2477842	-	60	18311143	-	CPE2161	-	small acid-soluble protein Ssp1
2162	 27.92	0	2477982..2480159	-	725	18311144	cpdC	CPE2162	-	2`,3`-cyclic-nucleotide 2`-phosphodiesterase
2163	 28.02	0	2480759..2481379	-	206	18311145	-	CPE2163	-	CBS domain protein
2164	 29.25	0	2481679..2482143	+	154	18311146	-	CPE2164	-	hypothetical protein
2165	 30.64	0	2482137..2482841	+	234	18311147	-	CPE2165	-	glycoprotease family protein
2166	 29.08	0	2482841..2483287	+	148	18311148	-	CPE2166	-	ribosomal-protein-alanine acetyltransferase
2167	 30.82	0	2483381..2483977	-	198	18311149	-	CPE2167	-	hypothetical protein
2168	 29.63	0	2484325..2486487	-	720	18311150	-	CPE2168	-	hypothetical protein
2169	 28.27	0	2486599..2487942	+	447	18311151	-	CPE2169	-	peptidase family protein
2170	 32.61	+1	2488191..2489162	-	323	18311152	prfB	CPE2170	-	peptide chain release factor 2
2171	 32.18	0	2489545..2492067	-	840	18311153	secA	CPE2171	-	preprotein translocase subunit SecA
2172	 28.52	0	2492302..2492841	-	179	18311154	-	CPE2172	-	30S ribosomal protein S30AE
2173	 25.00	-1	2493292..2493951	-	219	18311155	comFC	CPE2173	-	comFC protein
2174	 23.05	-1	2493927..2494889	-	320	18311156	-	CPE2174	-	hypothetical protein
2175	 29.53	0	2494907..2497141	-	744	18311157	recD	CPE2175	-	helicase, RecD/TraA family
2176	 31.93	0	2497278..2498414	+	378	18311158	nagA	CPE2176	-	N-acetylglucosamine-6-phosphate deacetylase
2177	 34.95	+1	2498554..2499729	-	391	161485642	metK	CPE2177	-	S-adenosylmethionine synthetase
2178	 23.88	-1	2500946..2501590	-	214	18311160	-	CPE2178	-	hypothetical protein
2179	 27.68	0	2501696..2502226	+	176	18311161	-	CPE2179	-	putative sporulation protein YyaC
2180	 35.36	+1	2502265..2503302	-	345	18311162	mreV	CPE2180	-	cell shape determining protein
2181	 28.17	0	2503393..2503644	-	83	18311163	spoIIID	CPE2181	-	stage III sporulation protein D
2182	 31.52	0	2503719..2504489	-	256	18311164	-	CPE2182	-	hypothetical protein
2183	 27.76	0	2504606..2505628	-	340	18311165	spoIID	CPE2183	-	stage II sporulation protein D
2184	 31.20	0	2505740..2507005	-	421	18311166	murA	CPE2184	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2185	 22.02	-2	2507028..2507672	-	214	18311167	-	CPE2185	-	hypothetical protein
2186	 32.09	0	2507854..2508255	-	133	18311168	atpE	CPE2186	-	F0F1 ATP synthase subunit epsilon
2187	 36.55	+2	2508271..2509668	-	465	18311169	atpB	CPE2187	-	F0F1 ATP synthase subunit beta
2188	 30.16	0	2509682..2510533	-	283	18311170	atpG	CPE2188	-	F0F1 ATP synthase subunit gamma
2189	 33.53	+1	2510598..2512106	-	502	18311171	atpA	CPE2189	-	F0F1 ATP synthase subunit alpha
2190	 26.85	0	2512117..2512656	-	179	18311172	atpD	CPE2190	-	F0F1 ATP synthase subunit delta
2191	 28.75	0	2512659..2513138	-	159	18311173	atpF	CPE2191	-	F0F1 ATP synthase subunit B
2192	 38.36	+2	2513238..2513456	-	72	18311174	atpL	CPE2192	-	F0F1 ATP synthase subunit C
2193	 31.41	0	2513517..2514191	-	224	18311175	atpI	CPE2193	-	F0F1 ATP synthase subunit A
2194	 23.77	-1	2514247..2514612	-	121	18311176	-	CPE2194	-	hypothetical protein
2195	 35.54	+1	2515294..2516472	-	392	18311177	atoB	CPE2195	-	acetyl-CoA acetyltransferase
2196	 30.04	0	2516741..2517895	-	384	18311178	-	CPE2196	-	UDP-N-acetylglucosamine 2-epimerase
2197	 33.49	+1	2517959..2518588	-	209	18311179	upp	CPE2197	-	uracil phosphoribosyltransferase
2198	 32.00	0	2518633..2519082	-	149	18311180	-	CPE2198	-	ribose-5-phosphate isomerase B
2199	 16.67	-2	2519162..2519317	-	51	18311181	-	CPE2199	-	hypothetical protein
2200	 31.15	0	2519346..2520398	-	350	18311182	-	CPE2200	-	Sua5/YciO/YrdC/YwlC family protein
2201	 22.84	-1	2520421..2521011	-	196	18311183	-	CPE2201	-	hypothetical protein
2202	 33.24	+1	2521090..2522172	-	360	18311184	prfA	CPE2202	-	peptide chain release factor 1
2203	 28.36	0	2522229..2523938	-	569	18311185	-	CPE2203	-	hypothetical protein
2204	 29.17	0	2524022..2524621	-	199	18311186	tdk	CPE2204	-	thymidine kinase
2205	 35.75	+1	2524777..2524983	+	68	18311187	rpmE	CPE2205	-	50S ribosomal protein L31
2206	 26.04	0	2525092..2526216	+	374	18311188	-	CPE2206	-	putative monogalactosyldiacylglycerol synthase
2207	 29.44	0	2526259..2527698	-	479	18311189	rho	CPE2207	-	transcription termination factor Rho
2208	 33.83	+1	2527964..2529571	-	535	18311190	ctrA	CPE2208	-	CTP synthetase
2209	 29.05	0	2529911..2530330	-	139	18311191	-	CPE2209	-	hypothetical protein
2210	 30.07	0	2530353..2531333	-	326	18311192	-	CPE2210	-	hypothetical protein
2211	 26.51	0	2531379..2532008	-	209	18311193	spoIIR	CPE2211	-	stage II sporulation protein R
2212	 27.22	0	2532078..2532944	-	288	18311194	ipk	CPE2212	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2213	 29.56	0	2533080..2535704	-	874	18311195	cphA	CPE2213	-	cyanophycin synthetase
2214	 30.07	0	2535691..2536518	-	275	18311196	cphB	CPE2214	-	cyanophycinase
2215	 28.85	0	2536618..2538180	-	520	18311197	-	CPE2215	-	lysM domain protein
2216	 33.33	+1	2538540..2538776	-	78	18311198	-	CPE2216	-	hypothetical protein
2217	 28.49	0	2538939..2539826	-	295	18311199	-	CPE2217	-	peptidase family protein
2218	 27.56	0	2540029..2541033	-	334	18311200	cotS	CPE2218	-	spore coat protein CotS
2219	 27.57	0	2541142..2542269	+	375	18311201	-	CPE2219	-	mannosyltransferase B
2220	 22.84	-1	2542452..2543480	-	342	18311202	cotS	CPE2220	-	spore coat protein
2221	 24.27	-1	2543496..2544179	-	227	18311203	-	CPE2221	-	hypothetical protein
2222	 27.88	0	2544187..2545194	-	335	18311204	cotS	CPE2222	-	spore coat protein
2223	 29.06	0	2545323..2546468	+	381	18311205	-	CPE2223	-	mannosyltransferase B
2224	 27.68	0	2546702..2547232	-	176	18311206	-	CPE2224	-	hypothetical protein
2225	 26.61	0	2547425..2547796	-	123	18311207	-	CPE2225	-	hypothetical protein
2226	 30.63	0	2547937..2548380	+	147	18311208	-	CPE2226	-	hypothetical protein
2227	 27.50	0	2548415..2549443	+	342	18311209	apbA	CPE2227	-	thiamin biosynthesis lipoprotein
2228	 29.33	0	2549567..2550691	-	374	18311210	eutH	CPE2228	-	ethanolamine transporter
2229	 26.36	0	2550854..2551183	-	109	18311211	-	CPE2229	-	PTS system protein
29.13	MEAN

3.46	STD DEV
