IslandPath Analysis: Clostridium perfringens str. 13

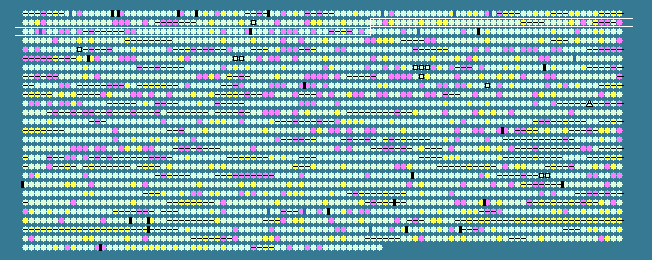

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
159	 31.82	0	203688..204281	+	197	18309141	-	CPE0159	-	hypothetical protein
160	 32.25	0	204516..205067	+	183	18309142	-	CPE0160	-	hypothetical protein
161	 22.22	-1	205272..206738	-	488	18309143	-	CPE0161	-	hypothetical protein
162	 34.98	+1	207408..208439	+	343	18309144	pfoR	CPE0162	-	regulatory protein
163	 30.74	0	209028..210530	+	500	18309145	pfoA	CPE0163	-	perfringolysin O
164	 27.45	0	210726..211184	+	152	18309146	-	CPE0164	-	hypothetical protein
165	 29.17	0	211256..211423	+	55	18309147	-	CPE0165	-	hypothetical protein
166	 32.06	0	212226..213713	+	495	18309148	-	CPE0166	-	membrane-spanning transporter protein
167	 34.73	+1	213872..215941	+	689	18309149	pbg	CPE0167	-	beta-galactosidase
168	 31.08	0	216493..217734	+	413	18309150	arcA	CPE0168	-	arginine deiminase
169	 32.33	0	217842..218837	+	331	18309151	arcB	CPE0169	-	ornithine carbamoyltransferase
170	 33.33	+1	218982..220418	+	478	18309152	arcD	CPE0170	-	arginine/ornithine antiporter
171	 33.86	+1	220479..221423	+	314	18309153	arcC	CPE0171	-	carbamate kinase
172	 28.73	0	221496..221951	+	151	18309154	argR	CPE0172	-	arginine repressor
173	 29.38	0	222495..225809	+	1104	18309155	colA	CPE0173	-	collagenase
174	 29.41	0	225957..226415	-	152	18309156	mscL	CPE0174	-	large-conductance mechanosensitive channel
175	 31.94	0	227207..227782	+	191	18309157	ycgJ	CPE0175	-	methyltransferase, UbiE/COQ5 family
176	 30.74	0	227846..229000	+	384	18309158	metB	CPE0176	-	cystathionine beta-lyase
177	 30.47	0	228987..229895	+	302	18309159	cysK	CPE0177	-	cysteine synthase family protein
178	 30.48	0	229993..230448	+	151	18309160	luxS	CPE0178	-	S-ribosylhomocysteinase
179	 28.88	0	231156..232166	+	336	18309161	lipA	CPE0179	-	lipase
180	 31.82	0	232388..233179	-	263	18309162	-	CPE0180	-	hypothetical protein
181	 27.59	0	233184..234002	-	272	18309163	-	CPE0181	-	hypothetical protein
182	 29.53	0	234005..235030	-	341	18309164	-	CPE0182	-	ABC transporter ATP-binding protein
183	 29.60	0	235341..236009	+	222	18309165	-	CPE0183	-	nitroreductase family protein
184	 33.03	+1	236295..236960	+	221	18309166	nanP	CPE0184	-	N-acetylmannosamine-6-phosphate 2-epimerase
185	 30.33	0	236997..237863	+	288	18309167	nanA	CPE0185	-	N-acetylneuraminate lyase
186	 32.02	0	237966..239483	+	505	18309168	-	CPE0186	-	hypothetical protein
187	 28.48	0	239593..240045	+	150	18309169	-	CPE0187	-	hypothetical protein
188	 32.21	0	240201..241088	+	295	18309170	-	CPE0188	-	ROK family protein
189	 28.10	0	241279..242118	+	279	18309171	-	CPE0189	-	RpiR family transcriptional regulator
190	 26.67	0	242319..242708	-	129	18309172	-	CPE0190	-	hypothetical protein
191	 31.18	0	242971..247857	+	1628	18309173	nagH	CPE0191	-	hyaluronidase
192	 34.67	+1	248808..249479	+	223	161485644	cbiM	CPE0192	-	cobalt transport protein CbiM
193	 31.73	0	249479..249790	+	103	18309175	cbiN	CPE0193	-	cobalt transport protein CbiN
194	 25.28	-1	249837..250544	+	235	18309176	cbiQ	CPE0194	-	cobalt ABC transporter permease
195	 29.84	0	250559..251416	+	285	18309177	cbiO	CPE0195	-	cobalt transporter ATP-binding subunit
196	 33.46	+1	251886..253466	+	526	18309178	ptiB	CPE0196	-	PTS arbutin-like enzyme IIBC component
197	 25.55	-1	253730..254500	+	256	18309179	-	CPE0197	-	hypothetical protein
198	 24.55	-1	254724..255224	+	166	18309180	-	CPE0198	-	hypothetical protein
199	 30.84	0	255480..256805	+	441	18309181	malH	CPE0199	-	maltose-6'-phosphate glucosidase
200	 22.84	-1	257386..257547	+	53	18309182	-	CPE0200	-	hypothetical protein
201	 29.98	0	257764..258627	-	287	18309183	-	CPE0201	-	5'-nucleotidase, lipoprotein e(P4) family
202	 30.33	0	258849..260048	-	399	18309184	spoIIQ	CPE0202	-	cell wall-binding protein
203	 24.51	-1	260735..261391	+	218	18309185	-	CPE0203	-	hypothetical protein
204	 23.49	-1	267399..268028	+	209	18309186	-	CPE0204	-	acetyltransferase
205	 27.90	0	268495..268770	+	91	18309187	-	CPE0205	-	hypothetical protein
206	 28.69	0	270353..270934	+	193	18309188	-	CPE0206	-	hypothetical protein
207	 24.03	-1	271073..273448	-	791	18309189	-	CPE0207	-	two-component sensor histidine kinase
208	 24.55	-1	273815..274873	+	352	18309190	-	CPE0208	-	hypothetical protein
209	 27.19	0	274974..275201	+	75	18309191	-	CPE0209	-	hypothetical protein
210	 20.98	-2	275341..276222	+	293	18309192	-	CPE0210	-	hypothetical protein
211	 26.83	0	276250..278448	+	732	18309193	-	CPE0211	-	hypothetical protein
212	 23.99	-1	278930..279700	+	256	18309194	-	CPE0212	-	hypothetical protein
213	 30.15	0	279879..280694	-	271	18309195	-	CPE0213	-	hypothetical protein
214	 26.67	0	281268..281912	-	214	18309196	-	CPE0214	-	heme oxygenase
215	 31.05	0	282313..283536	+	407	18309197	sbcD	CPE0215	-	exonuclease
216	 27.55	0	283514..287041	+	1175	18309198	sbcC	CPE0216	-	exonuclease SbcC
217	 30.33	0	287446..288642	+	398	18309199	ackA	CPE0217	-	acetate kinase
218	 25.30	-1	289079..289900	+	273	18309200	-	CPE0218	-	DnaJ-related protein
219	 24.64	-1	290151..290909	-	252	18309201	-	CPE0219	-	AraC family transcriptional regulator
220	 29.88	0	291056..293287	+	743	18309202	-	CPE0220	-	hypothetical protein
221	 29.78	0	293350..293997	+	215	18309203	-	CPE0221	-	putative iron transporter
222	 28.01	0	293999..294562	+	187	18309204	-	CPE0222	-	sortase family protein
223	 30.86	0	294576..295463	+	295	18309205	-	CPE0223	-	ferrichrome ABC transporter
224	 31.71	0	295450..296436	+	328	18309206	-	CPE0224	-	ferrichrome ABC transporter
225	 27.44	0	296437..297216	+	259	18309207	fhuC	CPE0225	-	ferrichrome ABC transporter
226	 28.71	0	297255..298985	+	576	18309208	-	CPE0226	-	ABC transporter
227	 29.48	0	298986..300674	+	562	18309209	-	CPE0227	-	ABC transporter
228	 25.76	0	300661..301056	+	131	18309210	-	CPE0228	-	hypothetical protein
229	 26.33	0	301037..301336	+	99	18309211	-	CPE0229	-	hypothetical protein
230	 29.03	0	301463..301648	+	61	18309212	-	CPE0230	-	iron-sulfur cluster-binding protein
231	 31.74	0	301943..303388	+	481	18309213	-	CPE0231	-	arylsulfatase
232	 33.11	+1	303546..304883	-	445	18309214	glpT	CPE0232	-	glycerol-3-phosphate transporter
233	 30.10	0	305084..306103	-	339	18309215	-	CPE0233	-	iron(III) ABC transporter
234	 24.33	-1	306084..306872	-	262	18309216	-	CPE0234	-	hypothetical protein
235	 26.00	0	306865..308295	-	476	18309217	-	CPE0235	-	sensor histidine kinase
236	 26.34	0	308285..308956	-	223	18309218	-	CPE0236	-	DNA-binding response regulator
237	 29.42	0	309248..310447	+	399	18309219	napA	CPE0237	-	Na+/H+ antiporter
238	 25.19	-1	310700..311227	+	175	18309220	-	CPE0238	-	hypothetical protein
239	 27.16	0	311601..312377	+	258	18309221	-	CPE0239	-	hypothetical protein
240	 27.46	0	312795..314225	+	476	18309222	-	CPE0240	-	hypothetical protein
241	 29.87	0	314228..314920	+	230	18309223	-	CPE0241	-	hypothetical protein
242	 23.36	-1	315018..315338	-	106	18309224	-	CPE0242	-	immunity protein
243	 26.91	0	315473..315721	+	82	18309225	-	CPE0243	-	hypothetical protein
244	 21.24	-2	315728..316504	+	258	18309226	-	CPE0244	-	hypothetical protein
245	 24.48	-1	316595..318922	-	775	18309227	-	CPE0245	-	GGDEF/EAL domain protein
246	 24.27	-1	319177..320445	+	422	18309228	-	CPE0246	-	dnaJ domain protein
247	 27.69	0	320463..321065	+	200	18309229	grpE	CPE0247	-	GrpE protein
248	 30.50	0	321053..322780	+	575	18309230	dnaK	CPE0248	-	dnaK family protein
249	 23.13	-1	322798..323532	+	244	18309231	-	CPE0249	-	hypothetical protein
250	 28.42	0	323804..324577	+	257	18309232	-	CPE0250	-	capsular polysaccharide biosynthesis protein
251	 28.57	0	324892..326214	+	440	18309233	-	CPE0251	-	hypothetical protein
252	 23.27	-1	326287..326733	-	148	18309234	-	CPE0252	-	hypothetical protein
253	 27.45	0	326853..327056	+	67	18309235	-	CPE0253	-	hypothetical protein
254	 32.93	+1	327069..327317	+	82	18309236	-	CPE0254	-	hypothetical protein
255	 19.05	-2	327402..327716	-	104	18309237	-	CPE0255	-	hypothetical protein
256	 31.16	0	327853..328587	-	244	18309238	-	CPE0256	-	NAD-dependent deacetylase
257	 25.62	-1	328757..329080	+	107	18309239	-	CPE0257	-	hypothetical protein
258	 25.71	0	329114..329323	+	69	18309240	-	CPE0258	-	transcriptional regulator
29.13	MEAN

3.46	STD DEV
