IslandPath Analysis: Clostridium perfringens str. 13

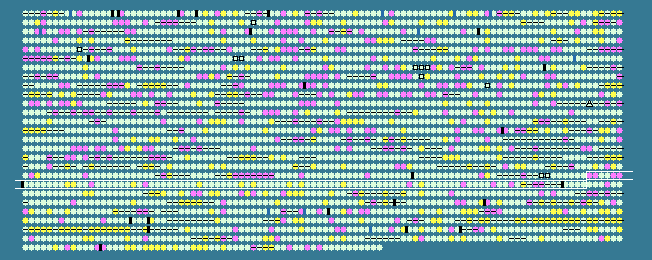

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1895	 22.64	-1	2175549..2176427	-	292	18310877	-	CPE1895	-	putative sporulation protein YtxC
1896	 25.43	-1	2176562..2177257	+	231	18310878	-	CPE1896	-	hypothetical protein
1897	 30.28	0	2177512..2178492	+	326	18310879	-	CPE1897	-	BadF/BadG/BcrA/BcrD ATPase family protein
1898	 28.65	0	2178625..2179179	-	184	18310880	-	CPE1898	-	hypothetical protein
1899	 21.62	-2	2179345..2179899	-	184	18310881	-	CPE1899	-	hypothetical protein
1900	 24.34	-1	2180198..2180575	+	125	18310882	-	CPE1900	-	hypothetical protein
1901	 30.42	0	2181056..2182015	-	319	18310883	hslO	CPE1901	-	Hsp33-like chaperonin
1902	 26.69	0	2182031..2182768	-	245	18310884	-	CPE1902	-	hypothetical protein
1903	 30.77	0	2182820..2183092	-	90	18310885	-	CPE1903	-	small acid-soluble spore protein beta
1904	 31.49	0	2183294..2184271	+	325	18310886	asd	CPE1904	-	aspartate-semialdehyde dehydrogenase
1905	 28.88	0	2184296..2185171	+	291	18310887	dapA	CPE1905	-	dihydrodipicolinate synthase
1906	 29.93	0	2185244..2186008	+	254	18310888	dapB	CPE1906	-	dihydrodipicolinate reductase
1907	 29.13	0	2186304..2187446	-	380	18310889	patA	CPE1907	-	asparate aminotransferase
1908	 32.77	+1	2187446..2187982	-	178	18310890	-	CPE1908	-	cob(I)alamin adenosyltransferase
1909	 33.90	+1	2188176..2188886	+	236	18310891	dapD	CPE1909	-	tetrahydrodipicolinate succinylase
1910	 27.85	0	2188936..2189592	-	218	18310892	-	CPE1910	-	single-strand DNA-binding protein
1911	 26.13	0	2189708..2190484	-	258	18310893	-	CPE1911	-	polysaccharide deacetylase family protein
1912	 25.05	-1	2190592..2191122	+	176	18310894	-	CPE1912	-	hypothetical protein
1913	 27.10	0	2191188..2192294	+	368	18310895	-	CPE1913	-	hypothetical protein
1914	 28.20	0	2192466..2193887	+	473	18310896	-	CPE1914	-	PBP 5 synthesis repressor
1915	 28.19	0	2193942..2194583	-	213	18310897	hlyE	CPE1915	-	hemolysin III
1916	 29.90	0	2194709..2195203	+	164	18310898	-	CPE1916	-	hypothetical protein
1917	 29.74	0	2195318..2196877	-	519	18310899	-	CPE1917	-	hypothetical protein
1918	 29.33	0	2196988..2198310	-	440	18310900	folC	CPE1918	-	FolC bifunctional protein
1919	 33.64	+1	2198991..2201633	-	880	18310901	valS	CPE1919	-	valyl-tRNA synthetase
1920	 25.93	0	2202293..2202643	+	116	18310902	-	CPE1920	-	tetratricopeptide repeat protein
1921	 19.75	-2	2202701..2202862	-	53	18310903	-	CPE1921	-	hypothetical protein
1922	 27.72	0	2202849..2204024	-	391	18310904	-	CPE1922	-	transglutaminase domain protein
1923	 25.67	-1	2204030..2204668	-	212	18310905	recX	CPE1923	-	recombination regulator RecX
1924	 28.35	0	2204674..2205918	-	414	18310906	-	CPE1924	-	peptidase, M16 family
1925	 28.32	0	2205887..2206684	+	265	18310907	-	CPE1925	-	DNA-binding response regulator
1926	 27.62	0	2206684..2208207	+	507	18310908	-	CPE1926	-	sensor histidine kinase
1927	 32.53	0	2208522..2209268	-	248	18310909	fabG	CPE1927	-	3-ketoacyl-(acyl-carrier-protein) reductase
1928	 27.96	0	2209361..2210347	-	328	18310910	-	CPE1928	-	dipeptidase family protein
1929	 31.47	0	2210573..2211805	-	410	18310911	glyA	CPE1929	-	serine hydroxymethyltransferase
1930	 32.94	+1	2211985..2212755	+	256	18310912	-	CPE1930	-	hypothetical protein
1931	 29.69	0	2212756..2213277	+	173	18310913	-	CPE1931	-	hypothetical protein
1932	 30.04	0	2213295..2213567	-	90	18310914	-	CPE1932	-	hypothetical protein
1933	 32.27	0	2213854..2215647	-	597	18310915	aspS	CPE1933	-	aspartyl-tRNA synthetase
1934	 31.73	0	2215668..2216915	-	415	18310916	hisS	CPE1934	-	histidyl-tRNA synthetase
1935	 28.48	0	2216947..2218389	-	480	18310917	hemZ	CPE1935	-	coproporphyrinogen III oxidase
1936	 30.27	0	2218379..2218999	-	206	18310918	-	CPE1936	-	metallo-beta-lactamase family protein
1937	 32.89	+1	2219159..2219608	-	149	18310919	-	CPE1937	-	D-tyrosyl-tRNA deacylase
1938	 29.80	0	2219623..2221803	-	726	18310920	relA	CPE1938	-	GTP pyrophosphokinase
1939	 34.10	+1	2221955..2222473	-	172	18310921	apt	CPE1939	-	adenine phosphoribosyltransferase
1940	 26.55	0	2222518..2223372	-	284	18310922	-	CPE1940	-	DHH domain protein
1941	 28.62	0	2223573..2224442	-	289	18310923	secF	CPE1941	-	preprotein translocase subunit SecF
1942	 31.75	0	2224435..2225694	-	419	18310924	secD	CPE1942	-	preprotein translocase subunit SecD
1943	 31.15	0	2225792..2227165	-	457	18310925	-	CPE1943	-	astB/chuR-related protein
1944	 27.41	0	2227570..2227839	-	89	18310926	yajC	CPE1944	-	preprotein translocase subunit YajC
1945	 32.72	+1	2227878..2229020	-	380	18310927	tgt	CPE1945	-	queuine tRNA-ribosyltransferase
1946	 29.82	0	2229044..2230069	-	341	18310928	queA	CPE1946	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1947	 32.95	+1	2230091..2231131	-	346	18310929	ruvB	CPE1947	-	Holliday junction DNA helicase B
1948	 29.70	0	2231145..2231750	-	201	18310930	ruvA	CPE1948	-	Holliday junction DNA helicase motor protein
1949	 26.26	0	2231978..2232571	-	197	18310931	-	CPE1949	-	hypothetical protein
1950	 32.43	0	2232719..2236264	-	1181	18310932	cpdB	CPE1950	-	2', 3'-cyclic nucleotide 2'-phosphodiesterase
1951	 31.47	0	2236515..2240162	-	1215	18310933	cpdA	CPE1951	-	2', 3'-cyclic nucleotide 2'-phosphodiesterase
1952	 26.23	0	2240411..2241409	-	332	18310934	ptp	CPE1952	-	hypothetical protein
1953	 28.97	0	2241885..2242319	-	144	18310935	-	CPE1953	-	hemoglobin
1954	 35.91	+1	2242745..2243482	-	245	18310936	-	CPE1954	-	hypothetical protein
1955	 32.26	0	2243608..2244261	-	217	18310937	-	CPE1955	-	hypothetical protein
1956	 26.51	0	2244267..2245673	-	468	18310938	-	CPE1956	-	GntR family transcriptional regulator/aminotransferase
1957	 26.36	0	2245688..2246590	-	300	18310939	-	CPE1957	-	nucleotidyltransferase domain protein
1958	 32.07	0	2246632..2247105	-	157	18310940	-	CPE1958	-	hypothetical protein
1959	 30.38	0	2247237..2249030	-	597	18310941	hflX	CPE1959	-	GTP binding protein
1960	 29.14	0	2249137..2249661	+	174	18310942	hprT	CPE1960	-	hypoxanthine phosphoribosyltransferase
1961	 26.67	0	2249695..2250384	-	229	18310943	-	CPE1961	-	sporulation protein YunB
1962	 32.21	0	2250521..2252560	+	679	18310944	pbpA	CPE1962	-	penicillin-binding proteins 1A/1B
1963	 31.72	0	2252578..2253012	+	144	18310945	-	CPE1963	-	hypothetical protein
1964	 32.19	0	2253306..2254706	+	466	18310946	-	CPE1964	-	amino acid carrier protein
1965	 24.94	-1	2254743..2255135	-	130	18310947	-	CPE1965	-	hypothetical protein
1966	 28.21	0	2255183..2256157	-	324	18310948	-	CPE1966	-	GNAT family acetyltransferase
1967	 32.96	+1	2256585..2257124	+	179	18310949	-	CPE1967	-	DNA-binding protein
1968	 30.10	0	2257156..2258205	+	349	18310950	potA	CPE1968	-	spermidine/putrescine ABC transporter
1969	 29.08	0	2258208..2259053	+	281	18310951	potB	CPE1969	-	spermidine/putrescine ABC transporter
1970	 29.71	0	2259047..2259847	+	266	18310952	potC	CPE1970	-	spermidine/putrescine ABC transporter
1971	 30.56	0	2259849..2260931	+	360	18310953	potD	CPE1971	-	spermidine/putrescine ABC transporter
1972	 30.09	0	2260966..2261397	-	143	18310954	ndk	CPE1972	-	nucleoside diphosphate kinase
1973	 30.37	0	2261582..2261851	+	89	18310955	-	CPE1973	-	acylphosphatase
1974	 23.72	-1	2261991..2262146	-	51	18310956	-	CPE1974	-	hypothetical protein
1975	 25.93	0	2262316..2262882	-	188	18310957	-	CPE1975	-	hypothetical protein
1976	 30.97	0	2263061..2264332	+	423	18310958	dacF	CPE1976	-	D-alanyl-D-alanine carboxypeptidase
1977	 29.92	0	2264387..2265031	-	214	18310959	-	CPE1977	-	pyrophosphatase PpaX
1978	 30.76	0	2265621..2266631	+	336	18310960	asnA	CPE1978	-	asparagine synthetase AsnA
1979	 24.30	-1	2266757..2267575	+	272	18310961	-	CPE1979	-	hypothetical protein
1980	 28.57	0	2267687..2268064	+	125	18310962	-	CPE1980	-	lrgA family protein
1981	 31.93	0	2268057..2268767	+	236	18310963	-	CPE1981	-	lrgB-like family protein
1982	 24.78	-1	2268864..2269319	+	151	18310964	-	CPE1982	-	hypothetical protein
1983	 30.61	0	2269532..2271694	-	720	18310965	topB	CPE1983	-	DNA topoisomerase
1984	 32.73	+1	2271934..2273091	-	385	18310966	-	CPE1984	-	hypothetical protein
1985	 27.42	0	2273254..2273760	-	168	18310967	-	CPE1985	-	TspO/MBR family protein
1986	 22.24	-1	2273797..2275833	-	678	18310968	-	CPE1986	-	sensor histidine kinase
1987	 22.10	-2	2275823..2277709	-	628	18310969	-	CPE1987	-	sensor histidine kinase
1988	 27.67	0	2277830..2278765	-	311	18310970	-	CPE1988	-	tetratricopeptide repeat protein
1989	 29.64	0	2278886..2279806	-	306	18310971	-	CPE1989	-	hydrolase, alpha/beta fold family
1990	 25.96	0	2279929..2280525	-	198	18310972	-	CPE1990	-	hypothetical protein
1991	 27.14	0	2280811..2281941	-	376	18310973	-	CPE1991	-	hypothetical protein
1992	 29.12	0	2281978..2282523	-	181	18310974	-	CPE1992	-	hypothetical protein
1993	 29.50	0	2282533..2283132	-	199	18310975	coaE	CPE1993	-	dephospho-CoA kinase
1994	 27.87	0	2283149..2285749	-	866	18310976	polA	CPE1994	-	DNA polymerase I
29.13	MEAN

3.46	STD DEV
