IslandPathversion 1.0

IslandPath Analysis: Clostridium perfringens str. 13

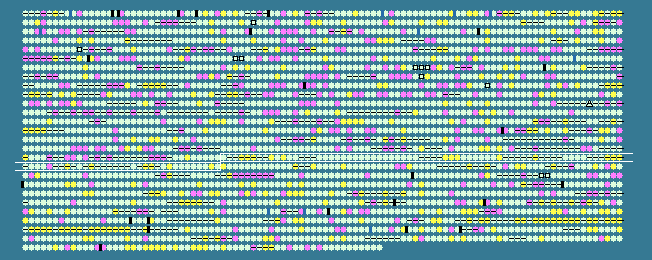

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1634	 30.73	0	1906533..1907492	-	319	18310616	tagO	CPE1634	-	undecaprenyl-phosphate N-acetylglucosaminyltransferase
1635	 27.87	0	1907638..1908204	-	188	18310617	-	CPE1635	-	transcriptional regulator
1636	 32.40	0	1908420..1909064	-	214	18310618	ntpD	CPE1636	-	V-type ATP synthase subunit D
1637	 35.79	+1	1909067..1910449	-	460	18310619	ntpB	CPE1637	-	V-type ATP synthase subunit B
1638	 37.73	+2	1910442..1912217	-	591	18310620	ntpA	CPE1638	-	V-type ATP synthase subunit A
1639	 32.70	+1	1912234..1912551	-	105	18310621	ntpF	CPE1639	-	V-type ATP synthase subunit F
1640	 27.88	0	1912538..1913545	-	335	18310622	ntpC	CPE1640	-	V-type ATP synthase subunit C
1641	 26.13	0	1913558..1914154	-	198	18310623	ntpE	CPE1641	-	V-type ATPase, E subunit
1642	 35.35	+1	1914185..1914679	-	164	18310624	ntpK	CPE1642	-	V-type ATP synthase subunit K
1643	 32.20	0	1914734..1916680	-	648	18310625	ntpI	CPE1643	-	V-type ATP synthase subunit I
1644	 32.72	+1	1916667..1916993	-	108	18310626	-	CPE1644	-	hypothetical protein
1645	 28.04	0	1917270..1918949	-	559	18310627	-	CPE1645	-	radical SAM domain protein
1646	 26.53	0	1918849..1919451	-	200	18310628	-	CPE1646	-	hypothetical protein
1647	 25.80	0	1919598..1920884	-	428	18310629	-	CPE1647	-	hypothetical protein
1648	 27.25	0	1921032..1922561	+	509	18310630	spoVB	CPE1648	-	stage V sporulation protein B
1649	 26.34	0	1922655..1923455	-	266	18310631	-	CPE1649	-	hypothetical protein
1650	 28.35	0	1923565..1924407	-	280	18310632	-	CPE1650	-	hypothetical protein
1651	 32.34	0	1924419..1924922	-	167	18310633	-	CPE1651	-	hypothetical protein
1652	 26.75	0	1925171..1926172	+	333	18310634	-	CPE1652	-	hypothetical protein
1653	 27.07	0	1926200..1926550	-	116	18310635	-	CPE1653	-	hypothetical protein
1654	 28.66	0	1926770..1927240	+	156	18310636	-	CPE1654	-	AsnC family transcriptional regulator
1655	 27.94	0	1927347..1927550	+	67	18310637	-	CPE1655	-	hypothetical protein
1656	 29.61	0	1927598..1929343	-	581	18310638	-	CPE1656	-	hypothetical protein
1657	 28.65	0	1929544..1930398	+	284	18310639	comEC	CPE1657	-	late competence protein
1658	 26.17	0	1930455..1931138	-	227	18310640	-	CPE1658	-	hypothetical protein
1659	 30.59	0	1931324..1931542	+	72	18310641	feoA	CPE1659	-	ferrous iron transport protein A
1660	 30.95	0	1931580..1933343	+	587	18310642	feoB	CPE1660	-	ferrous iron transport protein B
1661	 30.80	0	1933553..1935250	-	565	18310643	argS	CPE1661	-	arginyl-tRNA synthetase
1662	 27.97	0	1935732..1937240	+	502	18310644	-	CPE1662	-	Ppx/GppA phosphatase family protein
1663	 29.71	0	1937338..1938552	-	404	18310645	-	CPE1663	-	hypothetical protein
1664	 28.02	0	1938718..1939338	-	206	18310646	-	CPE1664	-	peptidase, M50 family
1665	 30.43	0	1939543..1940922	-	459	18310647	-	CPE1665	-	PhoH family protein
1666	 27.64	0	1941144..1941758	+	204	18310648	-	CPE1666	-	hypothetical protein
1667	 26.97	0	1941795..1942124	-	109	18310649	-	CPE1667	-	single-strand binding protein
1668	 30.82	0	1942405..1943835	-	476	18310650	purB	CPE1668	-	adenylosuccinate lyase
1669	 31.80	0	1944078..1944338	-	86	18310651	hpr	CPE1669	-	phosphocarrier protein
1670	 30.07	0	1944433..1945626	-	397	18310652	aspC	CPE1670	-	aspartate aminotransferase
1671	 36.78	+2	1945779..1946039	-	86	18310653	spoVS	CPE1671	-	stage V sporulation protein S
1672	 34.34	+1	1946257..1947849	-	530	18310654	-	CPE1672	-	phosphodiesterase
1673	 34.56	+1	1948140..1949198	-	352	18310655	recA	CPE1673	-	recombinase A
1674	 29.95	0	1949334..1949924	-	196	18310656	-	CPE1674	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1675	 29.30	0	1949908..1951245	-	445	18310657	-	CPE1675	-	hypothetical protein
1676	 31.03	0	1951314..1953704	-	796	18310658	spoIIIE	CPE1676	-	DNA translocase FtsK
1677	 30.78	0	1953836..1954579	-	247	18310659	-	CPE1677	-	Clp protease
1678	 30.91	0	1954579..1955775	-	398	18310660	dapG	CPE1678	-	aspartate kinase I
1679	 26.09	0	1955789..1956064	-	91	18310661	-	CPE1679	-	PRC-barrel domain protein
1680	 33.52	+1	1956198..1958306	-	702	18310662	pnpA	CPE1680	-	polynucleotide phosphorylase/polyadenylase
1681	 32.20	0	1958398..1958661	-	87	18310663	rpsO	CPE1681	-	30S ribosomal protein S15
1682	 26.77	0	1958777..1959706	-	309	18310664	ribC	CPE1682	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1683	 28.93	0	1959710..1960594	-	294	18310665	truB	CPE1683	-	tRNA pseudouridine synthase B
1684	 29.87	0	1960598..1961551	-	317	18310666	-	CPE1684	-	DHH subfamily 1 protein
1685	 29.91	0	1961555..1961905	-	116	18310667	rbfA	CPE1685	-	ribosome-binding factor A
1686	 34.12	+1	1961927..1963966	-	679	18310668	infB	CPE1686	-	translation initiation factor IF-2
1687	 26.40	0	1963997..1964299	-	100	18310669	-	CPE1687	-	hypothetical protein
1688	 29.96	0	1964292..1964558	-	88	18310670	-	CPE1688	-	hypothetical protein
1689	 29.97	0	1964586..1965686	-	366	18310671	nusA	CPE1689	-	transcription elongation factor NusA
1690	 28.17	0	1965706..1966170	-	154	18310672	-	CPE1690	-	hypothetical protein
1691	 31.45	0	1966403..1970752	-	1449	18310673	polC	CPE1691	-	DNA polymerase III PolC
1692	 31.71	0	1970830..1971879	-	349	18310674	ispG	CPE1692	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1693	 32.54	0	1971899..1972906	-	335	18310675	-	CPE1693	-	hypothetical protein
1694	 29.18	0	1972918..1974072	-	384	18310676	-	CPE1694	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1695	 27.30	0	1974432..1975226	-	264	18310677	cdsA	CPE1695	-	phosphatidate cytidylyltransferase
1696	 30.05	0	1975244..1976005	-	253	18310678	uppS	CPE1696	-	undecaprenyl diphosphate synthase
1697	 28.32	0	1976070..1976627	-	185	18310679	frr	CPE1697	-	ribosome recycling factor
1698	 34.73	+1	1976641..1977354	-	237	18310680	pyrH	CPE1698	-	uridylate kinase
1699	 35.64	+1	1977447..1978358	-	303	18310681	tsf	CPE1699	-	elongation factor Ts
1700	 33.76	+1	1978438..1979139	-	233	18310682	rpsB	CPE1700	-	30S ribosomal protein S2
1701	 29.34	0	1979521..1980297	-	258	18310683	-	CPE1701	-	transcriptional repressor CodY
1702	 30.58	0	1980439..1982541	-	700	18310684	topA	CPE1702	-	DNA topoisomerase I
1703	 27.61	0	1982586..1983668	-	360	18310685	smf	CPE1703	-	DNA protecting protein DprA
1704	 29.92	0	1983669..1985192	-	507	18310686	comM	CPE1704	-	Mg chelatase-like protein
1705	 24.93	-1	1985322..1985690	+	122	18310687	-	CPE1705	-	hypothetical protein
1706	 27.23	0	1985691..1986509	-	272	18310688	rnhB	CPE1706	-	ribonuclease HII
1707	 30.26	0	1986525..1987370	-	281	18310689	rbgA	CPE1707	-	ribosomal biogenesis GTPase
1708	 33.05	+1	1987517..1987864	-	115	18310690	rplS	CPE1708	-	50S ribosomal protein L19
1709	 31.08	0	1987985..1988695	-	236	18310691	trmD	CPE1709	-	tRNA (guanine-N(1)-)-methyltransferase
1710	 28.92	0	1988685..1989182	-	165	18310692	rimM	CPE1710	-	16S rRNA-processing protein
1711	 32.46	0	1989238..1989465	-	75	18310693	-	CPE1711	-	hypothetical protein
1712	 38.21	+2	1989509..1989754	-	81	18310694	rpsP	CPE1712	-	30S ribosomal protein S16
1713	 32.52	0	1989788..1991146	-	452	18310695	ffh	CPE1713	-	signal recognition particle protein
1714	 25.96	0	1991158..1991496	-	112	18310696	-	CPE1714	-	hypothetical protein
1715	 31.04	0	1991673..1992587	-	304	18310697	ftsY	CPE1715	-	signal recognition particle-docking protein FtsY
1716	 26.81	0	1992601..1996158	-	1185	18310698	smc	CPE1716	-	chromosome segregation protein SMC
1717	 29.24	0	1996363..1997436	-	357	18310699	-	CPE1717	-	radical SAM domain protein
1718	 27.45	0	1997415..1998128	-	237	18310700	rnc	CPE1718	-	ribonuclease III
1719	 32.47	0	1998227..1998457	-	76	18310701	acpA	CPE1719	-	acyl carrier protein
1720	 31.60	0	1998534..1999166	-	210	18310702	plsX	CPE1720	-	putative glycerol-3-phosphate acyltransferase PlsX
1721	 33.61	+1	1999139..1999504	-	121	18310703	plsX	CPE1721	-	fatty acid/phospholipid synthesis protein
1722	 37.70	+2	1999613..1999795	-	60	18310704	rpmF	CPE1722	-	50S ribosomal protein L32
1723	 32.07	0	1999811..2000206	-	131	18310705	-	CPE1723	-	hypothetical protein
1724	 31.91	0	2000425..2001621	-	398	18310706	ackB	CPE1724	-	acetate kinase
1725	 35.22	+1	2001712..2002719	-	335	18310707	eutD	CPE1725	-	phosphotransacetylase
1726	 26.98	0	2003056..2004156	+	366	18310708	-	CPE1726	-	hypothetical protein
1727	 26.01	0	2004221..2005381	+	386	18310709	-	CPE1727	-	hypothetical protein
1728	 30.32	0	2005364..2005894	-	176	18310710	-	CPE1728	-	hypothetical protein
1729	 31.11	0	2005903..2006397	-	164	18310711	coaD	CPE1729	-	pantetheine-phosphate adenylyltransferase
1730	 31.00	0	2006399..2006956	-	185	18310712	-	CPE1730	-	hypothetical protein
1731	 28.32	0	2007021..2009093	-	690	18310713	recG	CPE1731	-	ATP-dependent DNA helicase RecG
1732	 33.27	+1	2009246..2010892	-	548	18310714	-	CPE1732	-	DAK2 domain protein
1733	 30.17	0	2010906..2011253	-	115	18310715	-	CPE1733	-	hypothetical protein
29.13	MEAN

3.46	STD DEV
