IslandPath Analysis: Clostridium perfringens str. 13

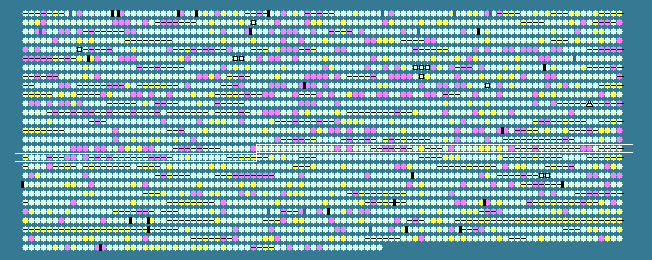

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.13   STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1540	 30.04	0	1802968..1804152	-	394	18310522	-	CPE1540	-	ABC transporter
1541	 29.34	0	1804139..1804840	-	233	18310523	-	CPE1541	-	ABC transporter
1542	 31.21	0	1804830..1805960	-	376	18310524	-	CPE1542	-	hypothetical protein
1543	 27.37	0	1806187..1806873	-	228	18310525	bioD	CPE1543	-	dithiobiotin synthetase
1544	 29.06	0	1806876..1807835	-	319	18310526	bioB	CPE1544	-	biotin synthase
1545	 29.73	0	1807854..1808408	-	184	18310527	bioY	CPE1545	-	biotin synthase
1546	 30.40	0	1808794..1809885	-	363	18310528	-	CPE1546	-	hypothetical protein
1547	 27.46	0	1810241..1813678	-	1145	18310529	spoVK	CPE1547	-	stage V sporulation protein K
1548	 29.31	0	1813734..1815722	-	662	18310530	fdh	CPE1548	-	molybdopterin oxidoreductase
1549	 31.32	0	1816133..1817227	+	364	18310531	prs	CPE1549	-	phosphoribosylpyrophosphate synthetase
1550	 29.57	0	1817277..1818338	-	353	18310532	-	CPE1550	-	hypothetical protein
1551	 29.19	0	1818549..1819538	-	329	18310533	-	CPE1551	-	endo-1,4-beta-xylanase
1552	 29.07	0	1819759..1821726	-	655	18310534	pulA	CPE1552	-	pullulanase
1553	 23.46	-1	1821902..1822438	+	178	18310535	sipS	CPE1553	-	signal peptidase I
1554	 26.24	0	1822494..1823339	-	281	18310536	-	CPE1554	-	putative lipoprotein
1555	 22.59	-1	1823448..1823717	-	89	18310537	-	CPE1555	-	hypothetical protein
1556	 27.53	0	1823828..1825843	-	671	18310538	-	CPE1556	-	hypothetical protein
1557	 26.92	0	1826145..1827095	-	316	18310539	-	CPE1557	-	hypothetical protein
1558	 31.93	0	1827243..1827884	+	213	18310540	-	CPE1558	-	di-trans, poly-cis-decaprenylcistransferase
1559	 25.87	0	1827889..1829388	+	499	18310541	-	CPE1559	-	diapophytoene dehydrogenase
1560	 26.06	0	1829419..1831110	-	563	18310542	-	CPE1560	-	GGDEF/HD domain protein
1561	 24.03	-1	1831325..1831969	-	214	18310543	-	CPE1561	-	hypothetical protein
1562	 21.96	-2	1831971..1832480	-	169	18310544	-	CPE1562	-	hypothetical protein
1563	 26.28	0	1832449..1833015	-	188	18310545	-	CPE1563	-	hypothetical protein
1564	 25.31	-1	1833167..1833727	-	186	18310546	-	CPE1564	-	hypothetical protein
1565	 29.42	0	1833988..1834983	-	331	18310547	-	CPE1565	-	hypothetical protein
1566	 30.09	0	1835113..1836192	-	359	18310548	dinP	CPE1566	-	DNA polymerase IV
1567	 34.76	+1	1836335..1836967	-	210	18310549	ppiB	CPE1567	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
1568	 27.16	0	1837145..1837549	-	134	18310550	-	CPE1568	-	hypothetical protein
1569	 31.89	0	1837666..1838496	-	276	18310551	-	CPE1569	-	HAD hydrolase, IIB family
1570	 27.59	0	1838800..1839513	-	237	18310552	-	CPE1570	-	phage shock protein A
1571	 28.92	0	1839598..1840299	-	233	18310553	-	CPE1571	-	putative lipoprotein
1572	 23.42	-1	1840447..1841112	+	221	18310554	-	CPE1572	-	hypothetical protein
1573	 27.98	0	1841356..1843692	-	778	18310555	-	CPE1573	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
1574	 31.37	0	1844089..1845006	-	305	18310556	-	CPE1574	-	hypothetical protein
1575	 30.93	0	1845153..1846442	-	429	18310557	-	CPE1575	-	hypothetical protein
1576	 28.73	0	1846695..1847063	-	122	18310558	-	CPE1576	-	hypothetical protein
1577	 34.59	+1	1847265..1848218	-	317	18310559	-	CPE1577	-	ABC transporter
1578	 32.79	+1	1848218..1849315	-	365	18310560	-	CPE1578	-	ABC transporter
1579	 30.66	0	1849305..1850840	-	511	18310561	-	CPE1579	-	ABC transporter
1580	 35.67	+1	1850981..1852093	-	370	18310562	-	CPE1580	-	membrane lipoprotein TmpC precursor
1581	 27.13	0	1852647..1853468	-	273	18310563	-	CPE1581	-	lipase
1582	 25.55	-1	1853950..1854771	-	273	18310564	-	CPE1582	-	hypothetical protein
1583	 28.94	0	1854780..1856486	-	568	18310565	-	CPE1583	-	ABC transporter
1584	 29.57	0	1856632..1857189	-	185	18310566	-	CPE1584	-	hypothetical protein
1585	 30.46	0	1857409..1857861	+	150	18310567	-	CPE1585	-	rhodanese domain protein
1586	 21.60	-2	1857907..1858230	-	107	18310568	-	CPE1586	-	hypothetical protein
1587	 28.76	0	1858372..1861566	-	1064	18310569	pulB	CPE1587	-	pullulanase
1588	 31.13	0	1861666..1863660	-	664	18310570	glgB	CPE1588	-	glycogen branching enzyme
1589	 25.71	0	1863740..1864447	-	235	18310571	-	CPE1589	-	hypothetical protein
1590	 28.79	0	1864689..1865459	+	256	18310572	-	CPE1590	-	hypothetical protein
1591	 28.05	0	1865456..1865947	+	163	18310573	-	CPE1591	-	hypothetical protein
1592	 26.82	0	1866140..1866907	-	255	18310574	-	CPE1592	-	hypothetical protein
1593	 28.43	0	1867256..1868683	-	475	18310575	-	CPE1593	-	hypothetical protein
1594	 19.25	-2	1868755..1868967	-	70	18310576	-	CPE1594	-	hypothetical protein
1595	 25.31	-1	1869140..1869463	-	107	18310577	-	CPE1595	-	putative thioredoxin
1596	 31.25	0	1869559..1870518	-	319	18310578	-	CPE1596	-	acetylxylan esterase
1597	 29.05	0	1870960..1871823	+	287	18310579	-	CPE1597	-	hypothetical protein
1598	 26.81	0	1871906..1872334	-	142	18310580	-	CPE1598	-	hypothetical protein
1599	 28.69	0	1872446..1873027	-	193	18310581	thiE	CPE1599	-	thiamine monophosphate synthase family protein
1600	 31.16	0	1873057..1874160	-	367	18310582	thiH	CPE1600	-	thiamine biosynthesis protein ThiH
1601	 35.69	+1	1874173..1874937	-	254	18310583	thiG	CPE1601	-	thiazole synthase
1602	 28.89	0	1875061..1875870	-	269	18310584	-	CPE1602	-	thiamine biosynthesis protein ThiF
1603	 26.67	0	1875946..1876140	-	64	18310585	-	CPE1603	-	thiamine biosynthesis protein ThiS
1604	 30.51	0	1876416..1878116	-	566	18310586	-	CPE1604	-	transporter, major facilitator family
1605	 25.31	-1	1878452..1879261	-	269	18310587	-	CPE1605	-	GTP pyrophosphokinase-like protein
1606	 26.67	0	1879313..1879612	-	99	18310588	-	CPE1606	-	hypothetical protein
1607	 30.63	0	1879670..1880113	-	147	18310589	-	CPE1607	-	methionine sulfoxide reductase B
1608	 24.69	-1	1880189..1880836	-	215	18310590	-	CPE1608	-	hypothetical protein
1609	 21.33	-2	1880986..1881285	+	99	18310591	-	CPE1609	-	hypothetical protein
1610	 28.25	0	1881329..1882312	-	327	18310592	-	CPE1610	-	endo-1,4-beta-xylanase
1611	 21.85	-2	1882553..1882822	-	89	18310593	-	CPE1611	-	hypothetical protein
1612	 26.45	0	1882925..1883578	+	217	18310594	-	CPE1612	-	hypothetical protein
1613	 23.50	-1	1883647..1884012	-	121	18310595	-	CPE1613	-	hypothetical protein
1614	 29.26	0	1884141..1885466	-	441	18310596	-	CPE1614	-	cell wall-binding protein
1615	 21.92	-2	1885709..1885927	-	72	18310597	-	CPE1615	-	hypothetical protein
1616	 28.57	0	1886074..1886262	+	62	18310598	-	CPE1616	-	hypothetical protein
1617	 30.05	0	1886615..1887010	-	131	18310599	-	CPE1617	-	hypothetical protein
1618	 27.13	0	1887026..1887283	-	85	18310600	-	CPE1618	-	hypothetical protein
1619	 27.62	0	1887300..1889591	-	763	18310601	-	CPE1619	-	ATP-dependent DNA helicase, UvrD/REP family
1620	 29.30	0	1890116..1890586	+	156	18310602	-	CPE1620	-	hypothetical protein
1621	 26.15	0	1890669..1891475	-	268	18310603	-	CPE1621	-	hypothetical protein
1622	 25.30	-1	1891744..1892739	-	331	18310604	-	CPE1622	-	hypothetical protein
1623	 24.62	-1	1892881..1893546	+	221	18310605	-	CPE1623	-	putative lipoprotein
1624	 24.77	-1	1893868..1895793	+	641	18310606	-	CPE1624	-	hypothetical protein
1625	 27.50	0	1896218..1899472	-	1084	18310607	-	CPE1625	-	helicase, SNF2/RAD54 family
1626	 28.47	0	1899839..1900825	-	328	18310608	-	CPE1626	-	transcriptional regulator
1627	 31.97	0	1900964..1901404	-	146	18310609	rbsB	CPE1627	-	ribose ABC transporter
1628	 32.78	+1	1901337..1901876	-	179	18310610	-	CPE1628	-	ribose ABC transporter
1629	 31.09	0	1901898..1902833	-	311	18310611	rbsC	CPE1629	-	ribose ABC transporter
1630	 30.35	0	1902847..1904352	-	501	18310612	rbsA	CPE1630	-	ribose ABC transporter
1631	 29.04	0	1904439..1904834	-	131	18310613	rbsD	CPE1631	-	D-ribose pyranase
1632	 29.47	0	1904837..1905769	-	310	18310614	rbsK	CPE1632	-	ribokinase
1633	 30.56	0	1905910..1906377	-	155	18310615	def	CPE1633	-	polypeptide deformylase
1634	 30.73	0	1906533..1907492	-	319	18310616	tagO	CPE1634	-	undecaprenyl-phosphate N-acetylglucosaminyltransferase
1635	 27.87	0	1907638..1908204	-	188	18310617	-	CPE1635	-	transcriptional regulator
1636	 32.40	0	1908420..1909064	-	214	18310618	ntpD	CPE1636	-	V-type ATP synthase subunit D
1637	 35.79	+1	1909067..1910449	-	460	18310619	ntpB	CPE1637	-	V-type ATP synthase subunit B
1638	 37.73	+2	1910442..1912217	-	591	18310620	ntpA	CPE1638	-	V-type ATP synthase subunit A
1639	 32.70	+1	1912234..1912551	-	105	18310621	ntpF	CPE1639	-	V-type ATP synthase subunit F
29.13	MEAN

3.46	STD DEV
