IslandPath Analysis: Clostridium perfringens str. 13

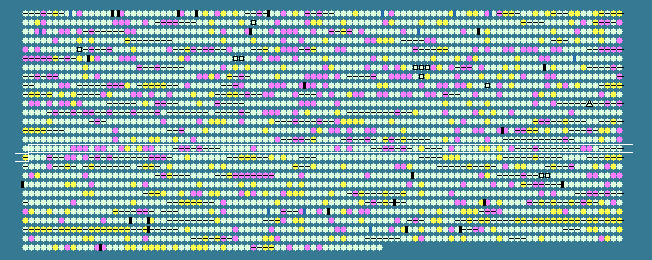

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1502	 31.07	0	1754150..1755163	-	337	18310484	-	CPE1502	-	hypothetical protein
1503	 31.25	0	1755260..1755547	-	95	18310485	-	CPE1503	-	hypothetical protein
1504	 32.45	0	1755771..1756784	-	337	18310486	-	CPE1504	-	hypothetical protein
1505	 31.79	0	1757210..1758508	-	432	18310487	uraA	CPE1505	-	uracil transporter
1506	 32.26	0	1758696..1760279	+	527	18310488	-	CPE1506	-	ABC transporter
1507	 29.39	0	1760330..1761292	-	320	18310489	-	CPE1507	-	endo-1,4-beta-xylanase
1508	 30.18	0	1761676..1763862	-	728	18310490	topB	CPE1508	-	DNA topoisomerase III
1509	 24.95	-1	1763959..1765377	-	472	18310491	-	CPE1509	-	hypothetical protein
1510	 21.37	-2	1765387..1765854	-	155	18310492	-	CPE1510	-	hypothetical protein
1511	 22.56	-1	1766269..1766667	-	132	18310493	-	CPE1511	-	hypothetical protein
1512	 28.43	0	1766875..1770156	-	1093	18310494	-	CPE1512	-	sensor histidine kinase/response regulator
1513	 24.07	-1	1770238..1771338	-	366	18310495	-	CPE1513	-	hypothetical protein
1514	 25.00	-1	1771353..1772720	-	455	18310496	argI	CPE1514	-	AlgI-related protein
1515	 31.93	0	1772948..1773445	-	165	18310497	-	CPE1515	-	putative lipoprotein
1516	 28.02	0	1773697..1774920	-	407	18310498	-	CPE1516	-	ATP-dependent RNA helicase, DEAD/DEAH box family
1517	 24.04	-1	1774938..1775249	-	103	18310499	-	CPE1517	-	hypothetical protein
1518	 32.74	+1	1775558..1776904	-	448	18310500	gdhA	CPE1518	-	glutamate dehydrogenase
1519	 26.87	0	1777386..1777880	-	164	18310501	-	CPE1519	-	hypothetical protein
1520	 33.82	+1	1778114..1779139	+	341	18310502	ilvE	CPE1520	-	branched-chain amino acid aminotransferase
1521	 21.01	-2	1779183..1779596	-	137	18310503	-	CPE1521	-	hypothetical protein
1522	 23.63	-1	1779619..1780164	-	181	18310504	-	CPE1522	-	hypothetical protein
1523	 30.76	0	1780361..1783744	-	1127	18310505	nagL	CPE1523	-	hyaluronidase
1524	 26.86	0	1784103..1785029	+	308	18310506	-	CPE1524	-	hypothetical protein
1525	 29.32	0	1785150..1786919	-	589	18310507	-	CPE1525	-	ABC transporter
1526	 28.34	0	1786954..1788675	-	573	18310508	-	CPE1526	-	ABC transporter
1527	 25.16	-1	1789308..1790102	-	264	18310509	-	CPE1527	-	hypothetical protein
1528	 22.78	-1	1790285..1790644	-	119	18310510	-	CPE1528	-	hypothetical protein
1529	 27.20	0	1790912..1792249	+	445	18310511	-	CPE1529	-	hypothetical protein
1530	 19.42	-2	1792316..1792732	-	138	18310512	-	CPE1530	-	hypothetical protein
1531	 30.38	0	1792953..1793900	-	315	18310513	-	CPE1531	-	fructokinase
1532	 27.87	0	1793893..1795356	-	487	18310514	sacA	CPE1532	-	sucrose-6-P hydrolase
1533	 27.73	0	1795396..1796376	-	326	18310515	-	CPE1533	-	sucrose operon repressor
1534	 31.71	0	1796505..1797857	-	450	18310516	-	CPE1534	-	PTS system, sucrose-specific IIBC component
1535	 25.84	0	1798180..1798806	-	208	18310517	-	CPE1535	-	hypothetical protein
1536	 32.38	0	1799318..1800364	-	348	18310518	asrC	CPE1536	-	anaerobic sulfite reductase subunit C
1537	 30.68	0	1800377..1801168	-	263	18310519	asrB	CPE1537	-	anaerobic sulfite reductase subunit B
1538	 28.49	0	1801169..1802200	-	343	18310520	asrA	CPE1538	-	anaerobic sulfite reductase subunit A
1539	 23.84	-1	1802460..1802870	+	136	18310521	-	CPE1539	-	hypothetical protein
1540	 30.04	0	1802968..1804152	-	394	18310522	-	CPE1540	-	ABC transporter
1541	 29.34	0	1804139..1804840	-	233	18310523	-	CPE1541	-	ABC transporter
1542	 31.21	0	1804830..1805960	-	376	18310524	-	CPE1542	-	hypothetical protein
1543	 27.37	0	1806187..1806873	-	228	18310525	bioD	CPE1543	-	dithiobiotin synthetase
1544	 29.06	0	1806876..1807835	-	319	18310526	bioB	CPE1544	-	biotin synthase
1545	 29.73	0	1807854..1808408	-	184	18310527	bioY	CPE1545	-	biotin synthase
1546	 30.40	0	1808794..1809885	-	363	18310528	-	CPE1546	-	hypothetical protein
1547	 27.46	0	1810241..1813678	-	1145	18310529	spoVK	CPE1547	-	stage V sporulation protein K
1548	 29.31	0	1813734..1815722	-	662	18310530	fdh	CPE1548	-	molybdopterin oxidoreductase
1549	 31.32	0	1816133..1817227	+	364	18310531	prs	CPE1549	-	phosphoribosylpyrophosphate synthetase
1550	 29.57	0	1817277..1818338	-	353	18310532	-	CPE1550	-	hypothetical protein
1551	 29.19	0	1818549..1819538	-	329	18310533	-	CPE1551	-	endo-1,4-beta-xylanase
1552	 29.07	0	1819759..1821726	-	655	18310534	pulA	CPE1552	-	pullulanase
1553	 23.46	-1	1821902..1822438	+	178	18310535	sipS	CPE1553	-	signal peptidase I
1554	 26.24	0	1822494..1823339	-	281	18310536	-	CPE1554	-	putative lipoprotein
1555	 22.59	-1	1823448..1823717	-	89	18310537	-	CPE1555	-	hypothetical protein
1556	 27.53	0	1823828..1825843	-	671	18310538	-	CPE1556	-	hypothetical protein
1557	 26.92	0	1826145..1827095	-	316	18310539	-	CPE1557	-	hypothetical protein
1558	 31.93	0	1827243..1827884	+	213	18310540	-	CPE1558	-	di-trans, poly-cis-decaprenylcistransferase
1559	 25.87	0	1827889..1829388	+	499	18310541	-	CPE1559	-	diapophytoene dehydrogenase
1560	 26.06	0	1829419..1831110	-	563	18310542	-	CPE1560	-	GGDEF/HD domain protein
1561	 24.03	-1	1831325..1831969	-	214	18310543	-	CPE1561	-	hypothetical protein
1562	 21.96	-2	1831971..1832480	-	169	18310544	-	CPE1562	-	hypothetical protein
1563	 26.28	0	1832449..1833015	-	188	18310545	-	CPE1563	-	hypothetical protein
1564	 25.31	-1	1833167..1833727	-	186	18310546	-	CPE1564	-	hypothetical protein
1565	 29.42	0	1833988..1834983	-	331	18310547	-	CPE1565	-	hypothetical protein
1566	 30.09	0	1835113..1836192	-	359	18310548	dinP	CPE1566	-	DNA polymerase IV
1567	 34.76	+1	1836335..1836967	-	210	18310549	ppiB	CPE1567	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
1568	 27.16	0	1837145..1837549	-	134	18310550	-	CPE1568	-	hypothetical protein
1569	 31.89	0	1837666..1838496	-	276	18310551	-	CPE1569	-	HAD hydrolase, IIB family
1570	 27.59	0	1838800..1839513	-	237	18310552	-	CPE1570	-	phage shock protein A
1571	 28.92	0	1839598..1840299	-	233	18310553	-	CPE1571	-	putative lipoprotein
1572	 23.42	-1	1840447..1841112	+	221	18310554	-	CPE1572	-	hypothetical protein
1573	 27.98	0	1841356..1843692	-	778	18310555	-	CPE1573	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
1574	 31.37	0	1844089..1845006	-	305	18310556	-	CPE1574	-	hypothetical protein
1575	 30.93	0	1845153..1846442	-	429	18310557	-	CPE1575	-	hypothetical protein
1576	 28.73	0	1846695..1847063	-	122	18310558	-	CPE1576	-	hypothetical protein
1577	 34.59	+1	1847265..1848218	-	317	18310559	-	CPE1577	-	ABC transporter
1578	 32.79	+1	1848218..1849315	-	365	18310560	-	CPE1578	-	ABC transporter
1579	 30.66	0	1849305..1850840	-	511	18310561	-	CPE1579	-	ABC transporter
1580	 35.67	+1	1850981..1852093	-	370	18310562	-	CPE1580	-	membrane lipoprotein TmpC precursor
1581	 27.13	0	1852647..1853468	-	273	18310563	-	CPE1581	-	lipase
1582	 25.55	-1	1853950..1854771	-	273	18310564	-	CPE1582	-	hypothetical protein
1583	 28.94	0	1854780..1856486	-	568	18310565	-	CPE1583	-	ABC transporter
1584	 29.57	0	1856632..1857189	-	185	18310566	-	CPE1584	-	hypothetical protein
1585	 30.46	0	1857409..1857861	+	150	18310567	-	CPE1585	-	rhodanese domain protein
1586	 21.60	-2	1857907..1858230	-	107	18310568	-	CPE1586	-	hypothetical protein
1587	 28.76	0	1858372..1861566	-	1064	18310569	pulB	CPE1587	-	pullulanase
1588	 31.13	0	1861666..1863660	-	664	18310570	glgB	CPE1588	-	glycogen branching enzyme
1589	 25.71	0	1863740..1864447	-	235	18310571	-	CPE1589	-	hypothetical protein
1590	 28.79	0	1864689..1865459	+	256	18310572	-	CPE1590	-	hypothetical protein
1591	 28.05	0	1865456..1865947	+	163	18310573	-	CPE1591	-	hypothetical protein
1592	 26.82	0	1866140..1866907	-	255	18310574	-	CPE1592	-	hypothetical protein
1593	 28.43	0	1867256..1868683	-	475	18310575	-	CPE1593	-	hypothetical protein
1594	 19.25	-2	1868755..1868967	-	70	18310576	-	CPE1594	-	hypothetical protein
1595	 25.31	-1	1869140..1869463	-	107	18310577	-	CPE1595	-	putative thioredoxin
1596	 31.25	0	1869559..1870518	-	319	18310578	-	CPE1596	-	acetylxylan esterase
1597	 29.05	0	1870960..1871823	+	287	18310579	-	CPE1597	-	hypothetical protein
1598	 26.81	0	1871906..1872334	-	142	18310580	-	CPE1598	-	hypothetical protein
1599	 28.69	0	1872446..1873027	-	193	18310581	thiE	CPE1599	-	thiamine monophosphate synthase family protein
1600	 31.16	0	1873057..1874160	-	367	18310582	thiH	CPE1600	-	thiamine biosynthesis protein ThiH
1601	 35.69	+1	1874173..1874937	-	254	18310583	thiG	CPE1601	-	thiazole synthase
29.13	MEAN

3.46	STD DEV
