IslandPath Analysis: Clostridium perfringens str. 13

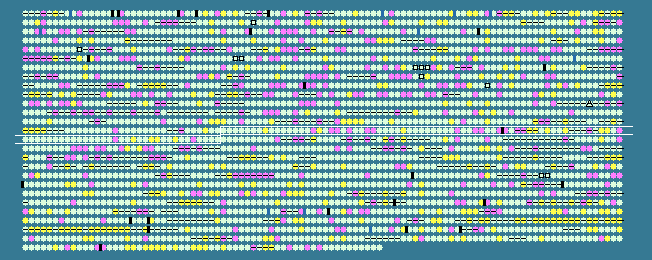

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1334	 29.49	0	1574621..1576543	-	640	18310316	prkA	CPE1334	-	serine protein kinase
1335	 27.88	0	1576633..1578411	-	592	18310317	recQ	CPE1335	-	ATP-dependent DNA helicase RecQ
1336	 29.33	0	1578642..1579265	-	207	18310318	thiE	CPE1336	-	thiamine-phosphate pyrophosphorylase
1337	 30.08	0	1579258..1580055	-	265	18310319	thiM	CPE1337	-	hydroxyethylthiazole kinase
1338	 31.45	0	1580067..1580861	-	264	18310320	thiD	CPE1338	-	phosphomethylpyrimidine kinase
1339	 27.14	0	1581169..1582008	+	279	18310321	-	CPE1339	-	hypothetical protein
1340	 30.08	0	1582126..1583139	-	337	18310322	-	CPE1340	-	LacI family transcriptional regulator
1341	 35.02	+1	1583357..1584421	+	354	18310323	-	CPE1341	-	galactoside ABC transporter
1342	 31.20	0	1584496..1586043	+	515	18310324	-	CPE1342	-	galactose/methyl galaxtoside transporter ATP-binding protein
1343	 32.56	0	1586015..1587043	+	342	18310325	mglC	CPE1343	-	beta-methylgalactoside transporter inner membrane component
1344	 27.96	0	1587084..1588106	-	340	18310326	-	CPE1344	-	aldose 1-epimerase
1345	 29.98	0	1588332..1589495	+	387	18310327	galK	CPE1345	-	galactokinase
1346	 27.52	0	1589618..1591114	+	498	18310328	galT	CPE1346	-	galactose-1-phosphate uridylyltransferase
1347	 28.35	0	1591305..1592969	-	554	18310329	-	CPE1347	-	uridine kinase
1348	 28.90	0	1593091..1593789	+	232	18310330	-	CPE1348	-	hypothetical protein
1349	 23.68	-1	1593786..1594220	+	144	18310331	-	CPE1349	-	hypothetical protein
1350	 35.87	+1	1594317..1595183	+	288	18310332	alf2	CPE1350	-	fructose-1,6-bisphosphate aldolase, class II
1351	 27.01	0	1595230..1596273	-	347	18310333	-	CPE1351	-	hypothetical protein
1352	 25.00	-1	1596413..1596976	+	187	18310334	-	CPE1352	-	hypothetical protein
1353	 23.95	-1	1597424..1597828	-	134	18310335	-	CPE1353	-	hypothetical protein
1354	 32.12	0	1597967..1599616	-	549	18310336	entB	CPE1354	-	enterotoxin
1355	 21.41	-2	1599782..1600150	-	122	18310337	-	CPE1355	-	hypothetical protein
1356	 29.97	0	1600338..1600724	+	128	18310338	-	CPE1356	-	hypothetical protein
1357	 29.63	0	1600850..1601335	-	161	18310339	-	CPE1357	-	ybaK/ebsC protein
1358	 24.21	-1	1601922..1603226	-	434	18310340	-	CPE1358	-	hypothetical protein
1359	 23.36	-1	1603308..1603748	-	146	18310341	-	CPE1359	-	hypothetical protein
1360	 28.17	0	1603772..1604158	-	128	18310342	-	CPE1360	-	hypothetical protein
1361	 30.71	0	1604254..1605129	-	291	18310343	-	CPE1361	-	hypothetical protein
1362	 28.70	0	1605491..1606051	-	186	18310344	-	CPE1362	-	hypothetical protein
1363	 30.28	0	1606130..1607080	-	316	18310345	-	CPE1363	-	ribonuclease Z
1364	 32.74	+1	1607193..1611608	-	1471	18310346	-	CPE1364	-	hypothetical protein
1365	 29.82	0	1611842..1612468	+	208	18310347	-	CPE1365	-	hypothetical protein
1366	 26.16	0	1612521..1613273	-	250	18310348	-	CPE1366	-	hypothetical protein
1367	 26.54	0	1613365..1614513	-	382	18310349	-	CPE1367	-	hypothetical protein
1368	 30.51	0	1614594..1619726	-	1710	18310350	-	CPE1368	-	hypothetical protein
1369	 27.78	0	1619964..1620467	-	167	18310351	-	CPE1369	-	GNAT family acetyltransferase
1370	 26.67	0	1620776..1621555	+	259	18310352	hisB	CPE1370	-	histidinol phosphatase
1371	 29.68	0	1621905..1623218	+	437	18310353	-	CPE1371	-	sodium- and chloride- dependent transporter
1372	 29.17	0	1623511..1624206	+	231	18310354	-	CPE1372	-	putative proton-coupled thiamine transporter YuaJ
1373	 24.61	-1	1624315..1625391	+	358	18310355	hisC	CPE1373	-	aminotransferase family protein
1374	 29.80	0	1625522..1626568	-	348	18310356	-	CPE1374	-	calcium/proton exchanger
1375	 29.71	0	1627010..1628305	-	431	18310357	-	CPE1375	-	phosphodiesterase/nucleotide pyrophosphatase family protein
1376	 25.60	-1	1628362..1628697	-	111	18310358	-	CPE1376	-	hypothetical protein
1377	 24.64	-1	1628835..1629248	-	137	18310359	-	CPE1377	-	hypothetical protein
1378	 27.08	0	1629448..1630359	-	303	18310360	-	CPE1378	-	hypothetical protein
1379	 28.91	0	1630393..1631184	-	263	18310361	-	CPE1379	-	D-alanyl-D-alanine carboxypeptidase
1380	 24.46	-1	1631454..1631780	-	108	18310362	-	CPE1380	-	hypothetical protein
1381	 24.63	-1	1632265..1633206	+	313	18310363	-	CPE1381	-	hypothetical protein
1382	 31.72	0	1633244..1634113	-	289	18310364	map	CPE1382	-	methionine aminopeptidase, type I
1383	 25.13	-1	1634461..1635057	-	198	18310365	-	CPE1383	-	hypothetical protein
1384	 22.40	-1	1635159..1636082	+	307	18310366	-	CPE1384	-	hypothetical protein
1385	 33.33	+1	1636222..1636791	-	189	18310367	-	CPE1385	-	hypothetical protein
1386	 35.27	+1	1636877..1637134	-	85	18310368	-	CPE1386	-	hypothetical protein
1387	 31.94	0	1637156..1637371	-	71	18310369	-	CPE1387	-	hypothetical protein
1388	 38.10	+2	1637407..1637889	-	160	18310370	-	CPE1388	-	hypothetical protein
1389	 28.79	0	1638106..1638699	-	197	18310371	-	CPE1389	-	GTPase EngB
1390	 30.59	0	1638699..1641029	-	776	18310372	lonA	CPE1390	-	ATP-dependent protease La
1391	 32.69	+1	1641151..1642863	-	570	18310373	lonB	CPE1391	-	Lon-like ATP-dependent protease
1392	 31.35	0	1642974..1644281	-	435	18310374	clpX	CPE1392	-	ATP-dependent protease ATP-binding subunit
1393	 31.62	0	1644321..1644905	-	194	18310375	clpP	CPE1393	-	ATP-dependent Clp protease proteolytic subunit
1394	 31.70	0	1645096..1646382	-	428	18310376	tig	CPE1394	-	trigger factor
1395	 22.47	-1	1646480..1647298	-	272	18310377	-	CPE1395	-	hypothetical protein
1396	 31.32	0	1647504..1649090	+	528	18310378	-	CPE1396	-	ATP-dependent RNA helicase, DEAD/DEAH box family
1397	 34.85	+1	1649129..1649392	-	87	18310379	-	CPE1397	-	hypothetical protein
1398	 33.47	+1	1649585..1650292	+	235	18310380	pfs	CPE1398	-	purine nucleoside phosphorylase
1399	 26.64	0	1650343..1651626	-	427	18310381	-	CPE1399	-	hypothetical protein
1400	 23.77	-1	1651637..1651981	-	114	18310382	-	CPE1400	-	hypothetical protein
1401	 28.93	0	1652165..1653073	-	302	18310383	-	CPE1401	-	DNA polymerase III subunit epsilon
1402	 27.58	0	1653320..1656241	-	973	18310384	-	CPE1402	-	zinc metalloprotease
1403	 30.00	0	1656616..1656885	-	89	18310385	-	CPE1403	-	hypothetical protein
1404	 29.60	0	1657055..1658206	+	383	18310386	-	CPE1404	-	hypothetical protein
1405	 30.72	0	1658258..1658983	-	241	18310387	-	CPE1405	-	N-acetylmuramoyl-L-alanine amidase
1406	 32.37	0	1659141..1659347	+	68	18310388	-	CPE1406	-	hypothetical protein
1407	 30.51	0	1659365..1659718	+	117	18310389	-	CPE1407	-	hypothetical protein
1408	 31.23	0	1659846..1661417	-	523	18310390	-	CPE1408	-	hypothetical protein
1409	 28.99	0	1661680..1662990	+	436	18310391	-	CPE1409	-	hypothetical protein
1410	 32.42	0	1663004..1663984	+	326	18310392	-	CPE1410	-	Na-translocating NADH-quinone reductase Nqr2 subunit
1411	 29.07	0	1664307..1664564	-	85	18310393	-	CPE1411	-	hypothetical protein
1412	 30.74	0	1664692..1665849	-	385	18310394	thiI	CPE1412	-	thiamine biosynthesis/tRNA modification protein ThiI
1413	 29.58	0	1665846..1666991	-	381	18310395	nifS	CPE1413	-	aminotransferase, class V
1414	 29.22	0	1667165..1667602	-	145	18310396	pheB	CPE1414	-	hypothetical protein
1415	 29.84	0	1667981..1670560	-	859	18310397	-	CPE1415	-	hypothetical protein
1416	 25.43	-1	1670669..1671250	-	193	18310398	-	CPE1416	-	hypothetical protein
1417	 26.90	0	1671289..1672128	-	279	18310399	-	CPE1417	-	hypothetical protein
1418	 29.90	0	1672370..1673098	+	242	18310400	-	CPE1418	-	hypothetical protein
1419	 33.26	+1	1673142..1674530	-	462	18310401	-	CPE1419	-	amino acid ABC transporter
1420	 28.16	0	1674837..1675493	-	218	18310402	-	CPE1420	-	poly A polymerase
1421	 30.15	0	1675816..1676568	+	250	18310403	-	CPE1421	-	hypothetical protein
1422	 34.56	+1	1676773..1677750	+	325	18310404	-	CPE1422	-	hypothetical protein
1423	 36.07	+2	1677991..1678173	+	60	18310405	sas2	CPE1423	-	small acid-soluble spore protein C2
1424	 26.76	0	1678221..1678661	-	146	18310406	-	CPE1424	-	hypothetical protein
1425	 30.25	0	1678661..1679308	-	215	18310407	-	CPE1425	-	pyrrolidone-carboxylate peptidase
1426	 33.12	+1	1679338..1680267	-	309	18310408	-	CPE1426	-	hypothetical protein
1427	 30.98	0	1680280..1680960	-	226	18310409	-	CPE1427	-	hypothetical protein
1428	 30.14	0	1681198..1683798	-	866	18310410	clpB	CPE1428	-	clpB protein
1429	 24.38	-1	1684114..1685655	+	513	18310411	-	CPE1429	-	hypothetical protein
1430	 27.18	0	1685736..1687166	+	476	18310412	clsD	CPE1430	-	cardiolipin synthase
1431	 29.34	0	1687324..1688949	-	541	18310413	-	CPE1431	-	FAD flavoprotein oxidase
1432	 32.55	0	1689150..1690433	-	427	18310414	hemL	CPE1432	-	glutamate-1-semialdehyde aminotransferase
1433	 31.78	0	1690491..1691456	-	321	18310415	hemB	CPE1433	-	delta-aminolevulinic acid dehydratase
29.13	MEAN

3.46	STD DEV
