IslandPath Analysis: Clostridium perfringens str. 13

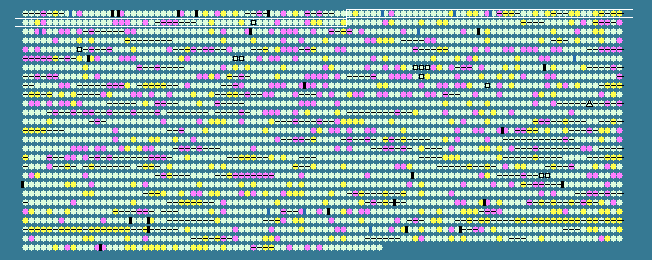

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 29.13 STD DEV: 3.46
Clostridium perfringens str. 13, complete genome - 1..3031430
2660 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
55	 26.89	0	65960..67216	+	418	18309037	-	CPE0055	-	hypothetical protein
56	 34.34	+1	67272..67967	-	231	18309038	mtn	CPE0056	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
57	 31.36	0	68347..69108	+	253	18309039	-	CPE0057	-	HesA/MoeB/ThiF family protein
58	 29.56	0	69399..70565	+	388	18309040	-	CPE0058	-	hypothetical protein
59	 26.30	0	70590..71528	+	312	18309041	-	CPE0059	-	GNAT family acetyltransferase
60	 29.40	0	71545..72231	+	228	18309042	dgk2	CPE0060	-	deoxyguanosine kinase
61	 31.90	0	78534..79856	+	440	18309043	-	CPE0061	-	integral membrane transport protein
62	 21.33	-2	79983..80132	+	49	18309044	-	CPE0062	-	hypothetical protein
63	 28.69	0	80480..82504	+	674	18309045	glgB	CPE0063	-	glycogen branching enzyme
64	 29.54	0	82532..83980	+	482	18309046	glgA	CPE0064	-	glycogen synthase
65	 30.46	0	84010..86445	+	811	18309047	glgP	CPE0065	-	glycogen phosphorylase
66	 28.61	0	86541..88361	+	606	18309048	-	CPE0066	-	amylopullulanase
67	 28.83	0	88416..88859	+	147	18309049	-	CPE0067	-	hypothetical protein
68	 30.03	0	89069..90250	+	393	18309050	glgC	CPE0068	-	glucose-1-phosphate adenylyltransferase
69	 26.11	0	90280..91386	+	368	18309051	glgD	CPE0069	-	glycogen biosynthesis protein
70	 26.62	0	91449..91895	+	148	18309052	-	CPE0070	-	phosphotransbutyrylase
71	 26.96	0	92062..93504	-	480	18309053	clsA	CPE0071	-	cardiolipin synthase
72	 34.17	+1	93936..95492	+	518	18309054	-	CPE0072	-	hypothetical protein
73	 26.32	0	101425..102009	+	194	18309055	-	CPE0073	-	transcription antiterminator
74	 27.51	0	101897..102274	+	125	18309056	-	CPE0074	-	transcription antiterminator
75	 35.66	+1	102497..102754	-	85	18309057	-	CPE0075	-	hypothetical protein
76	 33.09	+1	103447..104664	+	405	18309058	-	CPE0076	-	PTS system, N-acetylglucosamine-specific IIBC component
77	 28.49	0	104712..104897	+	61	18309059	-	CPE0077	-	hypothetical protein
78	 23.31	-1	104966..105484	-	172	18309060	-	CPE0078	-	TetR family transcriptional regulator
79	 30.80	0	111585..113675	+	696	18309061	fus	CPE0079	-	elongation factor G
80	 24.05	-1	114098..114334	+	78	18309062	-	CPE0080	-	hypothetical protein
81	 35.55	+1	114586..115533	+	315	18309063	glcK	CPE0081	-	glucose kinase
82	 37.57	+2	116074..116616	+	180	18309064	-	CPE0082	-	hypothetical protein
83	 26.60	0	116949..117572	+	207	18309065	gpmA	CPE0083	-	phosphoglycerate mutase family protein
84	 26.72	0	117931..118701	-	256	18309066	iolR	CPE0084	-	transcription repressor of myo-inositol catabolism operon
85	 32.38	0	119183..120337	+	384	18309067	mdh	CPE0085	-	alcohol dehydrogenase
86	 34.87	+1	120344..121189	+	281	18309068	alf1	CPE0086	-	fructose-bisphosphate aldolase
87	 32.25	0	121203..122219	+	338	18309069	iolC	CPE0087	-	myo-inositol catabolism protein
88	 32.94	+1	122233..123000	+	255	18309070	iolB	CPE0088	-	myo-inositol catabolism protein
89	 34.11	+1	123017..124936	+	639	18309071	iolD	CPE0089	-	myo-inositol catabolism protein
90	 31.75	0	125006..126013	+	335	18309072	-	CPE0090	-	dehydrogenase
91	 30.20	0	126132..127025	+	297	18309073	iolE	CPE0091	-	myo-inositol catabolism protein
92	 32.70	+1	127107..128696	+	529	18309074	-	CPE0092	-	putative symporter YidK
93	 32.67	+1	128783..129832	+	349	18309075	-	CPE0093	-	dehydrogenase
94	 31.75	0	130202..130960	+	252	18309076	-	CPE0094	-	hypothetical protein
95	 32.56	0	131191..131967	+	258	18309077	-	CPE0095	-	crotonase
96	 35.27	+1	132070..133620	+	516	18309078	-	CPE0096	-	propionate CoA-transferase
97	 33.51	+1	133724..134860	+	378	18309079	acdS	CPE0097	-	acyl-CoA dehydrogenase
98	 28.77	0	135262..135612	-	116	18309080	-	CPE0098	-	hypothetical protein
99	 33.86	+1	136190..137320	+	376	18309081	gldA	CPE0099	-	glycerol dehydrogenase
100	 33.10	+1	137346..139094	+	582	18309082	-	CPE0100	-	dihydroxyacetone kinase
101	 30.54	0	139454..140887	+	477	18309083	-	CPE0101	-	multidrug resistance protein
102	 28.21	0	141164..141436	+	90	18309084	-	CPE0102	-	hypothetical protein
103	 32.70	+1	141837..142790	-	317	18309085	ldh	CPE0103	-	L-lactate dehydrogenase
104	 23.04	-1	143416..144591	+	391	18309086	-	CPE0104	-	hypothetical protein
105	 27.40	0	144710..145147	+	145	18309087	-	CPE0105	-	hypothetical protein
106	 27.80	0	145358..146098	+	246	18309088	-	CPE0106	-	hypothetical protein
107	 26.12	0	146210..147082	+	290	18309089	-	CPE0107	-	hypothetical protein
108	 30.84	0	147218..148582	-	454	18309090	-	CPE0108	-	GTP-binding protein
109	 27.02	0	149310..149594	-	94	18309091	-	CPE0109	-	hypothetical protein
110	 31.50	0	150273..151694	-	473	18309092	thiH	CPE0110	-	thiamine biosynthesis protein ThiH
111	 32.14	0	151800..152051	-	83	18309093	-	CPE0111	-	hypothetical protein
112	 30.33	0	152495..154060	+	521	18309094	-	CPE0112	-	hypothetical protein
113	 31.58	0	154209..154436	+	75	18309095	-	CPE0113	-	hypothetical protein
114	 28.00	0	154720..154944	+	74	18309096	-	CPE0114	-	hypothetical protein
115	 27.92	0	155002..155943	-	313	18309097	-	CPE0115	-	N-acetylmuramoyl-L-alanine amidase
116	 23.08	-1	155956..157116	-	386	18309098	-	CPE0116	-	hypothetical protein
117	 24.94	-1	157128..158378	-	416	18309099	-	CPE0117	-	hypothetical protein
118	 22.60	-1	158494..159294	+	266	18309100	-	CPE0118	-	hypothetical protein
119	 29.22	0	159434..160114	+	226	18309101	-	CPE0119	-	two-component response regulator
120	 26.92	0	160111..161124	+	337	18309102	-	CPE0120	-	two-component sensor histidine kinase
121	 15.66	-2	161176..161373	+	65	18309103	-	CPE0121	-	hypothetical protein
122	 30.22	0	161923..162693	+	256	18309104	-	CPE0122	-	ABC transporter
123	 27.37	0	162683..164662	+	659	18309105	-	CPE0123	-	ABC transporter
124	 17.54	-2	164831..165400	-	189	18309106	-	CPE0124	-	hypothetical protein
125	 23.94	-1	165492..165704	+	70	18309107	-	CPE0125	-	hypothetical protein
126	 20.49	-2	165999..166325	+	108	18309108	-	CPE0126	-	hypothetical protein
127	 26.15	0	166569..166763	+	64	18309109	-	CPE0127	-	hypothetical protein
128	 28.89	0	166956..167585	+	209	18309110	-	CPE0128	-	hypothetical protein
129	 29.02	0	168100..169119	+	339	18309111	-	CPE0129	-	hypothetical protein
130	 32.03	0	169320..169472	+	50	18309112	-	CPE0130	-	hypothetical protein
131	 29.42	0	169828..170721	-	297	18309113	-	CPE0131	-	hypothetical protein
132	 34.30	+1	171050..172288	+	412	18309114	cinA	CPE0132	-	competence damage-inducible protein A
133	 27.18	0	172988..173914	+	308	18309115	-	CPE0133	-	CAAX amino terminal protease family protein
134	 31.90	0	174180..174389	+	69	18309116	-	CPE0134	-	hypothetical protein
135	 32.14	0	174742..175329	+	195	18309117	rubY	CPE0135	-	rubrerythrin
136	 29.67	0	175492..176037	-	181	18309118	-	CPE0136	-	hypothetical protein
137	 34.43	+1	176893..178449	+	518	18309119	-	CPE0137	-	ABC transporter
138	 26.72	0	178710..179510	+	266	18309120	-	CPE0138	-	hypothetical protein
139	 29.09	0	179861..180331	+	156	18309121	-	CPE0139	-	transposase
140	 26.61	0	180609..182378	+	589	18309122	-	CPE0140	-	hypothetical protein
141	 27.78	0	182398..182559	-	53	18309123	-	CPE0141	-	hypothetical protein
142	 26.85	0	182670..182885	+	71	18309124	-	CPE0142	-	hypothetical protein
143	 23.61	-1	182876..183235	+	119	18309125	-	CPE0143	-	hypothetical protein
144	 28.26	0	183767..184318	+	183	18309126	-	CPE0144	-	hypothetical protein
145	 27.66	0	184608..185453	+	281	18309127	-	CPE0145	-	hypothetical protein
146	 27.29	0	185482..186507	+	341	18309128	-	CPE0146	-	2-keto-3-deoxygluconate kinase
147	 30.44	0	186571..188370	+	599	18309129	bglR	CPE0147	-	beta-D-glucuronidase
148	 24.78	-1	188513..189202	+	229	18309130	-	CPE0148	-	transcriptional regulator
149	 32.75	+1	189392..190243	+	283	18309131	-	CPE0149	-	D-mannonate oxidoreductase
150	 33.83	+1	190258..190866	+	202	18309132	-	CPE0150	-	2-dehydro-3-deoxyphosphogluconate/4-hydroxy-2-ox oglutarate aldolase
151	 31.43	0	190957..192009	+	350	18309133	uxuA	CPE0151	-	mannonate dehydratase
152	 28.69	0	192029..193429	+	466	18309134	uxaC	CPE0152	-	glucuronate isomerase
153	 30.75	0	193550..194941	+	463	18309135	uidB	CPE0153	-	glucuronide permease
154	 32.71	+1	195005..196774	+	589	18309136	-	CPE0154	-	beta-hexosamidase A
29.13	MEAN

3.46	STD DEV
